P8/P10 Advertising Display Screen Full Color Video LED Display Panel

Shenzhen Chuangkaiguang Co., Ltd.
  • Tube Chip Color：Full Color
  • IP Rating：IP65
  • Pixel Pitch：8mm
  • Pixel Configuration：1R, 1G, 1B
  • Display Function：Video Display
  • Average Power Consumption：300W,Sqm

Base Info

  • Model NO.：8mm
  • Pixel Density：15625dots,Sqm
  • Scanning Mode：1,4 Scan
  • Display Type：LED Video Display
  • Application：Advertising
  • Certification：CE, RoHS, UL, CCC, ETL
  • Module Size：256X128mm
  • Module Resolution：32X16mm
  • Cabinet Size：768X768mm
  • Cabinet Resolution：96X96dots
  • Screen Brightness：6500nits
  • Protection Grade：IP65
  • Compliance：Ce
  • Service：Rear Service
  • Controller：Nova, Linsn
  • Transport Package：Wooden Case
  • Specification：768x768mm
  • Trademark：CKGLED
  • Origin：China
  • HS Code：8528591090
  • Production Capacity：6000sqm,Month

Description

NO.ItemParameters1Pixel Pitch(mm)82LED Configuration1R1G1B3LED TypeSMD35354Screen Resolution15625dots/sqm5Module size(mm)256x1286Module resolution(dots)32x167Scan method1/4 constant current drive8Cabinet size(mm)768x7689Cabinet resolution(dots)96x9610Cabinet materialIron / Aluminum11Brightness(cd/sqm)≥650012Viewing angleH:140°/ V:140°13Grey Scale14bit14Refresh rate(Hz)≥192015Ave. power consumption (W/sqm)30016Max. power consumption(W/sqm)90017IP gradeF:IP65 / R:IP5418controllerNovastar / Linsn19MaintenanceRear service20Color(T)>28122Input Voltage(V)AC 110V-220V +/-10%21Frame frequency(Hz)6022Working humidity10~95%RH23Working temperature-30ºC~60ºC24CertificatesRoHS / CE / CCC

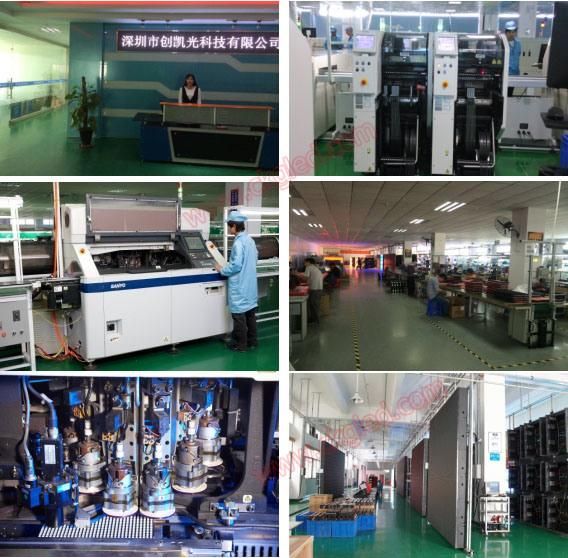

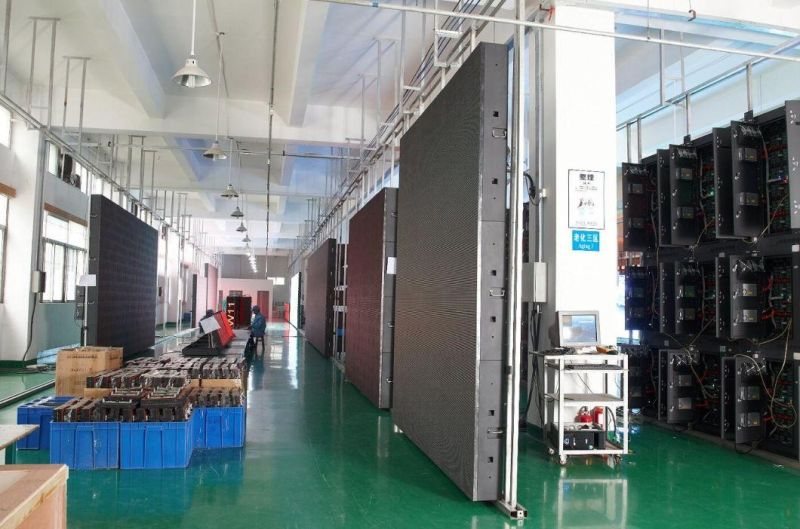

WORKSHOP:

P8/P10 Advertising Display Screen Full Color Video LED Display Panel

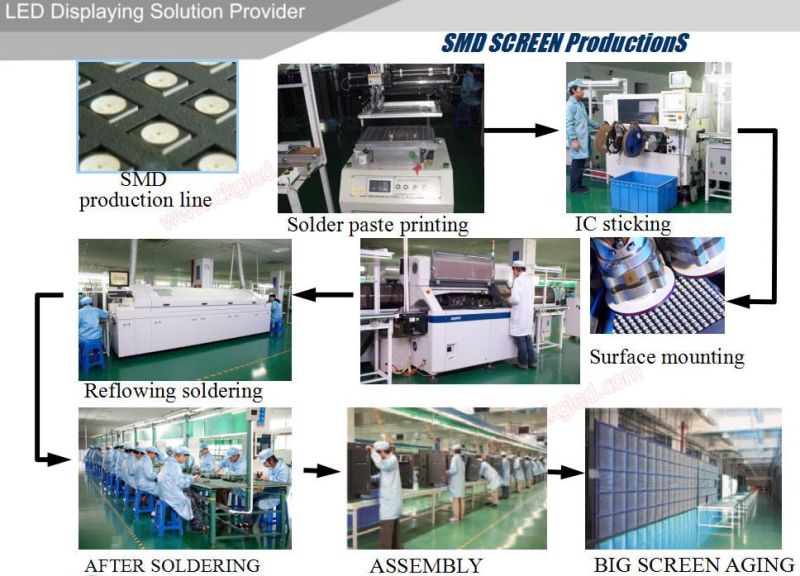

PROCESS:

P8/P10 Advertising Display Screen Full Color Video LED Display Panel

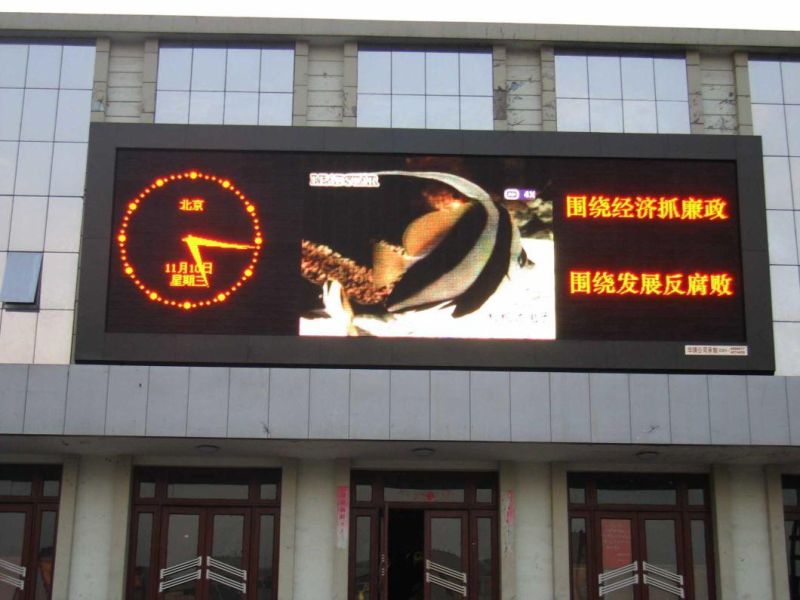

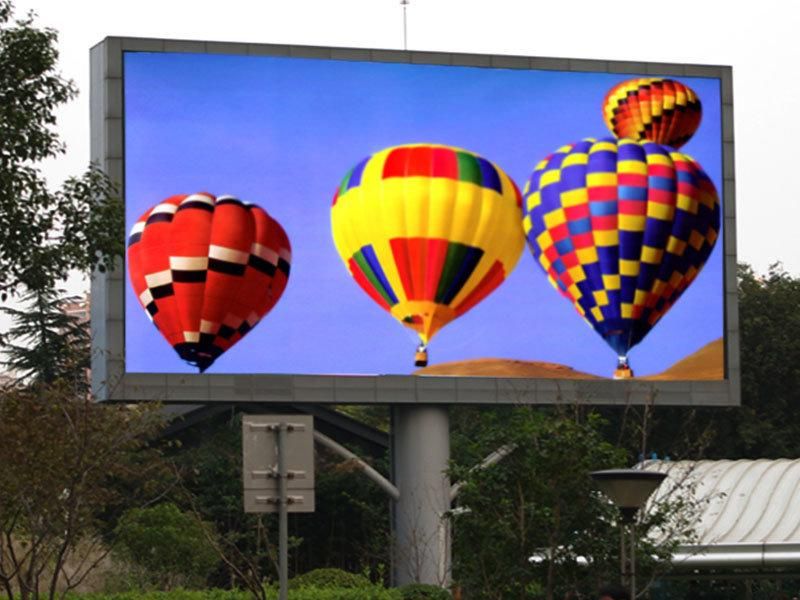

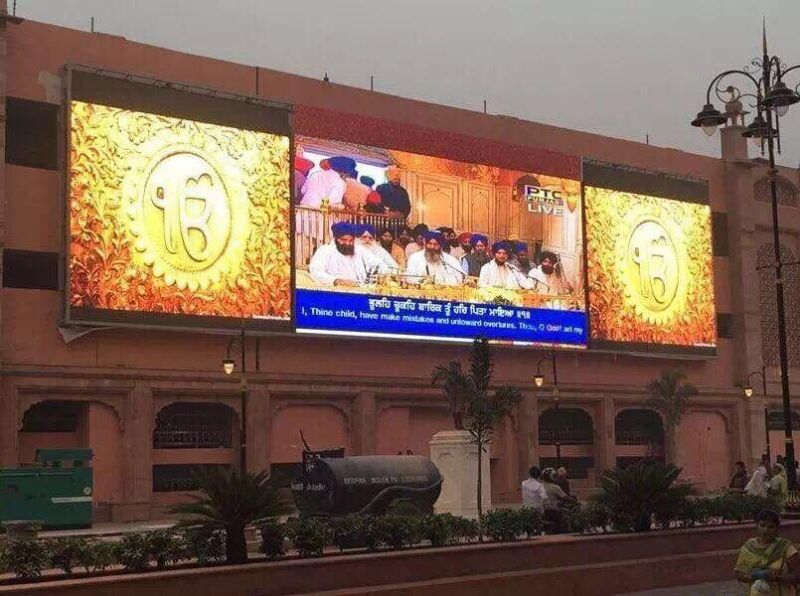

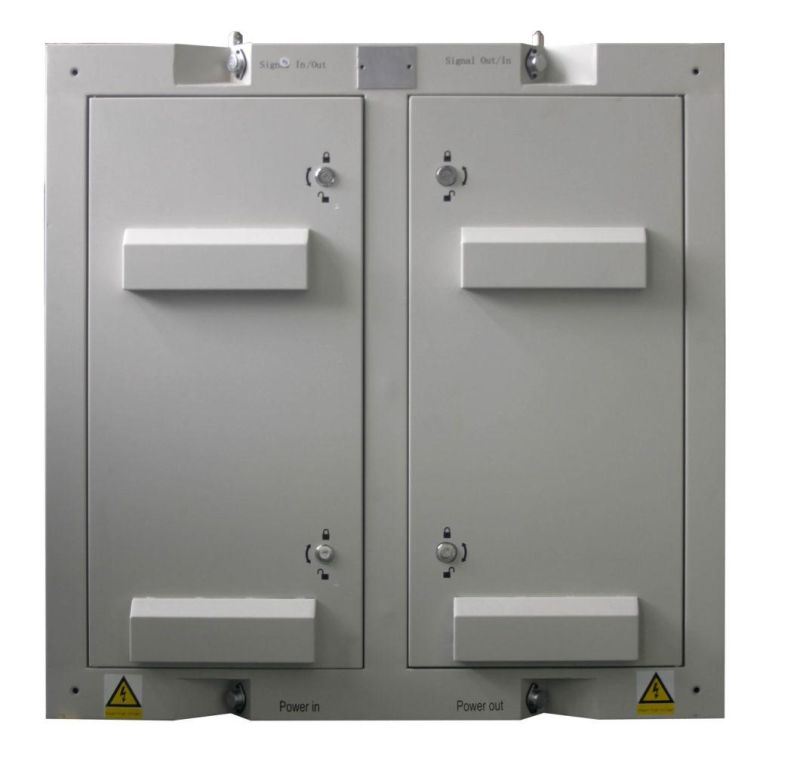

Product photos:

P8/P10 Advertising Display Screen Full Color Video LED Display Panel
P8/P10 Advertising Display Screen Full Color Video LED Display Panel
P8/P10 Advertising Display Screen Full Color Video LED Display Panel
P8/P10 Advertising Display Screen Full Color Video LED Display Panel
P8/P10 Advertising Display Screen Full Color Video LED Display Panel
P8/P10 Advertising Display Screen Full Color Video LED Display Panel

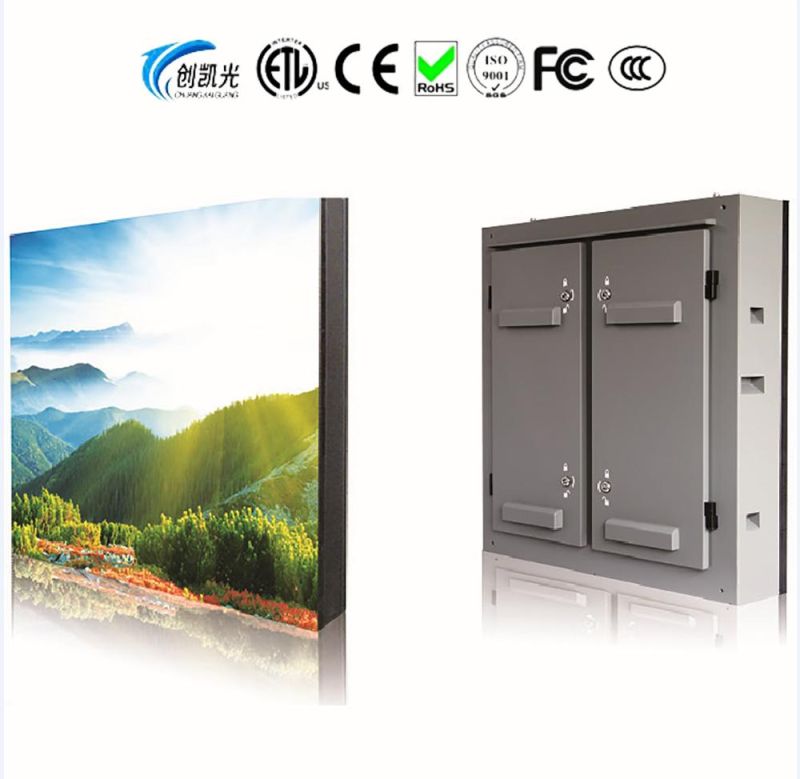

Certificates:

P8/P10 Advertising Display Screen Full Color Video LED Display Panel

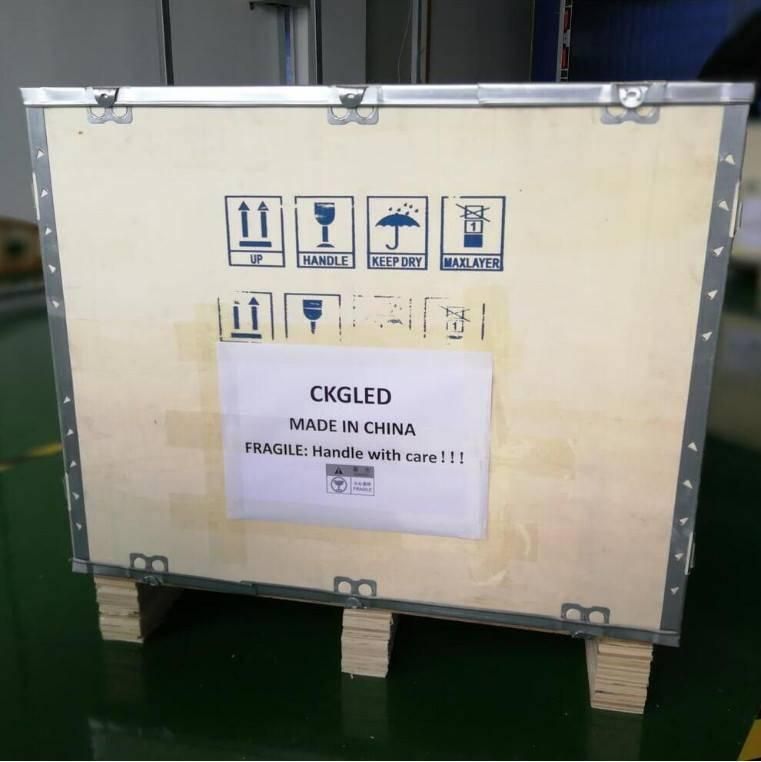

Package:

P8/P10 Advertising Display Screen Full Color Video LED Display Panel
