• Model NO.：10mm
• Pixel Density：10000 dot , m²
• Scanning Mode：1,4 Scan
• Display Type：LED Video Display
• Application：Advertising
• Certification：CE, RoHS, CCC
• Module Size：160X160mm
• Module Resolution：16X16dots
• Cabinet Size：1280X960mm
• Cabinet Resolution：128X96dots
• Screen Brightness：5500nits
• Protection Grade：IP65
• Compliance：Ce
• Service：Rear
• Controller：Nova, Linsn
• Transport Package：Flight Case
• Specification：1280x960mm
• Trademark：CKGLED
• Origin：China
• HS Code：8528591090
• Production Capacity：6000sqm,Month

Basic Info.

Model NO. 10mm Pixel Density 10000 dot / m² Scanning Mode 1/4 Scan Display Type LED Video Display Application Advertising Certification CE, RoHS, CCC Module Size 160X160mm Module Resolution 16X16dots Cabinet Size 1280X960mm Cabinet Resolution 128X96dots Screen Brightness 5500nits Protection Grade IP65 Compliance Ce Service Rear Controller Nova/ Linsn Transport Package Flight Case Specification 1280x960mm Trademark CKGLED Origin China HS Code 8528591090 Production Capacity 6000sqm/Month

Product Description

S SERIES PRODUCE FEATURES:

  . High brightness which is adjustable to meet the needs of various working      environment sufficiently.,

   ·  Soft mask and protection pillow to protect both players and the led screen itself.

   ·  Angle adjustable: Large viewing angle covers the majority of audience and    cameras: Getting noticed, endless commercial value.

   ·  All raw materials go through the strictly testing of high/low temperature and high  humidity, anti-ultraviolet rays, anti-corrosion.

   · IP65 protection grade, durable nature enables the screen to work in all outdoor  weather conditions.

   · Applications: Especially applicable for football stadium / cricket stadium and other  sports fields.


PRODUCT SPECIFICATIONS:


NO.	Parameter	Specifications
1	Model	S10
2	Pixel Pitch (mm)	10
3	Physical Density (dot/m2)	10000
4	LED Configuration	1R1G1B
5	LED Type	SMD3535
6	Module Size (mm x mm)	320x160
7	Module Resolution (PX x PX)	32x16
8	Module Power Consumption (W)	38
9	Drive Mode	1/4 Constant Current Drive
10	Horizontal Viewing Angle (Deg)	120
11	Vertical Viewing Angle (Deg)	120
12	Brightness (cd/m2)	5500
13	Grey Scale	16 bits
14	Refresh Rate (Hz)	1920
15	Cabinet Resolution (PX x PX)	128x96
16	Cabinet Max Power Consumption (W)	922
17	Cabinet Average Power Consumption (W)	307
18	Cabinet Size (mm x mm)	1280x960
19	Cabinet Weight (Kg)	68
20	Cabinet Thickness (mm)	150
21	Cabinet Material	Steel/Aluminum
22	Color (M)	>16.7
23	Input Voltage (V)	AC 110V~220V+/-10%
24	Refresh Frame Frequency (Hz)	60
25	Protection Level	IP65
26	Working Environment	Outdoor
27	Working Temperature (ºC)	"-30°- +60°
28	Operation humidity (RH)	10%-95%
29	Certificates	CCC ,CE,RoHS

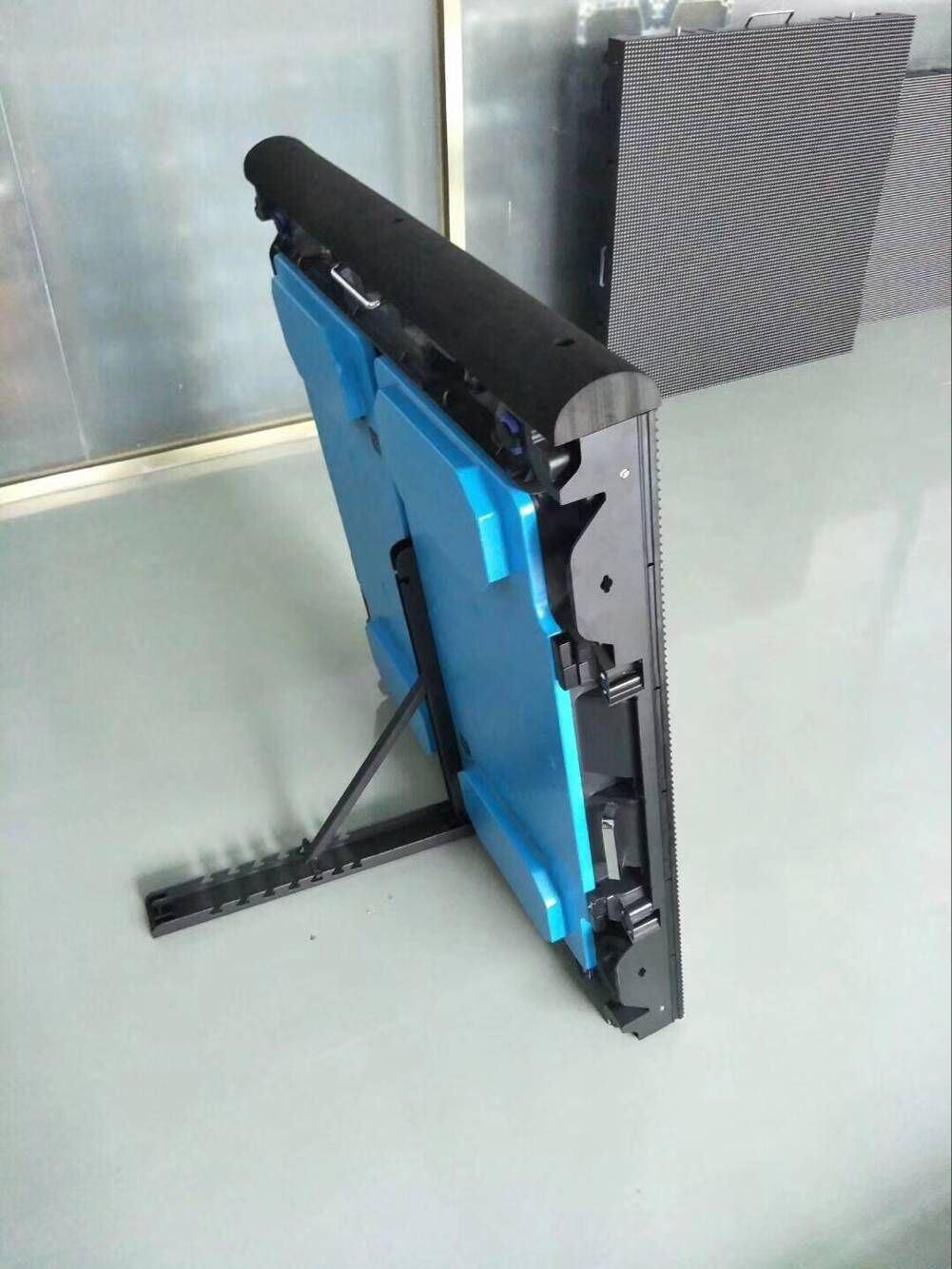

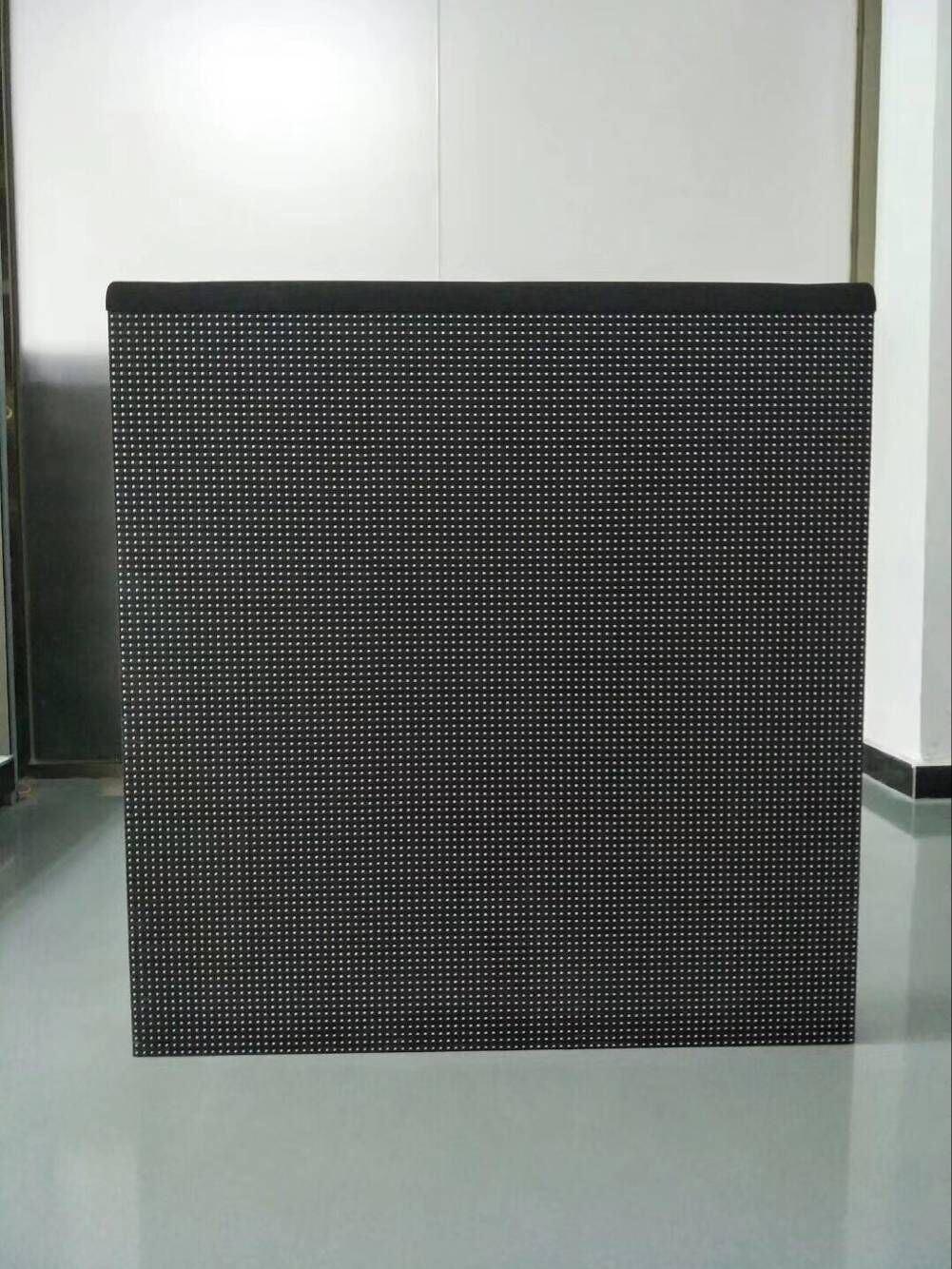

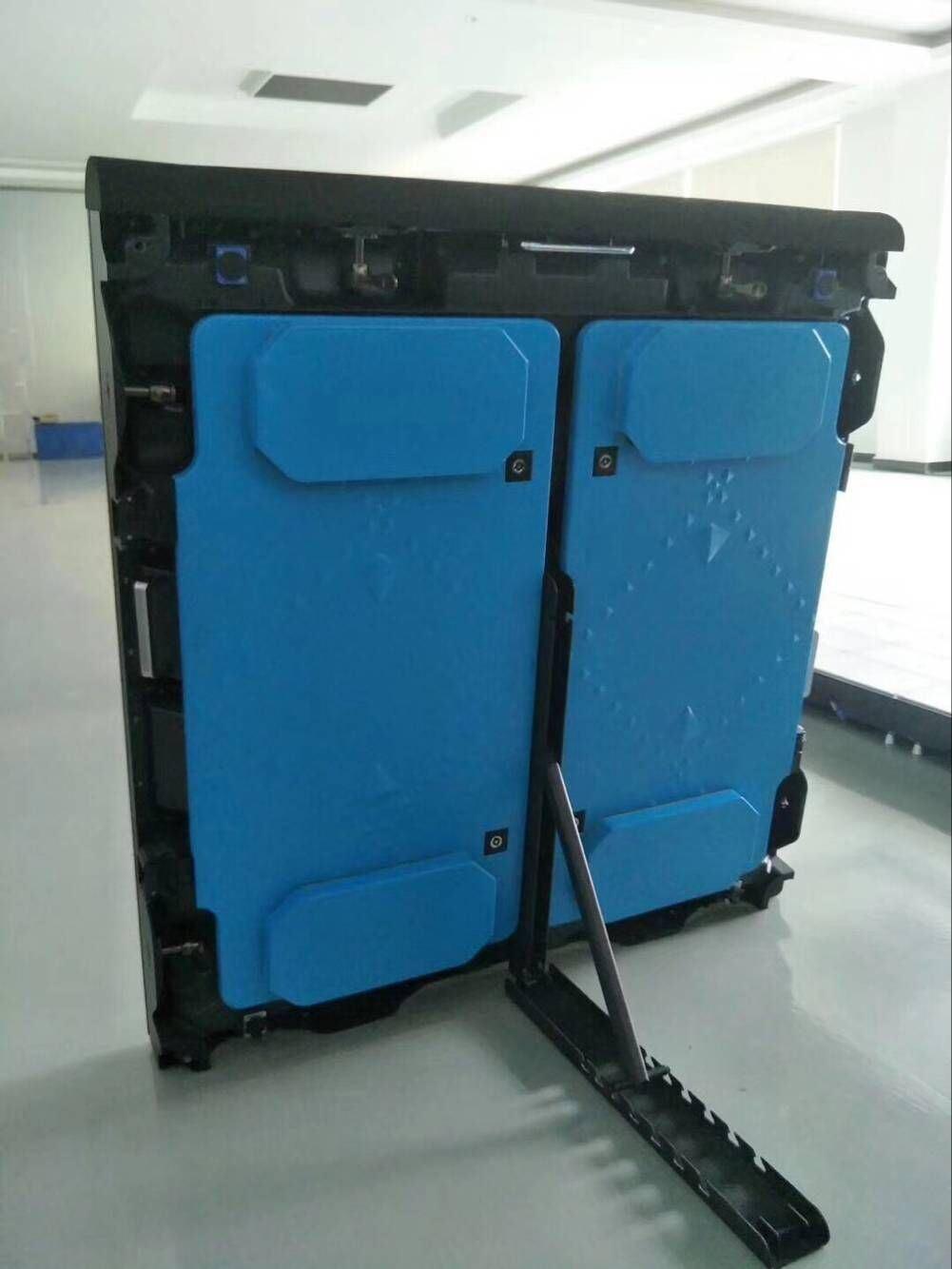

Product photos:

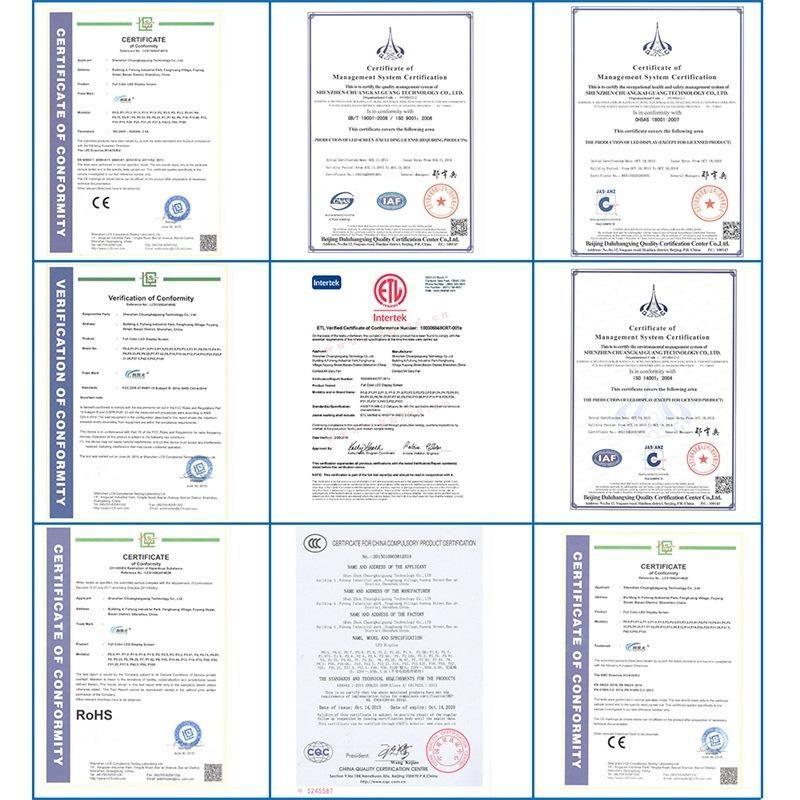

Certificates:



Package:
