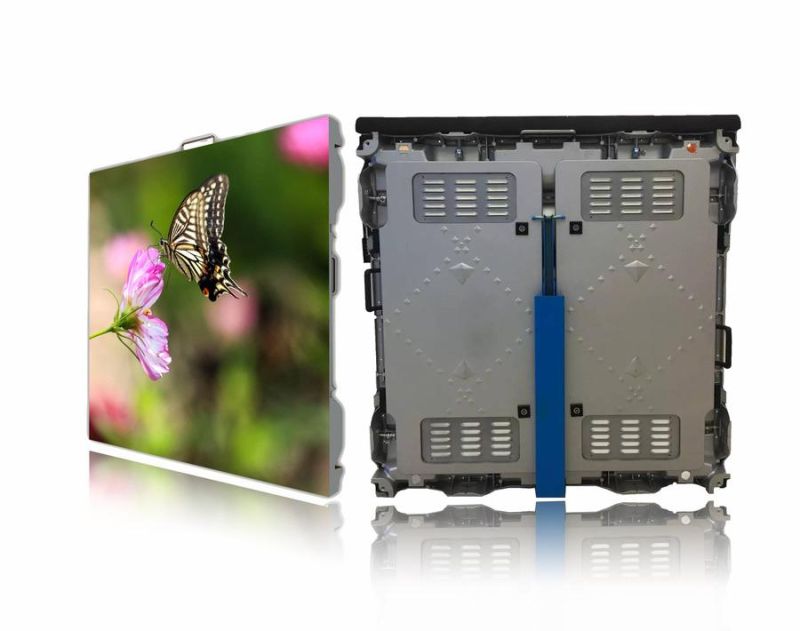

P8 Ce Outdoor LED Advertising Perimeter Display for Football Court
Shenzhen Chuangkaiguang Co., Ltd.- Tube Chip Color:Full Color
- IP Rating:IP65
- Pixel Pitch:8mm
- Pixel Configuration:1R, 1G, 1B
- Display Function:Video Display
- Average Power Consumption:300W,Sqm
Base Info
- Model NO.:8mm
- Pixel Density:15625dots,Sqm
- Scanning Mode:1,4 Scan
- Display Type:LED Video Display
- Application:Advertising
- Certification:CE, RoHS, CCC
- Module Size:256X128mm
- Module Resolution:32X16dots
- Cabinet Size:1024X896mm
- Cabinet Resolution:128X112dots
- Screen Brightness:6000nits
- Protection Grade:IP65
- Viewing Angle:V:140° , H:140°
- Controller:Nova
- Maintenance:Rear , Front Service
- Compliance:Ce
- Transport Package:Plywood Case
- Specification:1024x768mm
- Trademark:CKGLED
- Origin:China
- HS Code:8528591090
- Production Capacity:6000sqm,Month
Description
Basic Info.
Model NO. 8mm Pixel Density 15625dots/Sqm Scanning Mode 1/4 Scan Display Type LED Video Display Application Advertising Certification CE, RoHS, CCC Module Size 256X128mm Module Resolution 32X16dots Cabinet Size 1024X896mm Cabinet Resolution 128X112dots Screen Brightness 6000nits Protection Grade IP65 Viewing Angle V:140° / H:140° Controller Nova Maintenance Rear / Front Service Compliance Ce Transport Package Plywood Case Specification 1024x768mm Trademark CKGLED Origin China HS Code 8528591090 Production Capacity 6000sqm/MonthProduct Description
S SERIES PRODUCE FEATURES:. High brightness which is adjustable to meet the needs of various working environment sufficiently.,
· Angle adjustable: Wide viewing angle covers the majority of audience and cameras: Getting noticed, endless commercial value.
· All raw materials go through the strictly testing of high/low temperature and high humidity, anti-ultraviolet rays, anti-corrosion.
· IP65 protection grade, durable nature enables the screen to work in all outdoor weather conditions.
· Applications: Especially applicable for football stadium / cricket stadium and other sports fields.
. Long life span: upto 100,000hours.
PRODUCT SPECIFICATIONS:
NO. | Parameter | Specifications |
1 | Model: | S08 |
2 | Pixel Pitch (mm) | 8 |
3 | Physical Density (dot/m2) | 15625 |
4 | LED Configuration | 1R1G1B |
5 | LED Type | SMD3535 |
6 | Module Size (mm x mm) | 256x128 |
7 | Module Resolution (PX x PX) | 32x16 |
8 | Module Power Consumption (W) | 29 |
9 | Drive Mode | 1/4 Constant Current Drive |
10 | Horizontal Viewing Angle (Deg) | 120 |
11 | Vertical Viewing Angle (Deg) | 120 |
12 | Brightness (cd/m2) | 6000 |
13 | Grey Scale | 16bit |
14 | Refresh Rate (Hz) | 1920 |
15 | Cabinet Resolution (PX x PX) | 128x112 |
16 | Cabinet Max. Power Consumption (W) | 820 |
17 | Cabinet Ave. Power Consumption (W) | 275 |
18 | Cabinet Size (mm x mm) | 1024x896 |
19 | Cabinet Weight (Kg) | 55 |
20 | Cabinet Thickness (mm) | 150 |
21 | Cabinet Material | Steel/Aluminum |
22 | Color (M) | >16.7 |
23 | Input Voltage (V) | AC 110V~220V+/-10% |
24 | Refresh Frame Frequency (Hz) | 60 |
25 | Protection Level | IP65 |
26 | Working Environment | Outdoor |
27 | Working Temperature (ºC) | "-30°- +60° |
28 | Operation humidity (RH) | 10%-95% |
29 | Certificates | CCC ,CE,RoHS |
30 | Protection Level | IP65 |

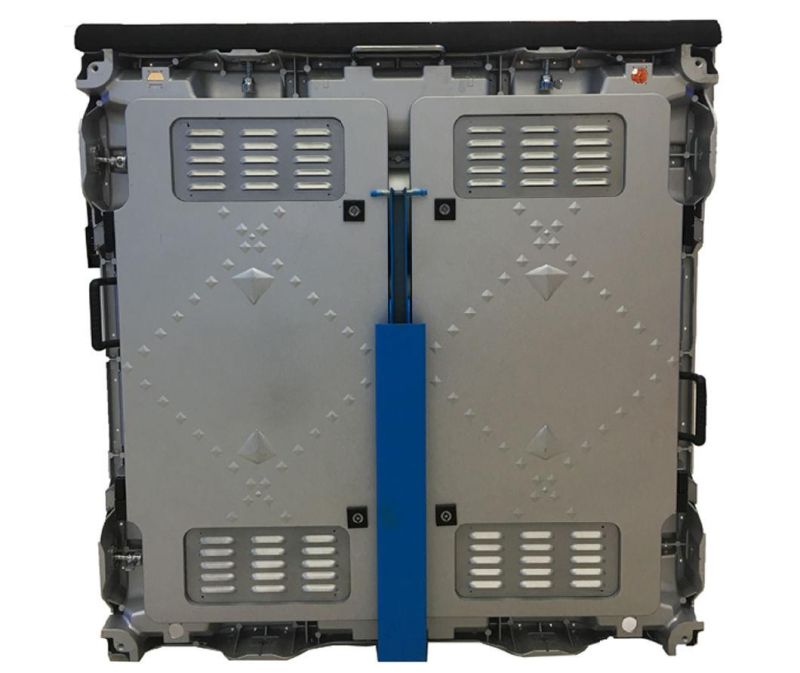

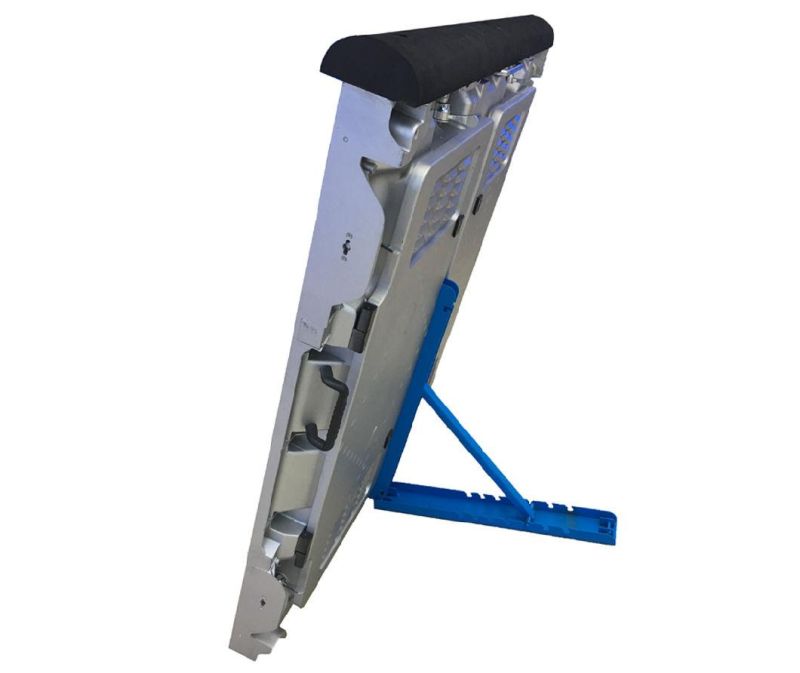

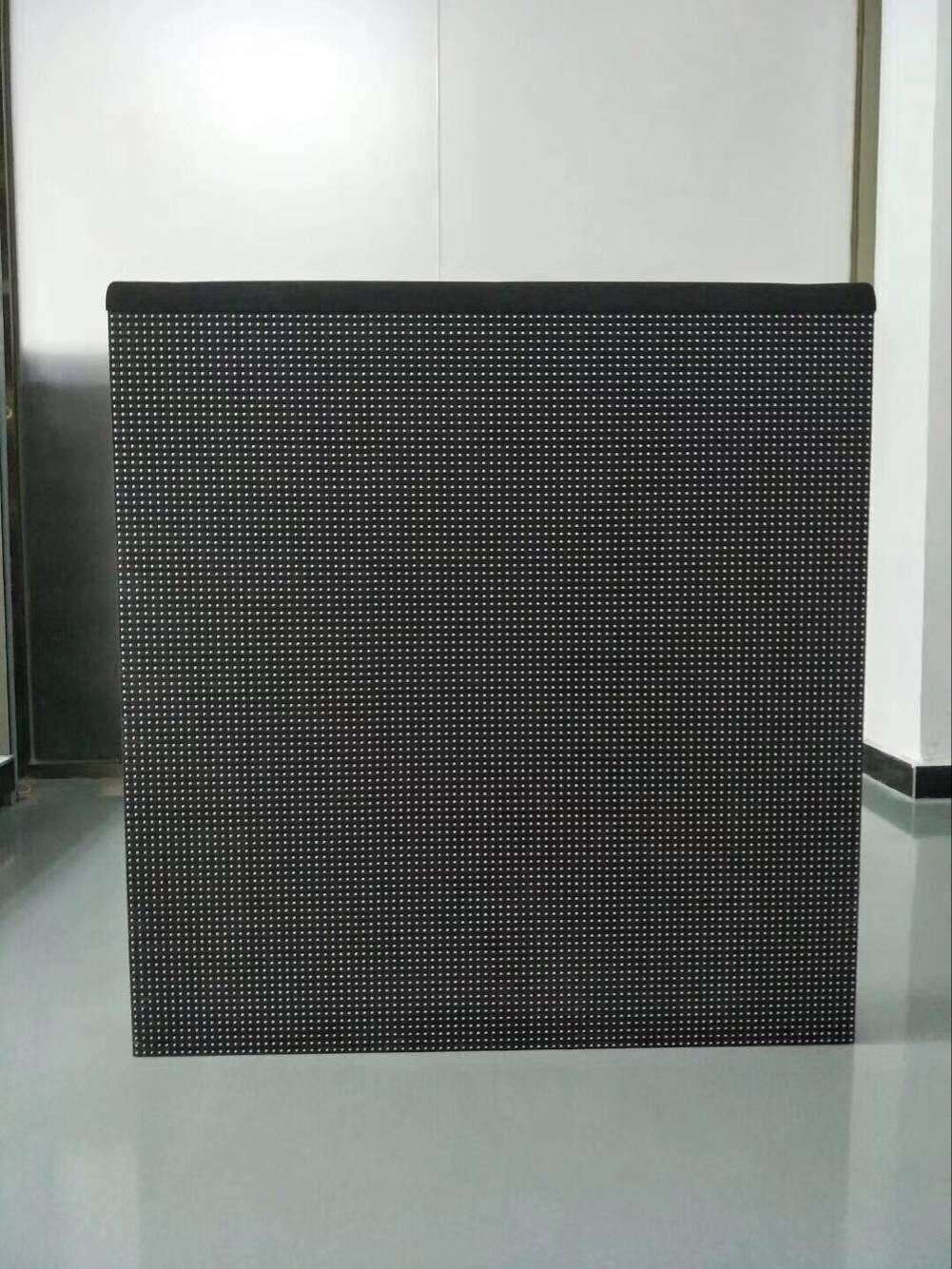

PRODUCT DETAILS:
