• Model NO.：6mm
• Pixel Density：27777dots,Sqm
• Scanning Mode：1,8 Scan
• Display Type：LED Video Display
• Application：Advertising
• Certification：CE, RoHS, UL, CCC, ETL
• Module Size：192X192mm
• Module Resolution：32X32dots
• Cabinet Size：768X768mm
• Cabinet Resolution：128X128dots
• Screen Brightness：6000nits
• Protection Grade：IP65
• Compliance：Ce
• Transport Package：Wooden Case
• Specification：768x768x150mm
• Trademark：CKGLED
• Origin：China
• HS Code：8528591090
• Production Capacity：6000sqm,Month

NO.ItemParameters2Pixel Pitch(mm)63LED Configuration1R1G1B4LED TypeSMD35355Screen Resolution27777dots/sqm6Module size(mm)192x1927Module resolution(dots)64x328Scan method1/8 constant current drive9Cabinet size(mm)768x76810Cabinet resolution(dots)128x12811Cabinet materialIron / Aluminum12Brightness(cd/sqm)≥600013Viewing angleH:140°/  V:140°14Grey Scale14bit15Refresh rate(Hz)≥192016Ave. power consumption (W/sqm)30017Max. power consumption(W/sqm)90018IP gradeF:IP65 / R:IP5419controllerNovastar / Linsn20MaintenanceRear service/ Front Service21Color(T) >28122Input Voltage(V) AC 110V-220V +/-10%23Frame frequency(Hz) 6024Working humidity 10~95%RH25Working temperature -30ºC~60ºC26Certificates RoHS / CE / CCC

Our service:

1. Your inquiry related to our products or price will be replied in 24hrs

2. The size can be change as you give.

3. What we show is some of our current models, welcome to give us your own ideas.

4. Protection of your sales area, ideas of design and all your private information

5. (Top Quality) + (Reasonable Price) + (Responsible After Service) = (Successful & Win)

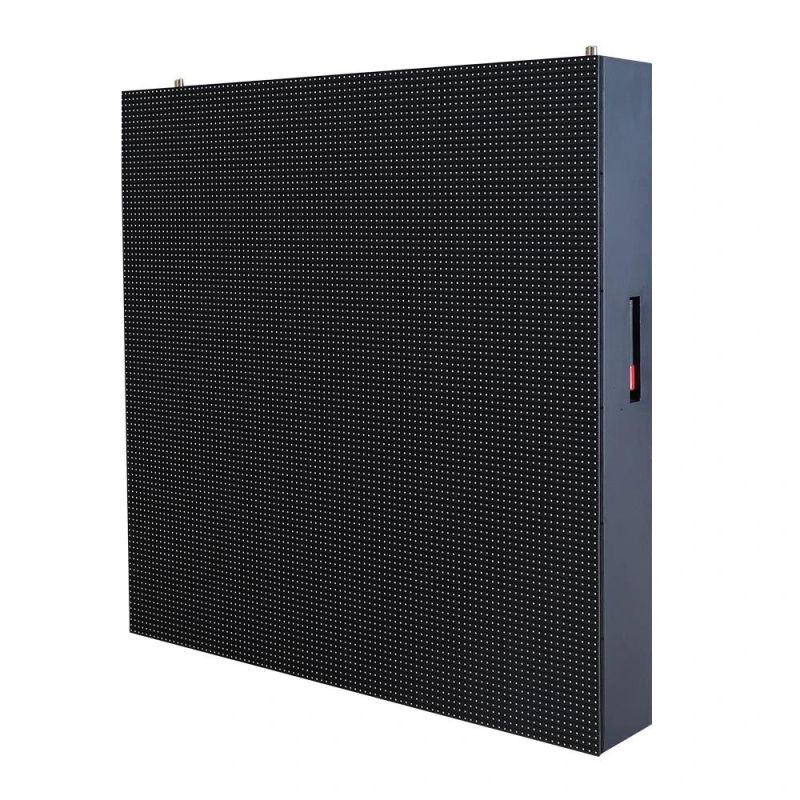

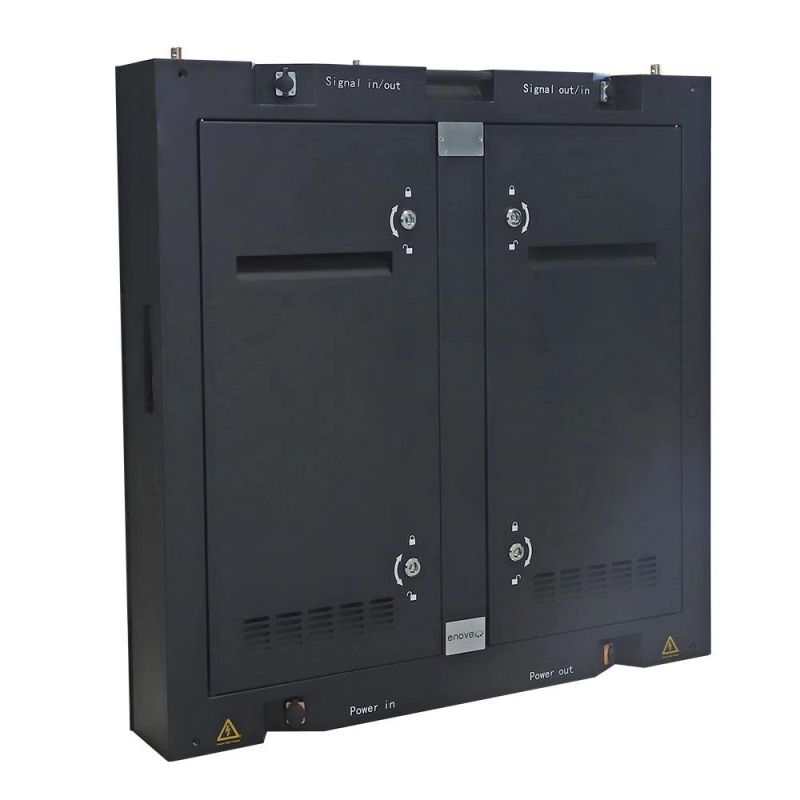

LED Display Panel photo:

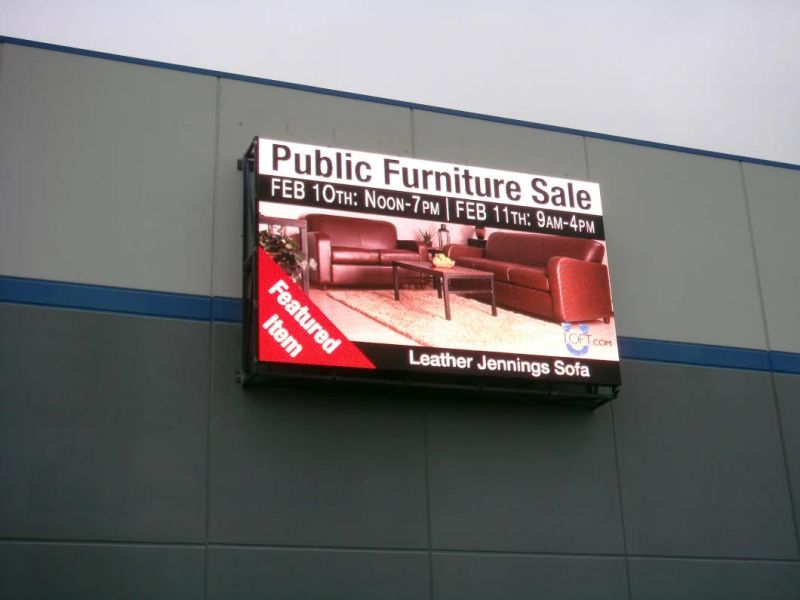

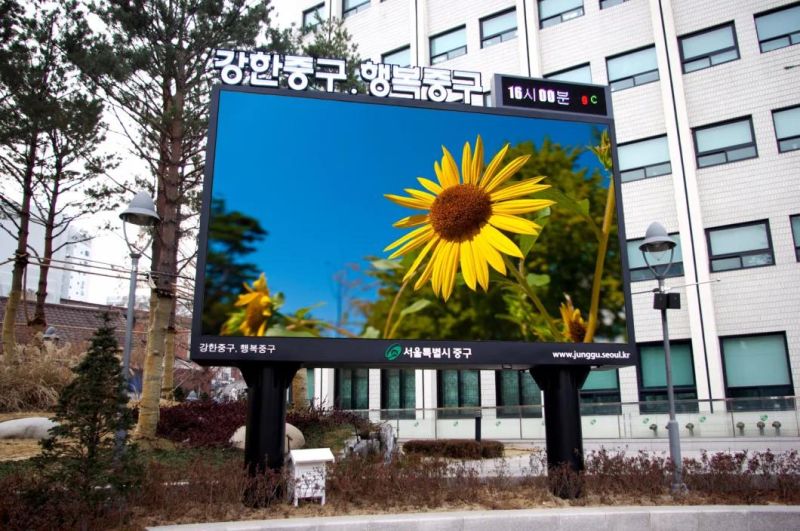

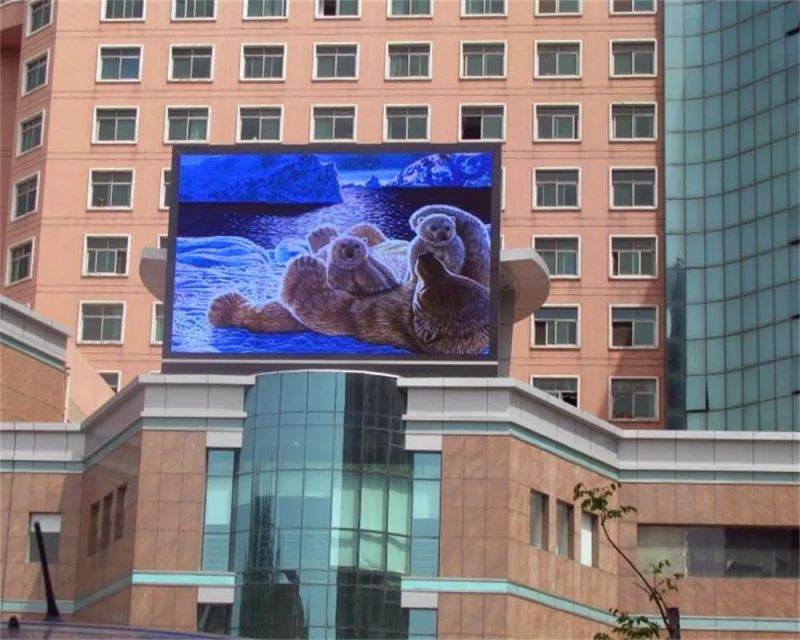

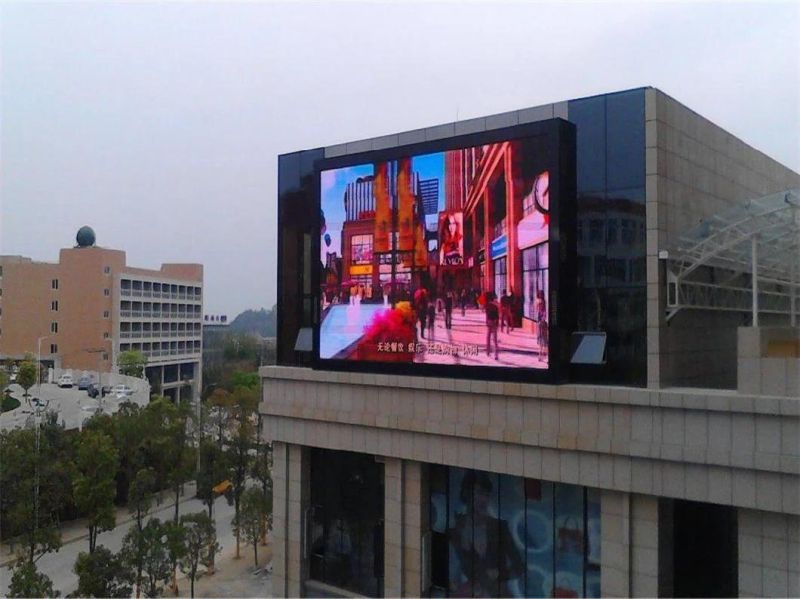

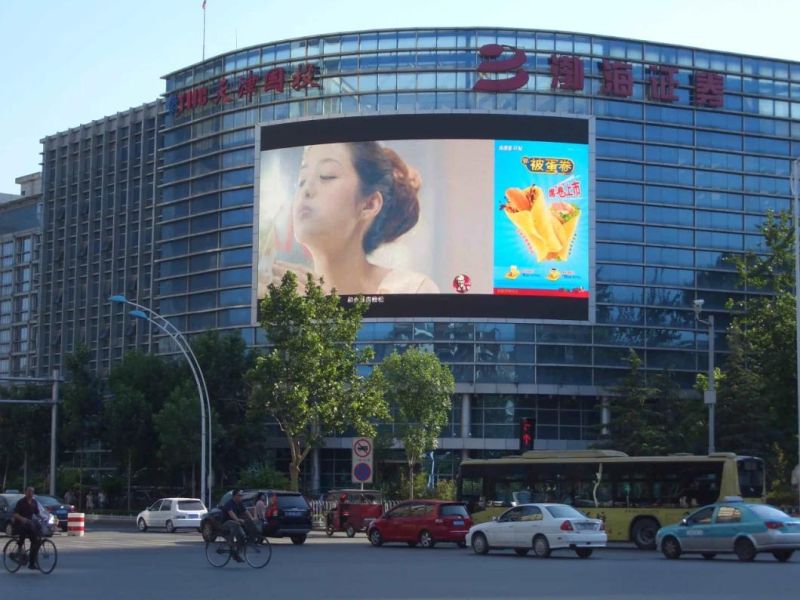

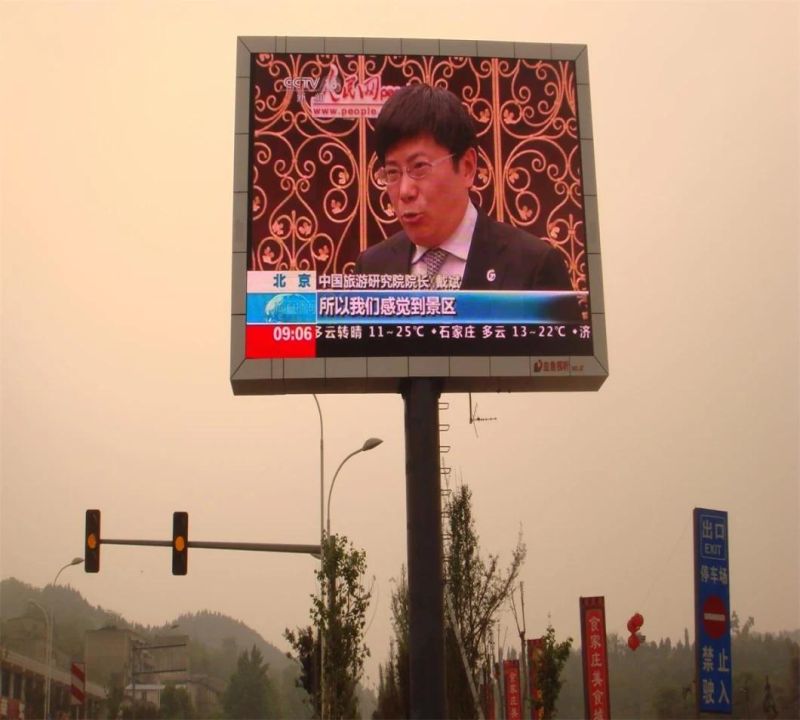

LED Display Project with CKGLED brand:










Certificates:

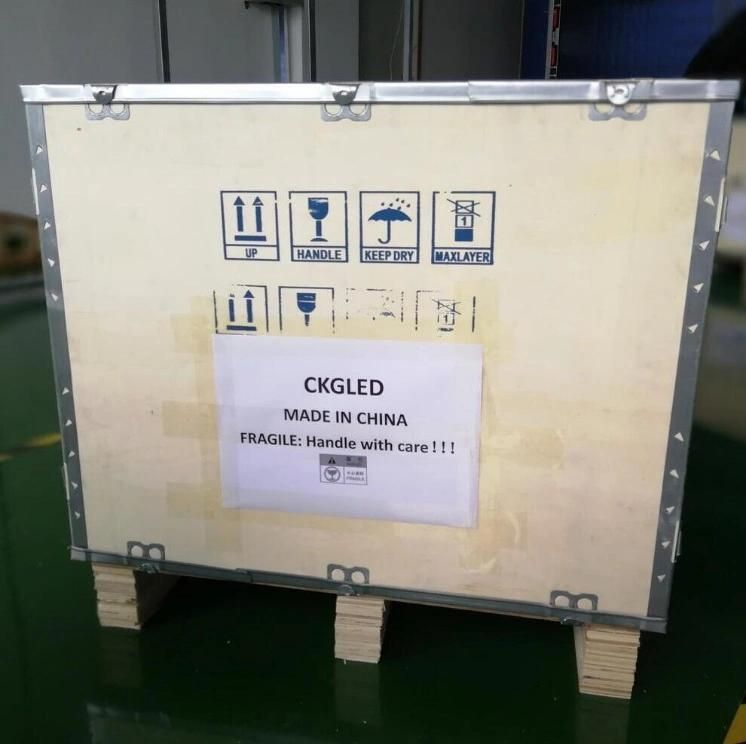

Wooden case Package:
