• Model NO.：5mm
• Pixel Density：40000dots,Sqm
• Scanning Mode：1,8 Scan
• Display Type：LED Video Display
• Application：Advertising
• Certification：CE, RoHS, UL, CCC
• Module Size：160X160mm
• Module Resolution：32X32dots
• Cabinet Size：640X640mm
• Cabinet Resolution：128X128dots
• Screen Brightness：6000nits
• Protection Grade：IP65
• Frame Frequency：60Hz
• Compliance：Ce
• Service：Front , Rear
• Transport Package：Wooden Case
• Specification：640x640mm
• Trademark：CKGLED
• Origin：China
• HS Code：8528591090
• Production Capacity：6000sqm,Month

NO.ItemParameters1Pixel Pitch(mm)52LED Configuration1R1G1B3LED TypeSMD27274Screen Resolution40000dots/sqm5Module size(mm)160x1606Module resolution(dots)32x327Scan method1/8 constant current drive8Cabinet size(mm)640x6409Cabinet resolution(dots)128x12810Cabinet materialIron / Aluminum11Brightness(cd/sqm)≥600012Viewing angleH:140°/  V:140°13Grey Scale16bit14Refresh rate(Hz)≥192015Ave. power consumption (W/sqm)30016Max. power consumption(W/sqm)90017IP gradeF:IP65 / R:IP5418controllerNovastar / Linsn19MaintenanceRear service20Color(T) >28122Input Voltage(V) AC 110V-220V +/-10%21Frame frequency(Hz) 6022Working humidity 10~95%RH23Working temperature -30ºC~60ºC24Certificates RoHS / CE / CCC

Our service:

1. Your inquiry related to our products or price will be replied in 24hrs

2. The size can be change as you give.

3. What we show is some of our current models, welcome to give us your own ideas.

4. Protection of your sales area, ideas of design and all your private information

5. (Top Quality) + (Reasonable Price) + (Responsible After Service) = (Successful & Win)

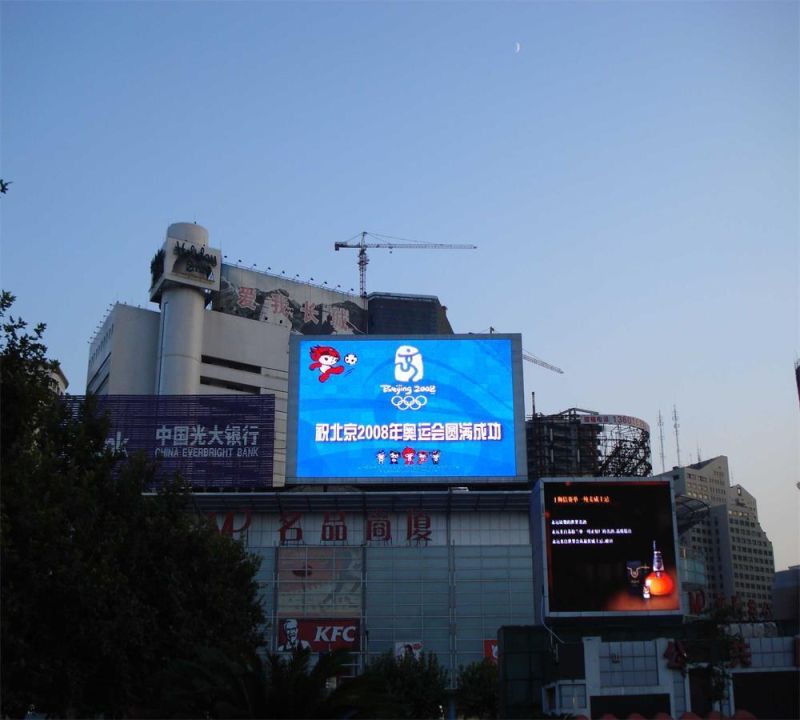

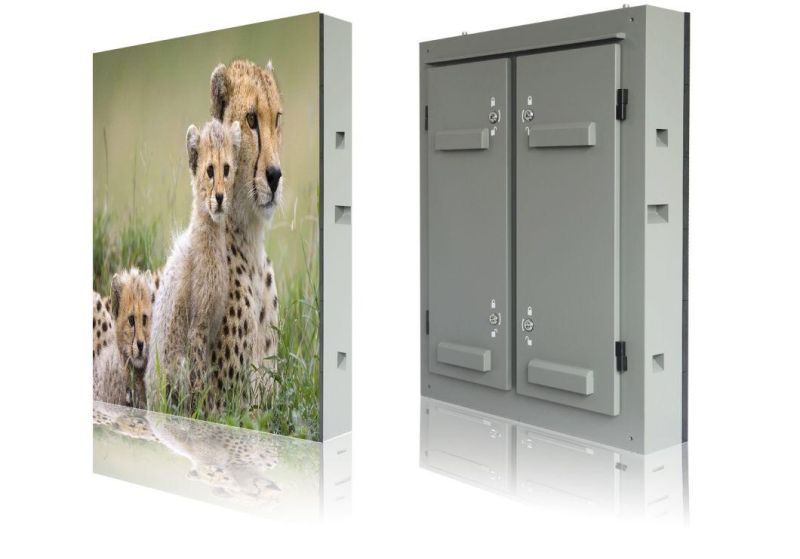

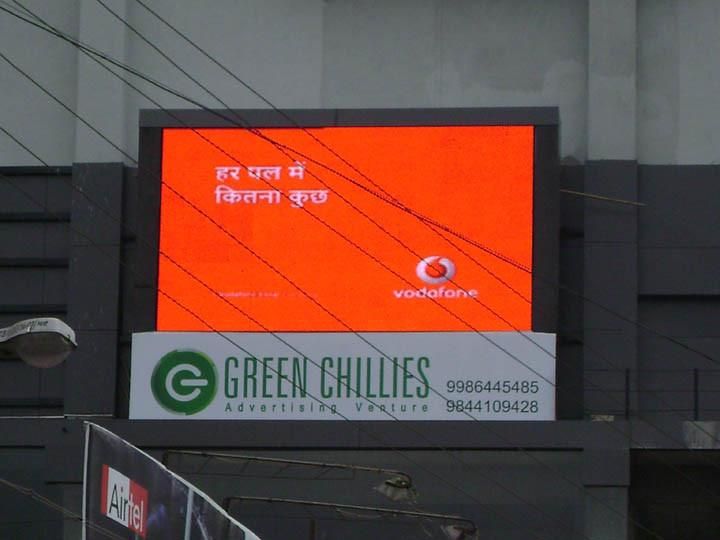

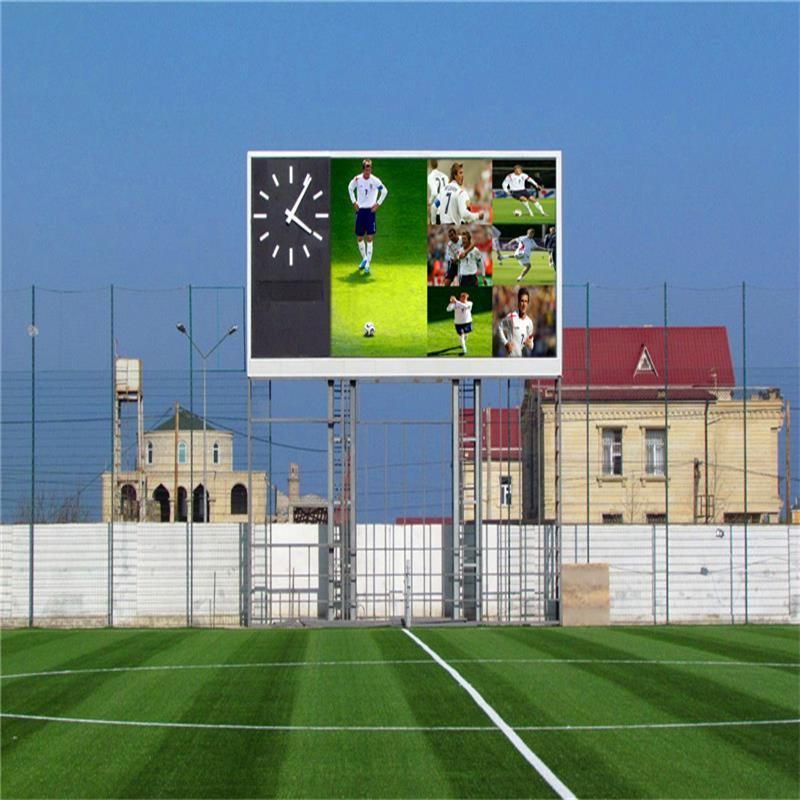

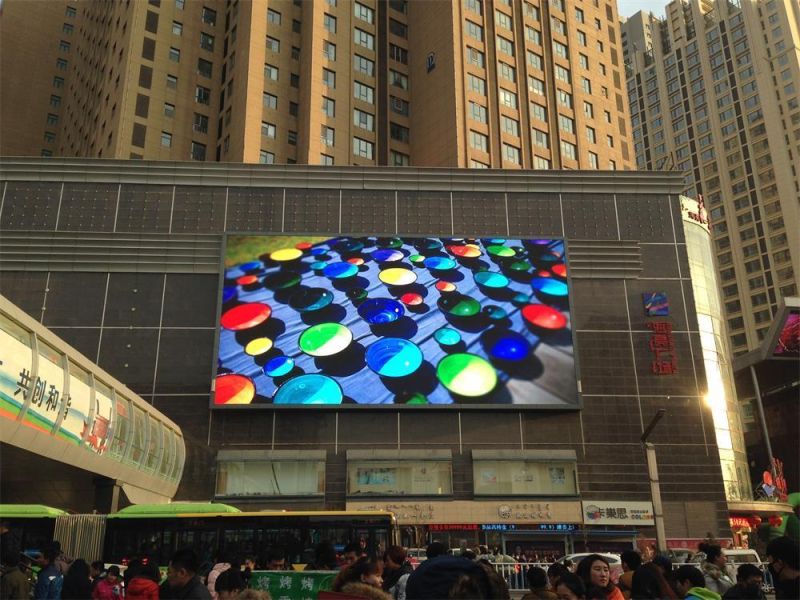

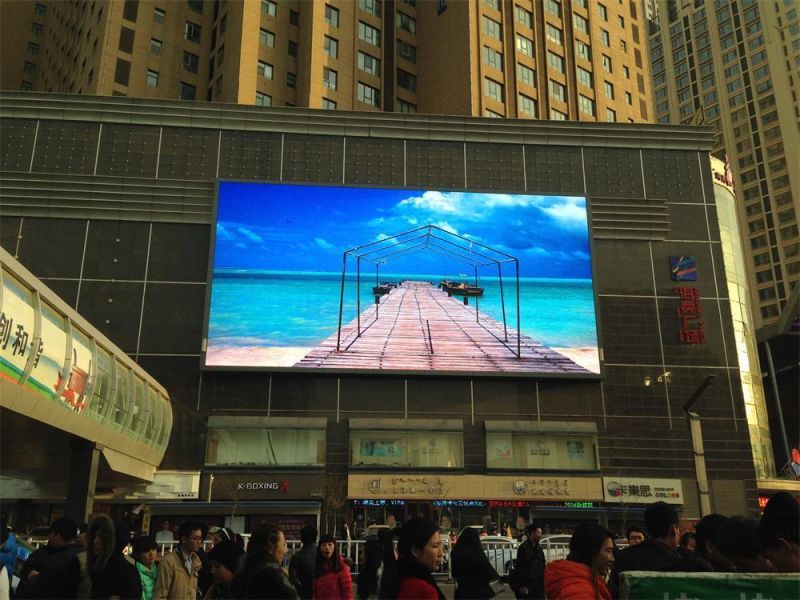

LED Display Panel photos:

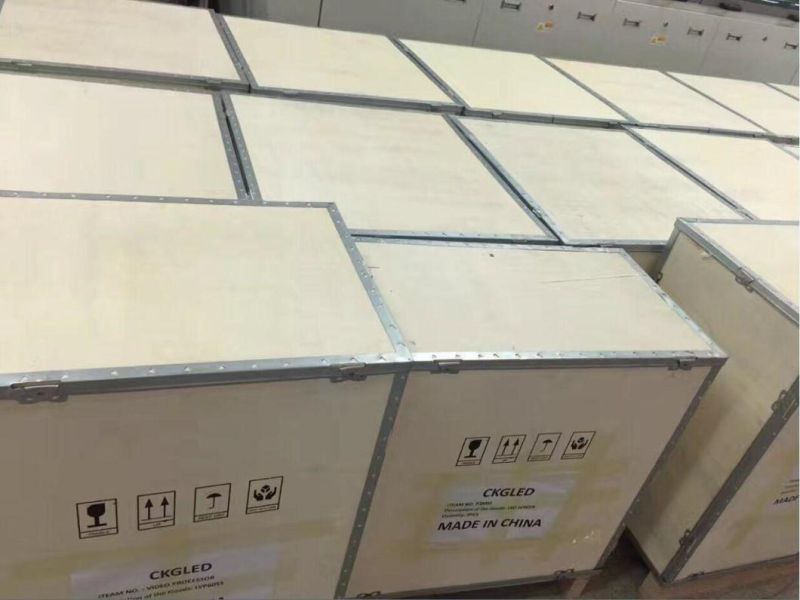

Wooden case Package:
