• Model NO.：20mm
• Pixel Density：2500dots,Sqm
• Scanning Mode：Static Scan
• Display Type：LED Video Display
• Application：Advertising
• Certification：CE, RoHS, UL, CCC, ETL
• Module Size：320X160mm
• Module Resolution：16X8dots
• Cabinet Size：1280X960X150mm
• Cabinet Resolution：64X48dots
• Screen Brightness：6000nits
• Protection Grade：IP65
• Compliance：Ce
• Controller：Novastar, Linsn
• Maintenance：Rear Service
• Transport Package：Plywooden Case
• Specification：1280x960mm
• Trademark：CKGLED
• Origin：China
• HS Code：8528591090
• Production Capacity：6000sqm,Month

Pixel pitch20mmModule size320mm*160mmModule pixel16dots*8dotsDriving methodstatic constant drivingPixel configurationDIP 1R1G1BPixel density2500 dots/sqmModule resolution128dots


Cabinet specifications:
 Cabinet size1280mm*960mm*150mmCabinet resolution64dots*48dotsCabinet weight61kgModule Qty24pcsCabinet pixel3072dotspower consumption(w/sqm)AVE.200 / MAX.600

Screen parameters:
 No.ParameterSpecification1Pixel Pitch20mm2Pixel Density2500pix/sqm3LED TypeDIP3464Viewing Angle(H)120°,(V)60°5Brightness≥6000cd/sqm6Drive Methodstatic constant current scanning7Driving ICMBI51248Color Depth40969Refresh Rate≥3500 Hz10Frame Rate≥60Hz11Brightness AdjustmentManual control by software/Auto control12Cabinet Type and MaterialSteel Iron13Cabinet Weight≤55kg/sqm14VoltageAC 220/110V±10%,50Hz15Avg. Power Consumption200W/sqm16Max. Power Consumption600W/sqm17Assembly precision between PCB≤1 mm18Service AccessRear maintenance19Protection GradeFront IP65,Rear IP5420Operating Temp/Humidity-30ºC~60ºC, 10~95%RH21Control modesynchronization with PC22Operating SystemWINDOWS(98/2000/XP/Vista)24Data TransmissionUnshielded twisted- pair net line transmission distance 100m, max transmission distance 130m; Multi-mode Optic fiber transmission distance 500m;Single-mode optic fiber transmission distance 10km25Storage Temp/Humidity-40ºC~60ºC, 10~95%RH26Input Signal FormatVGA, DVI, RGB HV , PbPr (HDTV),Composite ,S-Video ,TV27MTBF≥10000hours28Lifetime(Normal Temp)≥100,000Hours

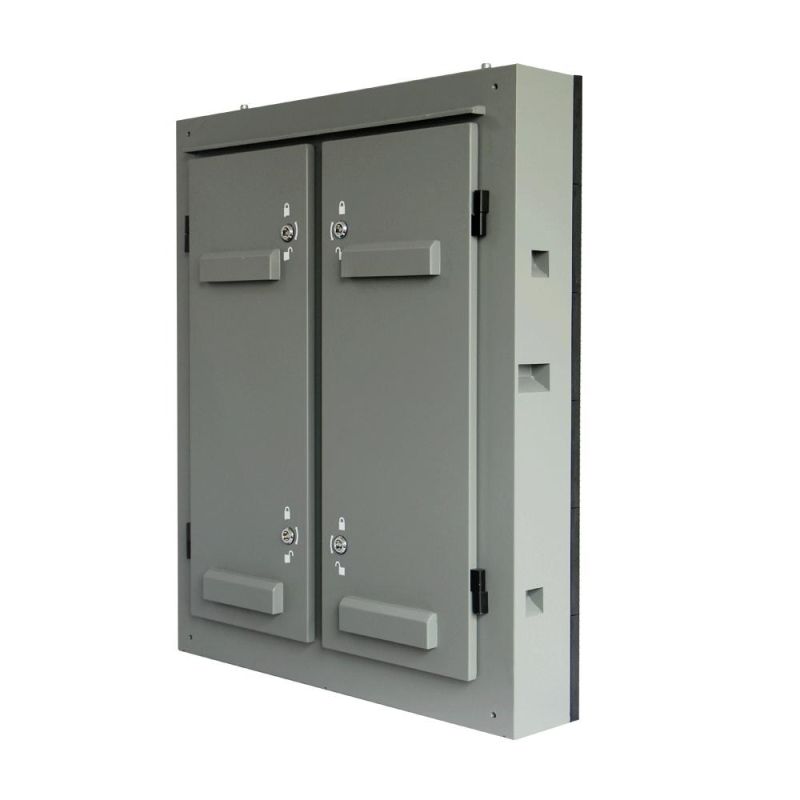

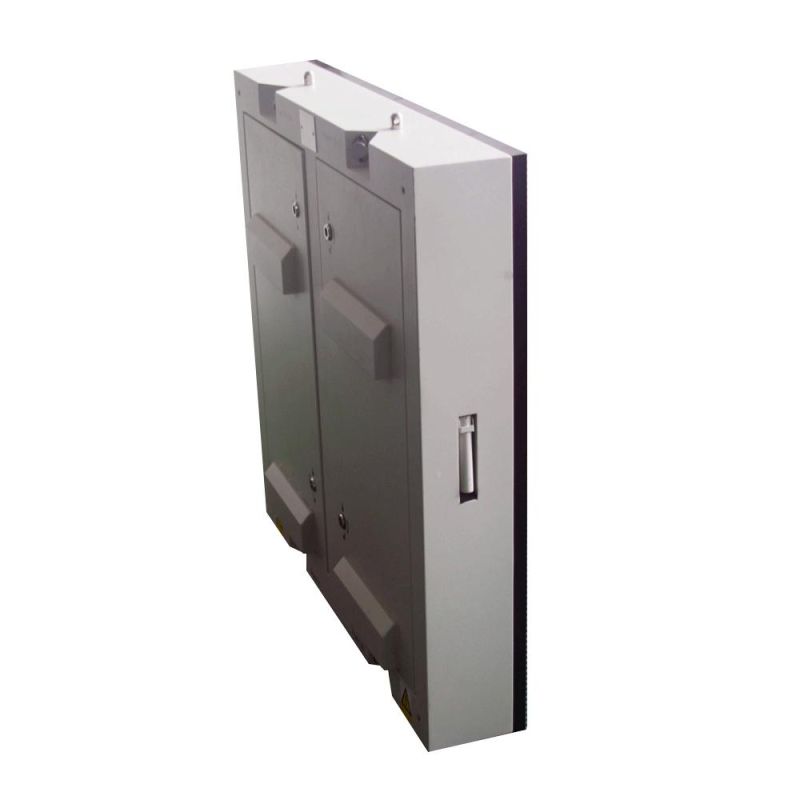

Product Photos:









Our service:

1. Your inquiry related to our products or price will be replied in 24hrs.

2. The size can be change as you give.

3. What we show is some of our current models, welcome to give us your own ideas.

4. Protection of your sales area, ideas of design and all your private information.

5. (Top Quality) + (Reasonable Price) + (Responsible After Service) = (Successful & Win).
