• Model NO.：indoor p2.5
• System Operating Platform：WIN XP
• Display Type：LED Video Display
• Application：Stage Performance, Advertising, Shopping Guide
• IP Rating：IP43
• Certification：CE, RoHS, UL, CCC, ETL, SGS ISO
• Waterproof：IP43
• Viewing Angle Vertical/Horizontal：140,120 Degree
• Module Size：192*192mm
• Warranty Time：3~5 Years
• Programmable Card：Linsn,Xixun,Colorlight,Nova,Listen
• Good Colors：1r1g1b
• Delivery Time：3-12orking Days
• Support Input Signal：HDTV CATV NTSC PAL S-Video VGA VCD DVD
• Interface：Network,Erial Port,50 Chip,Parallel RS 232,Solar P
• Diode Model：Silan,Nichia,CREE,Epistar,Opto
• Transport Package：Anti-Shaking Wooden; Air Flight Case; Carton Case
• Specification：CE; ROHS; SGS. ETC.
• Trademark：FOXGOLDEN
• Origin：Shenzhen
• HS Code：8528591090
• Production Capacity：4000sqm,Month

Basic Info.

Model NO. indoor p2.5 System Operating Platform WIN XP Display Type LED Video Display Application Stage Performance, Advertising, Shopping Guide IP Rating IP43 Certification CE, RoHS, UL, CCC, ETL, SGS ISO Waterproof IP43 Viewing Angle Vertical/Horizontal 140/120 Degree Module Size 192*192mm Warranty Time 3~5 Years Programmable Card Linsn/Xixun/Colorlight/Nova/Listen Good Colors 1r1g1b Delivery Time 3-12orking Days Support Input Signal HDTV CATV NTSC PAL S-Video VGA VCD DVD Interface Network/Erial Port/50 Chip/Parallel RS 232/Solar P Diode Model Silan/Nichia/CREE/Epistar/Opto Transport Package Anti-Shaking Wooden; Air Flight Case; Carton Case Specification CE; ROHS; SGS. ETC. Trademark FOXGOLDEN Origin Shenzhen HS Code 8528591090 Production Capacity 4000sqm/Month

Product Description

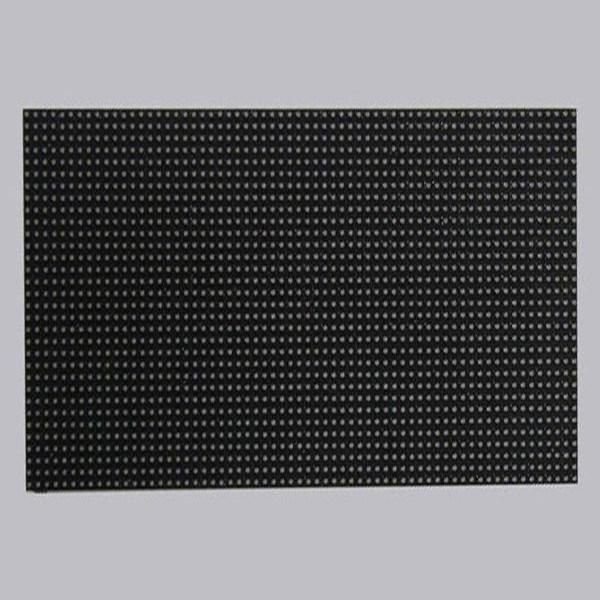

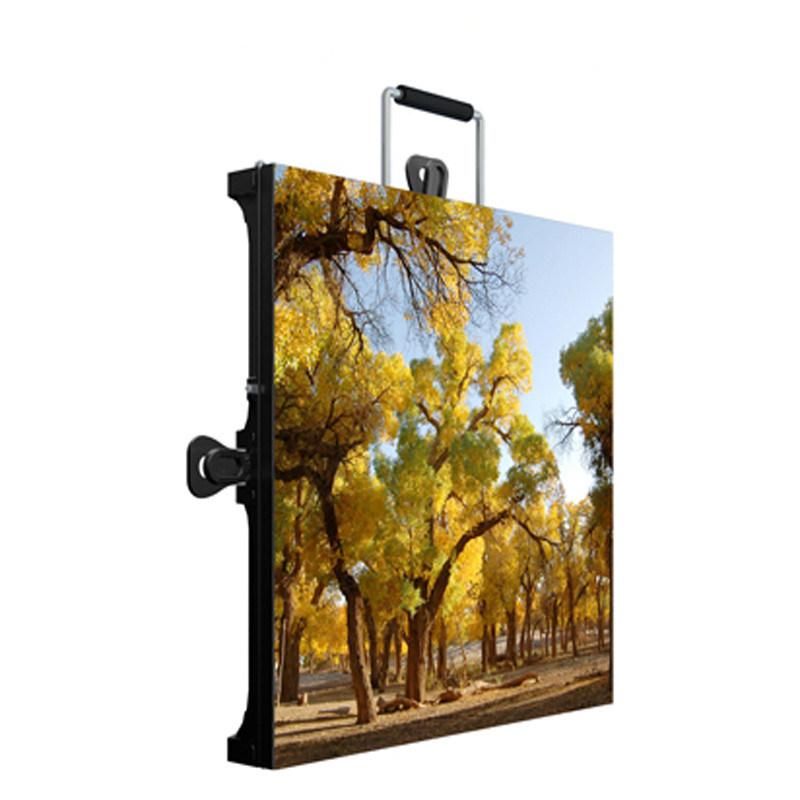

HD P2.5 Full Color RGB LED Screen Display for Advertising



Numbers	Technical indexes	Specification
1	Pixel Pitch	2.5mm
2	Density of Pixel	160000dots/M2
3	Pixel configuration	RGB

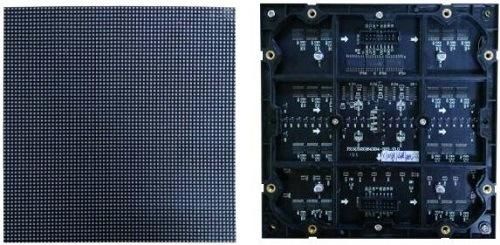

4	Size of Single Board	192*192mm
5	Colors	16777216
6	Best Viewing Distance	≥2m
7	Horizontal Viewing Angle	140°
8	Maximum Power Consumption	1100W/m2
9	Brightness	1800nits/m2
10	Gray Scale	14 bits per color
11	Color Temperature	6500cd/m2
12	Control Method	synchronization & Asynchronization
13	Driving method	constant scanning
14	Frame Frequency	60Hz
15	Refresh frequency	≥480Hz
16	Working Voltage	AC220V/110±10%
17	IP grade	IP43
18	Working temperature	10 degree centigrade  +80 degree centigrade
19	Computer operation system	Win 98/  Win XP/  Win 2000/winme/win7
20	Brightness adjustment	256 grade manual, 8 grade automatic
21	Video signal	RF, S-Video, RGB, RGBHV, YUV, YC.ect
22	Software	LED play software
23	MTBF	More than 10000 hours
24	Life Span	100,000 hours
