• Model NO.：FOX outdoor p10
• Pixel Density：10000 dot , m²
• Scanning Mode：1,4 Scan
• Display Type：LED Video Display

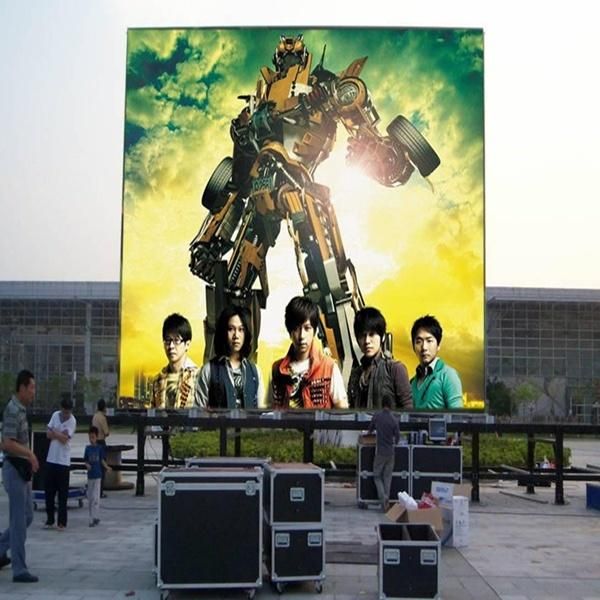

• Application：Advertising
• Certification：CE, RoHS, UL, CCC, SGS ISO

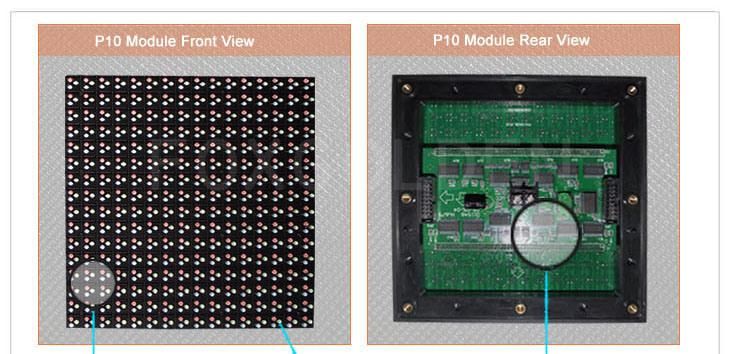

• Size of Modual：160mm X 160 mm
• Module Size：160*160mm
• Density of Pixel：10000dots,M2
• Best Viewing Distance：10-250
• Horizontal Viewing Angle：120
• Color Temperature：6500k
• Frame Frequency：60Hz
• Brightness：8500CD,M2
• Life Span：> 100, 000 Hours
• Transport Package：Anti-Shaking Wooden Package, Freight Case, Carton
• Specification：p10
• Trademark：Foxgolden
• Origin：Shenzhen, Guangdong, China
• HS Code：8528591090
• Production Capacity：3500sqm,Month

The technology parameter  of P 10outdoorNumberItemP101Pixel pitch10mm 2Size of  modual160mm X 160 mm 3Resolution of modual16*164Density of pixel10000dots/m25Pixel configuration1R1G1B6Red wavelength620± 2nm7Green wavelength520± 2nm8Blue wavelength465± 2nm9Colors1677721610Best viewing distance10-250m11Horizontal viewing angle120°12Maximum power consumption1100W/m 213Brightness≥ 8500cd /m 214Gray scale16bits per color15Color temperature6500k16Control methodSynchronization & Asynchronization17Driving method  constant scanning18Frame frequency60Hz19Refresh frequency≤2800Hz20Working voltageAC220V/110V± 10%21IP gradeIP6522Working temperature-35° C~80° C23MTBF> 38months24Life span> 100, 000 hours25Defects rate.≤ 0.00001(Led display line standard< 0.0001)26Computer operation system  Win XP/Vista/  Win 2000/WIN7ect.27Video signalRF, S-Video, RGB, RGBHV, YUV, YC. ect





1. Dust-proof: High-temperature spray technology: can greatly increase the capability of rust-proof.

2. Moudle planeness: ≤ ± 0.2mm

3. Super uniformity in color.

4. Long life-span. Use wave soldering technology for circuit board, prevent from humidity and oxidation, can extend its use life.

5...Energy-saving. Use high efficiency switching power supply, reduce failure rate of power supply.

6. Silicagel is filled and embedded on the front face of the display module, and the all-door structural design protects the LED display from water, dust, and corrosion, antifreeze.

7. Passed IP67 waterproof and dustproof test.

8. High reliability. Flexible to work under different climate condition, can work normally in all harsh environment, such as strong wind, sandstorm, high temperature, low temperature, dryness, rainstorm, and so on.


Foxgolden Group Ltd
Address:  No.57,Shuitian Fourth Industrial Park,Shiyan Town,Baoan District,Shenzhen City,China

Foxgolden had been engaged in designing and manufacturing LED display for more than 11 years. Our products have certificates like CE/FCC/RoHS/NQA /SGS/ISO.
The best quality products and excellent service will be provided to you by our professional team.
