• Model NO.：P10
• Pixel Density：10000 dot , m²
• Scanning Mode：1,4 Scan
• Display Type：LED Video Display

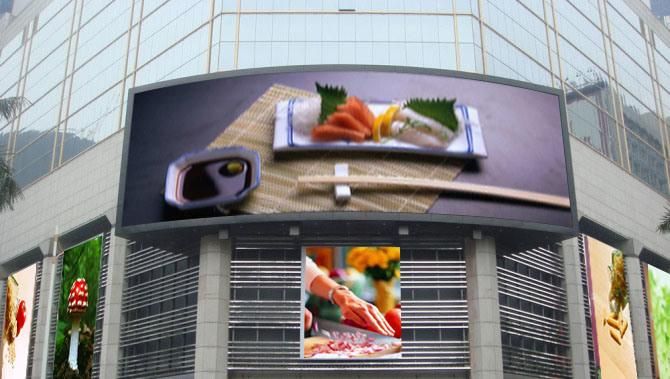

• Application：Advertising
• Certification：CE, RoHS, UL, CCC, SGS
• IP Grade：IP65
• Warranty Time：5 Years
• Viewing Distance：8-120m
• Horizontal Viewing Angle：120degree
• Module Size：160*160mm
• Dimension：960mm*960mm*150mm
• Best Viewing Distance：10-100m
• Working Voltage：AC220V,110V± 10%
• Brightness of White Balance：More Than 8000CD,Sqm
• Life Span：>=100,000h
• Transport Package：1. Anti-Shaking Wooden Package. 2. Air Flight Case
• Specification：960x960x180mm
• Trademark：FOXGOLDEN
• Origin：Shenzhen, China
• HS Code：8528591090
• Production Capacity：4000sqm,Month

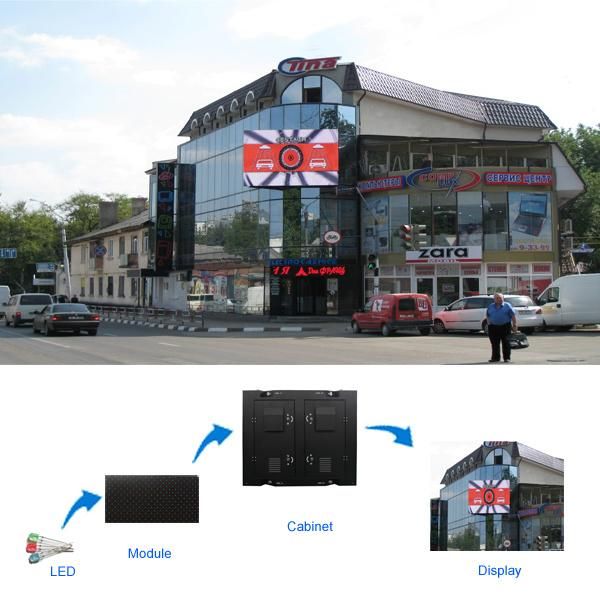

Technical parameterUnit moduleModule size160*160mmPixel pitch10mmPixel density10, 000dots/m2Pixel configuration1R1G1BLed specificationΦ 3ellipsePixel resolutionW: 16dots*H: 16dotsCabinetDimension960mm*960mm*150mmQuantities of module36pcsPower supply6pcsThermal dischargeFan*2pcsTotal weight50kgBest viewing distance10-100mTemperatureStorage: -35degree~+80degreeWorking: -35degree~+85degreeThickness15cm can adjustableRemarks: cabinet size can changed, upon project need.PowerWorking voltageAC220V/110V± 10%Average power consumption300-400WMax. Power consumption≤ 1000W/sqmCurrent≤ 20mA(single LED)Control systemCPUPentium4 or aboveOperating systemWIN98/2000/NT/XPControl methodSynchronizationMain technical parameterDriving device1/4scanningDrive typeConstant Current driver ICRefresh frequency≥ 800HzGrey scale/colors256 levels of each color(R/G/B)/16.7M colorBrightness of white balanceMore than 8000cd/sqmBrightness adjustment256 levels of each color(R/G/B)by softwareOperating ambient humidity10%--95%Video signalPAL/NTSCControl systemDVI display card+full color controller cardMTBF≥ 10, 000hoursLife span≥ 100, 000hoursFlatnessTolerance of interpixel ≤ 0.3mmTolerance of modules clearance≤ 0.6mmPower switchAutomatic switchDisplay mode960x960SoftwareLED media player
