• Model NO.：outdoor p10
• Pixel Density：10000 dot , m²
• Scanning Mode：1,8 Scan
• Display Type：LED Video Display
• Application：Stage Performance
• Certification：CE, RoHS, UL, CCC, ETL, SGS ISO
• Brightness：More Than 9000CD,Sqm
• Mtbf：10, 000hours
• IP Grade：IP65
• Lide Span：More Than 12years
• Average  Power  Consumption：900W
• Max.   Power  Consumption：≤ 1000W,Sqm
• Operating  System：Win98,2000,Nt,XP
• Refresh  Frequency：≥ 400Hz
• Transport Package：1. Anti-Shaking Wooden Package. 2. Air Flight Case
• Specification：CE&ROHS&UL&FCC&SGS&3C
• Trademark：FOXGOLDEN
• Origin：Shenzhen, China
• HS Code：8531200000
• Production Capacity：10, 000PCS,Month

Basic Info.

Model NO. outdoor p10 Pixel Density 10000 dot / m² Scanning Mode 1/8 Scan Display Type LED Video Display Application Stage Performance Certification CE, RoHS, UL, CCC, ETL, SGS ISO Brightness More Than 9000CD/Sqm Mtbf 10, 000hours IP Grade IP65 Lide Span More Than 12years Average  Power  Consumption 900W Max.   Power  Consumption ≤ 1000W/Sqm Operating  System Win98/2000/Nt/XP Refresh  Frequency ≥ 400Hz Transport Package 1. Anti-Shaking Wooden Package. 2. Air Flight Case Specification CE&ROHS&UL&FCC&SGS&3C Trademark FOXGOLDEN Origin Shenzhen, China HS Code 8531200000 Production Capacity 10, 000PCS/Month

Product Description

New Products P10 Outdoor Full Color Video LED Advertising

Feature and Advantage

1. Waterproof and dustproof: IP68front, IP65back
2. Best viewing distance: 10-300m
3. White balance brightness: 9000CD/sqm can adjustable
4. Horizontal viewing angle: 120degree
5. Working temperatue: -20degree-+80degree
6. MTBF: More than 10, 000hours
7. Life span: More than 100, 000hours
8. Contrast ratio: 4000: 1
9. Average power consumption: 800W

Application and Market
1. Application
Wide applied in stadiums, advertisement, banks, securities exchange, stations, shopping malls, postal offices, schools, monitoring, restaurants, entertainment, enterprises etc
2. Market:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, MID East, Eastern Asia, Western Europe

Our service1. Your inquiry related to our products or price will be replied in 24hrs2. OEM&ODM, any your customized lightings we can help you to design and put into product3. Distributoership are offered for your unique design and some our current models4. Protection of your sales area, ideas of design and all your private information5. Top quality+Reasonable price+Responsible After Service=Successful & Win

Trade Terms1. Package: Anti-shaking wooden package, Air flight case or Carton package
2. Payment: T/T, 40% deposits before production, 60% balance to be paid before delivery 3. Shipping freight are quoted under your requests4. Shipping port: Shenzhen, Mainland China5. Warranty time: 3years
6. Delivery time: 3-12working days

Numbers	Technical indexes	Specification
1	Pixel Pitch	10mm
2	Density of Pixel	10000dots/M2
3	Pixel configuration	RGB

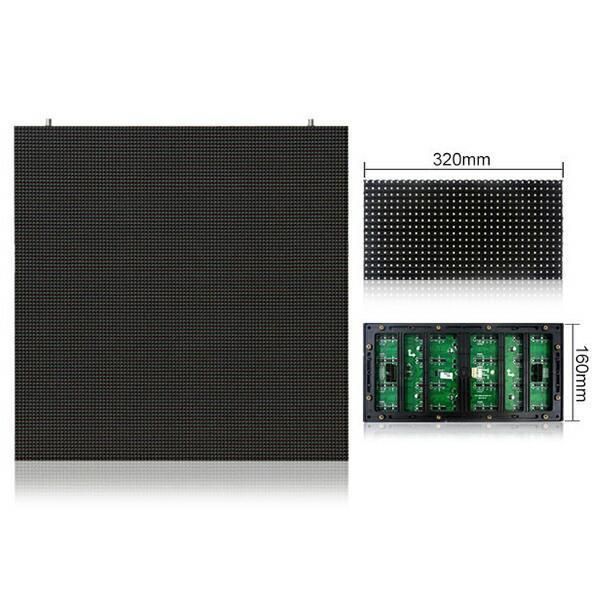

4	Size of Single Board	160mm *160mm or 160*320mm
5	Colors	16777216
6	Best Viewing Distance	≥10m
7	Horizontal Viewing Angle	140°
8	Maximum Power Consumption	300W/m2
9	Brightness	1800nits/m2
10	Gray Scale	14 bits per color
11	Color Temperature	6500cd/m2
12	Control Method	synchronization & Asynchronization
13	Driving method	constant scanning
14	Frame Frequency	60Hz
15	Refresh frequency	≥480Hz
16	Working Voltage	AC220V/110±10%
17	IP grade	IP65
18	Working temperature	10 degree centigrade  +80 degree centigrade
19	Computer operation system	Win 98/  Win XP/  Win 2000/winme/win7
20	Brightness adjustment	256 grade manual, 8 grade automatic
21	Video signal	RF, S-Video, RGB, RGBHV, YUV, YC.ect
22	Software	LED play software
23	MTBF	More than 10000 hours
24	Life Span	100,000 hours

Foxgolden Group Ltd
Address:  No.57,Shuitian Fourth Industrial Park,Shiyan Town,Baoan District,Shenzhen City,China

Foxgolden had been engaged in designing and manufacturing LED display for more than 11 years. Our products have certificates like CE/FCC/RoHS/NQA /SGS/ISO.
The best quality products and excellent service will be provided to you by our professional team.
