• Model NO.：p10- outdoor
• Pixel Density：10000 dot , m²
• Scanning Mode：Static Scan
• Display Type：LED Video Display
• Application：Advertising
• Certification：CE, RoHS, UL, CCC, ETL, FCC SGS ISO
• LED Module Size：160mm*160mm
• LED Module Resolution：16*16 Dots
• Best Viewing Distance：10-300m
• LED Density of Pixel：10000dots,M2
• Colors：16777216
• Refresh Frequency：1920Hz
• Working Temperature：-25oc~65oc
• Horizontal Viewing Angle：140o
• Life Span：>100, 000 Hours
• Transport Package：Anti-Shaking Wooden Package&Air Freight Case
• Specification：P10 outdoor led display
• Trademark：Foxgolden
• Origin：Shenzhen, Guangdong, China
• HS Code：8528591090
• Production Capacity：5000sqm,Month

Basic Info.

Model NO. p10- outdoor Pixel Density 10000 dot / m² Scanning Mode Static Scan Display Type LED Video Display Application Advertising Certification CE, RoHS, UL, CCC, ETL, FCC SGS ISO LED Module Size 160mm*160mm LED Module Resolution 16*16 Dots Best Viewing Distance 10-300m LED Density of Pixel 10000dots/M2 Colors 16777216 Refresh Frequency 1920Hz Working Temperature -25oc~65oc Horizontal Viewing Angle 140o Life Span >100, 000 Hours Transport Package Anti-Shaking Wooden Package&Air Freight Case Specification P10 outdoor led display Trademark Foxgolden Origin Shenzhen, Guangdong, China HS Code 8528591090 Production Capacity 5000sqm/Month

Product Description

High Brightness P10 Outdoor Full Color LED Display for Advertising

1. UL, CE&RoHS&SGS2. Easy operation, installation
3. High brightness and clear Video
4. Warranty 5years
5. Good waterproof
6LED display manufacture
vv
Function and Technology Character
(1) Multiform file formats, such as VGA, Video, AVI, MOV, MPG, DAT, VOB and so on are comprehensive.
(2) Information source can be camera, video, VCD, DVD, LD, TV and so on.
(3) Clear picture without flicker and distortion.
(4) Brightness, contrast, saturation can be adjust by itself and manual.
(5) Show everything with your PC does synchronously or offline does asynchronously
(6) Super correcting technology for distortion.
(7) One interface for sound signal and two for video signal at least.

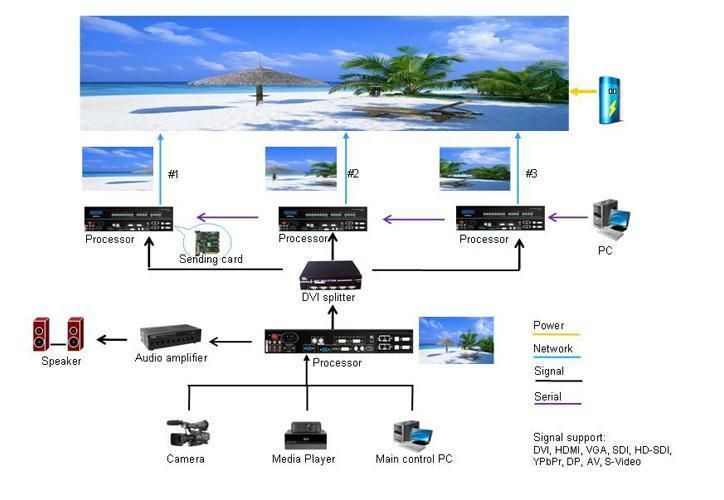

(8) Connected and controlled by PC via LAN and remote control.
(9) Multiform language editions, such as English, French, Germany, Greek, Russian and so on.
(10)Can be connected with PC and the website, and also can be controlled remotely via wireless controller




º Cº Cº CNumber	Item	P10
1	Pixel pitch	10mm
2	Size of  Module	160mm X 160 mm
3	Resolution of Module	16 X 16
4	Density of pixel	10000dots/m2
5	Pixel configuration	1R1G1B
6	Red wavelength	625± 2nm
7	Green wavelength	525± 2nm
8	Blue wavelength	470± 2nm
9	Colors	16777216
10	Best viewing distance	10-300m
11	Horizontal viewing angle	140°
12	Maximum power consumption	≤ 1100W/m 2
13	Brightness	≥ 8000cd /m 2
14	Gray scale	16bits per color
15	Color temperature	6500k
16	Control method	Synchronization & Asynchronization
17	Driving method	constant scanning
18	Frame frequency	60Hz
19	Refresh frequency	≥ 1920Hz
20	Working voltage	AC220V/110V± 10%

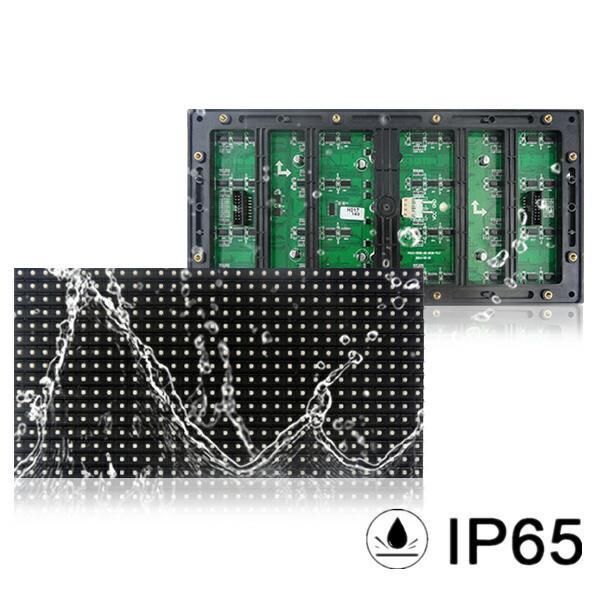

21	IP grade	IP65(adjustable)
22	Working temperature	-25º C~65º C
23	MTBF	> 10000 hours
24	Life span	> 100, 000 hours
25	Defects rate.	≤ 0.00001(Led display line standard< 0.0001)
26	Computer operation system	Win XP/Vista/  Win 2000/WIN7ect.
27	Video signal	RF, S-Video, RGB, RGBHV, YUV, YC. ect









Foxgolden Group Ltd
Address:  No.57,Shuitian Fourth Industrial Park,Shiyan Town,Baoan District,Shenzhen City,China
Foxgolden had been engaged in designing and manufacturing LED display for more than 11 years. Our products have certificates like CE/FCC/RoHS/NQA /SGS/ISO.
The best quality products and excellent service will be provided to you by our professional team.
