• Model NO.：p8-outdoor
• Pixel Density：15625dots,M2
• Scanning Mode：1,4 Scan
• Display Type：LED Video Display
• Application：Advertising
• Certification：CE, RoHS, CCC
• Module Size(W×h)：256X128mm
• Module Resolution(W×h)：32*16dots
• Cabinet Size：1024*1024*80mm
• Brightness：7000CD,M2
• Max Comsumption：1100W,M2
• Viewing Angle(H/V)：120° ,100°
• Warranty：3years
• Best Viewing Distance：8-150m
• Repetition Frequency：60Hz,S
• Transport Package：1. Plywood Case 2. Flight Case 3. Carton-Box
• Specification：FOX-smd-outdoor-P8
• Trademark：Foxgolden
• Origin：Shenzhen, China
• HS Code：8528591090
• Production Capacity：5000sq. M,Week

P8 outdoor DIP full color led display No. Item P81Pixel pitch 8mm2Module size 256mm*128mm3Module resolution(dots)32*164Pixel configuration1R1pG1B5Pixel density15625dots/m²6Red wavelength625±2nm7Green wavelength525±2nm8Blue wavelength470±2nm9Colors1677721610Best viewing distance8m-150m11Horizontal view angle120°12Maximum power consumption<1000W/m²13Brightness≥7000cd/m²14Gray scale16 bits per color15Color temperature6500k16Control methodSynchronization&Asynchronization17Driving method1/4 scanning18Frame frequency60Hz19Refresh frequency≥350Hz20Working voltageAC220V/110V±10%21IP gradeIP 6522Working temperature-20°C~80°C23MTBF>10,000 hours24Life span>100,000 hours25lamp modelsmd3535
The following are our advantage:
1Quality is our cuture,We gurrantee our led display module or led display screen 3-5years.
2.Price is very reasonable,we are factory,no middle man or trade company here.
3.MOQ:led display module:1pcs,led display screen:1 sqm.
4.Delivery date:
1.LED display module:1-2000pcs,1-3days.                2000-10000pcs,3-6working days.
2.LED display screen:1-15sqm,2-5working days.       15-50sqm,7-15working days
Function and Technology Character
(1) Multiform file formats, such as VGA, Video, AVI, MOV, MPG, DAT, VOB and so on are comprehensive.
(2) Information source can be camera, video, VCD, DVD, LD, TV and so on.
(3) Clear picture without flicker and distortion.
(4) Brightness, contrast, saturation can be adjust by itself and manual.
(5) Show everything with your PC does synchronously or offline does asynchronously
(6) Super correcting technology for distortion.
(7) One interface for sound signal and two for video signal at least.
(8) Connected and controlled by PC via LAN and remote control.
(9) Multiform language editions, such as English, French, Germany, Greek, Russian and so on.
(10)Can be connected with PC and the website, and also can be controlled remotely via wireless controller

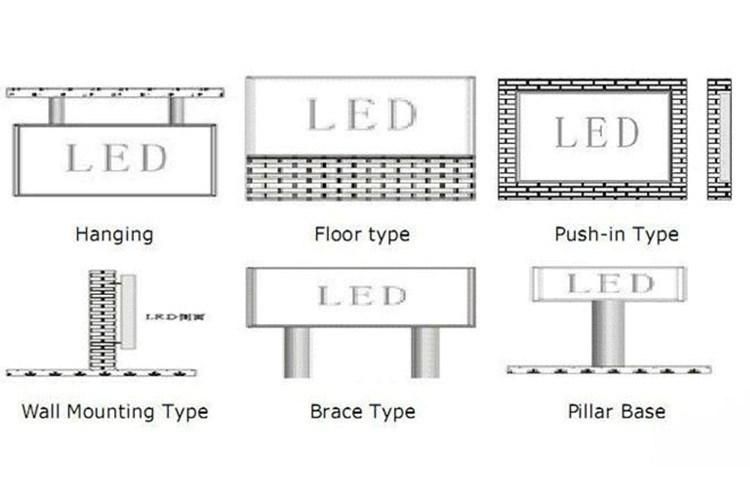

Different Installation

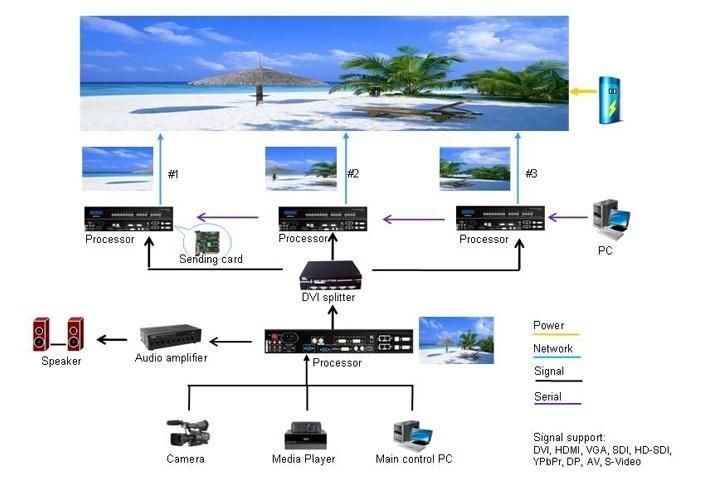

Control System






Company Information





 Shenzhen Foxgolden Technology Limited, is one of the most impressing Hi-tech enterprises in China. Since 2004,
we have been dedicating to the aim that making high quality products, and have been well integrated with R&D, production,
project, capital and marketing.

As a professional and market-oriented LED display manufacturer, FOXGOLDEN not only keeps improving on normal LED
display screen, enhances the product's cost-effective and overall market competitiveness, but also makes breakthrough
progresses on special usages. Our products, with high quality and competitive prices, spread worldwide and earn excellent
public reputation from both domestic and overseas market.


Miss. Vita Fang

Sales Engineer


Foxgolden Tech Co., Ltd


Tel:            +86 0755 8425 3359

Fax:         +86 0755 8425 3360

Mob:          +86 182 7143 9309







Website:       foxgolden.en.made-in-china.com
