• Model NO.：p8-outdoor
• Pixel Density：15625dots,M2
• Scanning Mode：1,4 Scan
• Display Type：LED Video Display
• Application：Advertising
• Certification：CE, RoHS, CCC, FCC SGS ISO
• Module Size(W×h)：256X128mm
• Module Resolution(W×h)：32*16dots
• Cabinet Size：1024*1024*80mm
• Brightness：8500CD,M2
• Max Comsumption：1100W,M2
• Viewing Angle(H/V)：140°,120°
• Warranty：3-5years
• Best Viewing Distance：8-250m
• Repetition Frequency：60Hz,S
• Transport Package：1. Plywood Case 2. Flight Case 3. Carton-Box
• Specification：FOX-smd-outdoor-P8
• Trademark：Foxgolden
• Origin：Shenzhen, China
• HS Code：8528591090
• Production Capacity：4000sq. M,Week

Basic Info.

Model NO. p8-outdoor Pixel Density 15625dots/M2 Scanning Mode 1/4 Scan Display Type LED Video Display Application Advertising Certification CE, RoHS, CCC, FCC SGS ISO Module Size(W×h) 256X128mm Module Resolution(W×h) 32*16dots Cabinet Size 1024*1024*80mm Brightness 8500CD/M2 Max Comsumption 1100W/M2 Viewing Angle(H/V) 140°/120° Warranty 3-5years Best Viewing Distance 8-250m Repetition Frequency 60Hz/S Transport Package 1. Plywood Case 2. Flight Case 3. Carton-Box Specification FOX-smd-outdoor-P8 Trademark Foxgolden Origin Shenzhen, China HS Code 8528591090 Production Capacity 4000sq. M/Week

Product Description

High Brightness RGB P8 Outdoor SMD LED Display




How do you attract attention of new customers in such
a competitive market?







Features:

• Light Weigh and small structure
• Wide range of sizes
• Fast Installation

Software:

• Graphic Creation Software
• Support all graphic formats (images, animations, graphics, videos, texts)
• Optional Temperature and Humidity real time display
• Schedule or Automatic brightness control
• Scheduling message contents

Control:

• Messages can be controlled by PC control or online cloud message control

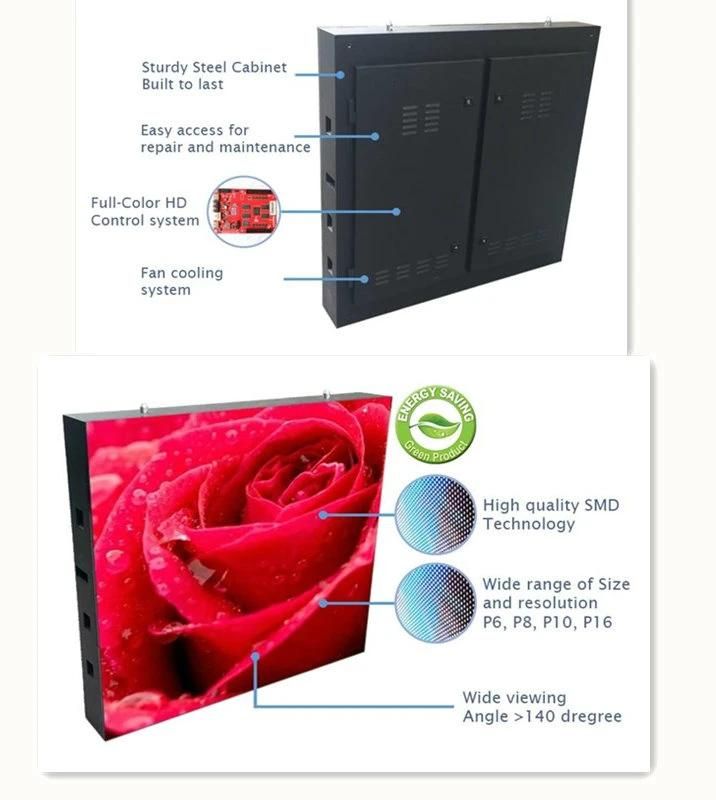

Cabinet:

• Durable and sturdy aluminum casting cabinet
• IP65 Waterproof

Outdoor LED signs provide your business with eye catching and attractive advertising solution that capture attention of
your viewers. Compare with traditional form of static or printed signs, electronic signs are capable to increase visibility of
your business up to 900% and increase your sales between 15 to 50%.


Outdoor Fixed LED Cabinet Specifications

LED Lifetime:	100,000 hours
Pixel Pitch:	8 mm
Pixel Type:	SMD
Weight of Cabinet:	40 kg
Best Viewing distance:	8 m (8 mm pitch)
Control Methods:	Synchronous or Asynchronous
Max  Power Consumption:	800 W/m2
Frame Rate:	30 fps
Brightness:	>7000-8500 cd/m2
Mean Time Between Failure:	10,000 hours
Message Capability:	Text, graphics, logos, image, video
Display Brightness:	64 levels (automatic, scheduled or manual)
Communication Options:	Wi-Fi, LAN, GPRS
Warranty Coverage:	3 Years
Product Support:	Parts support for 10 years

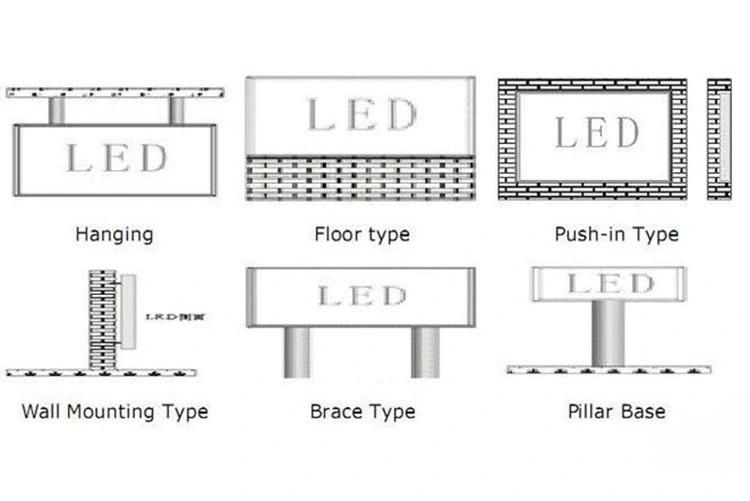

Different Installation

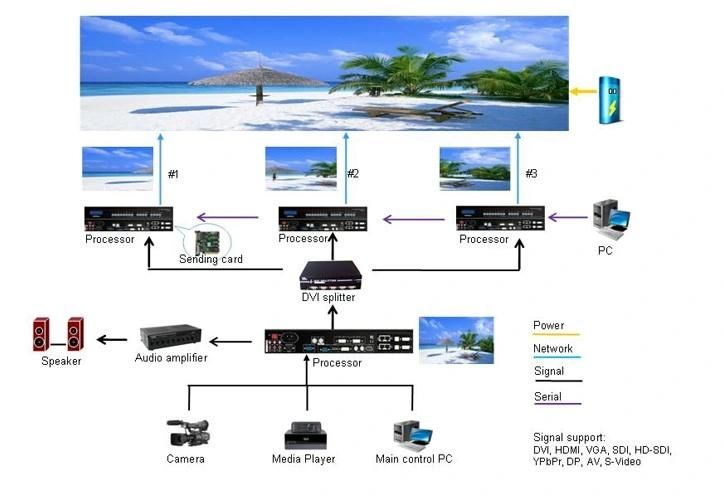

Control System

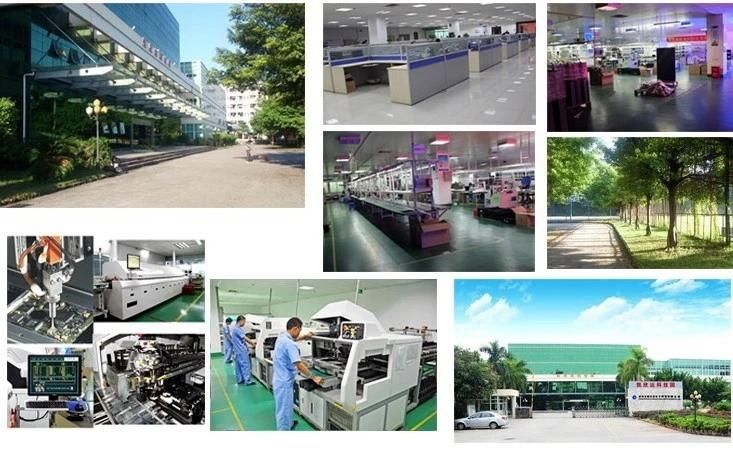

Company Information





Shenzhen Foxgolden Technology Limited, is one of the most impressing Hi-tech enterprises in China. Since 2004, we have
been dedicating to the aim that making high quality products, and have been well integrated with R&D, production, project,
capital and marketing.

As a professional and market-oriented LED display manufacturer, FOXGOLDEN not only keeps improving on normal LED
display screen, enhances the product's cost-effective and overall market competitiveness, but also makes breakthrough
progresses on special usages. Our products, with high quality and competitive prices, spread worldwide and earn excellent
public reputation from both domestic and overseas market.
