Wholesales Outdoor HD Full Color LED Display Panel for Advertising
Shenzhen Foxgolden Technology Limited- Tube Chip Color：Full Color
- IP Rating：IP65
- Pixel Pitch：8mm
- Pixel Configuration：1R, 1G, 1B
- Display Function：Video Display
- Average Power Consumption：900W,M2
Base Info
- Model NO.：p8-outdoor
- Pixel Density：15625dots,M2
- Scanning Mode：1,4 Scan
- Display Type：LED Video Display
- Application：Advertising
- Certification：CE, RoHS, UL, CCC, ETL, SGS ISO
- Module Size(W×h)：256X128mm
- Module Resolution(W×h)：32*16dots
- Brightness：8000CD,M2
- Cabinet Size：1024*1024*120mm
- Viewing Angle(H/V)：140 ,120
- Max Comsumption：1100W,M2
- Warranty：3years
- Best Viewing Distance：8-250m
- Repetition Frequency：60Hz,S
- Transport Package：1. Plywood Case 2. Flight Case 3. Carton-Box
- Specification：FOX-smd-P8
- Trademark：Foxgolden
- Origin：Shenzhen, China
- HS Code：8531200000
- Production Capacity：5000sq. M,Week
Description

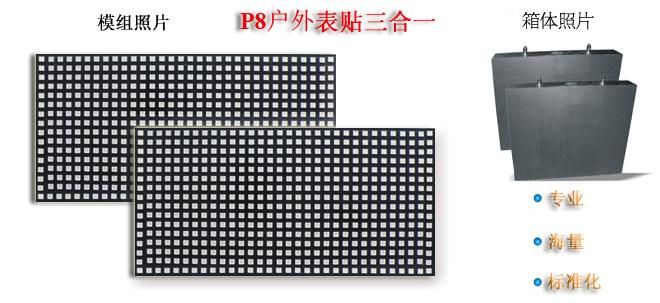

P8 outdoor DIP full color led display No. Item P8 1 Pixel pitch 8mm 2 Module size 256mm*128mm 3 Module resolution(dots) 32*16 4 Pixel configuration 1R1pG1B 5 Pixel density 15625dots/m² 6 Red wavelength 625±2nm 7 Green wavelength 525±2nm 8 Blue wavelength 470±2nm 9 Colors 16777216 10 Best viewing distance 8m-200m 11 Horizontal view angle 140° 12 Maximum power consumption <1100W/m² 13 Brightness ≥7000cd/m² 14 Gray scale 16 bits per color 15 Color temperature 6500k 16 Control method Synchronization&Asynchronization 17 Driving method 1/4 scanning 18 Frame frequency 60Hz 19 Refresh frequency ≥350Hz 20 Working voltage AC220V/110V±10% 21 IP grade IP 65 22 Working temperature -20°C~80°C 23 MTBF >10,000 hours 24 Life span >100,000 hours
The following are our advantage:
1Quality is our cuture,We gurrantee our led display module or led display screen 3-5years.
2.Price is very reasonable,we are factory,no middle man or trade company here.
3.MOQ:led display module:1pcs,led display screen:1 sqm.
4.Delivery date:
1.LED display module:1-2000pcs,1-3days. 2000-10000pcs,3-6working days.
2.LED display screen:1-15sqm,2-5working days. 15-50sqm,7-15working days
Function and Technology Character

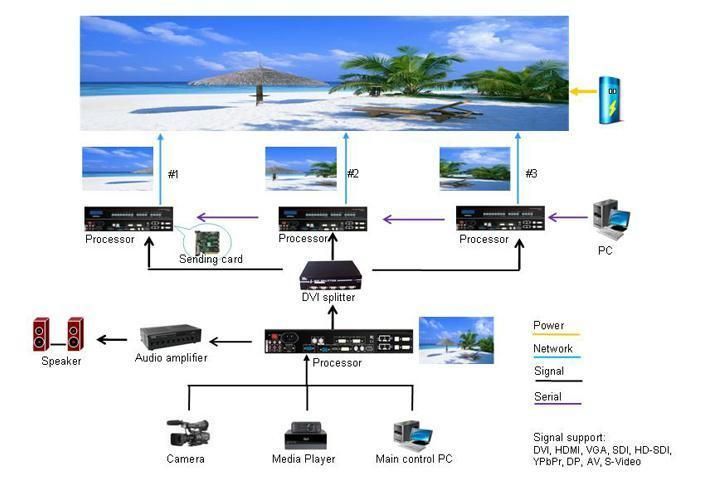

(1) Multiform file formats, such as VGA, Video, AVI, MOV, MPG, DAT, VOB and so on are comprehensive.
(2) Information source can be camera, video, VCD, DVD, LD, TV and so on.
(3) Clear picture without flicker and distortion.
(4) Brightness, contrast, saturation can be adjust by itself and manual.
(5) Show everything with your PC does synchronously or offline does asynchronously
(6) Super correcting technology for distortion.
(7) One interface for sound signal and two for video signal at least.
(8) Connected and controlled by PC via LAN and remote control.
(9) Multiform language editions, such as English, French, Germany, Greek, Russian and so on.
(10)Can be connected with PC and the website, and also can be controlled remotely via wireless controller
Website:http://foxgolden.en.made-in-china.com
Foxgolden had been engaged in designing and manufacturing LED display for more than 11 years. Our products have certificates like CE/FCC/RoHS/NQA .
The best quality products and excellent service will be provided to you by our professional team
Foxgolden Group Ltd
Address: No.57,Shuitian Fourth Industrial Park,Shiyan Town,Baoan District,Shenzhen City,China
Foxgolden had been engaged in designing and manufacturing LED display for more than 11 years. Our products have certificates like CE/FCC/RoHS/NQA /SGS/ISO.
The best quality products and excellent service will be provided to you by our professional team.
