High Quality P6 SMD Indoor HD LED Display for Stage
Shenzhen Foxgolden Technology Limited- Tube Chip Color：Full Color
- Display Function：Video Display
- Pixel Pitch：6mm
- Pixel Configuration：1r1g1b, 1r, 1g, 1b
- Pixel Density：27,777 dots , m²
- Scanning Mode：1,8 Scan
Base Info
- Model NO.：p6-indoor
- System Operating Platform：WIN XP
- Display Type：LED Video Display
- Application：Stage Performance, Advertising, Shopping Guide
- IP Rating：IP43
- Certification：CE, RoHS, CCC, SGS ISO
- Module Size：384*192mm
- Best Viewing Angle：140°
- Working Voltage：AC220V,110V± 10%
- Refresh Frequency：1200Hz
- Brightness：>2000CD,M2
- Life Span：100000hours
- Warranty：3-5years
- Mtbf：More Than 38months
- Transport Package：1. Anti-Shaking Wooden Package. 2. Air Flight Case
- Specification：CE&RoHS&UL&FCC&SGS&3c
- Trademark：FOXGOLDEN
- Origin：Shenzhen City, Guangdong Province, China
- HS Code：8532100000
- Production Capacity：4000sqm,Month
Description
Technical parameterUnit module Module size 384*192mm Pixel pitch 6mm Pixel density 27777dots/m2 Pixel configuration 1R1G1B Led specification 3528 SMD 3 in 1 Pixel resolution W: 192dots*H: 96dots Cabinet Dimension 768mm*768mm*120mm Quantities of module 32pcs Power supply 4pcs Thermal discharge Fan*2pcs Total weight 40kg Best viewing angle 140° Temperature Storage: -35degree~+85degree Working: -35degree~+85degree Thickness 15cm can adjustable Remarks: cabinet size can changed, upon project need. Power Working voltage AC220V/110V± 10% Average power consumption 400-600W Max. Power consumption ≤ 1100W/sqm Current ≤ 20mA(single LED) Control system CPU Pentium4 or above Operating system WIN98/2000/NT/XP Control method Synchronization Main technical parameter Driving device 1/16scanning Drive type Constant Current driver IC Refresh frequency ≥ 300Hz Grey scale/colors 256 levels of each color(R/G/B)/16.7M color Brightness of white balance More than 2200cd/sqm Brightness adjustment 256 levels of each color(R/G/B)by software Operating ambient humidity 10%--95% Video signal PAL/NTSC Control system DVI display card+full color controller card MTBF ≥ 10, 000hours Life span ≥ 100, 000hours Flatness Tolerance of interpixel ≤ 0.3mm Tolerance of modules clearance≤ 0.6mm Power switch Automatic switch Display mode 1024*768 Communication distance Unshielded twisted pair net line transmission distance 100m, max transmission distance 200m.
Multi-mode Optic fiber transmission distance 500m; Single-mode optic fiber transmission distance 10KM Software LED media player
Foxgolden Group Ltd
Address: No.57,Shuitian Fourth Industrial Park,Shiyan Town,Baoan District,Shenzhen City,China

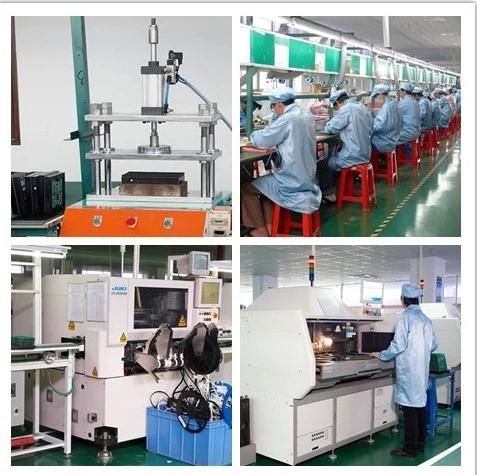

Foxgolden had been engaged in designing and manufacturing LED display for more than 11 years. Our products have certificates like CE/FCC/RoHS/NQA /SGS/ISO.
The best quality products and excellent service will be provided to you by our professional team.
Website:http://foxgolden.en.made-in-china.com
Multi-mode Optic fiber transmission distance 500m; Single-mode optic fiber transmission distance 10KM
