• Model NO.：fox-p5-smd-indoor
• System Operating Platform：WIN XP
• Display Type：LED Video Display
• Application：Stage Performance, Advertising, Shopping Guide
• IP Rating：IP43
• Certification：CE, RoHS, CCC, SGS ISO
• Delivery Time：3-12working Days
• Module Size：320*160mm
• Max Refresh Rate：2800
• Average Power Consumption：500W,M2
• Brightness：>2500CD,Sq.M
• Working Voltage：AC110V,220V
• Mtbf：10, 000hours
• Life Span：>100, 000hours
• Transport Package：Anti-Shaking Wooden,Airflight Case,Carton Package
• Specification：CE, RoHS, SGS, etc.
• Trademark：FOXGOLDEN
• Origin：Shenzhen, China
• HS Code：8528591090
• Production Capacity：5000sqm,Month

Basic Info.

Model NO. fox-p5-smd-indoor System Operating Platform WIN XP Display Type LED Video Display Application Stage Performance, Advertising, Shopping Guide IP Rating IP43 Certification CE, RoHS, CCC, SGS ISO Delivery Time 3-12working Days Module Size 320*160mm Max Refresh Rate 2800 Average Power Consumption 500W/M2 Brightness >2500CD/Sq.M Working Voltage AC110V/220V Mtbf 10, 000hours Life Span >100, 000hours Transport Package Anti-Shaking Wooden,Airflight Case,Carton Package Specification CE, RoHS, SGS, etc. Trademark FOXGOLDEN Origin Shenzhen, China HS Code 8528591090 Production Capacity 5000sqm/Month

Product Description

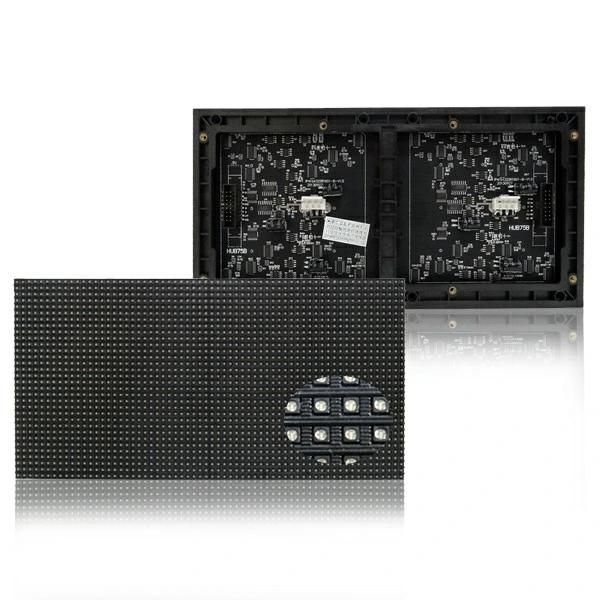

Module of P5

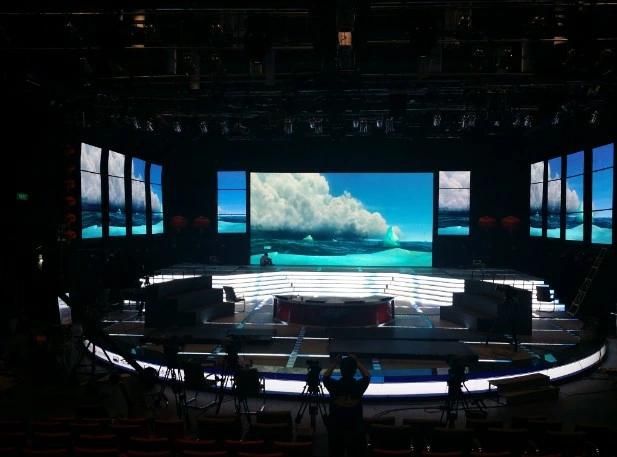

Application Picture






  Specification of P5

Numbers	Technical indexes	Specification
1	Pixel pitch	5mm
2	Module size	320mm×160mm
3	Module resolution	64×32
4	Module density	40,000dots/sqm
5	Pixel configuration	RGB,3 in 1
6	Red wavelength	625±2nm
7	Green wavelength	525±2nm
8	Blue wavelength	470±2nm
9	Colors	16777216
10	Best viewing distance	5m---150m
11	Horizontal viewing angle	140°
12	Vertical viewing angle	120°
13	Maximum power consumption	1100W/sqm
14	Average power consumption	500W/sqm
15	Brightness	2500cd/sqm,adjustable
16	Gray scale	16bits of per color
17	Color temperature	12,000K
18	Driving method	1/8scanning
19	Frame frequency	60Hz
20	Refresh frequency	300 Hz
21	Working voltage	AC220V/110V±10%
22	IP grade	IP20-45
23	Working temperature	-20°C~80°C
24	MTBF	More than 10,000 hours
25	Life span	More than 100,000hours

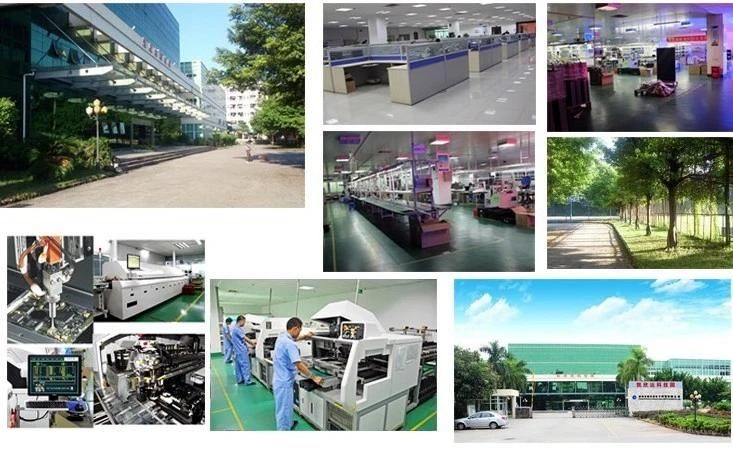

Factory Pictures





Customers visit factory pictures



Our Certification






Shenzhen Foxgolden Technology Limited, is one of the most impressing Hi-tech enterprises in China. Since 2004, we
have been dedicating to the aim that making high quality products, and have been well integrated with R&D, production,
project, capital and marketing.

As a professional and market-oriented LED display manufacturer, FOXGOLDEN not only keeps improving on normal LED
display screen, enhances the product's cost-effective and overall market competitiveness, but also makes breakthrough
progresses on special usages. Our products, with high quality and competitive prices, spread worldwide and earn excellent
public reputation from both domestic and overseas market.
