China Supplier HD Full Color P8 LED Display Signs
Shenzhen Foxgolden Technology Limited- Tube Chip Color：Full Color
- IP Rating：IP65
- Pixel Pitch：8mm
- Pixel Configuration：1R, 1G, 1B
- Average Power Consumption：8000W,M2
- Pixel Density：15625dots,M2
Base Info
- Model NO.：p8-smd-outdoor
- Scanning Mode：1,4 Scan
- Display Type：LED Display Signs
- Application：Signs
- Certification：CE, RoHS
- Module Size(W×h)：256X128mm
- Module Resolution(W×h)：32*16dots
- Cabinet Size：1024*1024*80mm
- Brightness：7500CD,M2
- Max Comsumption：1100W,M2
- Viewing Angle(H/V)：140° ,120°
- Warranty：3-5years
- Best Viewing Distance：8-250m
- Repetition Frequency：60Hz,S
- Life Span：More Than 100, 000
- Transport Package：1. Plywood Case 2. Flight Case 3. Carton-Box
- Specification：FOX-smd-outdoor-P8
- Trademark：Foxgolden
- Origin：Shenzhen, China
- HS Code：8528591090
- Production Capacity：5000sq. M,Week
Description
P8 outdoor DIP full color led display No. Item P8 1 Pixel pitch 8mm 2 Module size 256mm*128mm 3 Module resolution(dots) 32*16 4 Pixel configuration 1R1pG1B 5 Pixel density 15625dots/m² 6 Red wavelength 625±2nm 7 Green wavelength 525±2nm 8 Blue wavelength 470±2nm 9 Colors 16777216 10 Best viewing distance 8m-250m 11 Horizontal view angle 140° 12 Maximum power consumption <1100W/m² 13 Brightness ≥7000cd/m² 14 Gray scale 16 bits per color 15 Color temperature 6500k 16 Control method Synchronization&Asynchronization 17 Driving method 1/4 scanning 18 Frame frequency 60Hz 19 Refresh frequency ≥350Hz 20 Working voltage AC220V/110V±10% 21 IP grade IP 65 22 Working temperature -20°C~80°C 23 MTBF >10,000 hours 24 Life span >100,000 hours 25 lamp model smd3535

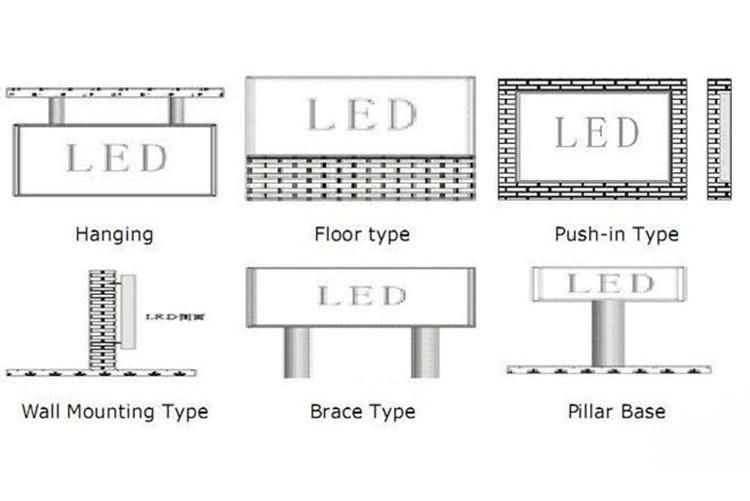

Different Installation:

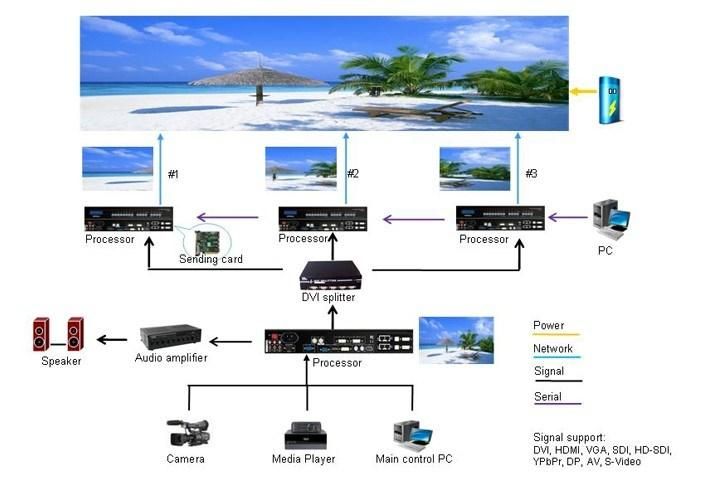

Control System:

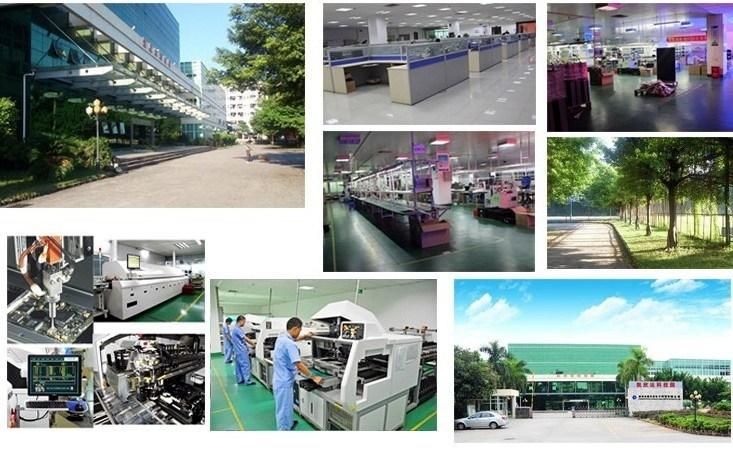

Company Information:
Foxgolden Technology Limited, is one of the most impressing Hi-tech enterprises in China. Since 2004, we have been dedicating to the aim that making high quality products, and have been well integrated with R&D, production, project, capital and marketing.
As a professional and market-oriented LED display manufacturer, FOXGOLDEN not only keeps improving on normal LED
display screen, enhances the product's cost-effective and overall market competitiveness, but also makes breakthrough
progresses on special usages. Our products, with high quality and competitive prices, spread worldwide and earn excellent
public reputation from both domestic and overseas market.
