Pixel Pitch 10mm Full Color LED Display Panel
Shenzhen Foxgolden Technology Limited- Tube Chip Color：Full Color
- IP Rating：IP67
- Pixel Pitch：10mm
- Pixel Configuration：1R, 1G, 1B
- Display Function：Video Display
- Average Power Consumption：350W , m²
Base Info
- Model NO.：P10
- Pixel Density：10000 dot , m²
- Scanning Mode：1,4 Scan
- Display Type：LED Video Display
- Application：Advertising
- Certification：CE, RoHS, UL
- Display Format：1080P (Full-HD)
- Working Temperature：-20° C~+80° C
- High Resolution：3906dots,Sqm
- Long Life Span：More Than 100000 Hours
- Competitive Price：Factory Price
- Competitive Advantage：Professional LED Display Manufacturer
- Use Place：Stadiums Securities Exchange Advertisement etc
- Delivery Time：3-8 Working Days
- Waterproof Grade：IP67
- Vivid Mixture Color Effect：1r1g1b

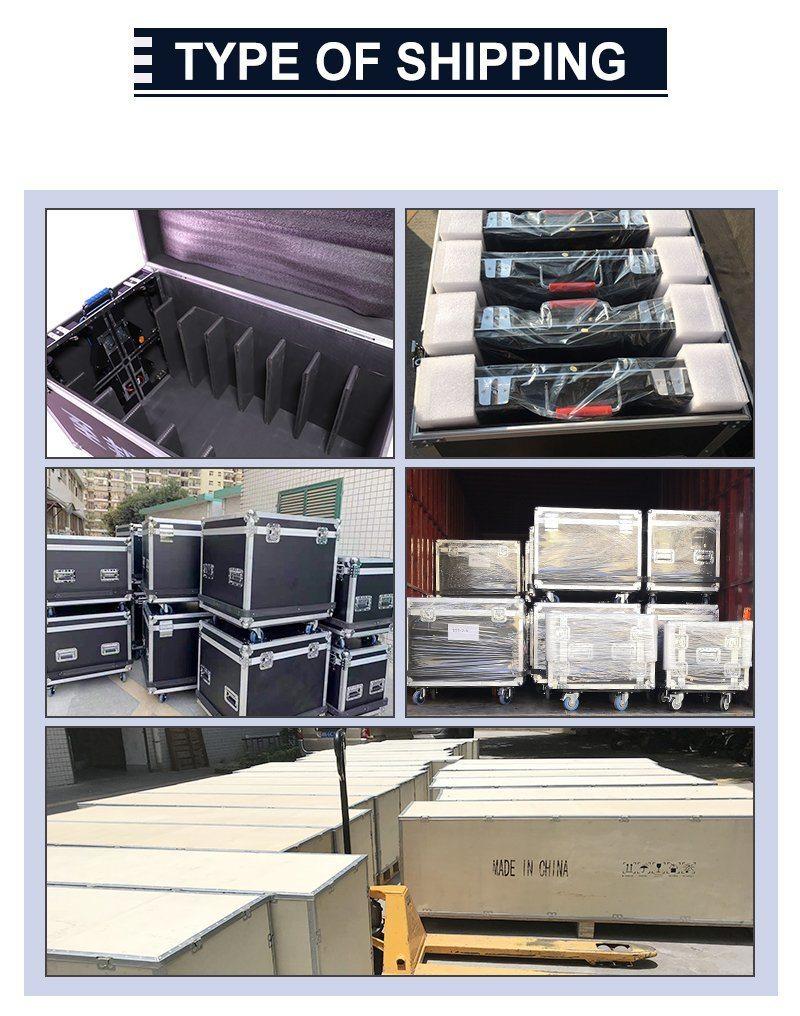

- Transport Package：1. Anti-Shaking Wooden Package 2. Air Freight Case
- Specification：CE&RoHS&UL&SGS
- Trademark：FOXGOLDEN
- Origin：Shenzhen City, Guangdong Province, China
- HS Code：8531200000
- Production Capacity：1000 Sqm,Week
Description
Unit moduleModule size 160*160mm Pixel pitch 10mm Pixel density 10, 000dots/m2 Pixel configuration DIP 1R1G1B Display color Full color PCB layer Double layer Led specification Φ 3ellipse Pixel resolution W: 16dots*H: 16dots Cabinet Dimension 960mm*960mm*150mm Quantities of module 36pcs Power supply 6pcs Thermal discharge Fan*2pcs Total weight 50kg Best viewing angle 10-100m Temperature Storage: -35degree~+85degree Working: -35degree~+85degree Thickness 15cm can adjustable Remarks: cabinet size can changed, upon project need. Power Working voltage AC220V/110V± 10% Average power consumption 300-400W Max. Power consumption ≤ 1000W/sqm Current ≤ 20mA(single LED) Control system CPU Pentium4 or above Type LINSN Operating system WIN98/2000/NT/XP Control method Synchronization& Asynchronization Main technical parameter Driving device 1/4scanning Drive type Constant Current driver IC MBI5024 Display type Video/Graphics/Animation/Message/Text/Flash Input Signal HDTV CATV NTSC PAL s-video VGA DVI Refresh frequency ≥ 400Hz Grey scale/colors 256 levels of each color(R/G/B)/16.7M color Brightness of white balance More than 8000cd/sqm Brightness adjustment 256 levels of each color(R/G/B)by software Operating ambient humidity 10%--95% Video signal PAL/NTSC Control system DVI display card+full color controller card MTBF ≥ 10, 000hours Life span ≥ 100, 000hours Flatness Tolerance of interpixel ≤ 0.3mm Tolerance of modules clearance≤ 0.6mm Power switch Automatic switch Display mode 1920*1080P FULL HD Software LED media player
