• Model NO.：3mm
• System Operating Platform：Windows
• Display Type：LED Video Display
• Application：Stage Performance, Advertising, Shopping Guide, Shopping Mall, Concerts, Shows and Event, Airport
• IP Rating：IP33
• Certification：CE, RoHS, UL, CCC, ETL
• Module Size：192X192mm
• Module Resolution：64X64dots
• Cabinet Size：576X576mm
• Cabinet Resolution：192X192dots
• Screen Brightness：1300nits
• Refresh Rate：1920Hz-3840Hz
• Compliance：Ce,CCC,RoHS,FCC
• Maintenance：Front, Rear Service
• Controller：Nova, Linsn
• Frame Frequency：60Hz
• Transport Package：Plywood Case
• Specification：976x976mm
• Trademark：CKGLED
• Origin：China
• HS Code：8528591090
• Production Capacity：6000sqm,Month

NO.ItemParameters1ModelV032Pixel Pitch(mm)33LED Configuration1R1G1B4LED TypeSMD21215Screen Resolution111111dots/sqm6Module size(mm)192x1927Module resolution(dots)64x648Scan method1/16 constant current drive9Cabinet size(mm)576x57610Cabinet resolution(dots)192x19211Cabinet materialIron / Aluminum12Brightness(cd/sqm)≥130013Viewing angleH:140°/ V:140°14Grey Scale16bit15Refresh rate(Hz)≥192016Ave. power consumption (W/sqm)17017Max. power consumption(W/sqm)42018IP gradeIP3319controllerNovastar / Linsn20MaintenanceRear service21Color(T)>4.422Input Voltage(V)AC 110V-220V +/-10%23Frame frequency(Hz)6024Working humidity10~90%RH25Working temperature-20ºC~50ºC26CertificatesRoHS / CE / CCC


Our service:

1. Your inquiry related to our products or price will be replied in 24hrs

2. The size can be change as you give.

3. What we show is some of our current models, welcome to give us your own ideas.

4. Protection of your sales area, ideas of design and all your private information

5. (Top Quality) + (Reasonable Price) + (Responsible After Service) = (Successful & Win)

LED Display Panel photos:

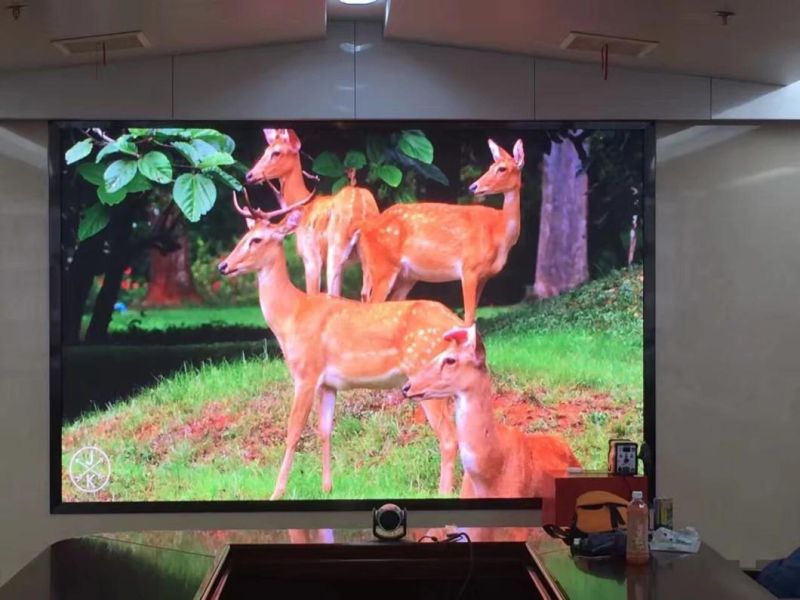

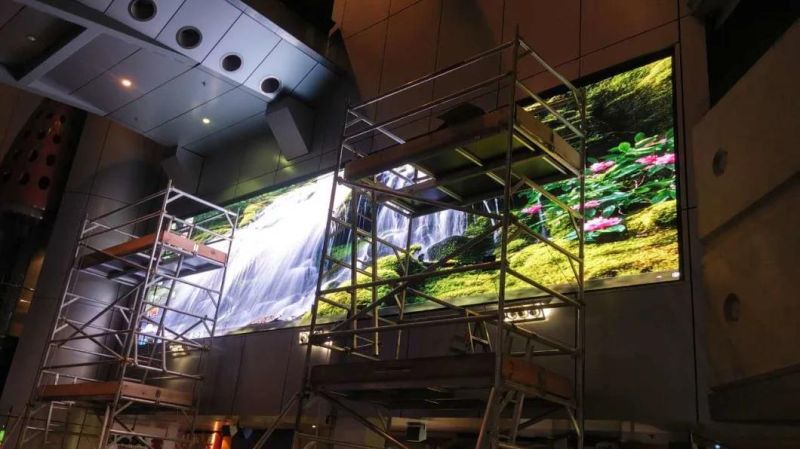

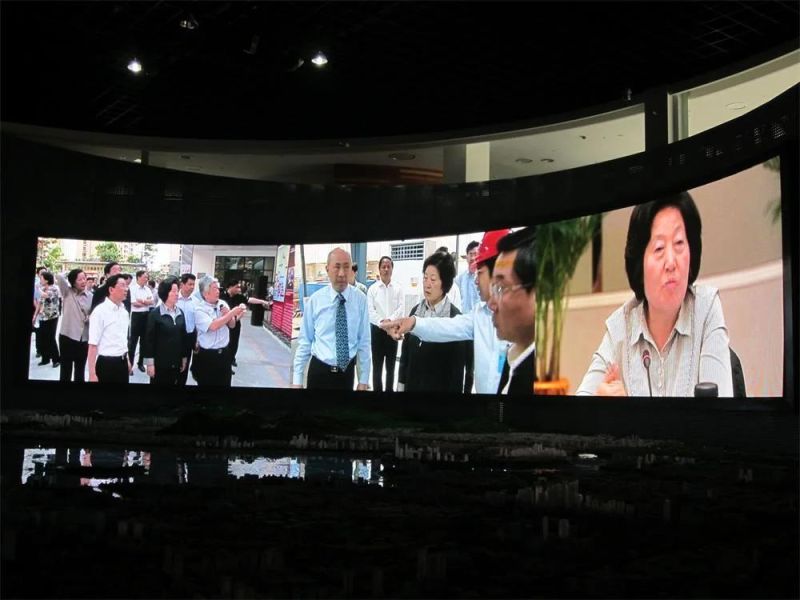

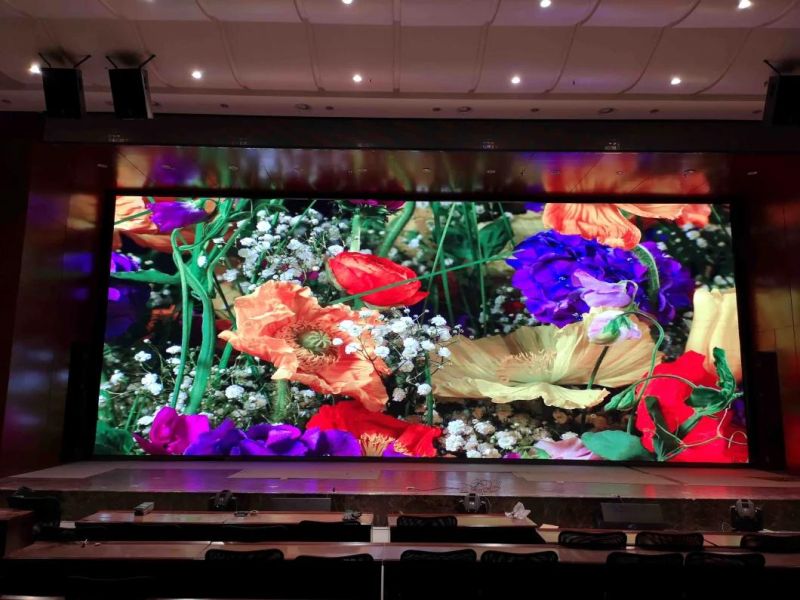

LED Display Project With CKGLED Brand:

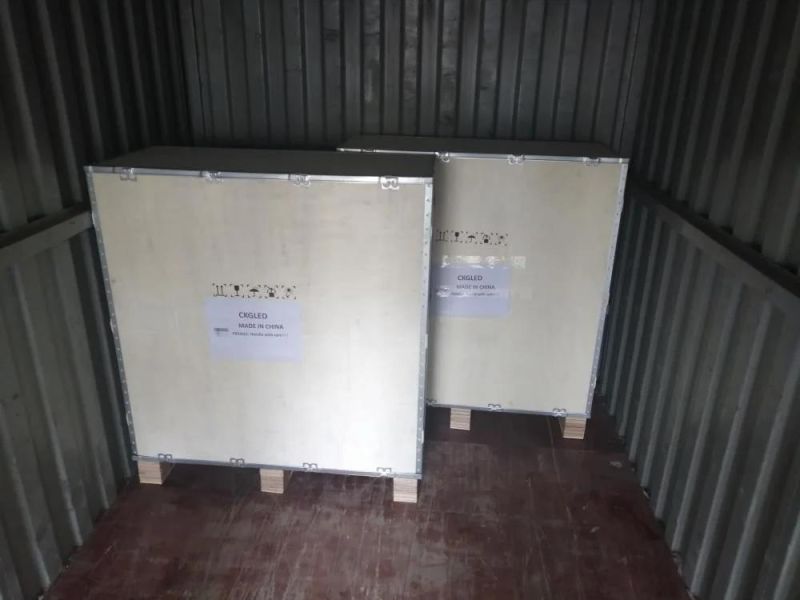

Wooden case Package:




Certificates:
