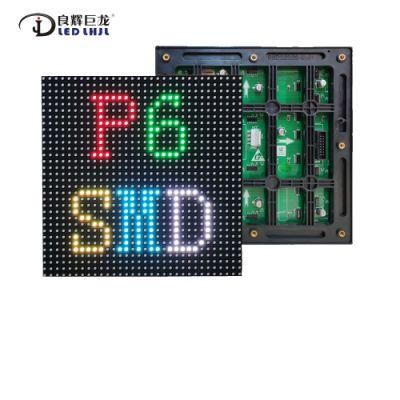

Front/Rear Access Full Color Pantallas De LED of Indoor (P3.91/P4.81/5.95/P6.25)

PRT Optoelectronic Co., Ltd.
  • Tube Chip Color：Full Color
  • Display Function：Video Display
  • Pixel Pitch：3.91
  • Pixel Configuration：1R,1G,1B
  • Pixel Density：65746dots,Sq.M
  • Scanning Mode：1,16

Base Info

  • Model NO.：P3.91
  • System Operating Platform：WIN XP
  • Display Type：LED Video Display
  • Application：Stage Performance, Advertising, Shopping Guide
  • IP Rating：IP43
  • Certification：CE, RoHS, CCC, FCC
  • LED Style：SMD2121 Black
  • Module Size：250X250mm
  • Module Resolution：104X104mm
  • Cabinet Size：500X500mm
  • Cabinet Material：Die-Casting Aluminum
  • Transport Package：Flight Case or as Required
  • Specification：CE, FCC, Rohs
  • Trademark：PRT
  • Origin：Shenzhen China
  • HS Code：8528591090
  • Production Capacity：3000sqm,Month

Description

P3.91 SMD2121 Indoor full Color LED Screen SpecificationPixel pitch3.91mmPixel Configuration1R1G1BLED componentSMD2121 blackSize of module250mm*250mmResolution of module64x64Size of cabinet500mm*500mm*75mm/500mm*1000mm*75mmResolution of cabinet128*128/128x256Material of CabinetDie-casting AluminumWeight of Cabinet7.8kgs/13KGSBrightness>1500cd/sq.mDensity65746dots/sq.mBest viewing angle140 /140Pixel Configuration1R1G1BBest viewing distance3-50MMaximum power consumption1200W/sq.mAverage power consumption640W/sq.mDriving method1/16 scanControl methodSynchronizationGray scale65536Colors256*256*256Color temperature3200-9300kUniformity97%Working voltageAC220V/110V±10%Working temperature-20ºC~+50ºC±10%Working humidity10% ~ 90%MTBF10,000 hoursFrame frequence50/60HzRefresh frequence>1920HzIP gradeIP31Life Span100,000 hoursData transafer methodRJ45Pratical standardCCC  TUV-CE  ETL etc.Effectivce Communication
Distance(without relay)Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
Single-mode optic fiber: 10KMAccepting signal with video processorPAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc.Systems operating platformWINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development
