• Model NO.：P5

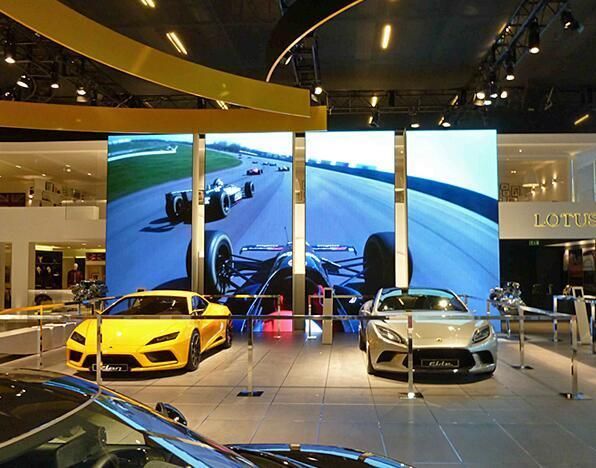

• Application：Stage Performance, Advertising
• IP Rating：IP43
• Certification：CE, RoHS
• Average Power Consumption：350W,M2
• Life Span：>100, 000hours
• Mtbf：>10, 000hours
• Delivery Time：3-12working Days
• Transport Package：Anti-Shaking Wooden,Airflight Case,Carton Package
• Specification：CE, RoHS, SGS, etc.
• Trademark：FOXGOLDEN
• Origin：Shenzhen, China
• HS Code：8531200000
• Production Capacity：5000sqm,Month

Basic Info.

Model NO. P5 Application Stage Performance, Advertising IP Rating IP43 Certification CE, RoHS Average Power Consumption 350W/M2 Life Span >100, 000hours Mtbf >10, 000hours Delivery Time 3-12working Days Transport Package Anti-Shaking Wooden,Airflight Case,Carton Package Specification CE, RoHS, SGS, etc. Trademark FOXGOLDEN Origin Shenzhen, China HS Code 8531200000 Production Capacity 5000sqm/Month

Product Description



Numbers	Technical indexes	Specification
1	Pixel pitch	5mm
2	Module size	320mm×160mm
3	Module resolution	64 X 32
4	Module density	40000dots/sqm
5	Pixel configuration	1R1G1B
6	Cabinet Size	640*640mm
7	Cabinet Resolution	128*128dots
8	Cabinet  Weight	35KG/SQM
9	Colors	16777216
10	Best viewing distance	5-150m
11	Horizontal viewing angle	140°
12	Vertical viewing angle	140°
13	Maximum power consumption	≤1100W/m2
14	Brightness	≥2000cd/m2
15	Gray scale	16 bits of per color
16	Color temperature	6500K
17	Control method	Synchronization or Asynchronization
18	Driving method	1/8 scanning
19	Frame frequency	60Hz
20	Refresh frequency	≥550 Hz
21	Working voltage	AC220V/110V±10%
22	IP grade	IP20-IP65
23	Working temperature	-40ºC ~ +60ºC
24	Brightness	1000-2500cd/m2
25	Life span	More than  100,000 hours

Payment terms:
30% deposit before production, 70% balance before shipping
-T/T:
-Paypal
-Western Union
-Escrow

Packing:
-Standard Export Carton with fully Polyfoam or Pearl Wool
-Flight case;
-Anti-shaking wooden case

Shipping:
LED module: 3 to 5 working days upon receiving deposit payment
LED display: 5 to 8 working days upon receiving deposit payment

After-Sales-Service:
-Lifetime with professional engineer support for free.
-Within 1 year, supply spare parts for free if the machine has quality problem

FAQ

Q1: When is the delivery time?
A1: we will accomplish manufacturing within 10-15 days after receiving the deposit.

Q2: What is the payment method?
A2: We support a variety of payment methods, the most common is the TT.

Q3: Can it play HD video?
A3: Yes, it can realize HD video function with Linsn controlling system.

Q4: What's the controlling system?
A4: Our standard controlling system for this model is Linsn, Novastar. Also support other controlling system, like Xixun,TF, Colorlight, etc.

Q5: How about the size of project?
A5: Please offer the size with "width by height" of project. We will offer the suitable solution for your project size. I will appreciate it if any drawing files about installation offered.

Q6: How about your service?
A6:
1. Lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
4. Free technician training.
5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
6. Special service for big project, such as stadium, exhibitions, squares and so on.




Warmly welcome to visit FOXGOLDEN !!!! -:)
