• Model NO.：P8.9
• Pixel Density：12546 Dots,M2
• Scanning Mode：1,4 Scan
• Display Type：LED Video Display
• Application：Advertising
• Certification：CE, RoHS, UL, CCC, ETL
• Cabinet Material：Aluminium
• Weight：12kg,PCS (Aluminium)
• Viewing Distance：8-12meters
• Brightness：3000-3500nits
• Refresh Rate：>1920Hz
• Contrast Rate：3000:1
• Voltage：AC110-240V
• LED Lamps：Epistar
• Driver IC：Mbi
• PSU：MW
• Installation：Back Bolted Hanging
• System：Nova
• Software OS：Windows
• Transport Package：Plywood Cases
• Specification：500x1000mm
• Trademark：LEDventure
• Origin：China
• HS Code：852859109
• Production Capacity：2000sqm,Month

Item

CX Series Outdoor Mesh/Curtain LED Billboard for Advertising

Model Number

CX-P8.9

Pixel Pitch

8.9mm

Pixel Density(pixels/M2)

12546 pixels

Pixel Configuration

1R1G1B

LED Type

Epistar, SMD 3 in 1

Module Size(mm)

250x250mm

Module Resolution(pixels)

28*28p

Min.Viewing Distance(m)

8m

Brightness(nits)

3000-3500

Viewing Angle(degree)

≤140°

Average Power Consumption(W/M2)

220

Scan Mode

1/4 Scan

Protection Level

IP65

Cabinet Size(mm)

500x1000mm

Color Temperature

The brightness of R.G.B. is adjustable according to software 100level; Color temperature is adjustable in terms of detailed requirements

Input Voltage

AC110-240V, 50Hz/60Hz

Refresh Rate

>1920hz

Color

65535 Levels

Horizontal/Vertical viewing angle

<140°

Gray Scale

16 bits

Effective Communication Distance(without relay)

Lifespan

≥100,000 hours

Environment Temperature

Storage: -40°C~+85°C  , Operation: -20 °C~+45°C

Blind Spot Rate

<0.0001(led display industry standard is less than 0.0003)

Control Mode

Video frequency synchronization

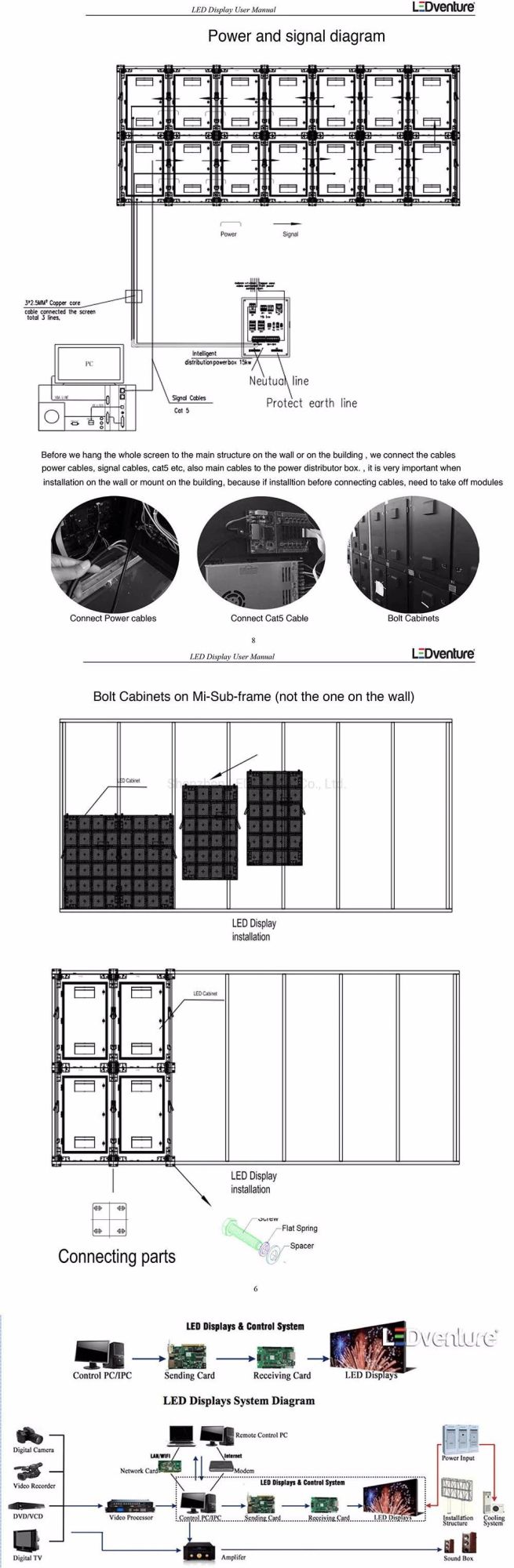

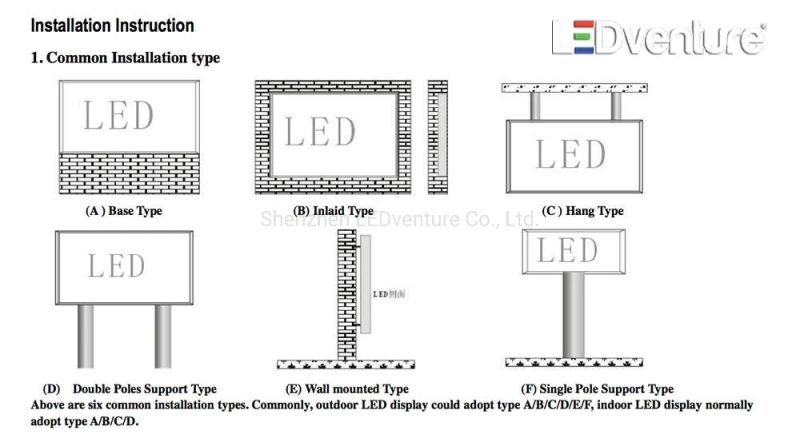

Part 5: Installation Methods

Outdoor led billboard available fixed on the wall, on pillars, standing etc all available, and system hardware included sending cards sending box, processor, receiving cards etc.

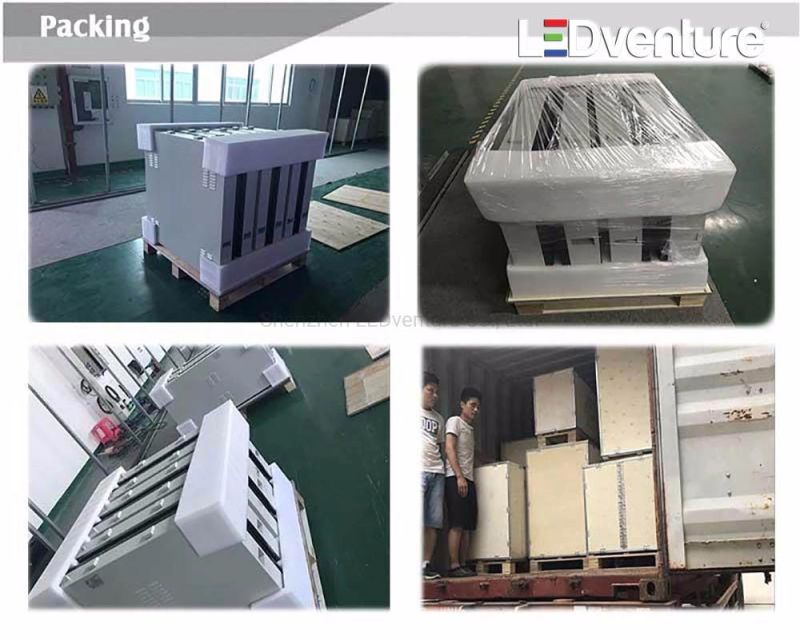

Part 6: Packing Information

Packing by plywood cases or flight case, packing well and easy to load


Part 7: Certificates.

ALL of our Product passed CE, EMC FCC, UL and other security tests, to ensure to meet most market laws and standard requires, and make sure the quality is top level and stable for many years use.

Part 8: About LEDventure.

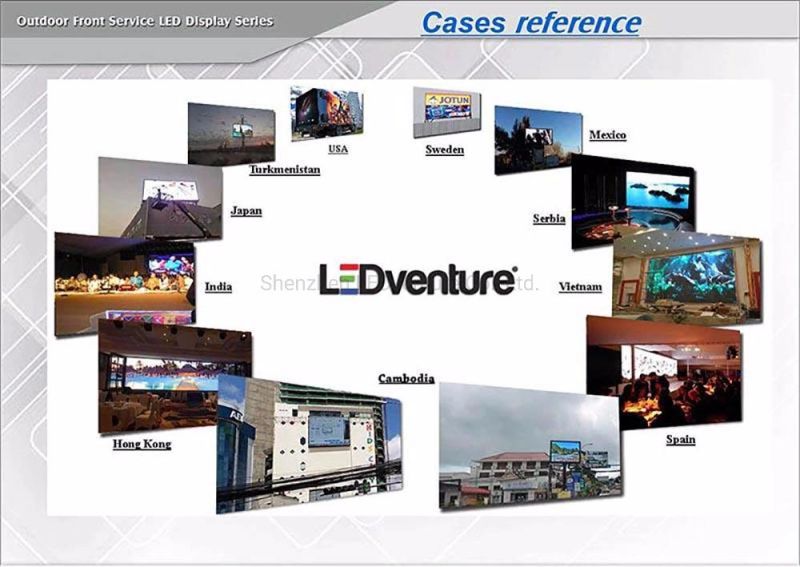

Part 9: LED Display Screen Installation Cases.

Most of our led display exported to Europe with high standards, and also exported to USA, South America and Asia

Address: LEDventure Buliding,Lebao Industrial Park,Fengxin RD,Guangming New District,Shenzhen,China.
