• Model NO.：SL-P4S
• System Operating Platform：Windows
• Display Type：LED Video Display
• Application：Stage Performance, Advertising, Shopping Guide
• IP Rating：IP65
• Certification：CE, RoHS, UL, CCC, ETL
• Cabinet Material：Alloy Aluminum
• Cabinet Weight：28kg,PCS
• Service Solution：Back Service
• IP Rate：IP65
• Min. Viewing Distance：4 M
• Brightness：1000-6000nits (Adjustable)
• Installation Mode：Wall Mounted,Standing,Hanging
• Refresh Rate：3840Hz
• Voltage：AC110-240V
• Contrast Rate：3000:1
• LED Lamps：Epistar
• Driver IC：Mbi
• PSU：MW
• System：Nova
• OS Platform：Windows
• Transport Package：Flight Cases
• Specification：960x960mm
• Trademark：LEDventure
• Origin：China
• HS Code：8528591090
• Production Capacity：2000sqm,Month

Overview Product Mainly Features

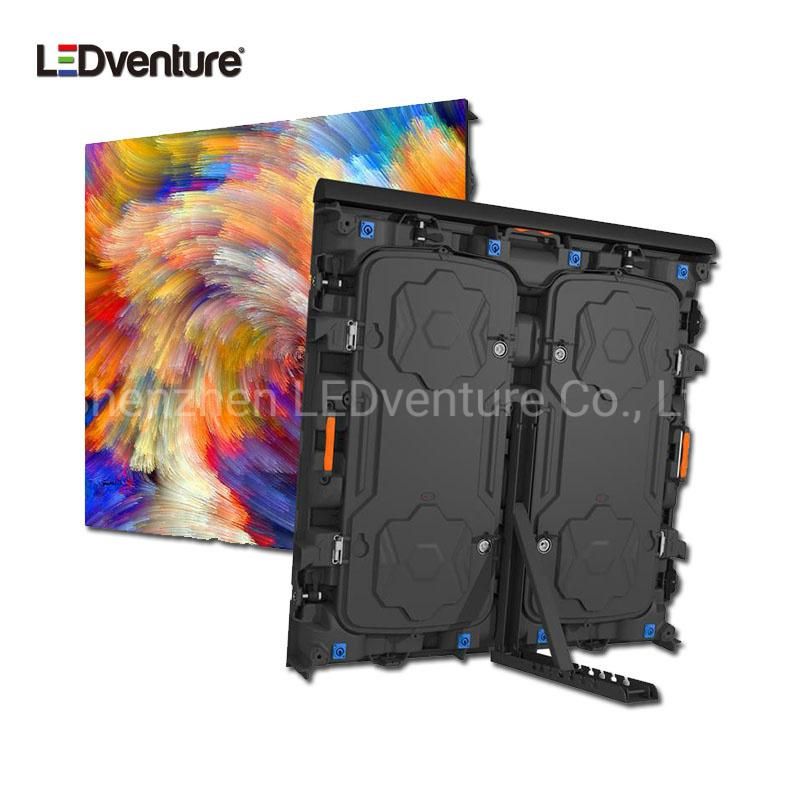

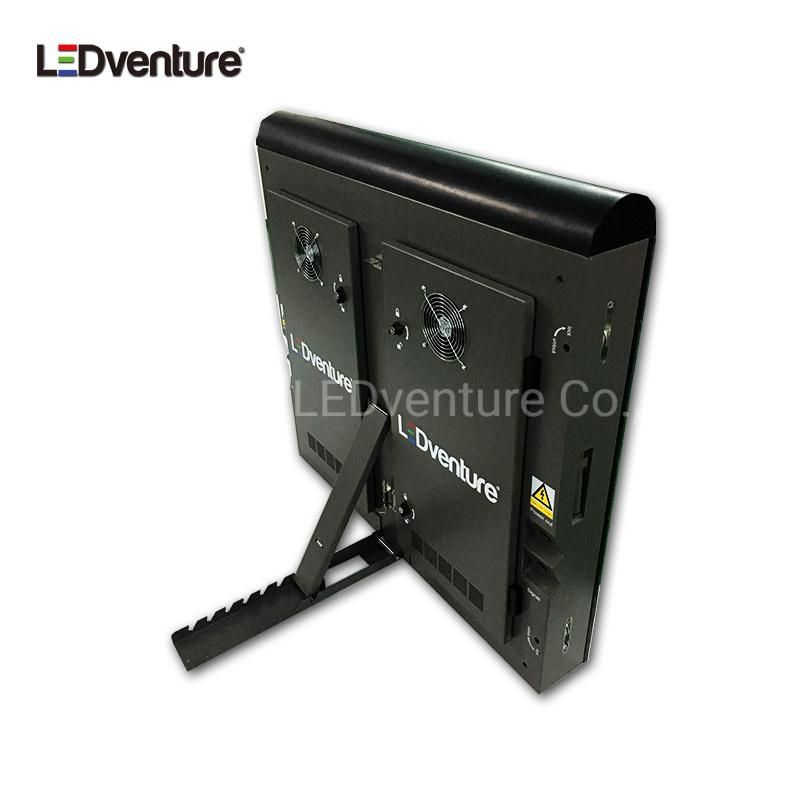

Indoor outdoor high quality perimeter LED display is very popular for sports stadium advertising solution.

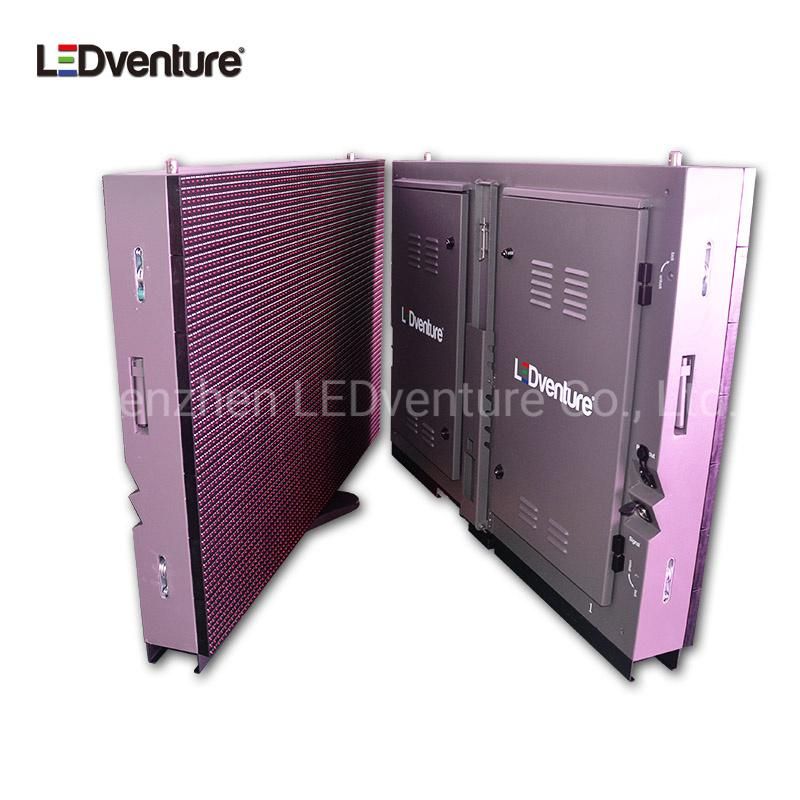

Detailed Photos

Material Quality Level

All of our Product materials we choose all top quality levels, including the SMD, IC components, also the PCB, screws, PSU brands etc, so that during the led screen using, it helps to cut down after sale serive costs, to make sure led display screen stable and less aftersale services.

 Product Parameters



Item

Indoor Outdoor Slim Perimeter LED Display Screen for Stadium Advertising

Model Number

SL-P4S

Pixel Pitch

4mm

Pixel Density

62500 pixels/M2

Pixel Configuration

SMD 3 IN 1

LED Type

NS, SMD

Module Size

320x160mm

Module Resolution

80*40 pixels

Min.Viewing Distance

4m

Brightness

1000-6000nits (Adjustable)

Viewing Angle(degree)

≤140°

Average Power Consumption

350 W/M2

Scan Mode

1/16 Scan

Protection Level

IP65/IP54

Cabinet Size

960x960mm



Color Temperature

The brightness of R.G.B. is adjustable according to software 100level; Color temperature is adjustable in terms of detailed requirements

Input Voltage

AC110-240V, 50HZ/60Hz

Refresh Rate

3840hz

Color

65535 Levels

Horizontal/Vertical viewing angle

<140°

Gray Scale

16 bits

Effective Communication Distance(without relay)

<100 meters

Lifespan

≥100,000 hours

Environment Temperature

Storage: -40°C~+85°C  , Operation: -20 °C~+45°C

Blind Spot Rate

<0.0001(led display industry standard is less than 0.0003)

Control Mode

Video frequency synchronization

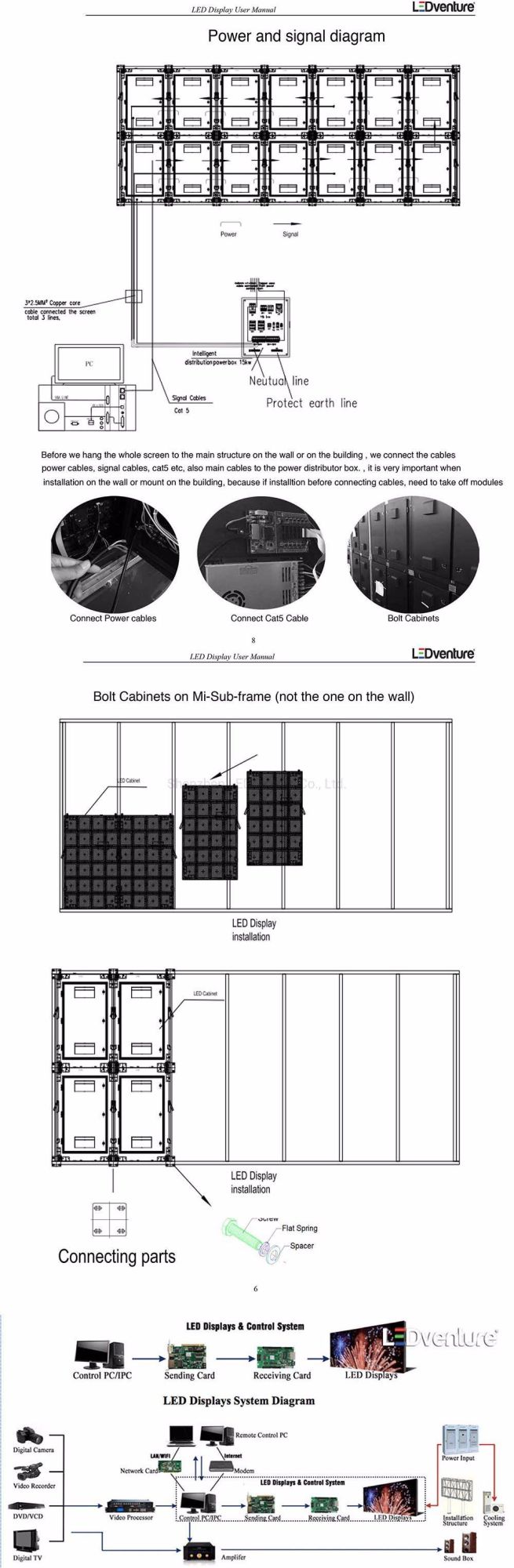

 Installation Instructions

Fixed on the wall, on pillars, standing etc all available, and system hardware included sending cards sending box, processor, receiving cards etc.

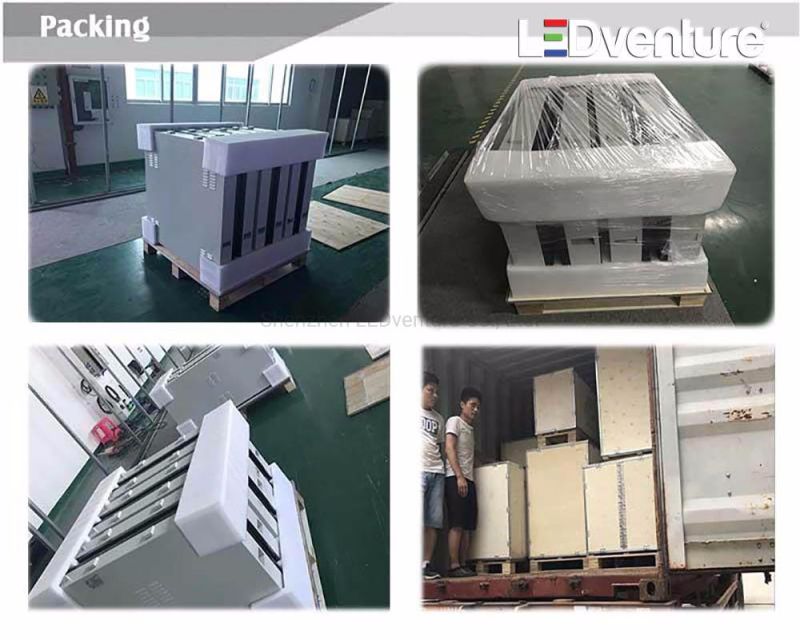

Packaging & Shipping

Packing by plywood cases, packing well and easy to load

Certifications

ALL of our Product passed CE, EMC FCC, UL and other security tests, to ensure to meet most market laws and standard requires, and make sure the quality is top level and stable for many years use.
