• Model NO.：PX-P2S
• System Operating Platform：Windows
• Display Type：LED Video Display
• Application：Stage Performance, Advertising, Shopping Guide
• IP Rating：IP31
• Certification：CE, RoHS, UL, CCC, ETL
• Cabinet Size：680X1960mm
• Cabinet Material：Steel,Aluminum
• Weight：35kg,PCS
• Refresh Rate：1920-3840Hz
• Brightness：1000nits
• Voltage：AC110-240V
• Contrast Rate：3000:1
• Viewing Distance：2 Meters
• Service Solution：Front Service
• Installation：Standing
• LED Lamps：Epistar
• Driver IC：Constent Current
• PSU：MW
• System：Nova
• Software OS：Windows
• Transport Package：Plywood Cases
• Specification：640x1920mm (Display Area)
• Trademark：LEDventure
• Origin：China
• HS Code：8528591090
• Production Capacity：2000sqm,Month

Overview Product Mainly Features

P2 Indoor Standing LED Sign Advertising Poster Display Screen is popular for airport, fashion shops, super market leads, etc, it is available wifi 4/5G module control, and easy to move and carry, HD resoluion, adjustable brightness, it is new type for poster advertising.

Material Quality Level

All of our Product materials we choose all top quality levels, including the SMD, IC components, also the PCB, screws, PSU brands etc, so that during the led screen using, it helps to cut down after sale serive costs, to make sure led display screen stable and less aftersale services.





Product Parameters



Item

PX Series Indoor Advertising LED Poster Display Screen

Model Number

PX-P2S

Pixel Pitch

2mm

Pixel Density

250000 pixels/M2

Pixel Configuration

1R1G1B

LED Type

Epistar, SMD

Module Size

320x160mm

Module Resolution

160*80 pixels

Min.Viewing Distance

2 meters

Brightness

1000nits

Viewing Angle(degree)

≤140°

Average Power Consumption

300 W/M2

Scan Mode

1/32 Scan

Protection Level

IP31

Cabinet Size

680x1960mm

Display Area

640x1920mm



Color Temperature

The brightness of R.G.B. is adjustable according to software 100level; Color temperature is adjustable in terms of detailed requirements

Input Voltage

AC110-240V, 50Hz/60Hz

Refresh Rate

1920-3840hz

Color

65535 Levels

Horizontal/Vertical viewing angle

<140°

Gray Scale

16 bits

Effective Communication Distance(without relay)

<100 meters

Lifespan

≥100,000 hours

Environment Temperature

Storage: -40°C~+85°C  , Operation: -20 °C~+45°C

Blind Spot Rate

<0.0001(led display industry standard is less than 0.0003)

Control Mode

Video frequency synchronization

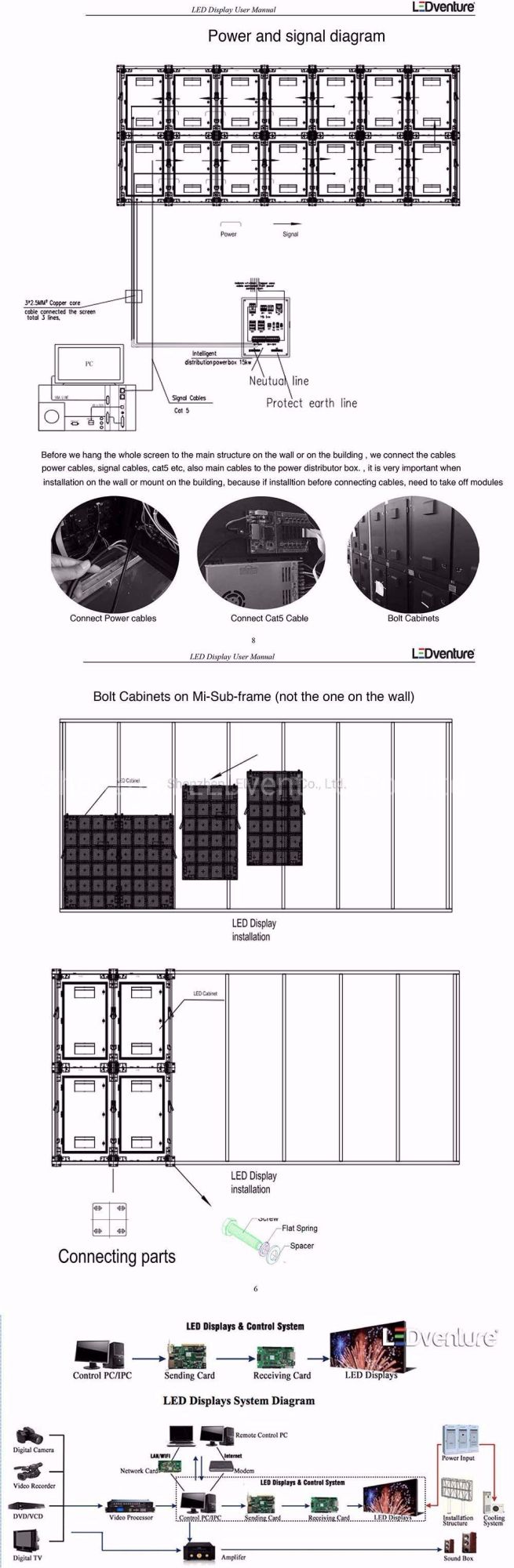

Installation Instructions

Fixed on the wall, on pillars, standing etc all available, and system hardware included sending cards sending box, processor, receiving cards etc.




Packaging & Shipping

Certifications

ALL of our Product passed CE, EMC FCC, UL and other security tests, to ensure to meet most market laws and standard requires, and make sure the quality is top level and stable for many years use.
