• Model NO.：2mm
• System Operating Platform：WIN98
• Display Type：LED Video Display
• Application：Stage Performance, Advertising, Shopping Guide
• IP Rating：IP43
• Certification：CE, RoHS, UL, CCC, ETL
• Module Size：256*128mm
• Module Resolution：128*64dots
• Cabinet Size：592*2000*60
• Screen Brightness：1200nits
• Refresh Rate：1920Hz-3840Hz
• Compliance：Ce
• Maintenance：Front, Rear Service
• Controller：Nova, Linsn
• Frame Frequency：60Hz
• Transport Package：Wooden Case
• Specification：800mm*2050mm*100mm
• Trademark：CKGLED
• Origin：China
• HS Code：8528591090
• Production Capacity：6000sqm,Month

Basic Info.

Model NO. 2mm System Operating Platform WIN98 Display Type LED Video Display Application Stage Performance, Advertising, Shopping Guide IP Rating IP43 Certification CE, RoHS, UL, CCC, ETL Module Size 256*128mm Module Resolution 128*64dots Cabinet Size 592*2000*60 Screen Brightness 1200nits Refresh Rate 1920Hz-3840Hz Compliance Ce Maintenance Front/ Rear Service Controller Nova/ Linsn Frame Frequency 60Hz Transport Package Wooden Case Specification 800mm*2050mm*100mm Trademark CKGLED Origin China HS Code 8528591090 Production Capacity 6000sqm/Month

Product Description

V SERIES PRODUCT FEATURES:

· Seamless splicing.

· Save time and labor cost for installation, just let it stand alone.

· Engineered with latest technologies to give it smoother, slimmer profile.

· High polymer flexible mask, no mosaic phenomenon ,better contract ratio.

· Suitable for exhibition, restaurants, retail businesses and shopping mall to showcase your products in a unique wa

PRODUCT SPECIFICATIONS:

NO.	Item	Parameters
1	Model	V02
2	Pixel Pitch (mm)	2
3	Physical Density (dot/m2)	250000
4	LED Configuration	1R1G1B
5	LED Type	SMD2020
6	Module Size (mm x mm)	256*128
7	Module Resolution (PX x PX)	128*64
9	Drive Mode	1/32 Constant Current Drive
10	Horizontal Viewing Angle (Deg)	160
11	Vertical Viewing Angle (Deg)	160
12	Brightness (cd/m2)	1200
13	Grey Scale	14
14	Refresh Rate (Hz)	≥1920
15	Cabinet Max Power Consumption (W)	560
16	Cabinet size	592*2000*60
17	Cabinet Average Power Consumption (W)	240
18	LED Screen Size (mm x mm)	512*1920*60
19	Cabinet Weight (Kg)	≤39
20	Cabinet Thickness (mm)	60
21	Cabinet Material	Aluminum
22	Color (M)	>16.7
23	Input Voltage (V)	AC 110V~220V+/-10%
24	Refresh Frame Frequency (Hz)	60
25	Protection Level	IP45
26	Working Environment	Indoor
27	Working Temperature (ºC)	"-30°- +60°
28	Operation humidity (RH)	10%-95%
29	Certificates	CCC, CE,RoHS

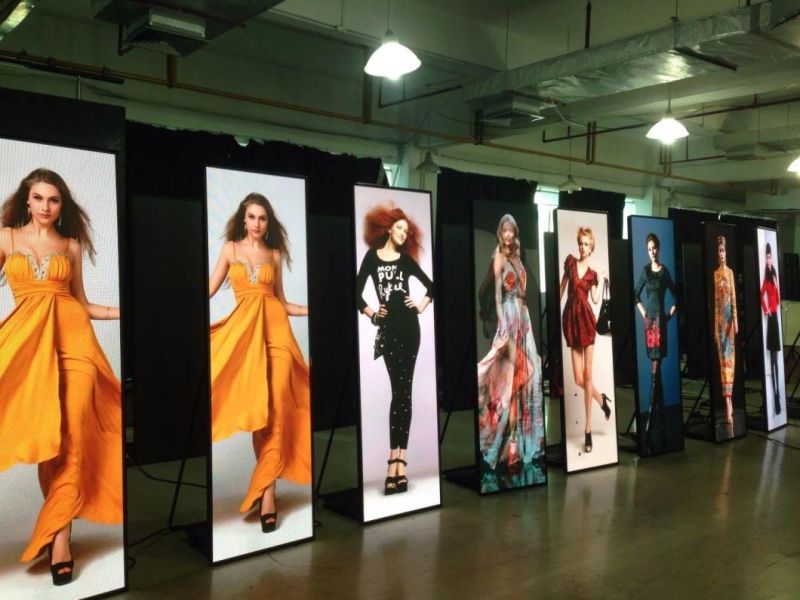

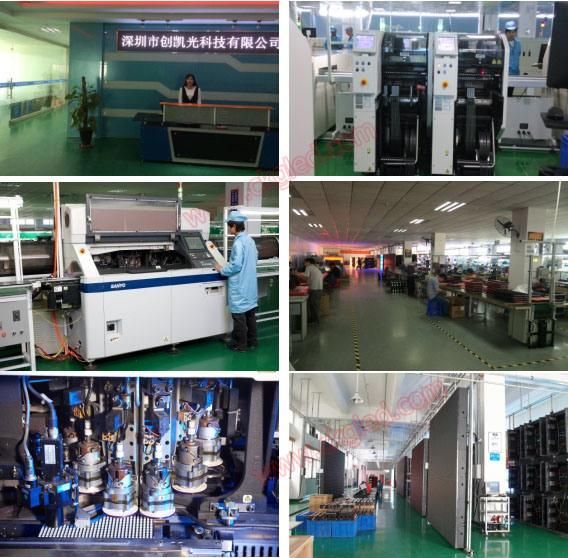

WORKSHOP:

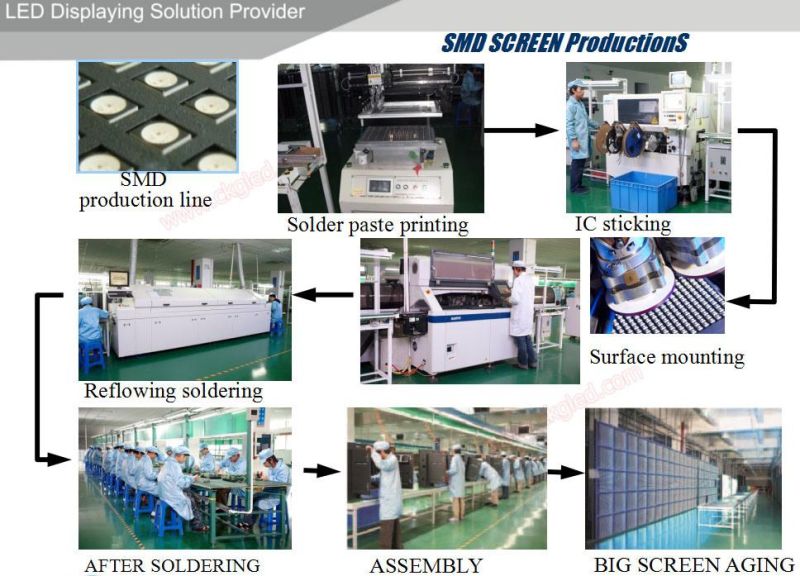

PROCESS:

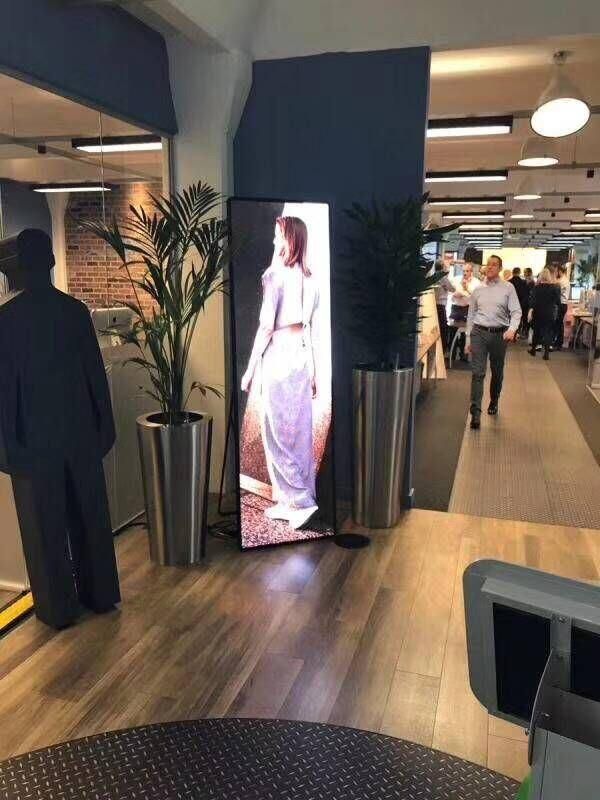

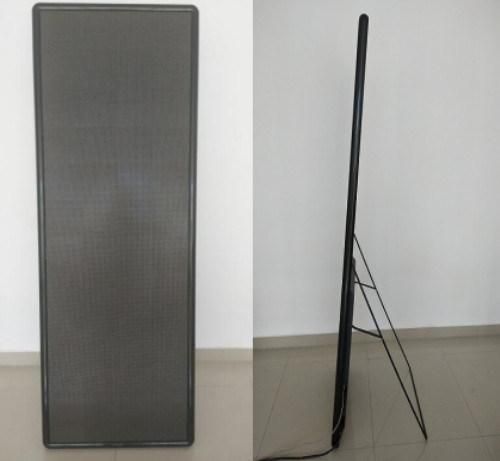

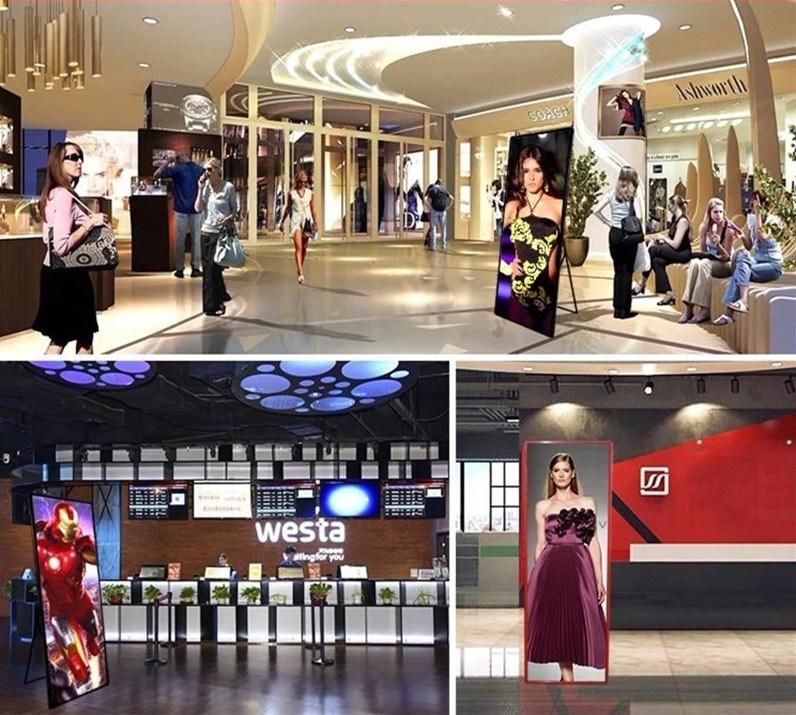

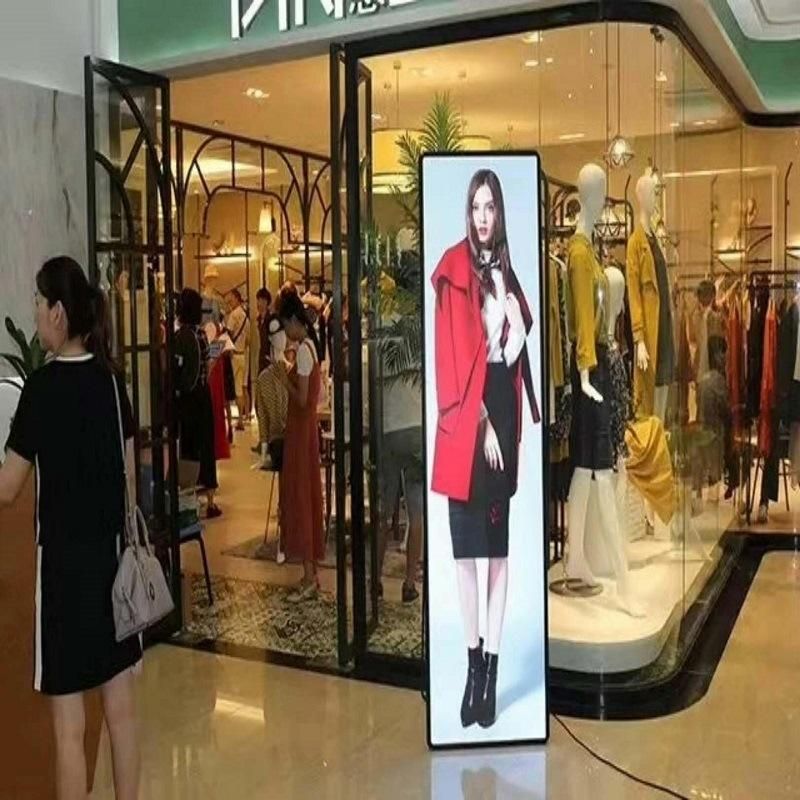

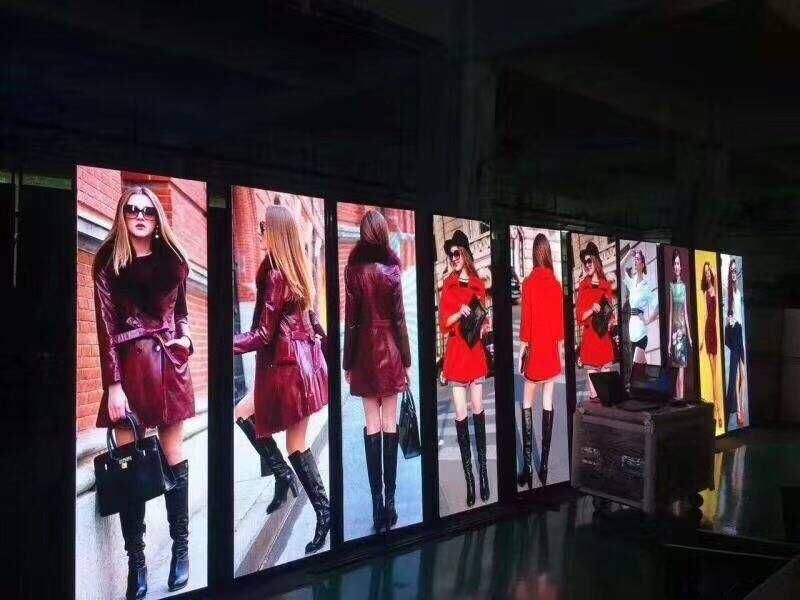

PRODUCT PHOTOS:








Certificates:

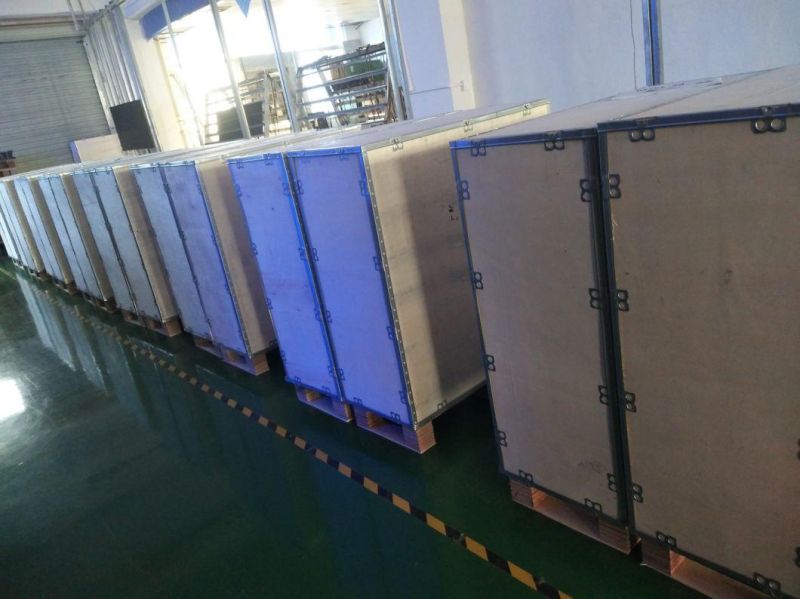

Package:
