P10 RGB Outdoor Commercial LED Billboard

Shenzhen Chuangkaiguang Co., Ltd.
  • Tube Chip Color：Full Color
  • IP Rating：IP65
  • Pixel Pitch：10mm
  • Pixel Configuration：1R, 1G, 1B
  • Display Function：Video Display
  • Average Power Consumption：220W , m²

Base Info

  • Model NO.：10mm
  • Pixel Density：10000 dot , m²
  • Scanning Mode：1,4 Scan
  • Display Type：LED Video Display
  • Application：Advertising
  • Certification：CE, RoHS, UL, CCC, ETL
  • Module Size：160X160mm
  • Module Resolution：16X16dots
  • Cabinet Size：960X960X150mm
  • Cabinet Resolution：96X96dots
  • Screen Brightness：7000nits
  • Protection Grade：IP65
  • Compliance：Ce
  • Controller：Nova, Linsn
  • Maintenance：Rear Service
  • Transport Package：Plywooden Case
  • Specification：960x960mm
  • Trademark：CKGLED
  • Origin：China
  • HS Code：8528591090
  • Production Capacity：6000sqm,Month

Description

Pixel pitch10mmModule size160mm*160mmModule pixel16dots*16dotsDriving method1/4 constant drivingPixel configurationDIP 1R1G1BPixel density10000 dots/sqmModule resolution256dots


Cabinet specifications:
 Cabinet size960mm*960mm*150mmCabinet resolution96dots*96dotsCabinet weight50kgModule Qty36pcsCabinet pixel9216dotspower consumption(w/sqm)AVE.202 / MAX.599


Screen parameters:
 No.ParameterSpecification1Pixel Pitch10mm2Pixel Density10000pix/sqm3LED TypeDIP3464Viewing Angle(H)120°,(V)60°5Brightness ≥7500cd/sqm6Drive Method1/4 scanning7Driving ICMBI51248Color Depth40969Refresh Rate≥1920 Hz10Frame Rate≥60Hz11Brightness AdjustmentManual control by software/Auto control12Cabinet Type and MaterialSteel Iron13Cabinet Weight≤60kg/sqm14VoltageAC 220/110V±10%,50Hz15Avg. Power Consumption 220W/sqm16Max. Power Consumption650W/sqm17Assembly precision between PCB≤1 mm18Service AccessRear maintenance19Protection GradeFront IP65,Rear IP5420Operating Temp/Humidity-30ºC~60ºC, 10~95%RH21Control modesynchronization with PC22Operating SystemWINDOWS(98/2000/XP/Vista)24Data TransmissionUnshielded twisted- pair net line transmission distance 100m, max transmission distance 130m; Multi-mode Optic fiber transmission distance 500m;Single-mode optic fiber transmission distance 10km25Storage Temp/Humidity-40ºC~60ºC, 10~95%RH26Input Signal FormatVGA, DVI, RGB HV , PbPr (HDTV),Composite ,S-Video ,TV27MTBF≥10000hours28Lifetime(Normal Temp)≥100,000Hours



PRODUCT PHOTOS:

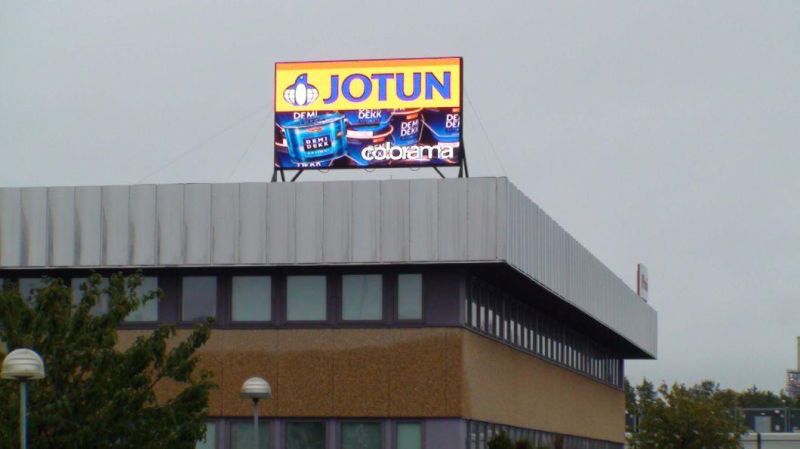

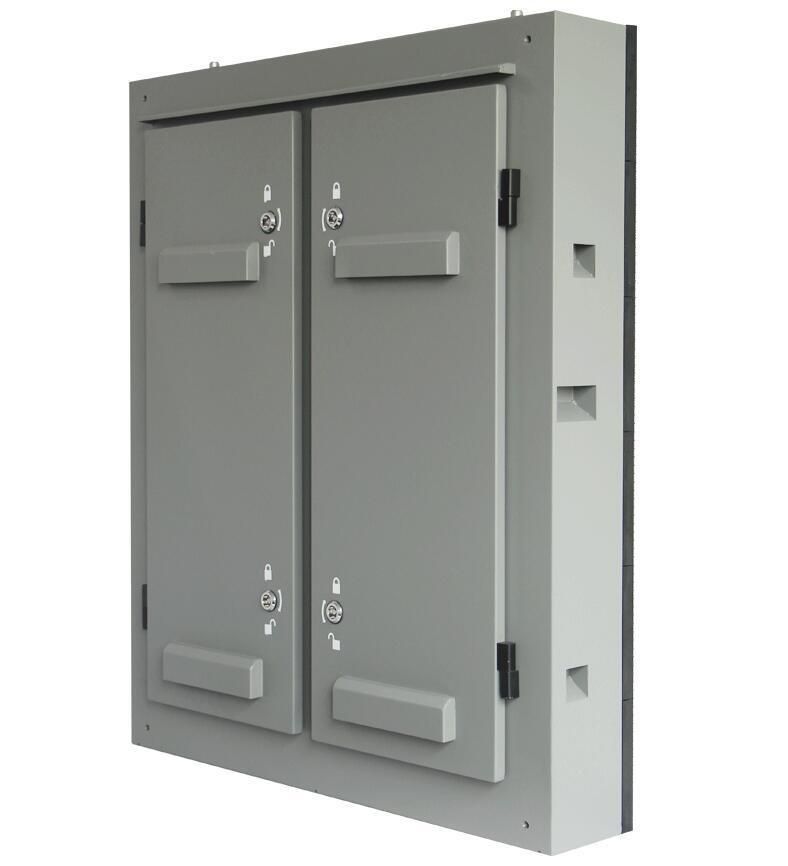

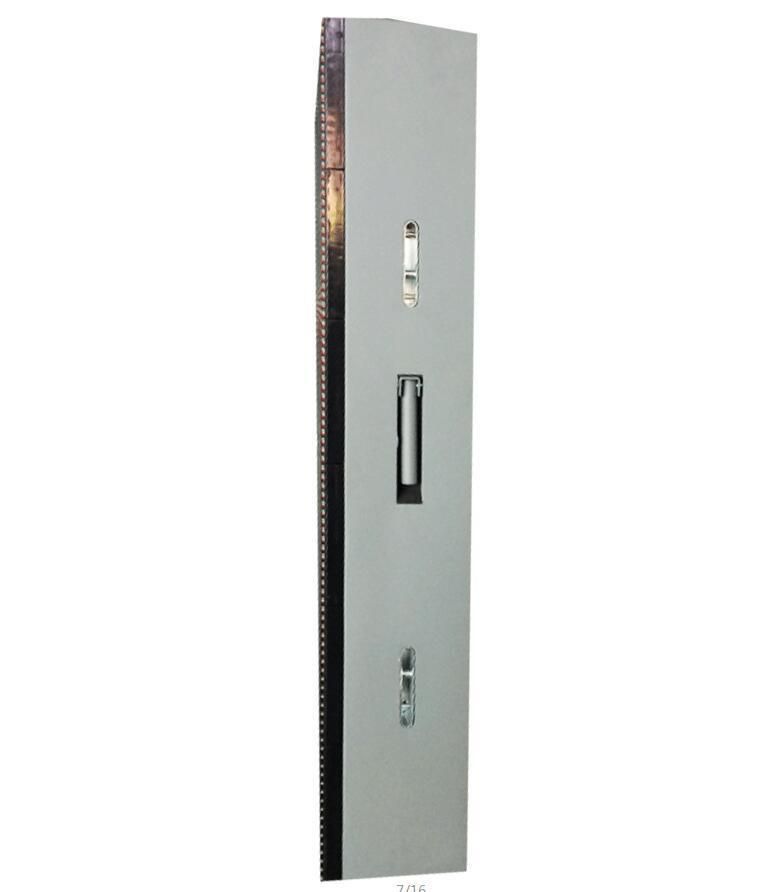

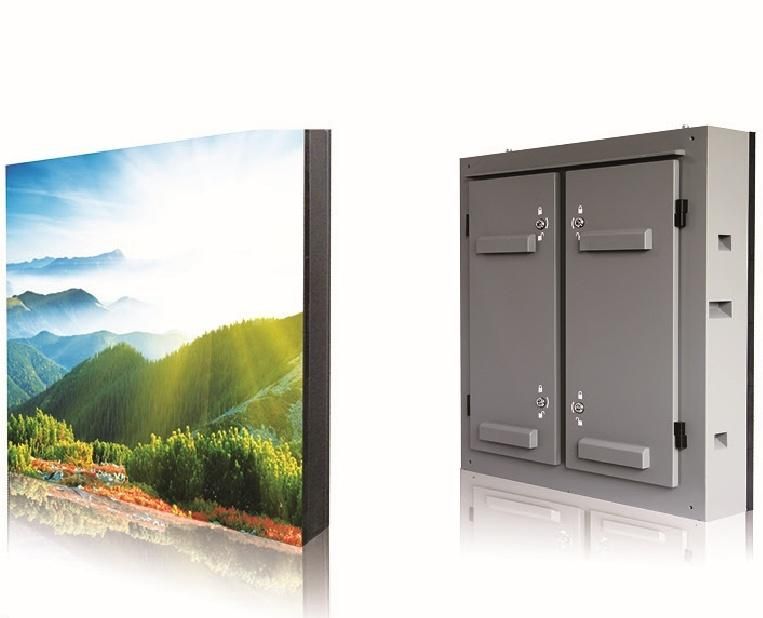

P10 RGB Outdoor Commercial LED Billboard
P10 RGB Outdoor Commercial LED Billboard

P10 RGB Outdoor Commercial LED Billboard

P10 RGB Outdoor Commercial LED Billboard

P10 RGB Outdoor Commercial LED BillboardP10 RGB Outdoor Commercial LED Billboard
