• Model NO.：3.91mm
• Pixel Density：65536dots,Sqm
• Scanning Mode：1,16 Scan
• Display Type：LED Video Display
• Application：Stage Performance

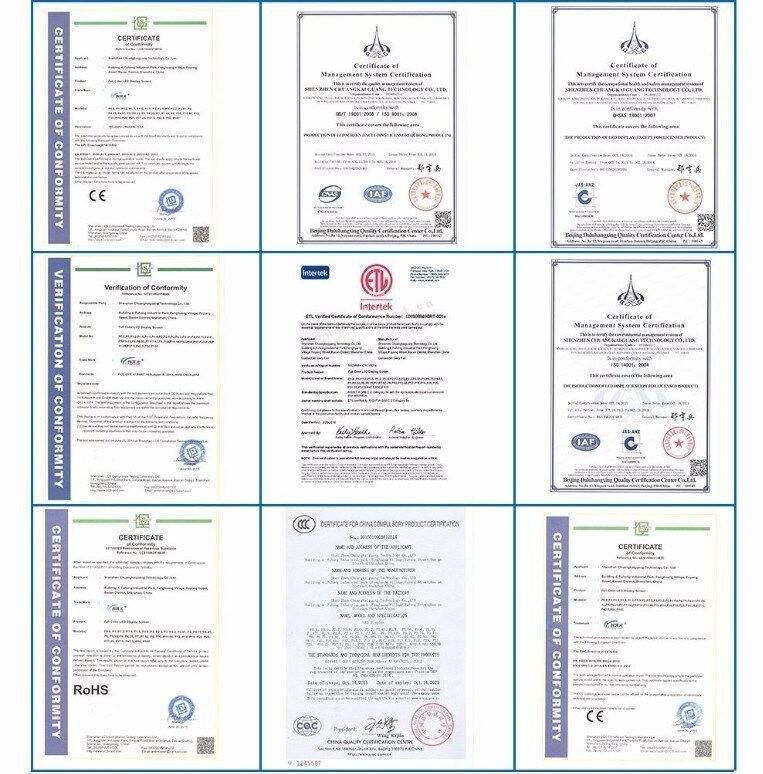

• Certification：CE, RoHS, UL, CCC, ETL
• Module Size：250X250mm
• Cabinet Size：500X500mm
• Cabinet Resolution：128X128dots
• Screen Brightness：5500nits
• Refresh Rate：3840Hz
• Protection Grade：IP65
• Compliance：CE , RoHS, ETL, FCC
• Service：Rear Service
• Controller：Nova
• Power Consumption：230W,Sqm
• Grey Scale：16bits
• Cabinet Material：Die-Casting Aluminum
• Transport Package：Flight Case
• Specification：500x500mm
• Trademark：CKGLED
• Origin：China
• HS Code：8528591090
• Production Capacity：6000sqm,Month

Basic Info.

Model NO. 3.91mm Pixel Density 65536dots/Sqm Scanning Mode 1/16 Scan Display Type LED Video Display Application Stage Performance Certification CE, RoHS, UL, CCC, ETL Module Size 250X250mm Cabinet Size 500X500mm Cabinet Resolution 128X128dots Screen Brightness 5500nits Refresh Rate 3840Hz Protection Grade IP65 Compliance CE / RoHS/ ETL/ FCC Service Rear Service Controller Nova Power Consumption 230W/Sqm Grey Scale 16bits Cabinet Material Die-Casting Aluminum Transport Package Flight Case Specification 500x500mm Trademark CKGLED Origin China HS Code 8528591090 Production Capacity 6000sqm/Month

Product Description

R SERIES FEATURES:

.  IP65 design: good for any outdoor event environment.

.  Auto-calibration: avoid complicated calibration work, no need debugging after changing led modules.

.  Easy and quick assembly: fast assembly and dismantle design to save labor force and time.

.  Seamless assembly: New design stainless steel locks achieve micro-adjustment to make seamless screens.

.  Cabinet anti-damage design : special protection design at the cabinet bottom to keep bottom line leds from impact.





PRODUCT SPECIFICATIONS:


NO.	Parameter	Specification
1	Model	T3-SMD1921 outdoor rental screen
2	Pixel Pitch(mm)	3.91
3	LED	SMD1921
4	Screen Resolution	65536dots/sqm
5	Scan Method	1/16
6	Module size(mm)	250*250
7	Cabinet size(L*H*W mm)	500x500x88
8	Cabinet(Kg)	7.8KG
9	Viewing angle	H:140°/  V:140°
10	Grey Scale	16bit
11	Refresh rate(HZ)	3840
12	Brightness(nits)	≥5500
13	Working Voltage(V)	AC 100~240V
14	AVE. power consumption (W/sqm)	230
15	MAX. power consumption(W/sqm)	560
16	IP grade	F:IP65 / R:IP54
17	Controller	Novastar
18	Maintenance	Rear/ Front service
19	Working humidity	10~95%RH
20	Storage humidity	10~90%RH
21	Working temperature	-30ºC~60ºC
22	Storage temperature	-40ºC~70ºC

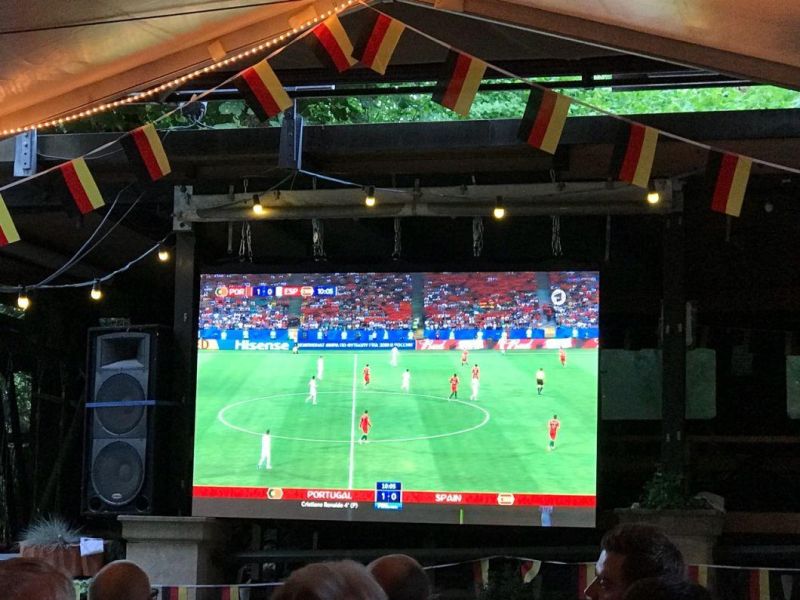

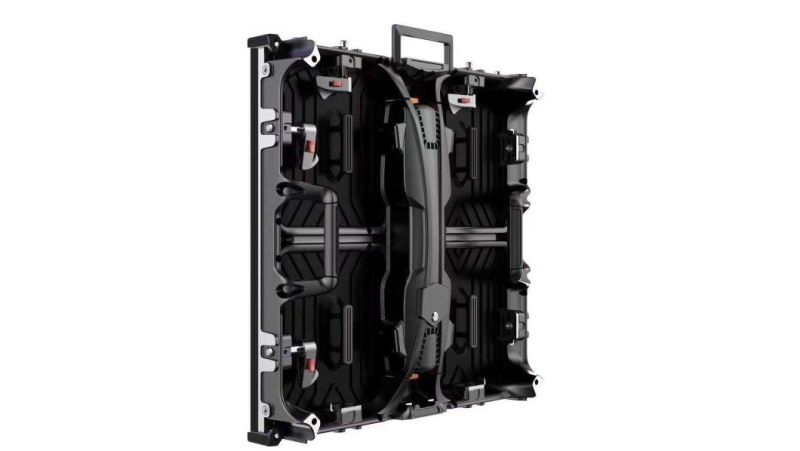

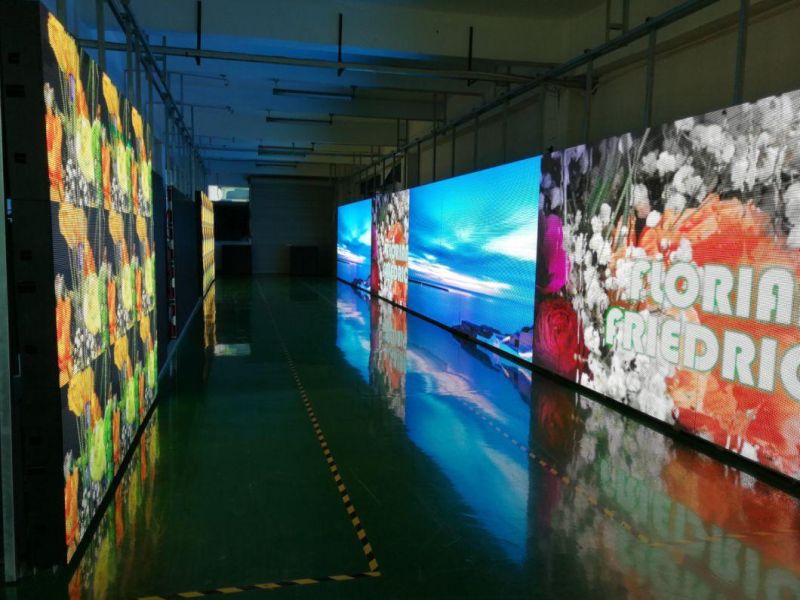

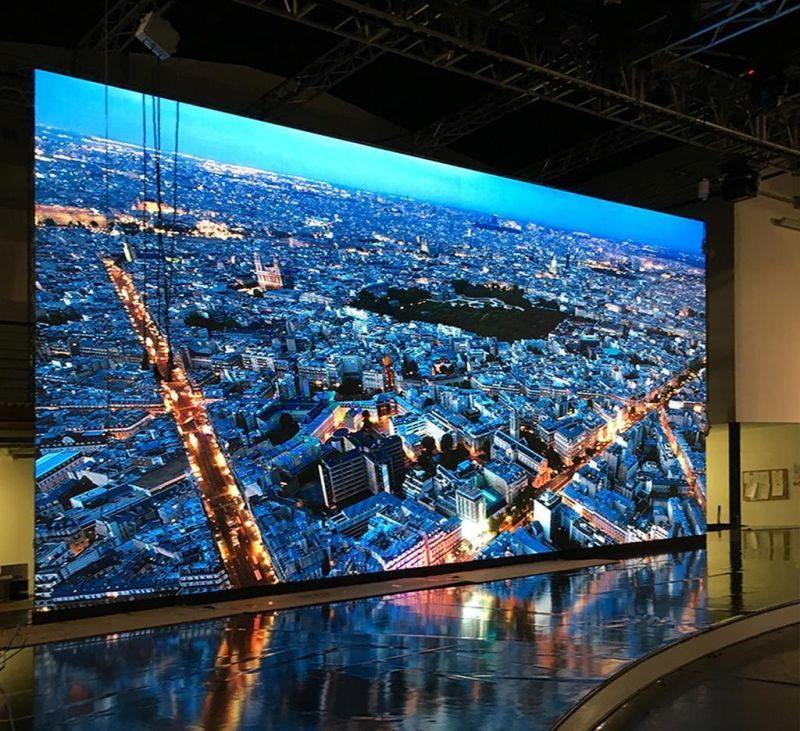

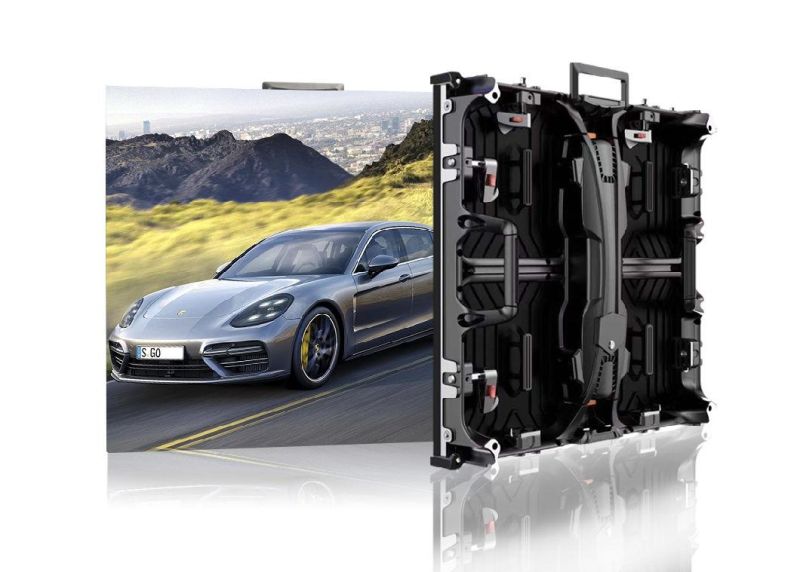

PRODUCT PHOTOS:















FAQ:

Q1: How are these LED display controlled?
RE: We use Nova control system. Before delivery, our engineer will very well programmed and the end users could have an turn-key led display.

2: What the software your company uses for your product?
RE: We mainly use Novastar / Colorlight and Linsn.

Q3: Can I have a sample order for Led display ?
RE: Yes , we welcome sample order to check and test quality. Maxed samples are acceptable.

Q4: What about the lead time ?
RE: Our regular production time is 15-20normal days against advance payment, for huge quantity, please check with our sales manager.

5: Do you have any MOQ limit for Led display order ?
RE: Module sample is accepted in our company, so we don't have MOQ request for led displays.

Q6: What is the warranty for your led display?
Re: The standard warranty is 2years, while it is possible to extend the max. warranty to 5years with extra cost.

Q7:What after service can provide?
Re: We have professional engineers providing?24h online technical support and by email; We also send technical personnel to the scene in customers significant activities.

Q8: How to be our distributor?
Re: Please check with our sales manager for details.

Q9:How to maintenance led screen?
Re: In usually every year to maintenance led screen one time, clear the led mask, checking the cables connection, if any led screen modules fail, you can replace it with our spare modules

Q10. How can I place the order?
Re: Firstly, please provide the details of your requirements as clear as possible, so we can send you the offer at the first time.

Q11. What if I don't know how to install the screen?
a. We will provide your details drawing for installation led screen, But you need provide us on-site picture for installation place.
b. We provide training 2 people in the factory for free.
c. We can send our engineers to your country to guide how to install the screen.

Q12. What if I don't know how to maintain the screen?
Re:We will provide you with operation manuals and software when you place an order, and we can help you debug remotely.

Q13. How to deliver the my goods?
Re:It depends on your budget and the date you need the led screen. Regularly, the led displays are shipped by sea, if the quantity is less and you need it urgently, we can arrange air-shipping for you.
