• Model NO.：6.67mm
• Pixel Density：22498dots,Sqm
• Scanning Mode：1,6 Scan
• Display Type：LED Video Display
• Application：Stage Performance
• Certification：CE, RoHS, UL, CCC, ETL
• Module Size：320X160mm
• Module Resolution：48X24dots
• Cabinet Size：640X640mm
• Cabinet Resolution：96X96dots
• Screen Brightness：5500nits
• Refresh Rate：1920Hz-3840Hz
• Protection Grade：IP65
• Compliance：Ce
• Controller：Linsn , Nova
• Service：Rear Maintenance
• Transport Package：Flight Case
• Specification：640x640mm
• Trademark：CKGLED
• Origin：China
• HS Code：8528591090
• Production Capacity：6000sqm,Month

Basic Info.

Model NO. 6.67mm Pixel Density 22498dots/Sqm Scanning Mode 1/6 Scan Display Type LED Video Display Application Stage Performance Certification CE, RoHS, UL, CCC, ETL Module Size 320X160mm Module Resolution 48X24dots Cabinet Size 640X640mm Cabinet Resolution 96X96dots Screen Brightness 5500nits Refresh Rate 1920Hz-3840Hz Protection Grade IP65 Compliance Ce Controller Linsn / Nova Service Rear Maintenance Transport Package Flight Case Specification 640x640mm Trademark CKGLED Origin China HS Code 8528591090 Production Capacity 6000sqm/Month

Product Description

RO SERIES PRODUCT FEATURES:

.   IP65 design: good for any outdoor event environment.

·  high screen brightness : 5500nits.

.   Auto-calibration: avoid complicated calibration work, no need debugging after changing led modules.

.    Easy and quick assembly: fast assembly and dismantle design to save labor force and time.

.  High polymer flexible mask, no mosaic phenomenon, better contract ratio.



PRODUCT SPECIFICATIONS:


NO.	Parameter	Specification
1	Model	RO6
2	Pixel Pitch(mm)	6.67
3	Pixel Density	22498dots/sqm
4	LED Type	SMD3535
5	Viewing Angle	horizontal 140°,Vertical 140°
6	Brightness	≥5500cd/sqm
7	Drive Method	1/6 scan
8	Color Depth	14bit
9	Refresh Rate(Hz)	≥1920
10	Frame Frequency (Hz)	≥60
11	Brightness Adjustment	Manuel/Auto/Remote control
12	Module Size(mm)	320×160×17
13	Module Resolution(dots)	48×24
14	Cabinet Size(mm)	640×640×80
15	Cabinet Resolution(dots)	96*96
16	Cabinet Type and Material	Die-casting Aluminum
17	Cabinet Weight(Kg)	≤12
18	Voltage(V)	AC 100~240V
19	Avg. Power Consumption	200W/sqm
20	Max. Power Consumption	600W/sqm
21	Service Access	Rear Access
22	IP Grade	Front: IP65  /  Rear: IP54
23	Operating Temp/Humidity	-30ºC~60ºC, 10~95%RH
24	Storage Temp/Humidity	-40ºC~60ºC, 10~95%RH
25	Lifetime(Normal Temp)	≥50000H
26	System Controlle	Linsn/Novastar
27	Compliant Standard	CCC/CE/RoHS

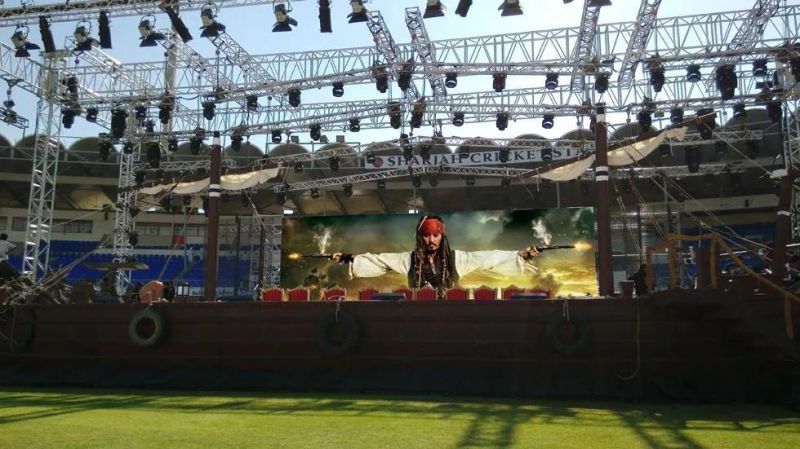

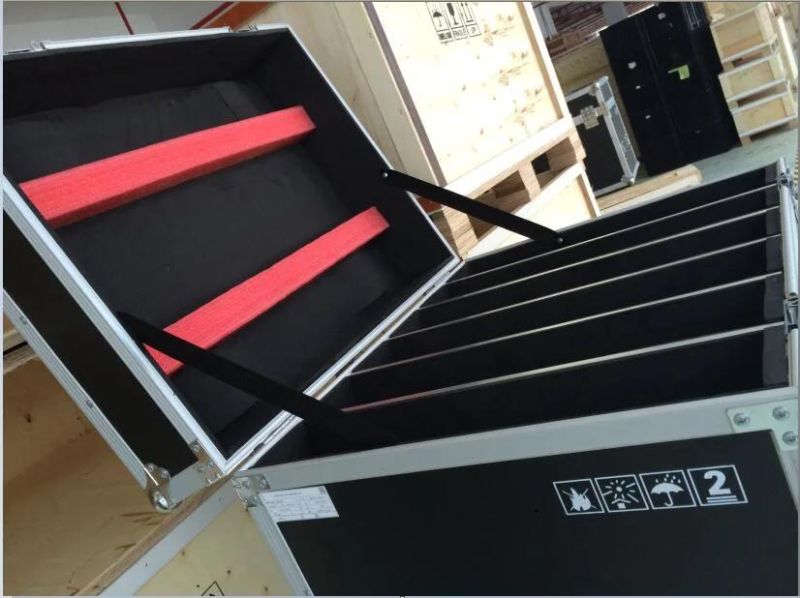

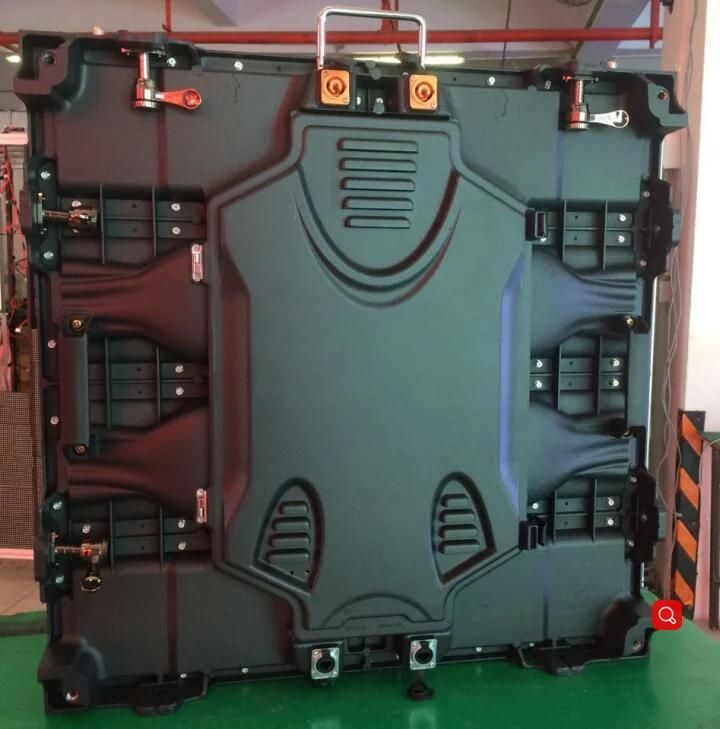

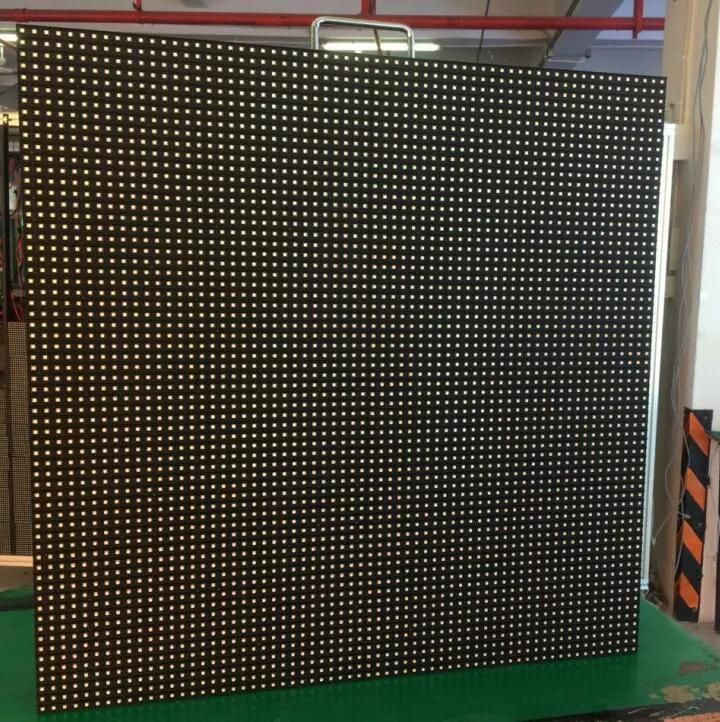

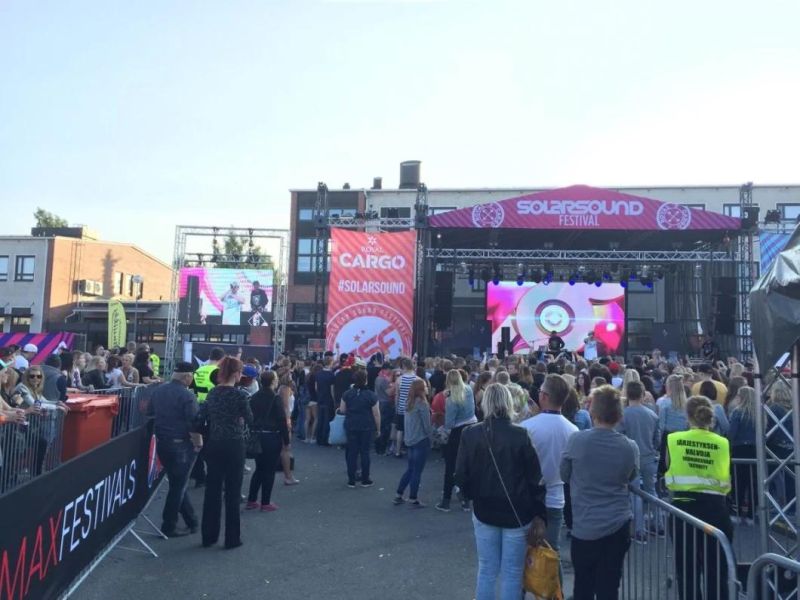

PRODUCT PHOTOS:
