P2/P2.5/P3 HD Indoor Small Pitch Full Color LED Display Screen

Shenzhen Chuangkaiguang Co., Ltd.
  • Tube Chip Color：Full Color
  • Display Function：Video Display, Image & Text Display, Text Display, Market Display
  • Pixel Pitch：2.5mm
  • Pixel Configuration：1R,1G,1B
  • Pixel Density：160000 Dots,Sqm
  • Scanning Mode：1,32

Base Info

  • Model NO.：2.5mm
  • System Operating Platform：Win98,2000,XP,Vista
  • Display Type：LED Video Display
  • Application：Stage Performance, Advertising, Shopping Guide
  • IP Rating：IP31
  • Certification：CE, RoHS, CCC, ETL
  • Refresh Rate：3840Hz
  • Transport Package：Plywood Case
  • Specification：640x640mm
  • Trademark：CKGLED
  • Origin：China
  • HS Code：8528591090
  • Production Capacity：6000sqm,Month

Description

NO.ItemParameters1ModelFS2.52Pixel pitch(mm)2.53LED configuration1R1G1B4LED typeSMD20205Screen resolution(dots/sqm)1600006Module size(mm)160x1607Scan method1/32 constant current drive8Cabinet size(mm)640x6409Cabinet materialIron10Brightness(cd/sqm)≥120011Viewing angleH:140°/ V:140°12Grey scale14bit13Refresh rate(Hz)≥192014Ave.power consumption (W/sqm)24015Max.power consumption(W/sqm)56016IP gradeIP3117controllerNovastar18MaintenanceRear service19Input voltage(V)AC 110V-220V +/-10%20Frame frequency(Hz)6021Working humidity10~90%RH22Working temperature-30ºC~60ºC23CertificatesRoHS / CE / CCC / FCC

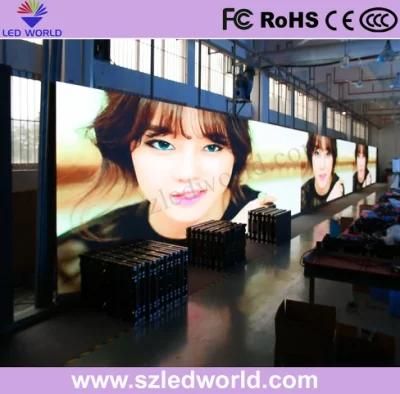

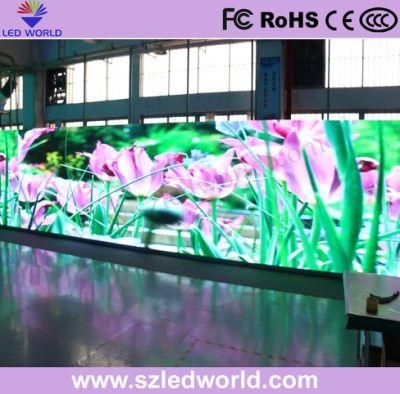

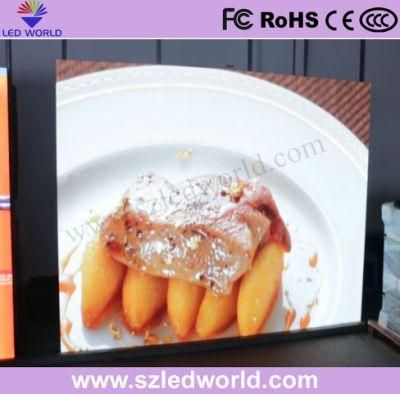

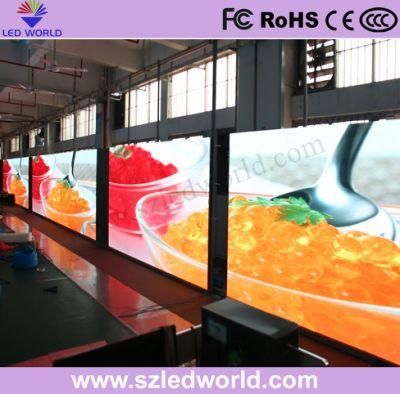

PRODUCT TESTS:

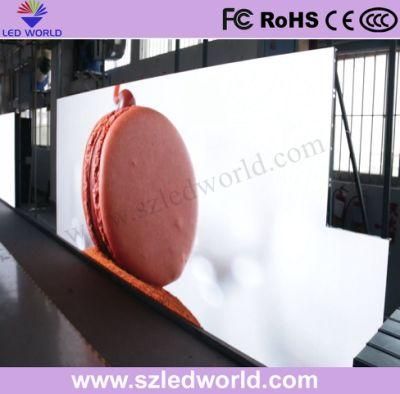

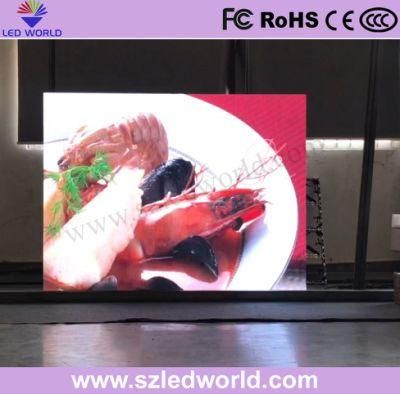

P2/P2.5/P3 HD Indoor Small Pitch Full Color LED Display Screen
P2/P2.5/P3 HD Indoor Small Pitch Full Color LED Display Screen

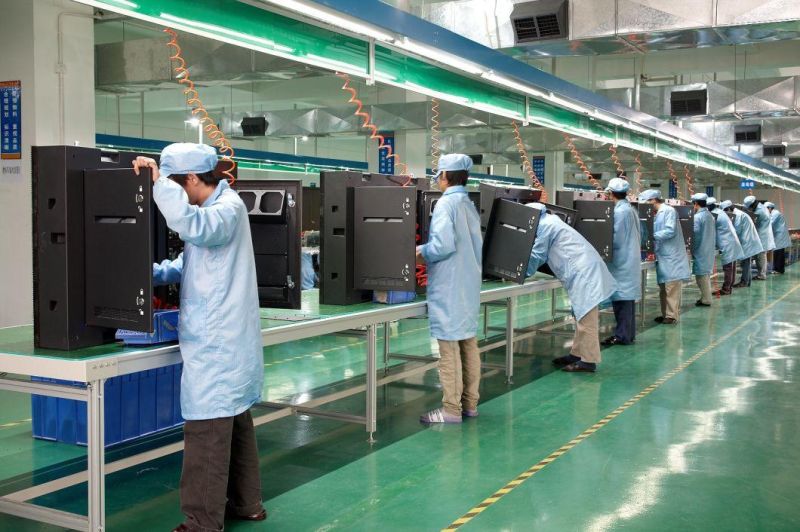

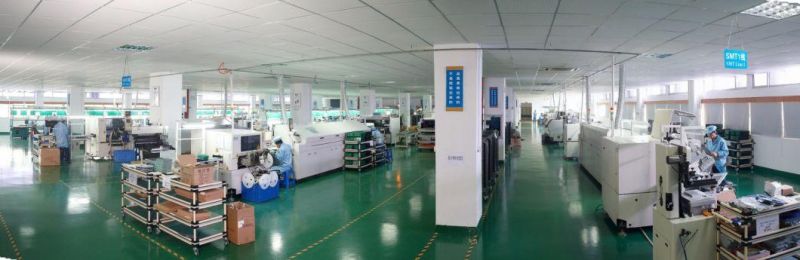

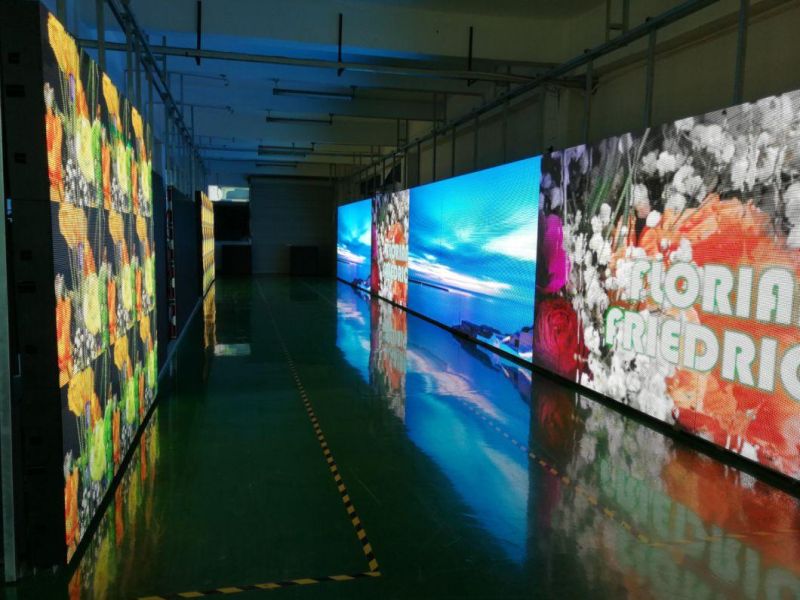

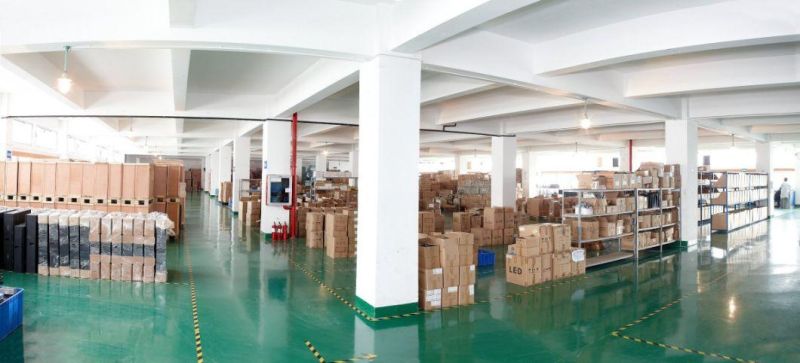

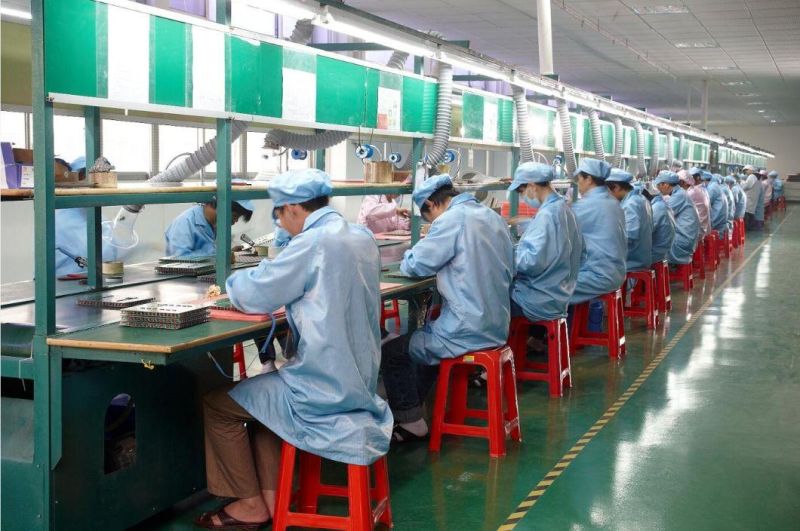

FACTORY WHOKSHOP:

P2/P2.5/P3 HD Indoor Small Pitch Full Color LED Display Screen
P2/P2.5/P3 HD Indoor Small Pitch Full Color LED Display Screen
P2/P2.5/P3 HD Indoor Small Pitch Full Color LED Display Screen
P2/P2.5/P3 HD Indoor Small Pitch Full Color LED Display Screen
P2/P2.5/P3 HD Indoor Small Pitch Full Color LED Display Screen


PACKAGE:

P2/P2.5/P3 HD Indoor Small Pitch Full Color LED Display Screen
