• Model NO.：1.9mm
• System Operating Platform：WIN98
• Display Type：LED Video Display
• Application：Stage Performance, Advertising, Shopping Guide
• IP Rating：IP31
• Certification：CE, RoHS, UL, CCC, ETL
• LED Module Size：200mm*100mm
• Cabinet Size：400mm*300mm
• Cabinet Material：Die-Casting Aluminum
• Drive Method：1,27 Scan
• Refresh Rate：3840Hz
• Brightness：800nits
• Maintenance：Front Service

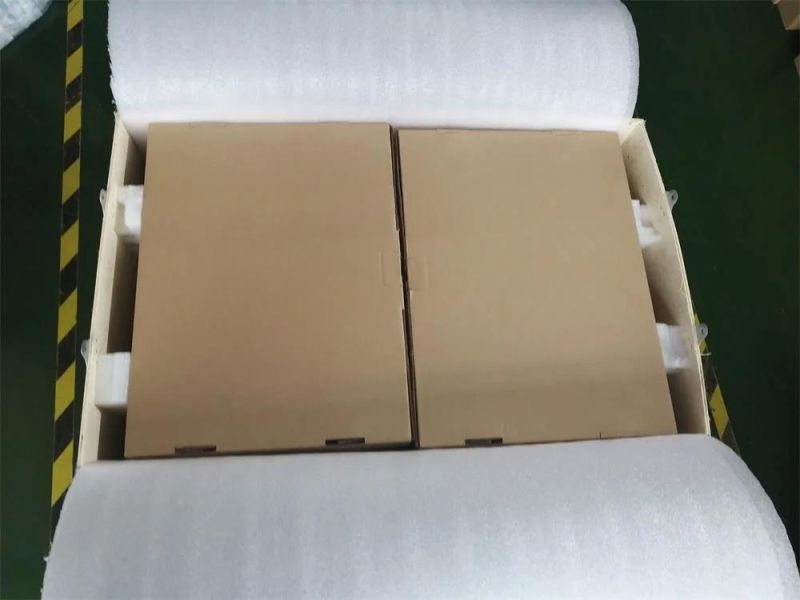

• Transport Package：Flight Case , Wooden Case
• Specification：customizable
• Trademark：CKGLED
• Origin：China
• HS Code：8528591090
• Production Capacity：6000sqm,Month

Basic Info.

Model NO. 1.9mm System Operating Platform WIN98 Display Type LED Video Display Application Stage Performance, Advertising, Shopping Guide IP Rating IP31 Certification CE, RoHS, UL, CCC, ETL LED Module Size 200mm*100mm Cabinet Size 400mm*300mm Cabinet Material Die-Casting Aluminum Drive Method 1/27 Scan Refresh Rate 3840Hz Brightness 800nits Maintenance Front Service Transport Package Flight Case / Wooden Case Specification customizable Trademark CKGLED Origin China HS Code 8528591090 Production Capacity 6000sqm/Month

Product Description

Product Features:


1. Super Thin cabinet

2. One man can install the cabinet so that save labor force and time in the project events

3. 3840HZ high screen fresh rate

4. High definition ultra small pitch led display


Specifications:


NO.	Parameters	Specifications
1	Model	P1.9
2	Pixel Pitch(mm)	1.923
3	LED	SMD1515
4	Screen Resolution	270421dots/sqm
5	Scan Method	1/27
6	Module size(mm)	200*100
7	Cabinet size(L*H*W mm)	400x300
8	Cabinet material	Die-casting Aluminum
9	Cabinet(Kg)	6
10	Viewing angle	H:140°/  V:140°
11	Grey Scale	16bit
12	Refresh rate(Hz)	≥3840
13	Brightness(nits)	≥1300
14	Working Voltage(V)	AC 100~240V
15	AVE. power consumption (W/m2)	200
16	MAX. power consumption(W/m2)	600
17	IP grade	IP31
18	Controller	Novastar
19	Maintenance	Rear service
20	Working humidity	10~90%RH
21	Working temperature	-20ºC~50ºC

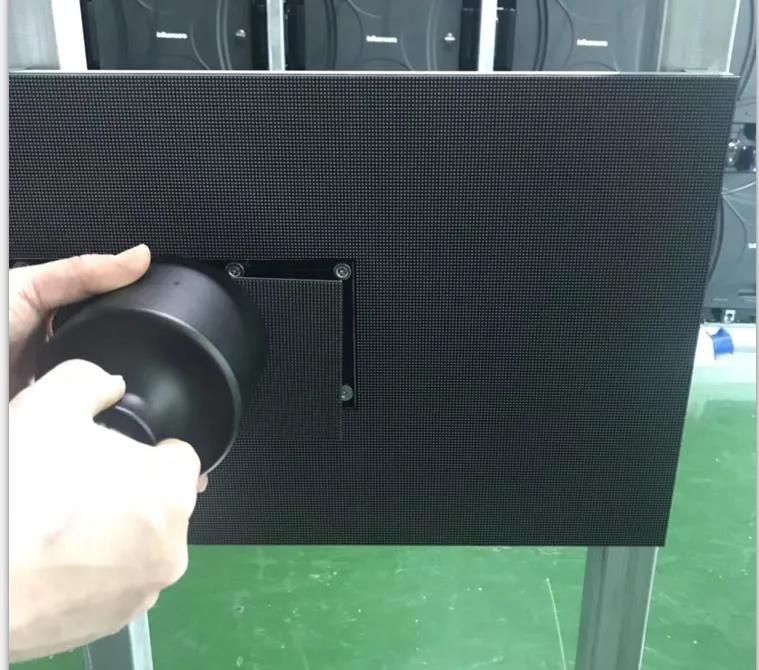

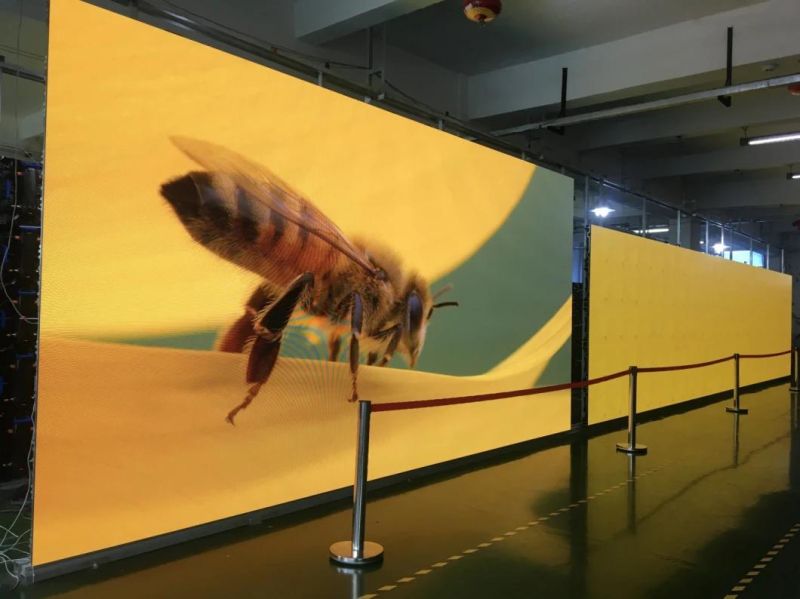

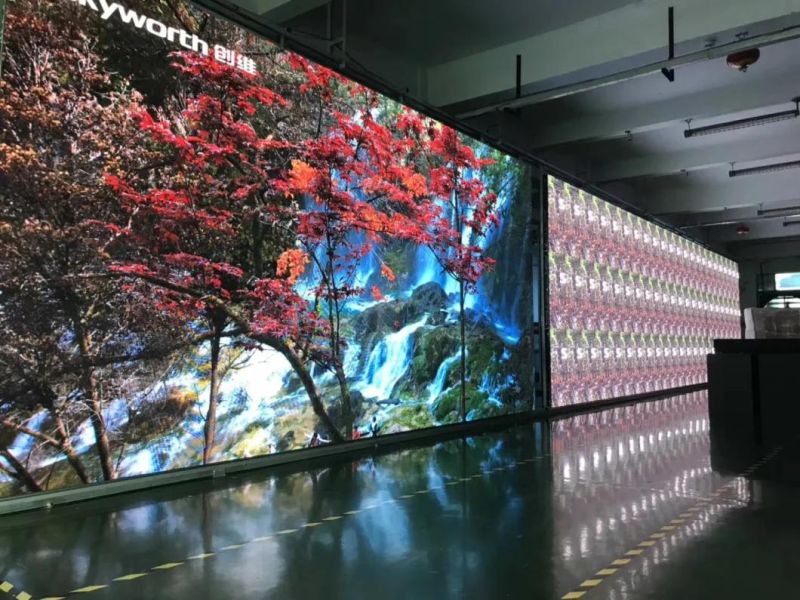

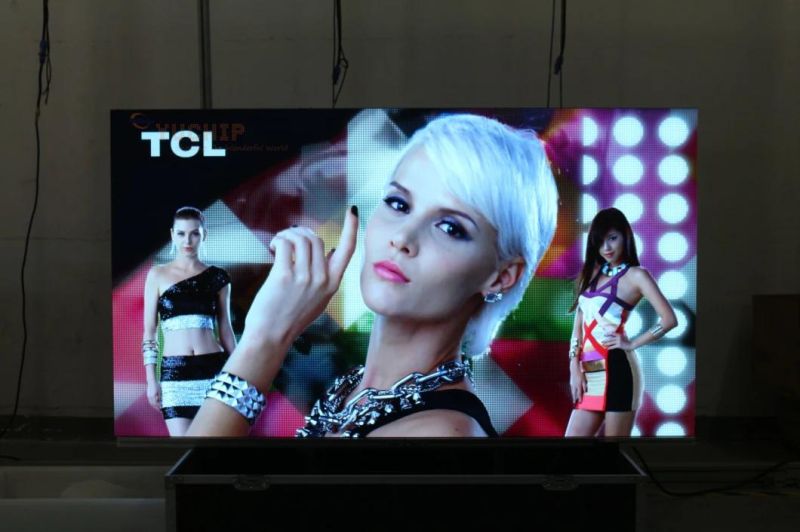

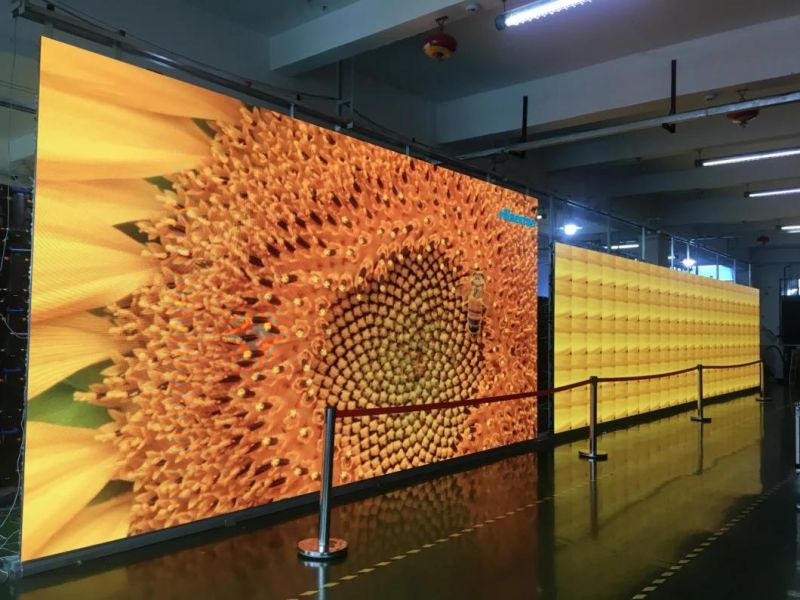

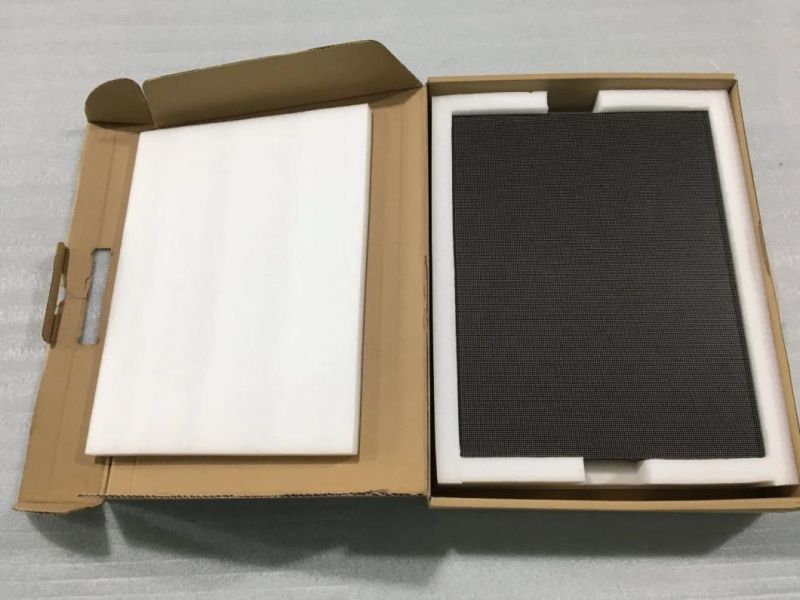

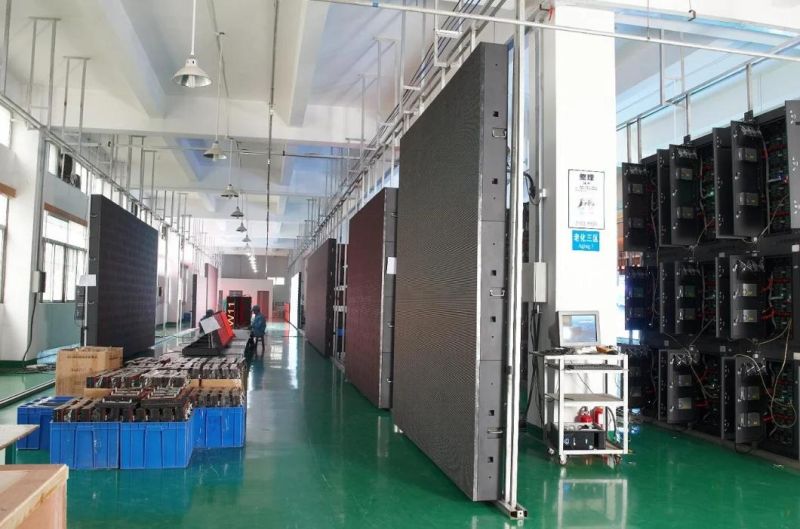

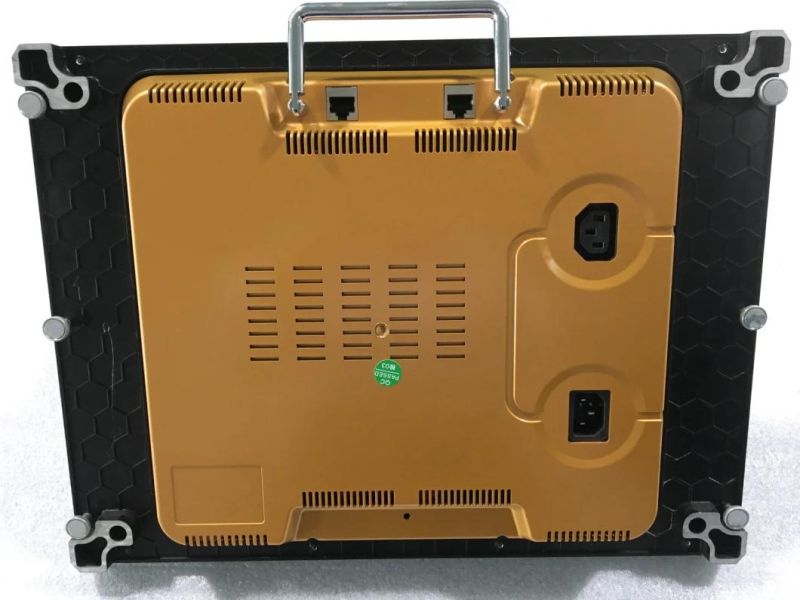

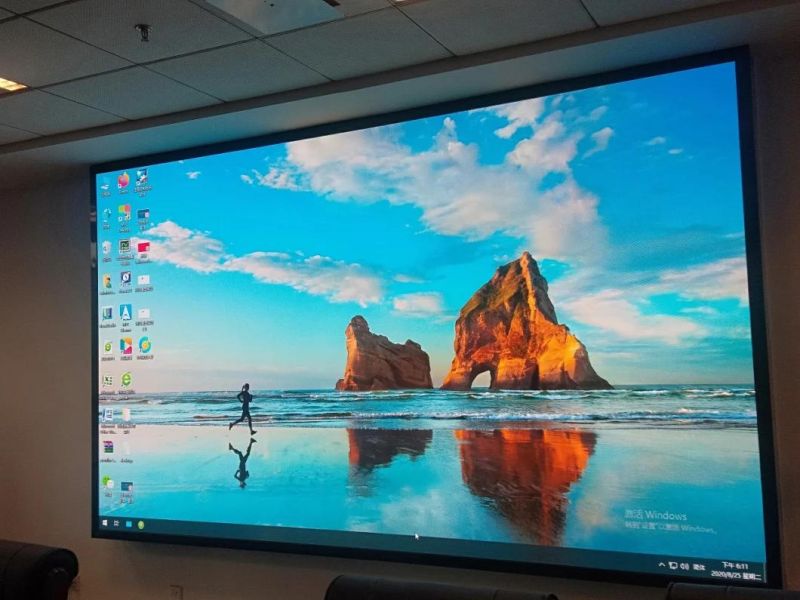

Product Photos:
