Full Color DIP Outdoor LED Billboard P10, P16 with Energy-Saving Design Modules
PRT Optoelectronic Co., Ltd.- Tube Chip Color：Full Color
- IP Rating：IP65
- Pixel Pitch：10mm
- Pixel Configuration：1R, 1G, 1B
- Display Function：Video Display
- Average Power Consumption：100W,Sq.M
Base Info
- Model NO.：P10
- Pixel Density：10000 dot , m²
- Scanning Mode：1,2 Scan
- Display Type：LED Video Display
- Application：Advertising, Stage Performance, Rental
- Certification：CE, RoHS, CCC
- LED Encapsulation：DIP 346
- Module Size：320X160mm
- Waterproof IP：IP65
- Brightness：> 8000nits
- Transport Package：Wooden Case or as Required
- Specification：CE, FCC. ROHS, 3C
- Trademark：PRT
- Origin：Shenzhen China
- HS Code：8528591090
- Production Capacity：3000sq. M,Month
Description
Pixel pitch10mm Size of module 320mm x 160mm Resolution of module 32*16 Size of cabinet 960mm x 960mm(also can other sizes) Resolution of cabinet 96x96 dots Weight of Cabinet 45 kgs Brightness >7500cd/m² Density 10000dots/m² Best viewing angle 120 / 60 Pixel Configuration 1R1G1B Best viewing distance >10 m Maximum power consumption <300W/m² Driving method 1/2 scan Control method Synchronization/Asynchronization Gray scale 16 bits Colors 16777216 Color temperature 6500k Working voltage AC220V±10%/AC110V±10% Working temperature -20ºC~+50ºC±10% Maintenance Rear Access MTBF 5,000 hours Frame frequence ≥60Hz Refresh frequence >1800Hz IP grade(Front/Back) IP65/IP54 Life Span 100,000 hours Data transafer method RJ45(DVI) Effectivce Communication
Distance(without relay) Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
Single-mode optic fiber: 10KM Accepting signal with video processor PAL/NTSC/SECAM,S-Video;VGA;RGB;Composite Video;SDI Systems operating platform WINDOWS(WIN95,WIN2000,WINXP,WIN7/8), and interfaces for secondary development

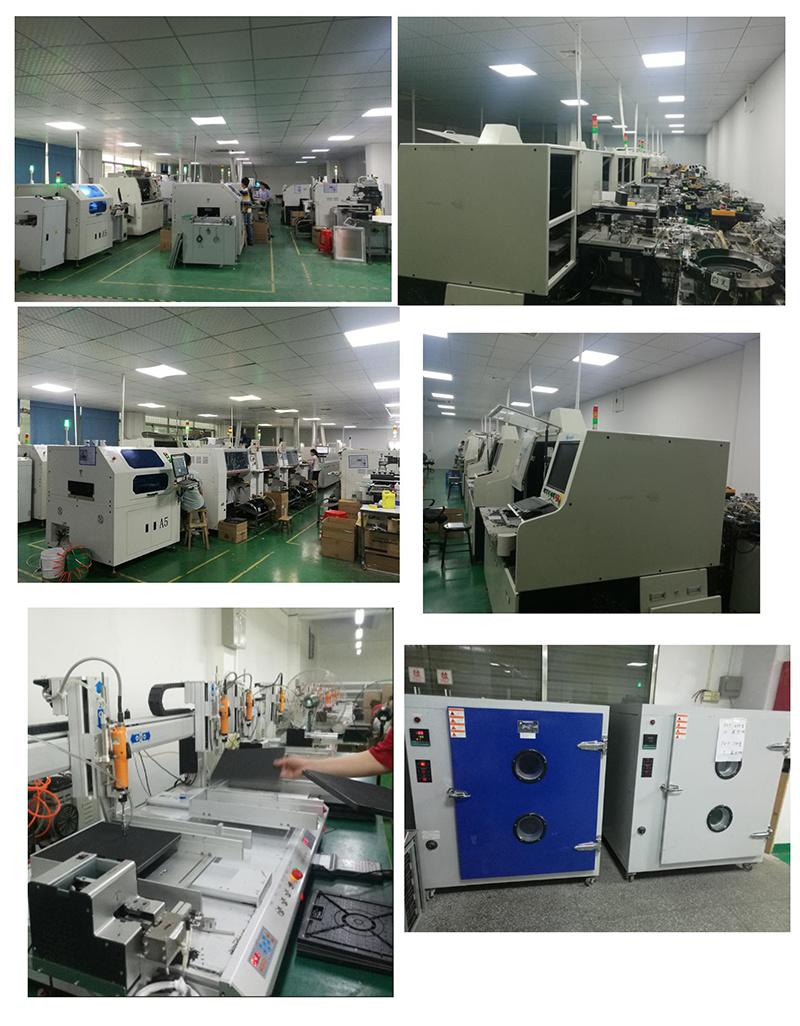

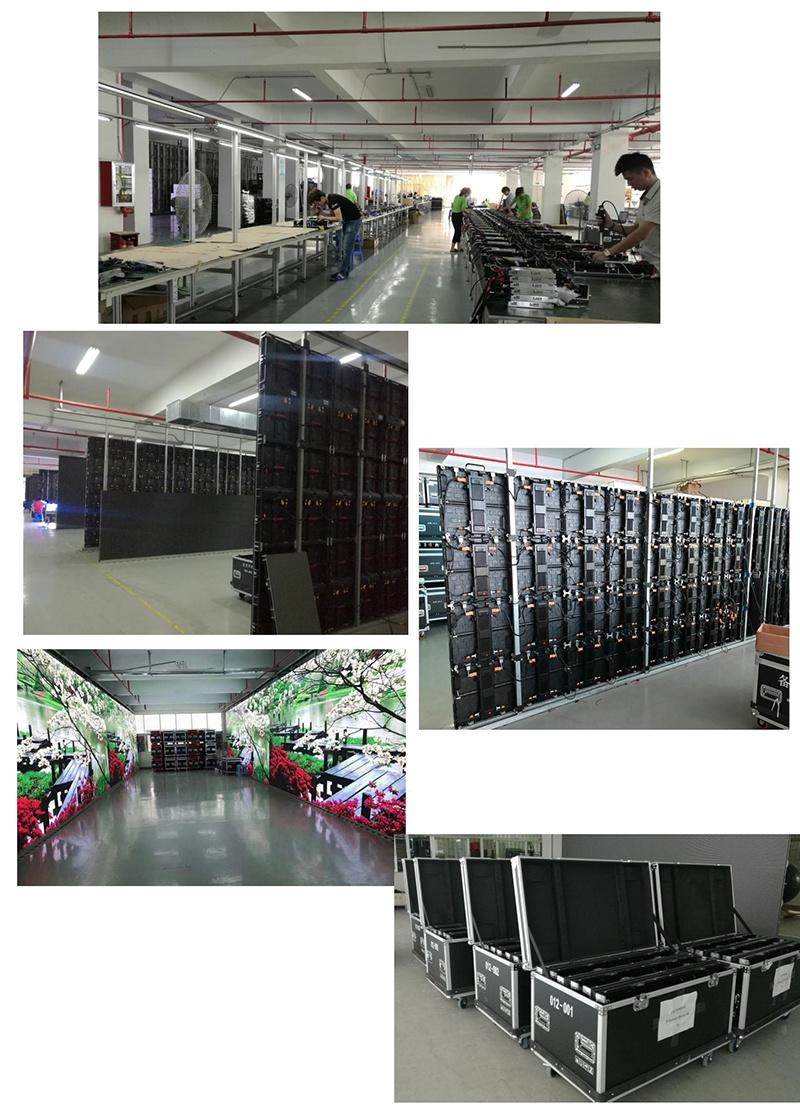

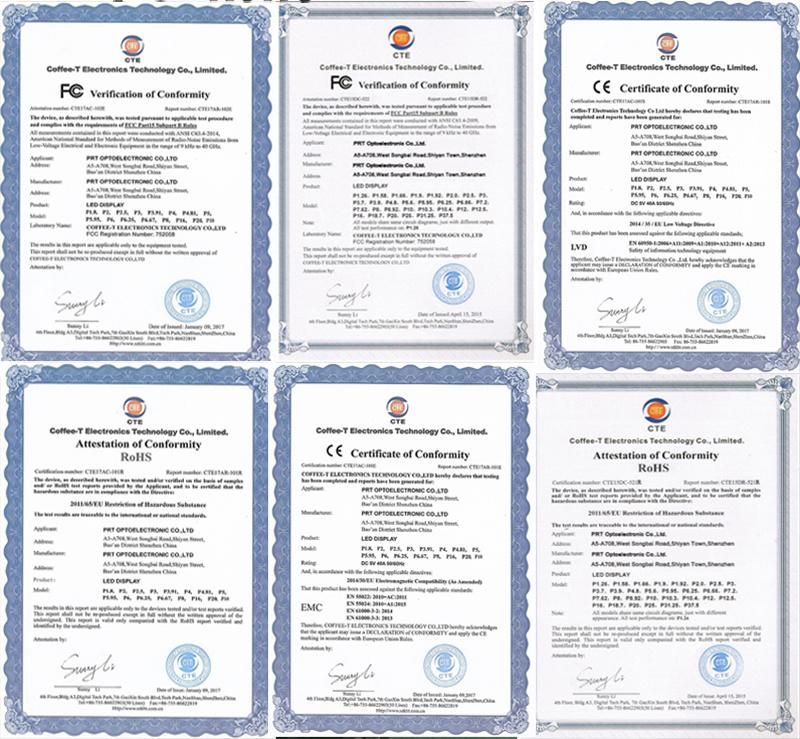

PRTLED provide 2 or 3 years warranty,and all of our products passed the international standard CE,FCC,ROHS,and got certifications,during production, we test the quality at each process,and before packing,

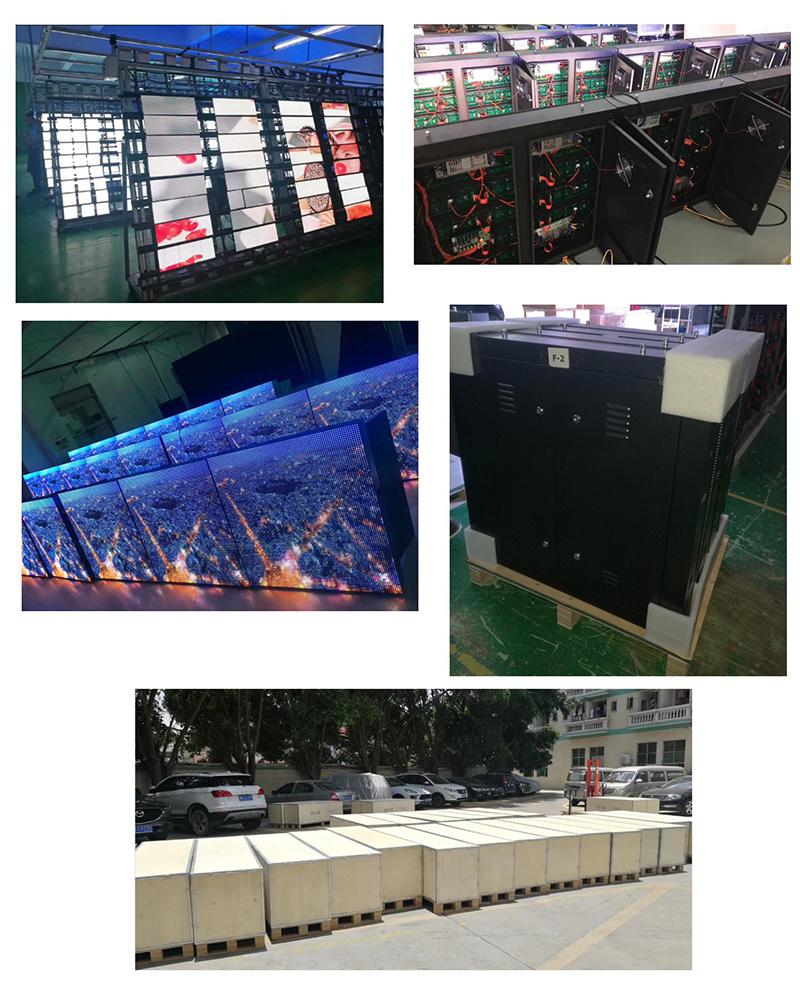

we will keep the modules or completed led screen lighting for 3 days/72 hours to check and test out the problem,to confirm everything is ok before delivery,and pack the products with wooden cases or flight cases for good protection.
