• Model NO.：2.6mm
• System Operating Platform：WIN98
• Display Type：LED Video Display
• Application：Stage Performance, Advertising, Shopping Guide
• IP Rating：IP31
• Certification：CE, RoHS, UL, CCC, ETL
• LED Module Size：250mm*250mm
• Cabinet Size：500mm*500mm
• Cabinet Material：Die-Casting Aluminum
• Drive Method：1,32 Scan
• Refresh Rate：3840Hz
• Brightness：1200nits
• Maintenance：Rear Service

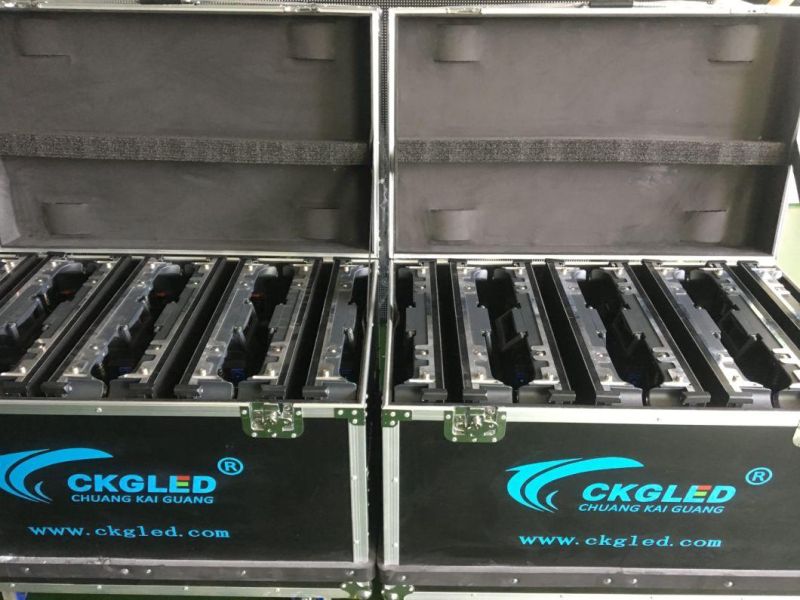

• Transport Package：Flight Case , Wooden Case
• Specification：customizable
• Trademark：CKGLED
• Origin：China
• HS Code：8528591090
• Production Capacity：6000sqm,Month

Basic Info.

Model NO. 2.6mm System Operating Platform WIN98 Display Type LED Video Display Application Stage Performance, Advertising, Shopping Guide IP Rating IP31 Certification CE, RoHS, UL, CCC, ETL LED Module Size 250mm*250mm Cabinet Size 500mm*500mm Cabinet Material Die-Casting Aluminum Drive Method 1/32 Scan Refresh Rate 3840Hz Brightness 1200nits Maintenance Rear Service Transport Package Flight Case / Wooden Case Specification customizable Trademark CKGLED Origin China HS Code 8528591090 Production Capacity 6000sqm/Month

Product Description

Product Features:

1. Cabinet have two sizes for choice, 500mm*500mm and 500mm*1000mm

2. Coner protector design prevent LEDs from damage

3. One man can install the cabinet so that save labor force and time in the project events

4. 3840HZ high screen fresh rate

5. Support +15 and -15degree curved design, satisfy your different project needs



Specifications:


NO.	Parameters	Specifications
1	Model	P2
2	Pixel Pitch(mm)	2.6
3	LED	SMD2020
4	Screen Resolution	147929dots/sqm
5	Scan Method	1/32
6	Module size(mm)	250*250
7	Cabinet size(L*H*W mm)	500x500x80
8	Cabinet material	Die-casting Aluminum
9	Cabinet(Kg)	7.3
10	Viewing angle	H:140°/  V:140°
11	Grey Scale	16bit
12	Refresh rate(Hz)	≥3840
13	Brightness(nits)	≥1300
14	Working Voltage(V)	AC 100~240V
15	AVE. power consumption (W/m2)	200
16	MAX. power consumption(W/m2)	600
17	IP grade	IP31
18	Controller	Novastar
19	Maintenance	Rear service
20	Working humidity	10~90%RH
21	Working temperature	-20ºC~50ºC

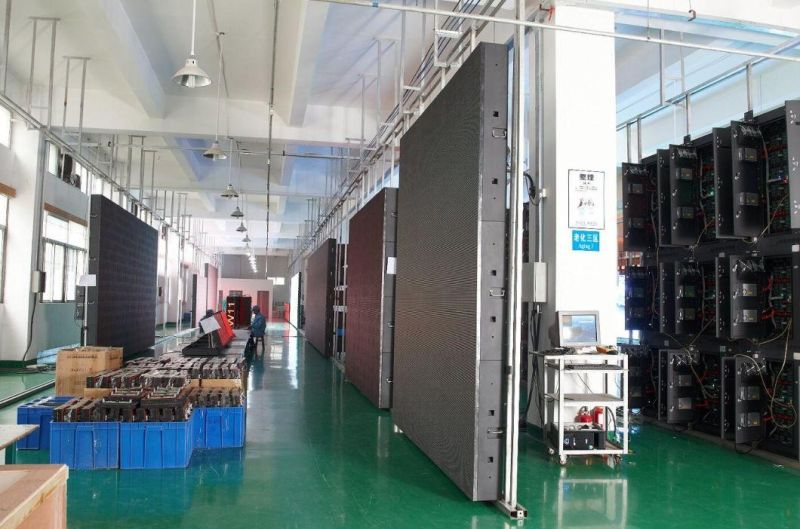

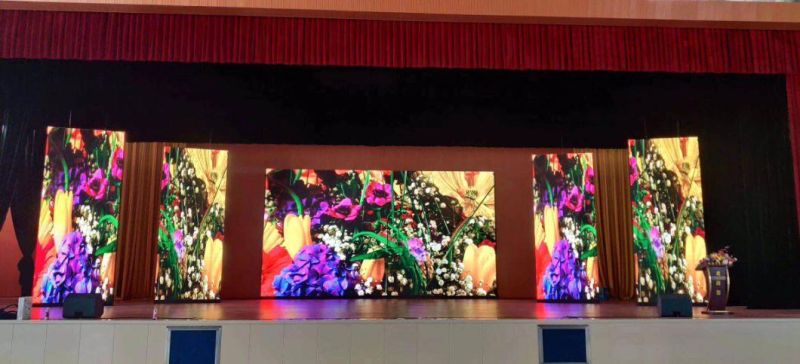

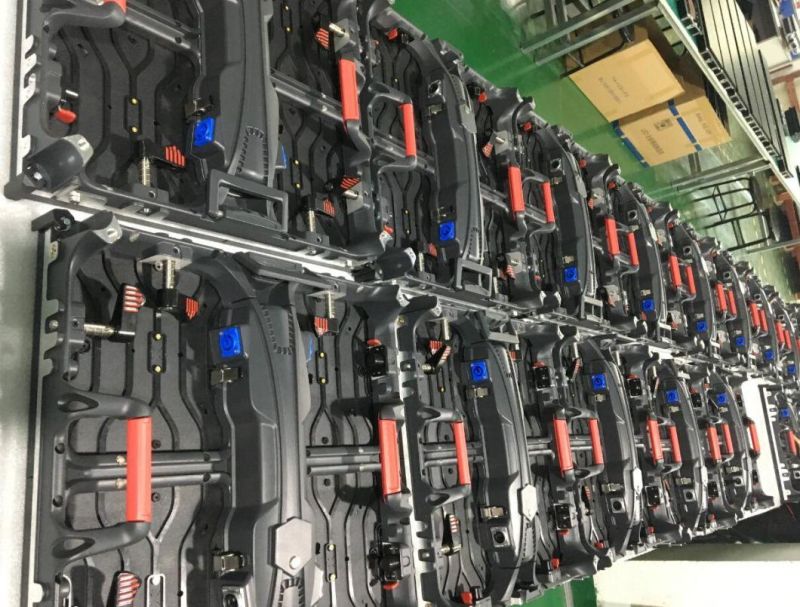

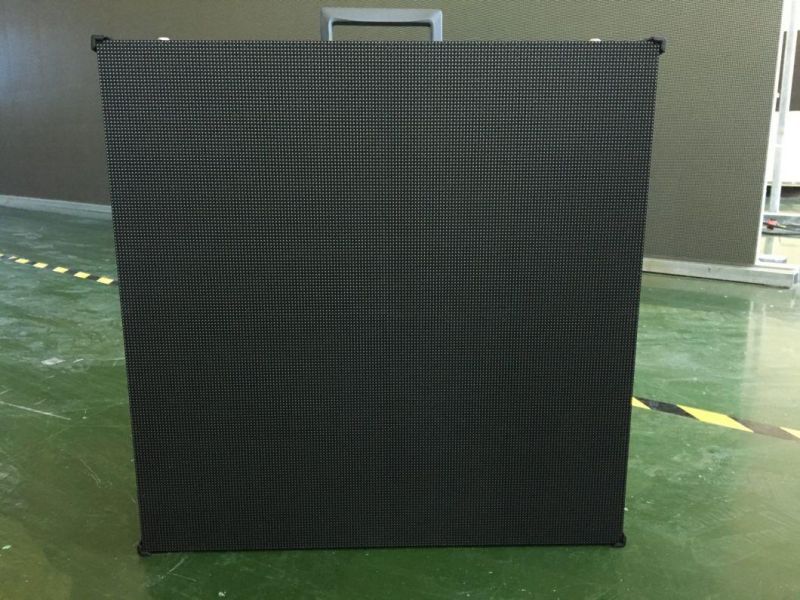

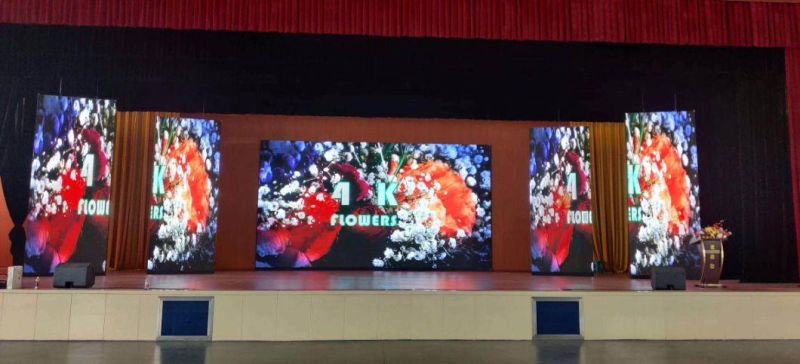

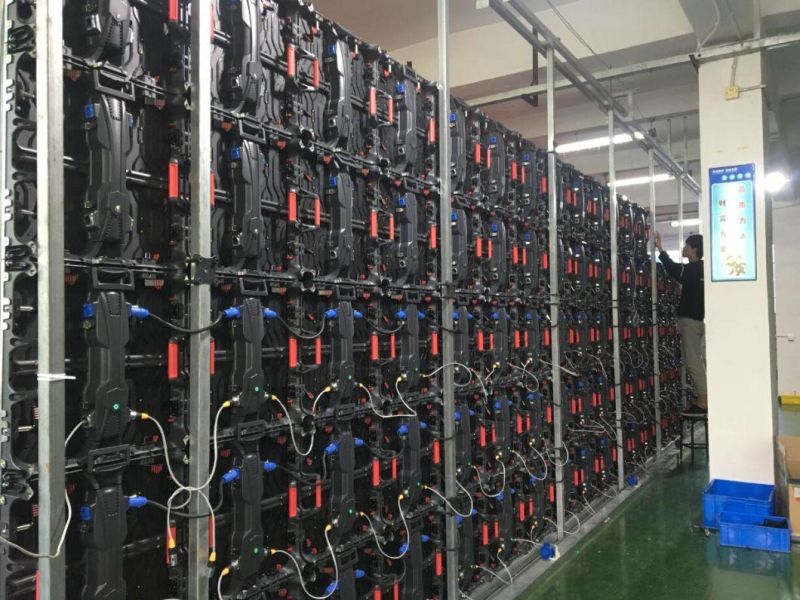

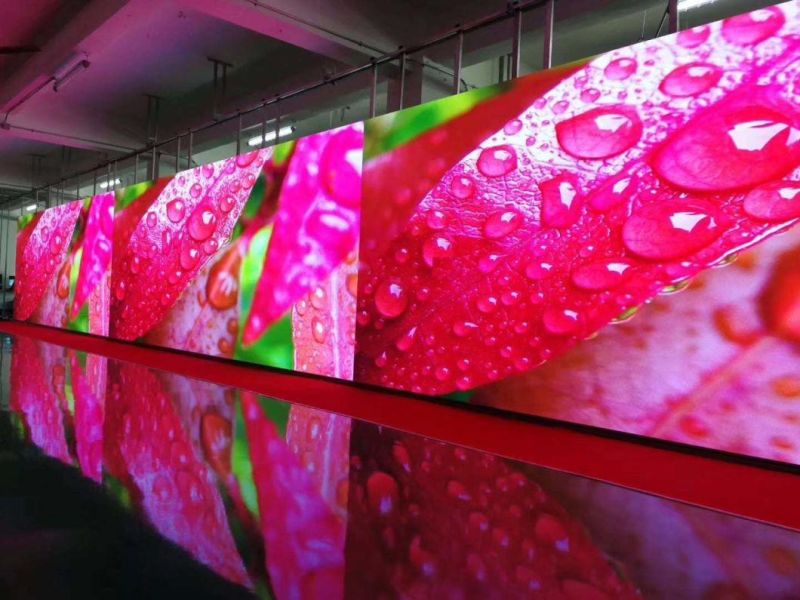

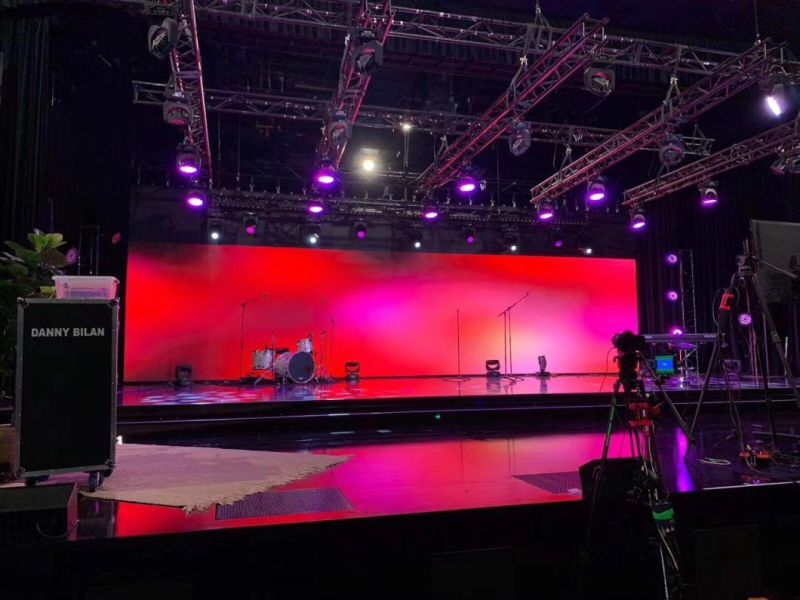

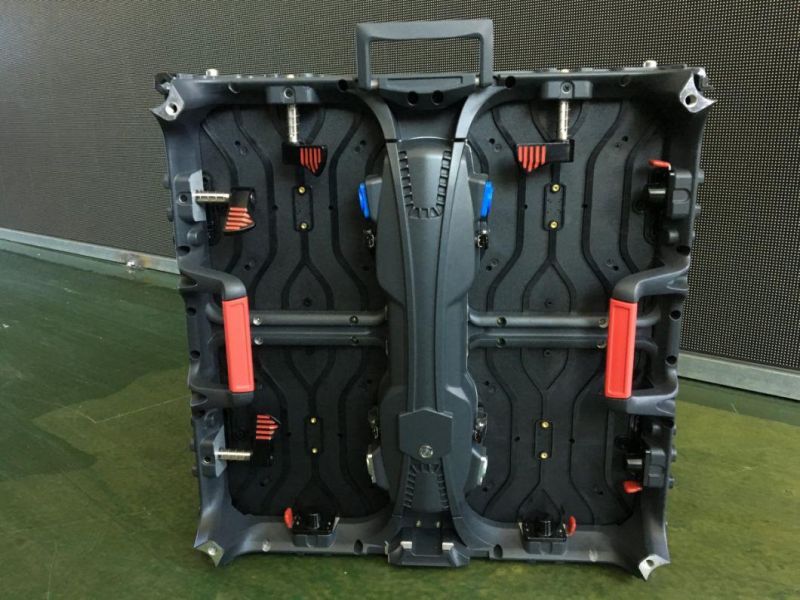

Product Photos:
