Indoor High Definition Full Color LED TV Display Panel Screen
Shenzhen Chuangkaiguang Co., Ltd.- Tube Chip Color：Full Color
- Display Function：Video Display, Image & Text Display, Text Display, Market Display
- Pixel Pitch：1.875
- Pixel Configuration：1R,1G,1B
- Pixel Density：284,089dots,Sqm
- Scanning Mode：1,32 Scan
Base Info
- Model NO.：1.875mm
- System Operating Platform：WIN2000
- Display Type：LED Video Display
- Application：Stage Performance, Advertising, Shopping Guide
- IP Rating：IP31
- Certification：CE, RoHS, UL, CCC, ETL
- Module Size：240mm*240mm
- Cabinet Size：480mm*480mm*56mm
- Cabinet Material：Die-Casting Aluminum
- Weight：7kg
- Refresh Rate：4880Hz
- Maintenance：Full Front Service
- Brightness：800nits
- Viewing Angle：H:160°, V:160°
- Ave Power Consumption：300W , Per Square Meter
- Max Power Consumption：600W , Per Square Meter
- Grey Scale：16 Bits

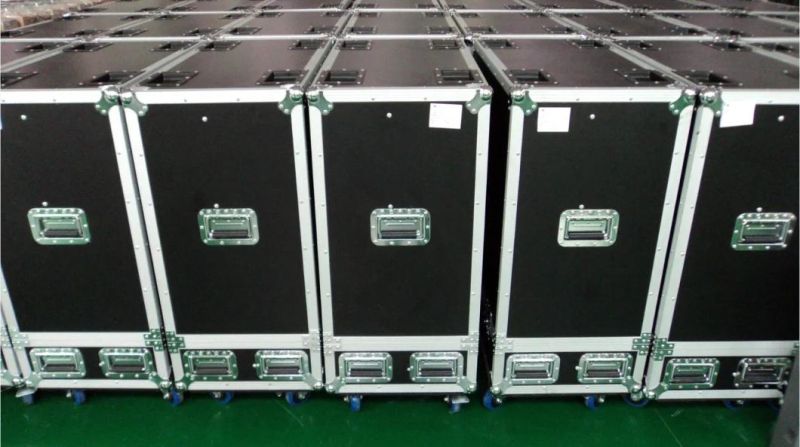

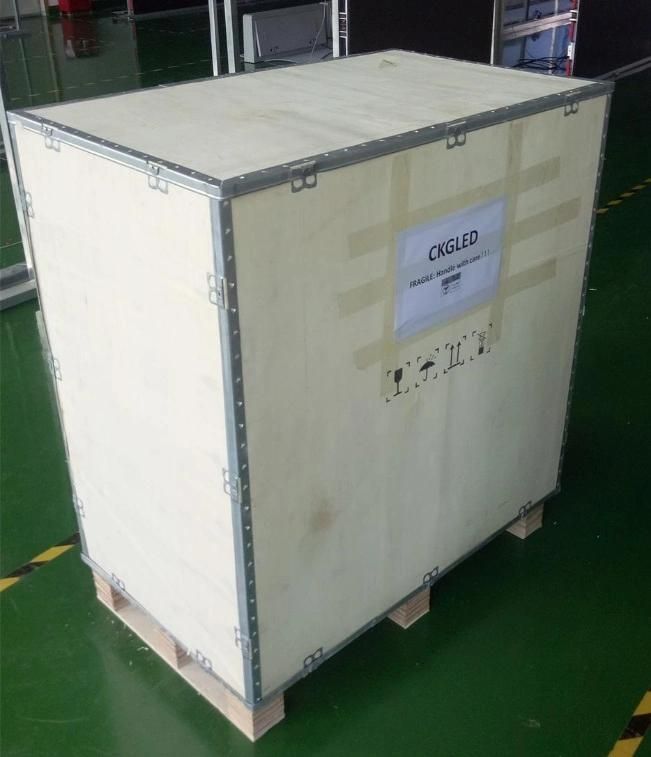

- Transport Package：Wooden Case , Flight Case
- Specification：4pcs,6pcs,8pcs cabinet in one case
- Trademark：CKGLED
- Origin：China
- HS Code：8528591090
- Production Capacity：6000sqm,Month
Description
Basic Info.
Model NO. 1.875mm System Operating Platform WIN2000 Display Type LED Video Display Application Stage Performance, Advertising, Shopping Guide IP Rating IP31 Certification CE, RoHS, UL, CCC, ETL Module Size 240mm*240mm Cabinet Size 480mm*480mm*56mm Cabinet Material Die-Casting Aluminum Weight 7kg Refresh Rate 4880Hz Maintenance Full Front Service Brightness 800nits Viewing Angle H:160°/ V:160° Ave Power Consumption 300W / Per Square Meter Max Power Consumption 600W / Per Square Meter Grey Scale 16 Bits Transport Package Wooden Case / Flight Case Specification 4pcs/6pcs/8pcs cabinet in one case Trademark CKGLED Origin China HS Code 8528591090 Production Capacity 6000sqm/MonthProduct Description
K series Indoor high definition full color led displayProduct Features:

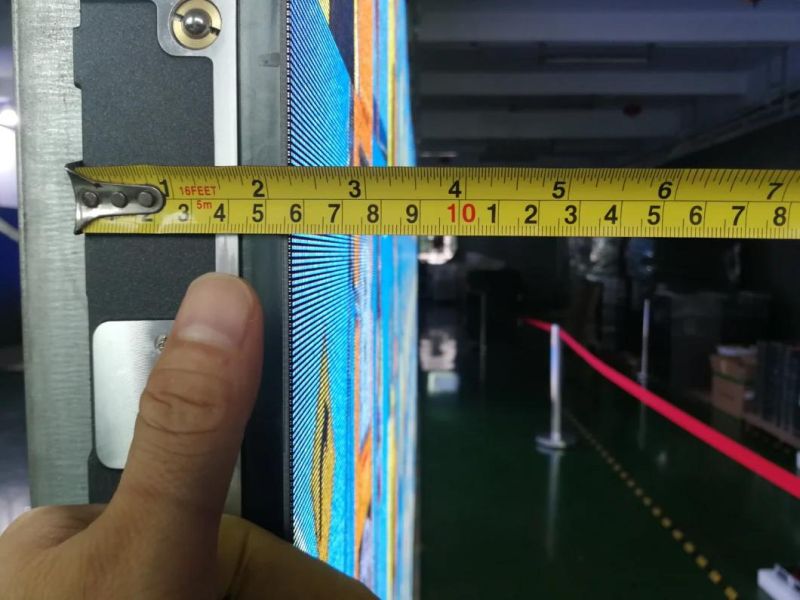

1. Cabinet thickness: Stunning slim 4cm ONLY
2. Gray scale is 16bit and 4800HZ high refesh rate, make the led sceen display effect is very good

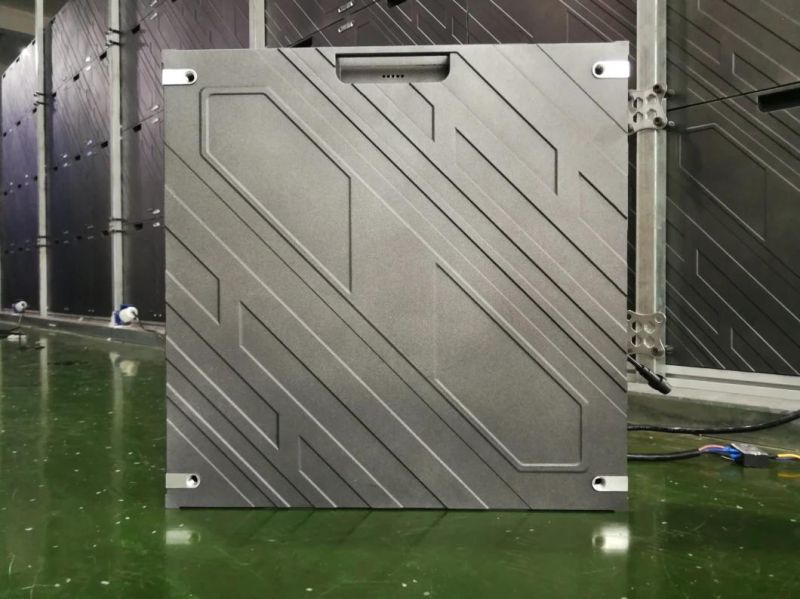

3. Cabinet size: 480mm*480mm it's very easy to install and maintenance
4. Front service maintenance, you can take off the led module and power supply from the front of the cabinet

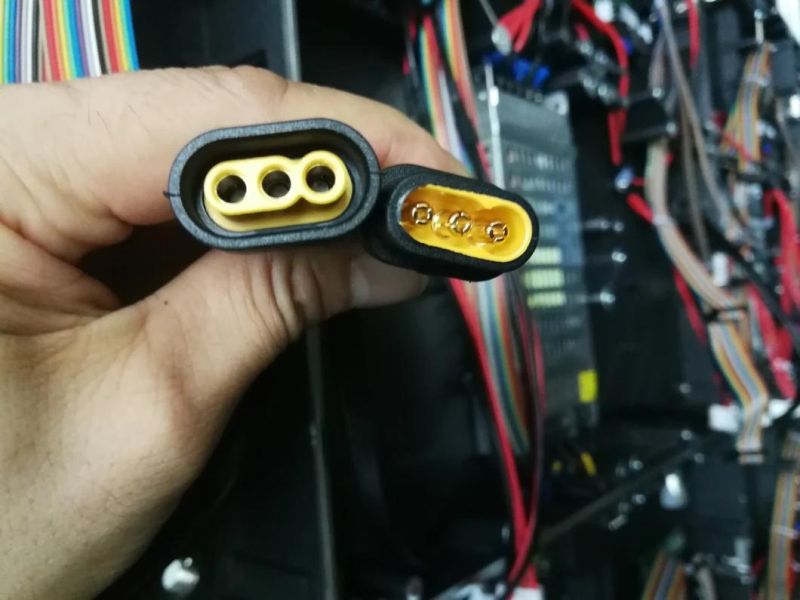

5. This new design makes faster and easier installation without connection connectors for power and data.
K SERIES-P1.875MM TECHNICAL DATAS
| NO. | Parameters | Specifications |
| 1 | Model | K1.8 |
| 2 | Pixel Pitch(mm) | 1.875 |
| 3 | LED | SMD1515 |
| 4 | Screen Resolution | 284,089dots/sqm |
| 5 | Scan Method | 1/32 |
| 6 | Module size(mm) | 240*240 |
| 7 | Cabinet size(L*H*W mm) | 480*480*56 |
| 8 | Cabinet material | Die-casting Aluminum |
| 9 | Cabinet(Kg) | 7kg |
| 10 | Viewing angle | H:160°/ V:160° |
| 11 | Grey Scale | 16bits |
| 12 | Refresh rate(Hz) | ≥3840 |
| 13 | Brightness(nits) | ≥800 |
| 14 | Working Voltage(V) | AC 86~264V |
| 15 | AVE. power consumption (W/M2) | 300 |
| 16 | MAX. power consumption(W/M2) | 600 |
| 17 | IP grade | IP31 |
| 18 | Controller | Novastar |
| 19 | Maintenance | Full Front service |
| 20 | Working humidity | 10~90%RH |
| 21 | Working temperature | -30ºC~70ºC |

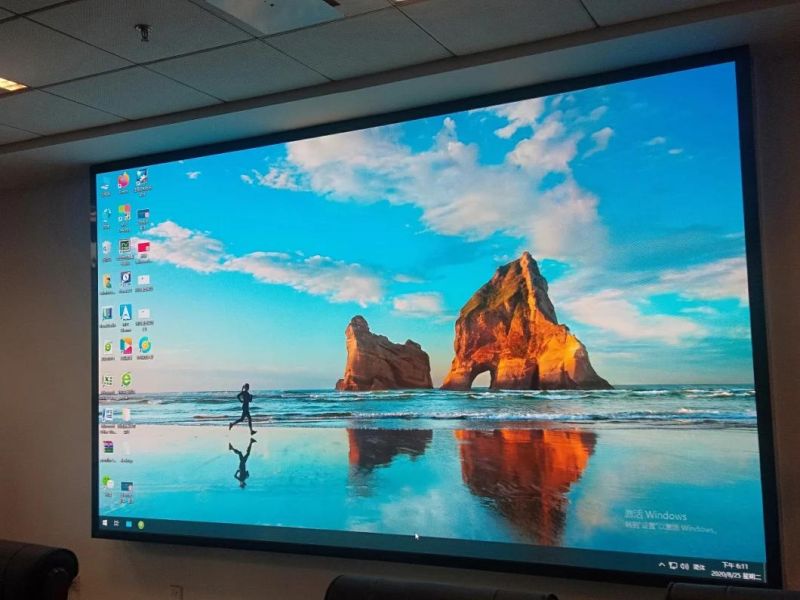

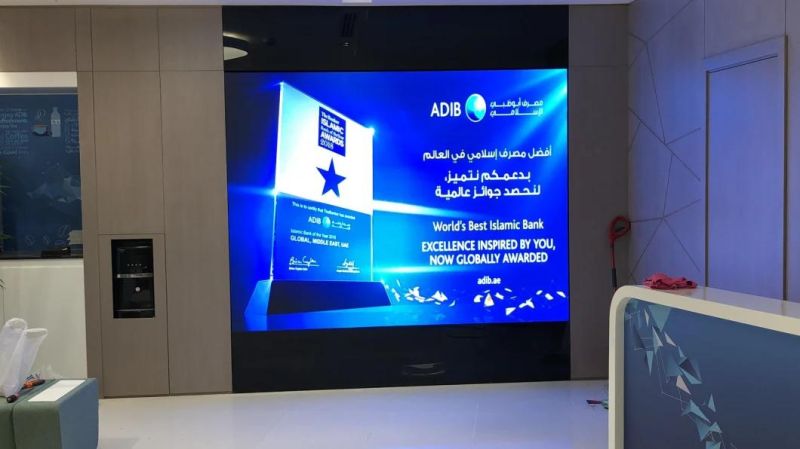

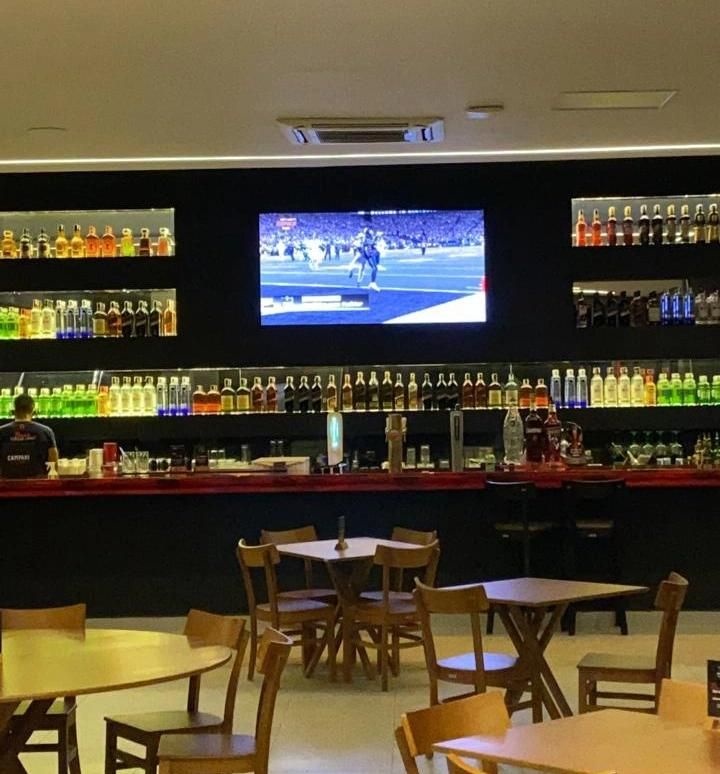

Product Photos:
