Promotion Price RGB LED P5/P6/P8/P10 Outdoor Advertising LED Display Panel

Shenzhen Chuangkaiguang Co., Ltd.
  • Tube Chip Color：Full Color
  • IP Rating：IP65
  • Pixel Pitch：10mm
  • Pixel Configuration：1R, 1G, 1B
  • Display Function：Video Display, Image & Text Display, Text Display, Market Display
  • Average Power Consumption：220W , m²

Base Info

  • Model NO.：10mm
  • Pixel Density：10000 dot , m²
  • Scanning Mode：1,4 Scan
  • Display Type：LED Video Display
  • Application：Advertising
  • Certification：CE, RoHS, UL, CCC, ETL
  • Module Size：160X160mm
  • Module Resolution：16X16dots
  • Cabinet Size：960X960X150mm
  • Cabinet Resolution：96X96dots
  • Screen Brightness：7000nits
  • Protection Grade：IP65
  • Compliance：Ce
  • Controller：Nova, Linsn
  • Maintenance：Rear Service
  • Life Span：100000 Hours
  • Input Voltage：AC 100~240 V
  • Cabinet Material：Steel Iron
  • LED Type：DIP346
  • Viewing Distance：10~100 M
  • Refresh Rate：1920 Hz
  • Transport Package：Plywooden Case
  • Specification：960x960mm
  • Trademark：CKGLED
  • Origin：China
  • HS Code：8528591090
  • Production Capacity：6000sqm,Month

Description

Pixel pitch10mmModule size160mm*160mmModule pixel16dots*16dotsDriving method1/4 constant drivingPixel configurationDIP 1R1G1BPixel density10000 dots/sqmModule resolution256dots


Cabinet specifications:Cabinet size960mm*960mm*150mmCabinet resolution96dots*96dotsCabinet weight50kgModule Qty36pcsCabinet pixel9216dotsPower consumption(w/sqm)AVE.202 / MAX.599


Screen parameters:No.ParameterSpecification1Pixel Pitch10mm2Pixel Density10000pix/sqm3LED TypeDIP3464Viewing Angle(H)120°,(V)60°5Brightness≥7500cd/sqm6Drive Method1/4 scanning7Driving ICMBI51248Color Depth40969Refresh Rate≥1920 Hz10Frame Rate≥60Hz11Brightness AdjustmentManual control by software/Auto control12Cabinet Type and MaterialSteel Iron13Cabinet Weight≤60kg/sqm14VoltageAC 220/110V±10%,50Hz15Avg.Power Consumption220W/sqm16Max.Power Consumption650W/sqm17Assembly precision between PCB≤1 mm18Service AccessRear maintenance19Protection GradeFront IP65,Rear IP5420Operating Temp/Humidity-30ºC~60ºC, 10~95%RH21Control modeSynchronization with PC22Operating SystemWINDOWS(98/2000/XP/Vista)24Data TransmissionUnshielded twisted- pair net line transmission distance 100m, max transmission distance 130m;Multi-mode Optic fiber transmission distance 500m;Single-mode optic fiber transmission distance 10km25Storage Temp/Humidity-40ºC~60ºC, 10~95%RH26Input Signal FormatVGA, DVI, RGB HV , PbPr (HDTV),Composite ,S-Video ,TV27MTBF≥10000hours28Lifetime(Normal Temp)≥100,000Hours

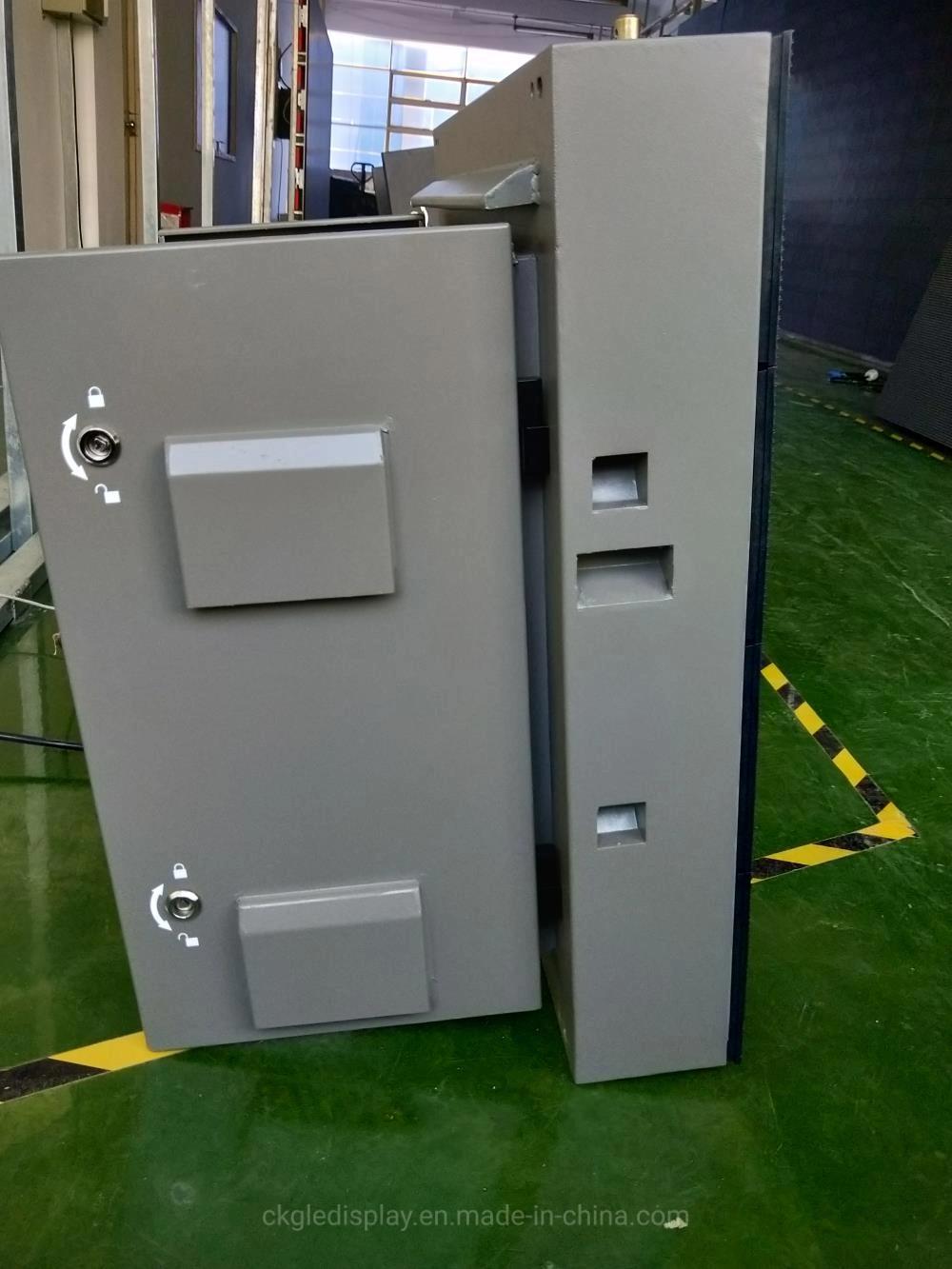

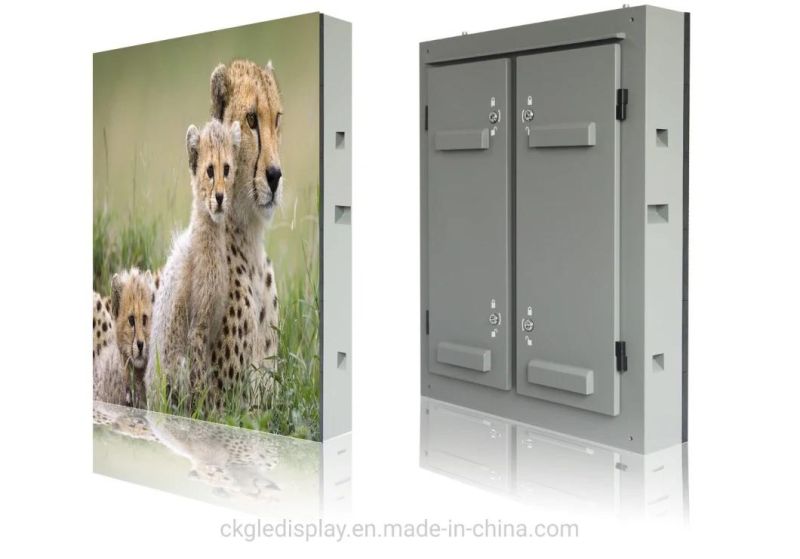

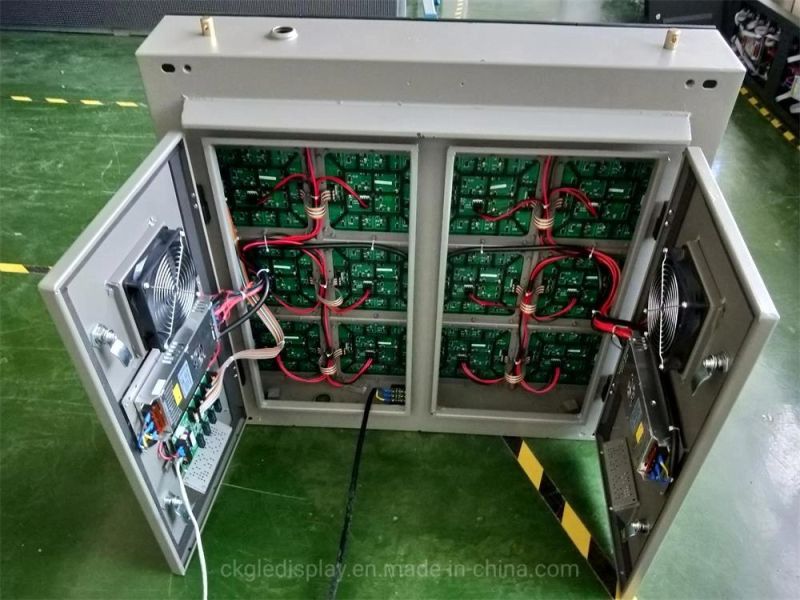

LED display Panel photos:

Promotion Price RGB LED P5/P6/P8/P10 Outdoor Advertising LED Display Panel
Promotion Price RGB LED P5/P6/P8/P10 Outdoor Advertising LED Display Panel
Promotion Price RGB LED P5/P6/P8/P10 Outdoor Advertising LED Display Panel
Promotion Price RGB LED P5/P6/P8/P10 Outdoor Advertising LED Display Panel
Promotion Price RGB LED P5/P6/P8/P10 Outdoor Advertising LED Display Panel

Workshop:

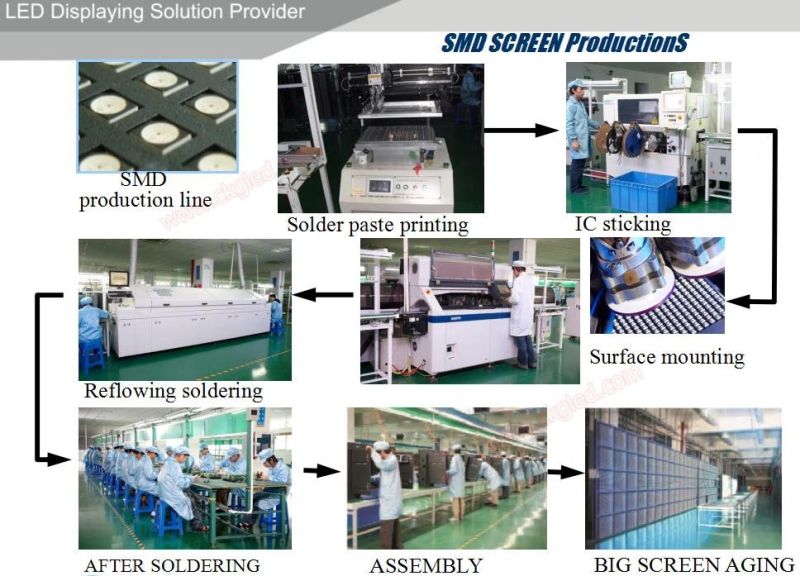

Process:
Promotion Price RGB LED P5/P6/P8/P10 Outdoor Advertising LED Display Panel

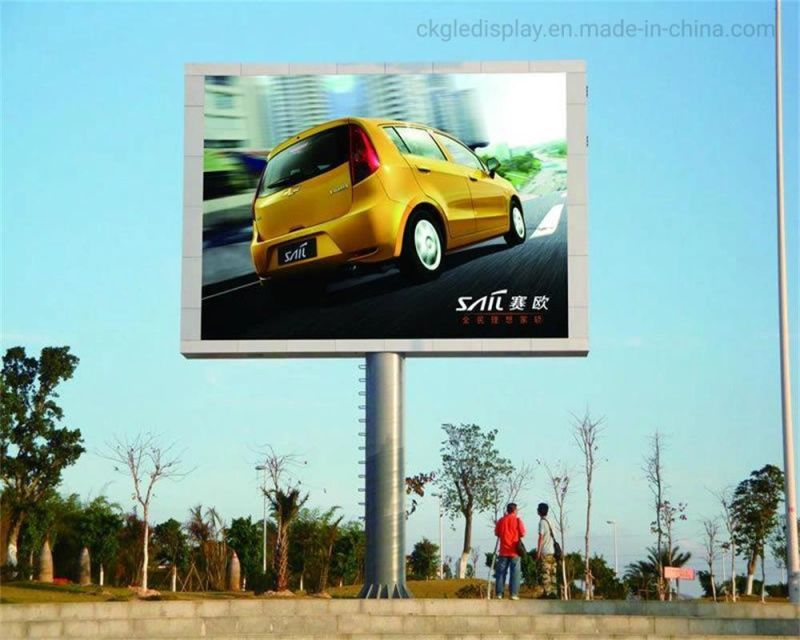

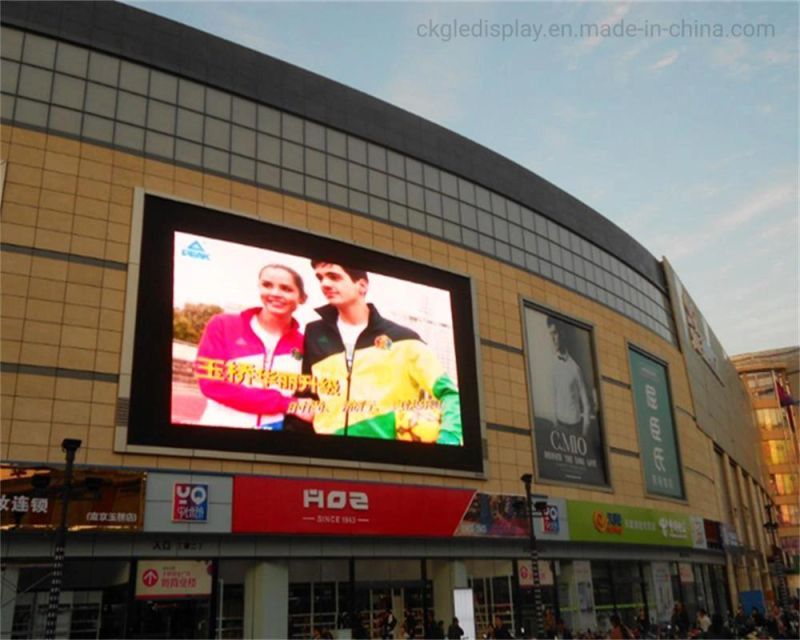

LED Display Project With CKGLED Brand:
Promotion Price RGB LED P5/P6/P8/P10 Outdoor Advertising LED Display Panel
Promotion Price RGB LED P5/P6/P8/P10 Outdoor Advertising LED Display Panel

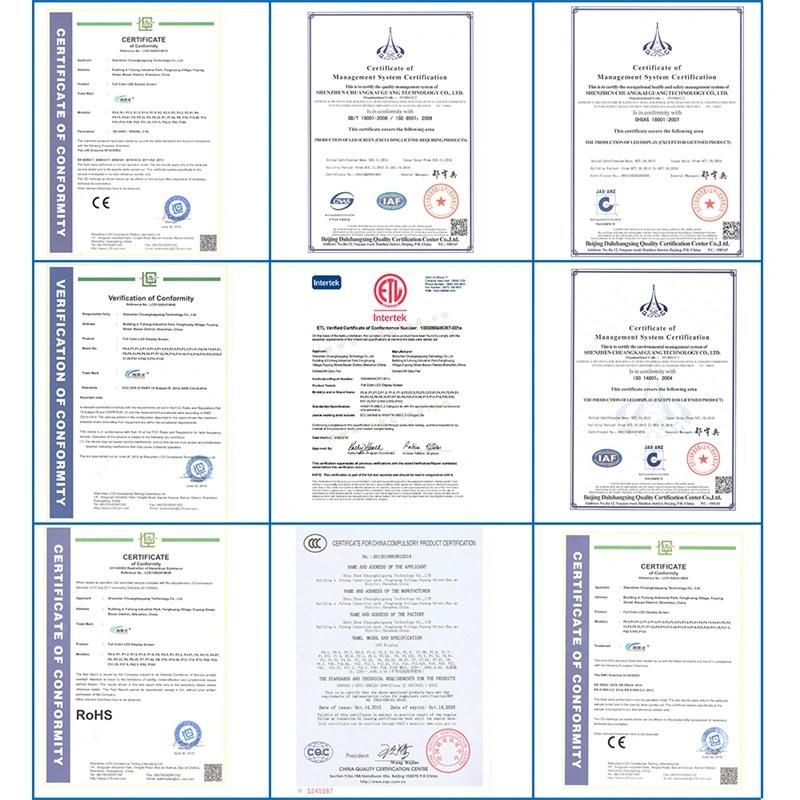

Certificates:

Promotion Price RGB LED P5/P6/P8/P10 Outdoor Advertising LED Display Panel

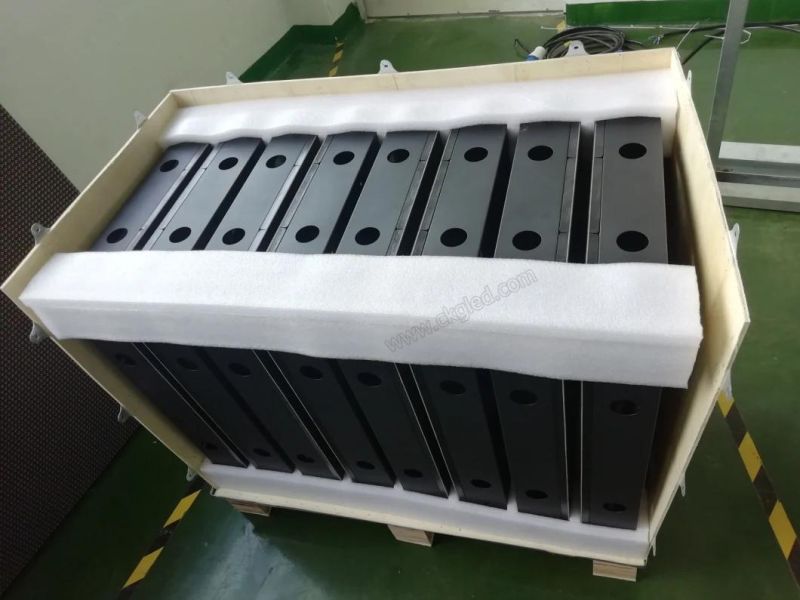

Wooden Package:
Promotion Price RGB LED P5/P6/P8/P10 Outdoor Advertising LED Display Panel

Packing>>>
For iron cabinet LED display screen of indoor or outdoor, we usually use wooden case to packing
For aluminum cabinet of LED rental stage display, we usuallu use flight case to packing
One wooden case including 2 cabinets, one flight case including 6 cabinets
Shippment>>>
By air or sea, FOB shenzhen
UPS/DHL/FedEx/Express(door to door)and so on
Delivery time>>>
Within 15 days counting from 30% prepayment arrived at CKGLED account.
Payment term>>>
T/T(30% deposit, the remained 70% payment made before factory shipment )
Quality assurance>>>
We offer 2 years warranty, and our products have passd CE, RoHS, FCC certificate, All products have Age testing, shaking testing, waterproof testing, In generally, Module test is 24h, entire screen test is 72h, A series of testing before delivery can ensure transportation and quality products.



Pre-Sales  Service
--Provide details about the production procedure
--Assign engineers for installation and testing

Sales  Service
--Customized solution designs
--Product rendering and steel structure drawing
--CKGLED's successful project examples and visits to our production and base


After-Sales  Service
--Two-year quality warranty with lifelong maintenance.
--Free guarantee repair (including labor and material):Free repair service during the quality warranty period and reasonable charge for spare parts and maintaining service after the quality warranty period.We will never exempt our responsibilities on product owned defects.
--Responding time:Upon receiving user's notification, we ensure 24-hour after-sales technical support.
--Spare parts:Necessary spare parts are provided together with products to customers.
--Free technical training:Integrative and normative technology training is available for free to customers by our technical personnel to ensure they are skilled in regular operations of hardware and software of products and they are able to estimate and solve small problems.
--Telephone investigation:Our after-sales team will phone the user every month during the warranty period to follow up the working condition of the products, and to discover and solve problems, if necessary.
--Software upgrade:Lifelong maintenance of controlling system, incessant improvement of the system functions and continuous software upgrades.
