P1.9 Indoor Fine Pitch Full Color LED Display Screen

Shenzhen Chuangkaiguang Co., Ltd.
  • Tube Chip Color：Full Color
  • Display Function：Video Display
  • Pixel Pitch：1.923mm
  • Pixel Configuration：1R,1G,1B
  • Pixel Density：270421 Dots,Sqm
  • Scanning Mode：1,30

Base Info

  • Model NO.：1.923mm
  • System Operating Platform：Windows
  • Display Type：LED Video Display
  • Application：Stage Performance, Shopping Guide, TV Station , Studio , Conference Hall
  • IP Rating：IP30
  • Certification：CE, RoHS, UL, CCC
  • Module Size：200X150mm
  • Screen Brightness：800nits
  • Screen Refresh Rate：3840Hz
  • Grey Scale：16bits
  • Service：Rear Maintenance
  • Controller：Nova
  • Transport Package：Plywood Case
  • Specification：400x300mm
  • Trademark：CKGLED
  • Origin：China
  • HS Code：8528591090
  • Production Capacity：6000sqm,Month

Description

SPECIFICATIONS1ModelC1.6C1.92Pixel Pitch(mm)1.6671.9233LEDSMD1010SMD10104Screen Resolution359856dots/sqm277008dots/sqm5Scan Method1/301/306Module size(mm)200*300200*3007Cabinet size(L*H*W mm)400x300x80400x300x808Cabinet materialDie-casting AluminumDie-casting Aluminum9Cabinet(Kg)5.55.510Viewing angleH:140°/  V:140°H:140°/  V:140°11Grey Scale16bits16bits12Refresh rate(Hz)≥3840≥384013Brightness(nits)≥800≥80014Working Voltage(V)AC 100~240VAC 100~240V15AVE. power consumption (W/sqm)30028016MAX. power consumption(W/sqm)80070017IP gradeIP31IP3118controllerNovastarNovastar19MaintenanceRear serviceRear service20Working humidity10~90%RH21Working temperature-20ºC~50ºC22CertificateRoHS / CE / CCC

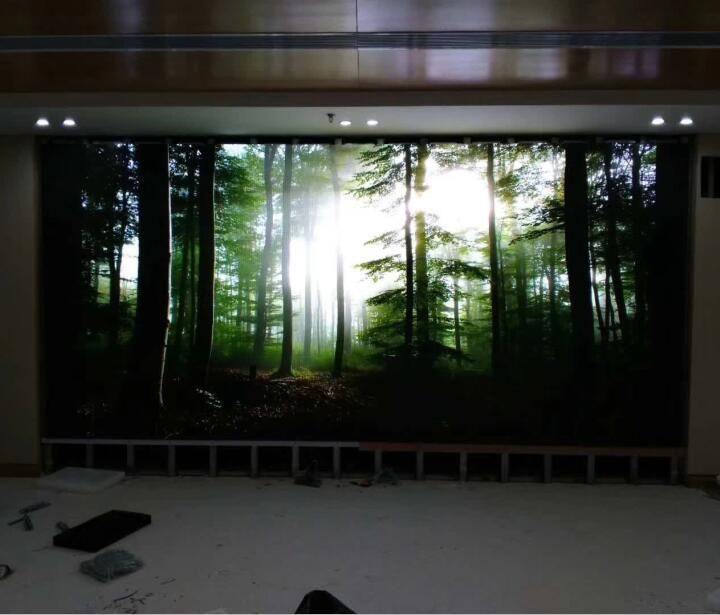

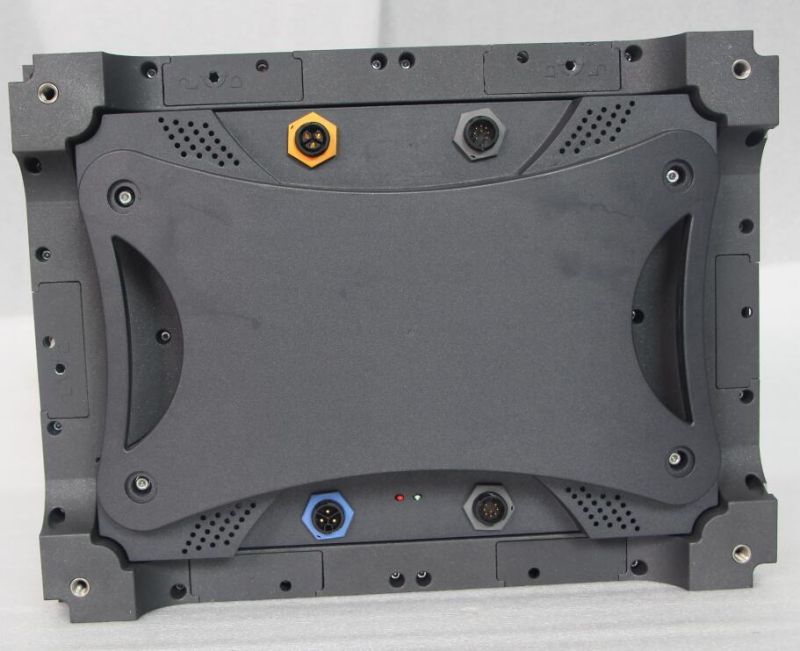

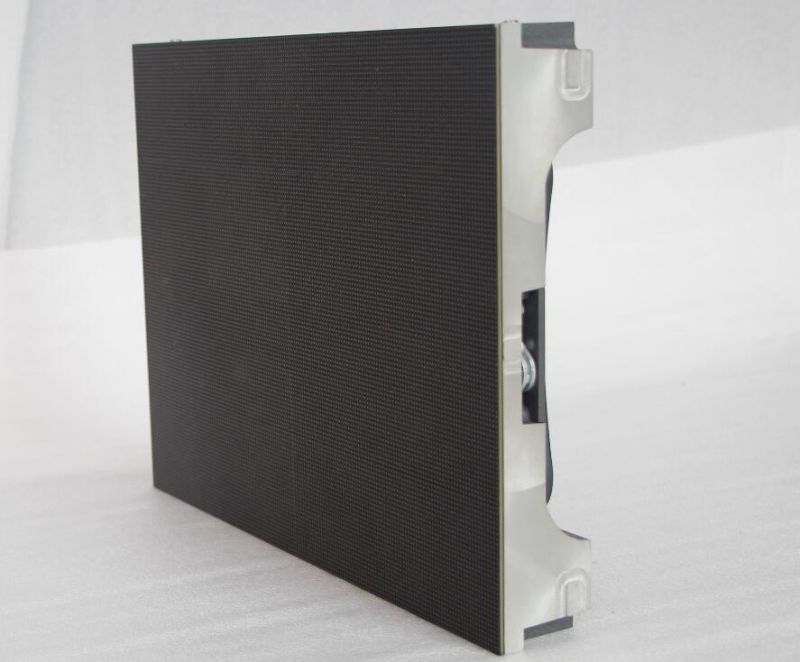

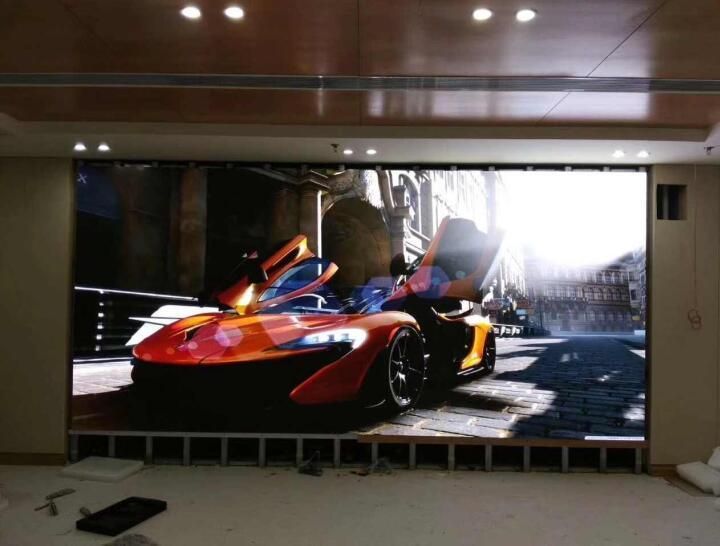

PRODUCT PHOTOS:

P1.9 Indoor Fine Pitch Full Color LED Display Screen
P1.9 Indoor Fine Pitch Full Color LED Display Screen
P1.9 Indoor Fine Pitch Full Color LED Display ScreenP1.9 Indoor Fine Pitch Full Color LED Display Screen
P1.9 Indoor Fine Pitch Full Color LED Display Screen
