• Model NO.：5mm
• Pixel Density：40000dots,Sqm
• Scanning Mode：1,8 Scan
• Display Type：LED Video Display
• Application：Stage Performance
• Certification：CE, RoHS, UL, CCC, ETL
• Module Size：320X160mm
• Module Resolution：64X32dots
• Cabinet Size：640X640mm
• Cabinet Resolution：128X128dots
• Screen Brightness：5000nits
• Refresh Rate：1920Hz-3840Hz
• Protection Grade：IP65
• Controller：Nova , Linsn
• Service：Rear Maintenance
• Compliance：Ce
• Life Span：100000hours
• View Distance：5~15m
• LED Type：SMD2727
• Input Voltage：AC 100~240V
• Cbinet Material：Die-Casting Aluminum
• Transport Package：Flight Case
• Specification：640x640x80mm
• Trademark：CKGLED
• Origin：China
• HS Code：8528591090
• Production Capacity：6000sqm,Month

Basic Info.

Model NO. 5mm Pixel Density 40000dots/Sqm Scanning Mode 1/8 Scan Display Type LED Video Display Application Stage Performance Certification CE, RoHS, UL, CCC, ETL Module Size 320X160mm Module Resolution 64X32dots Cabinet Size 640X640mm Cabinet Resolution 128X128dots Screen Brightness 5000nits Refresh Rate 1920Hz-3840Hz Protection Grade IP65 Controller Nova / Linsn Service Rear Maintenance Compliance Ce Life Span 100000hours View Distance 5~15m LED Type SMD2727 Input Voltage AC 100~240V Cbinet Material Die-Casting Aluminum Transport Package Flight Case Specification 640x640x80mm Trademark CKGLED Origin China HS Code 8528591090 Production Capacity 6000sqm/Month

Product Description

Product features :

1.Durable fresh color and high brightness by adopting high quality leds.

2. Energy-saving 29% by using high efficiency IC driver, high brightness leds and improved PCB.

3.Great uniformity , contract ratio and screen flatness.

4.Anti-UV module mask, Anti-Oxidation module frame with protection from deformation.

5.IP65 protection grade, durable nature enables the screen to work in all outdoor weather conditions.



PRODUCT SPECIFICATIONS:


NO.	Parameter	Specification
1	Model	RO5
2	Pixel Pitch(mm)	5
3	Pixel Density	40000dots/sqm
4	LED Type	SMD2727
5	Viewing Angle	horizontal 140°,Vertical 140°
6	Brightness	≥5000cd/sqm
7	Drive Method	1/8 scan
8	Color Depth	14bit
9	Refresh Rate(Hz)	≥1920
10	Frame Frequency (Hz)	≥60
11	Brightness Adjustment	Manuel/Auto/Remote control
12	Module Size(mm)	320×160×17
13	Module Resolution(dots)	64×32
14	Cabinet Size(mm)	640×640×80
15	Cabinet Resolution(dots)	128*128
16	Cabinet Type and Material	Die-casting Aluminum
17	Cabinet Weight(Kg)	≤12
18	Voltage(V)	AC 100~240V
19	Avg. Power Consumption	230W/sqm
20	Max. Power Consumption	560W/sqm
21	Service Access	Rear Access
22	IP Grade	Front: IP65  /  Rear: IP54
23	Operating Temp/Humidity	-30ºC~60ºC, 10~95%RH
24	Storage Temp/Humidity	-40ºC~60ºC, 10~95%RH
25	Lifetime(Normal Temp)	≥50000H
26	System Controlle	Linsn/Novastar
27	Compliant Standard	CCC/CE/RoHS

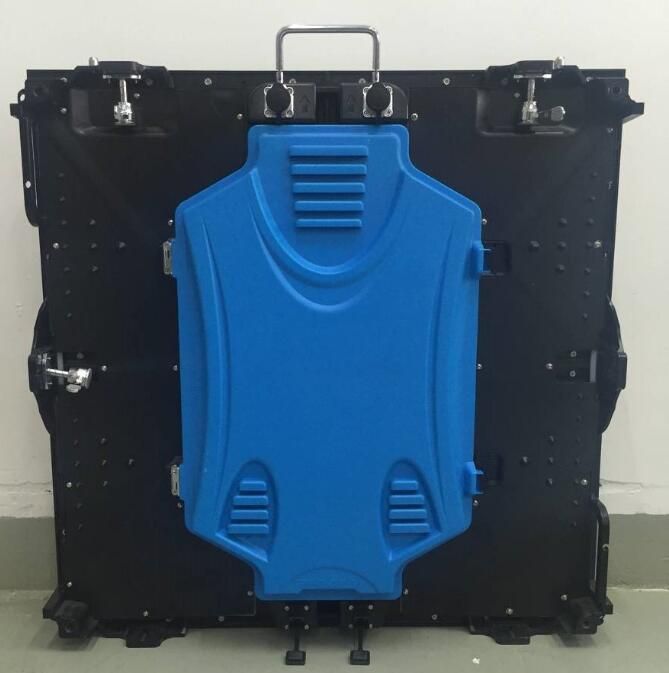

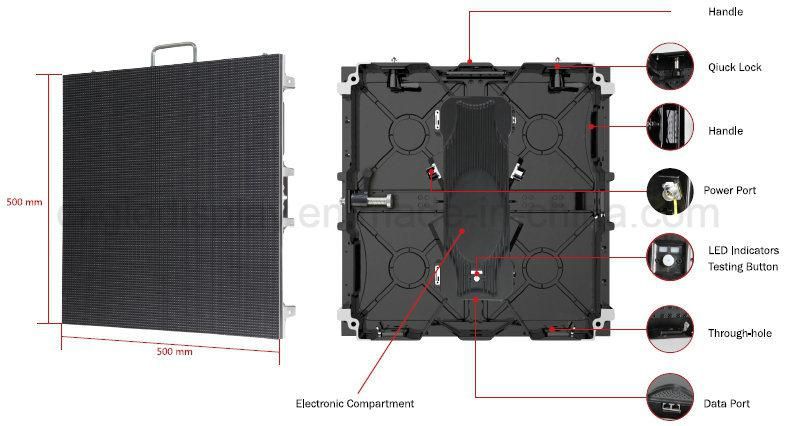

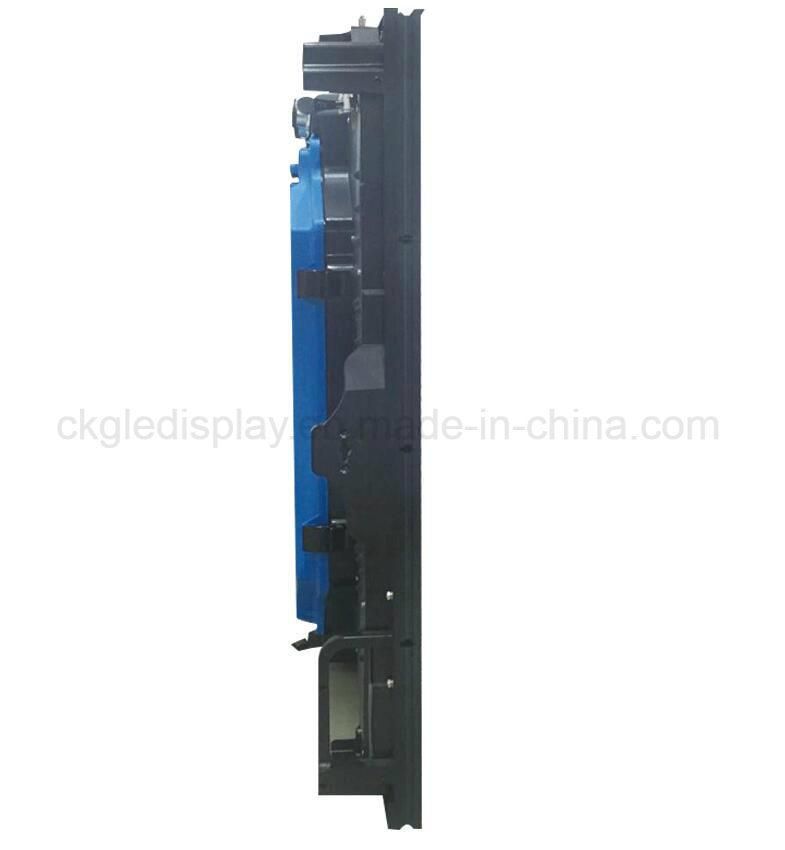

PRODUCT PHOTOS:









Installation method :

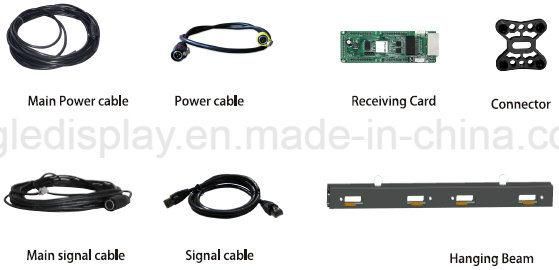

parts:

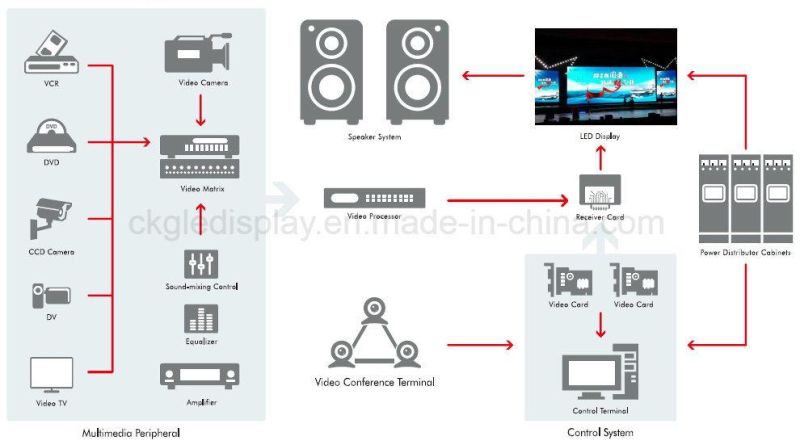

System topology:

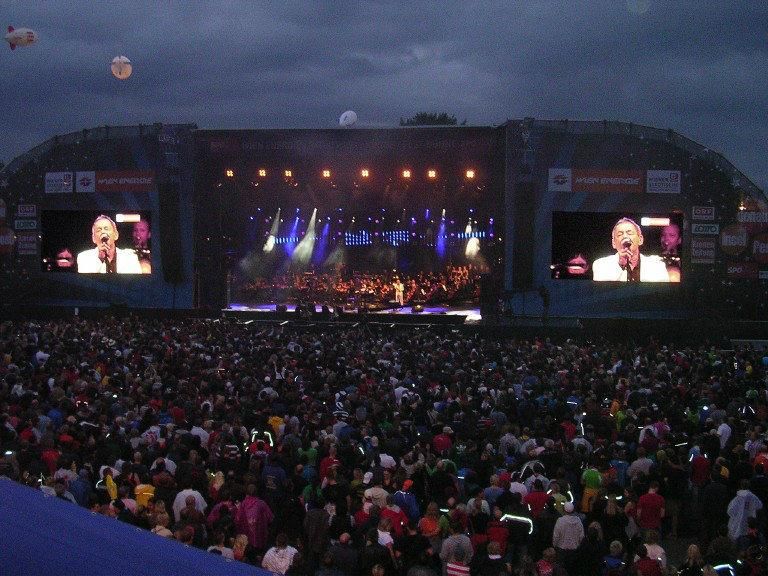

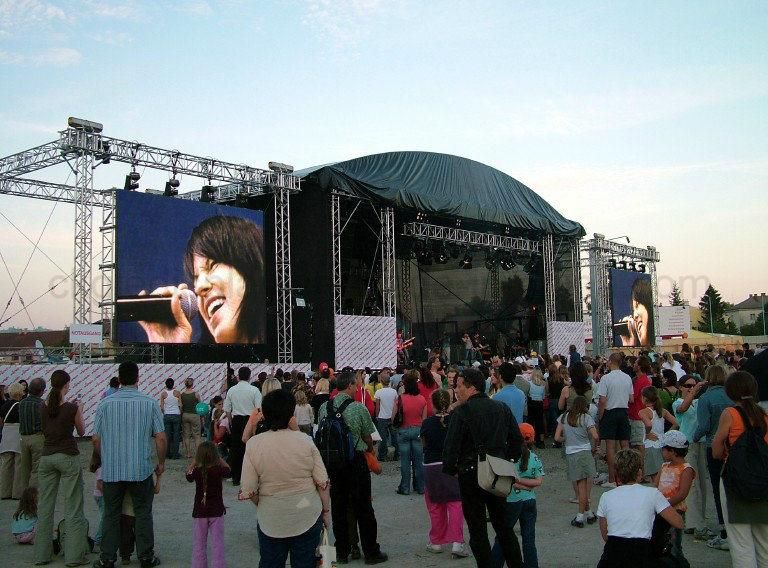

Application Cases:

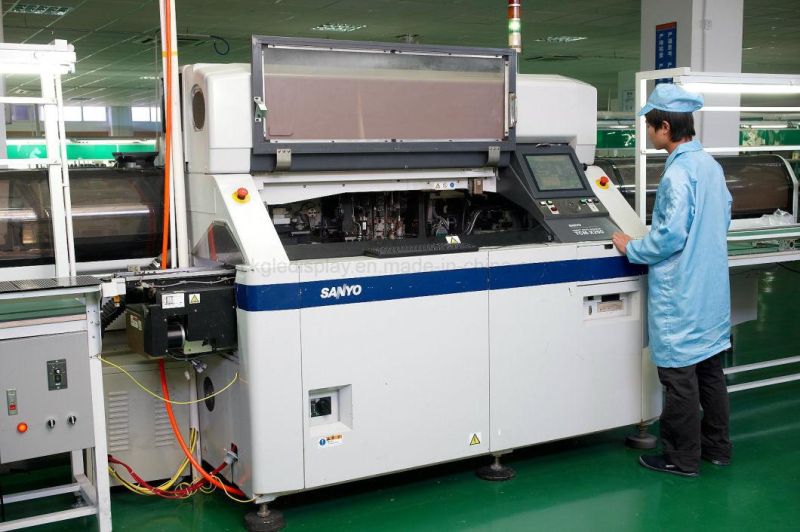

workshop:



Package:



Certificates:




Packing>>>
For iron cabinet LED display screen of indoor or outdoor, we usually use wooden case to packing
For aluminum cabinet of LED rental stage display, we usuallu use flight case to packing
One wooden case including 2 cabinets, one flight case including 6 cabinets
Shippment>>>
By air or sea, FOB shenzhen
UPS/DHL/FedEx/Express(door to door)and so on
Delivery time>>>
Within 15 days counting from 30% prepayment arrived at CKGLED account.
Payment term>>>
T/T(30% deposit, the remained 70% payment made before factory shipment )
Quality assurance>>>
We offer 2 years warranty, and our products have passd CE, RoHS, FCC certificate, All products have Age testing, shaking testing, waterproof testing, In generally, Module test is 24h, entire screen test is 72h, A series of testing before delivery can ensure transportation and quality products.


Pre-Sales  Service
--Provide details about the production procedure
--Assign engineers for installation and testing

Sales  Service
--Customized solution designs
--Product rendering and steel structure drawing
--CKGLED's successful project examples and visits to our production and base


After-Sales  Service
--Two-year quality warranty with lifelong maintenance.
--Free guarantee repair (including labor and material):  free repair service during the quality warranty period and reasonable charge for spare parts and maintaining service after the quality warranty period. We will never exempt our responsibilities on product owned defects.
--Responding time: upon receiving user's notification, we ensure 24-hour after-sales technical support.
--Spare parts: necessary spare parts are provided together with products to customers.
--Free technical training: integrative and normative technology training is available for free to customers by our technical personnel to ensure they are skilled in regular operations of hardware and software of products and they are able to estimate and solve small problems.
--Telephone investigation: our after-sales team will phone the user every month during the warranty period to follow up the working condition of the products, and to discover and solve problems, if necessary.
--Software upgrade: lifelong maintenance of controlling system, incessant improvement of the system functions and continuous software upgrades.
