• Model NO.：10mm
• Pixel Density：10000dots,Sqm
• Scanning Mode：1,4 Scan
• Display Type：LED Video Display
• Application：Advertising
• Certification：CE, RoHS, UL, CCC, ETL
• Module Size：320X160mm
• Module Resolution：32X16dots
• Cabinet Size：960X960mm
• Cabinet Resolution：96X96dots
• Screen Brightness：7000nits
• Protection Grade：IP65
• Frame Frequency：60Hz
• Compliance：Ce
• Service：Front , Rear
• Controller：Nova, Linsn
• Transport Package：Wooden Case
• Specification：960x960mm
• Trademark：CKGLED
• Origin：China
• HS Code：8528591090
• Production Capacity：6000sqm,Month

Basic Info.

Model NO. 10mm Pixel Density 10000dots/Sqm Scanning Mode 1/4 Scan Display Type LED Video Display Application Advertising Certification CE, RoHS, UL, CCC, ETL Module Size 320X160mm Module Resolution 32X16dots Cabinet Size 960X960mm Cabinet Resolution 96X96dots Screen Brightness 7000nits Protection Grade IP65 Frame Frequency 60Hz Compliance Ce Service Front / Rear Controller Nova/ Linsn Transport Package Wooden Case Specification 960x960mm Trademark CKGLED Origin China HS Code 8528591090 Production Capacity 6000sqm/Month

Product Description

FS SERIES PRODUCE FEATURES:

. High brightness and good quality by adopting high quality leds.

. Modular design, flexible cabinet size to meet up with different requests.

. High polymer flexible mask, no mosaic phenomenon ,better contract ratio.

. Great uniformity and screen flatness.

. Anti-UV module mask, Anti-Oxidation module frame with protection from deformation.




PRODUCT SPECIFICATIONS:


NO.	Parameter	Specification
1	Model	FS10
2	Pixel Pitch (mm)	10
3	Physical Density (dot/m2)	10000
4	LED Configuration	1R1G1B
5	LED Type	SMD3535
6	Module Size (mm x mm)	320x160
7	Module Resolution (PX x PX)	32x16
8	Module Power Consumption (W)	38
9	Drive Mode	1/4 Constant Current Drive
10	Horizontal Viewing Angle (Deg)	120
11	Vertical Viewing Angle (Deg)	120
12	Brightness (cd/m2)	5500
13	Grey Scale	16bits
14	Refresh Rate (Hz)	1920
15	Cabinet Resolution (PX x PX)	96x96
16	Cabinet Max Power Consumption (W)	691
17	Cabinet Average Power Consumption (W)	230
18	Cabinet Size (mm x mm)	960x960
19	Cabinet Weight (Kg)	50
20	Cabinet Thickness (mm)	150
21	Cabinet Material	Steel/Aluminum
22	Color (M)	>16.7
23	Input Voltage (V)	AC 110V~220V+/-10%
24	Refresh Frame Frequency (Hz)	60
25	Protection Level	IP65
26	Working Environment	Outdoor
27	Working Temperature (ºC)	"-30°- +60°
28	Operation humidity (RH)	10%-95%
29	Certificates	CCC ,CE,RoHS

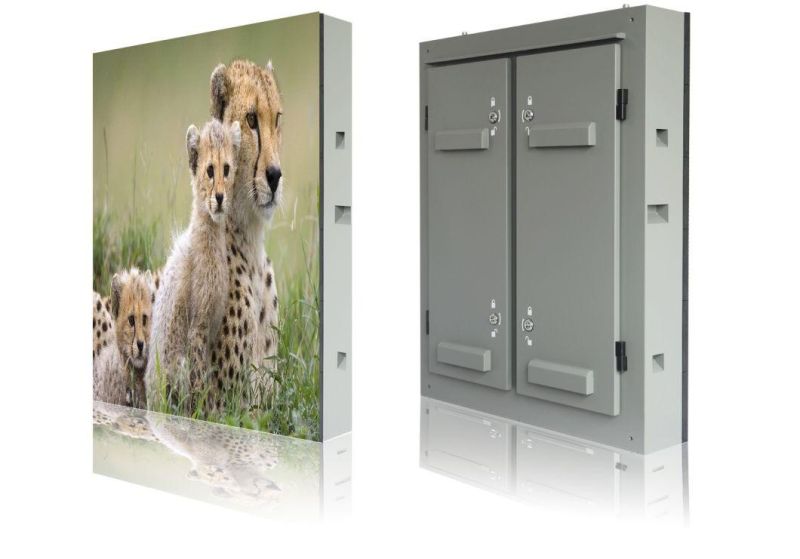

 LED Display Panel photo:

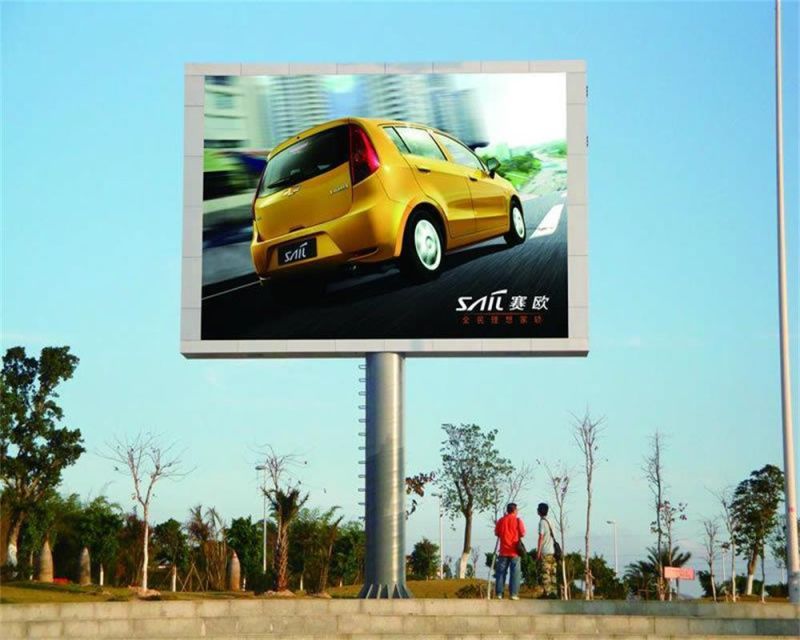

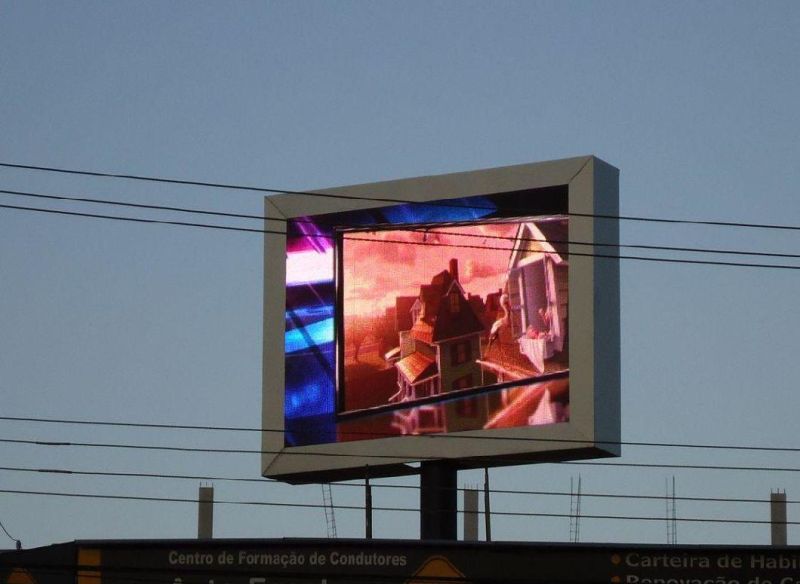

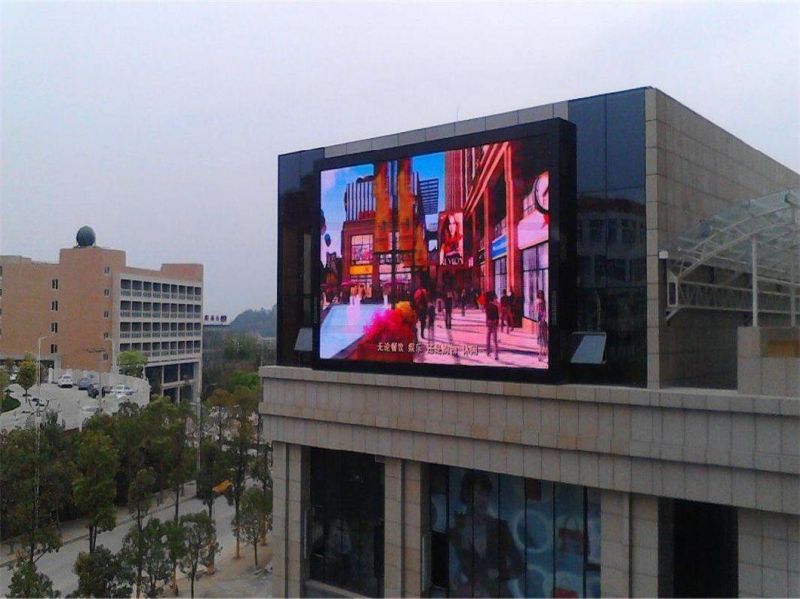

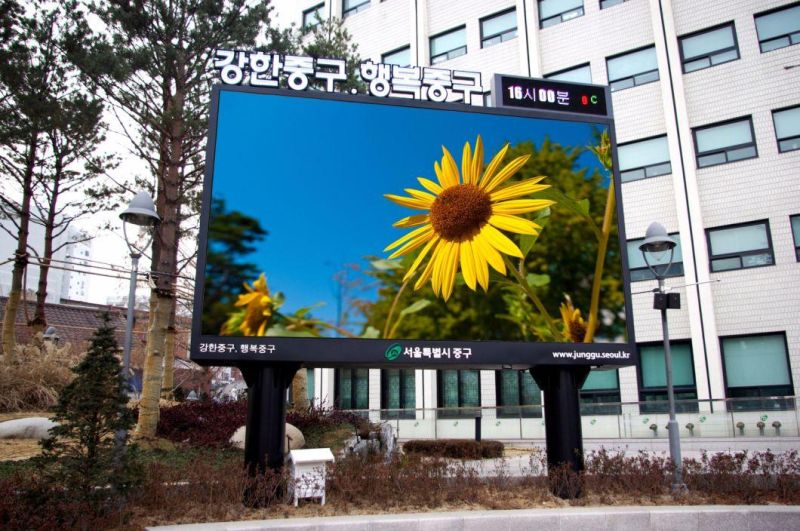

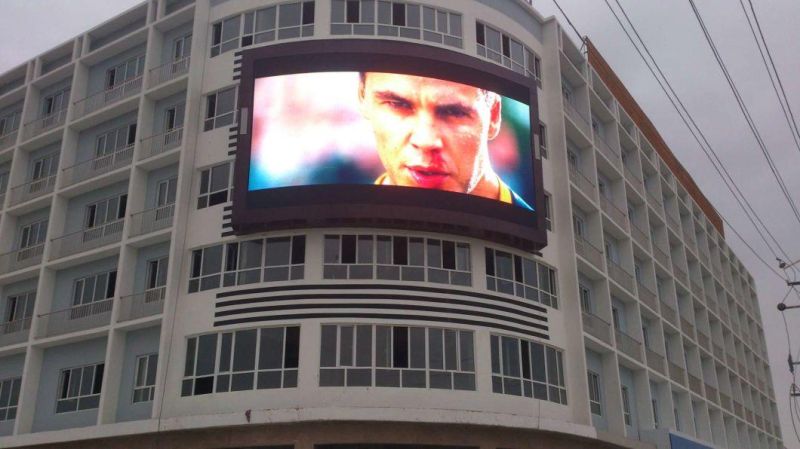

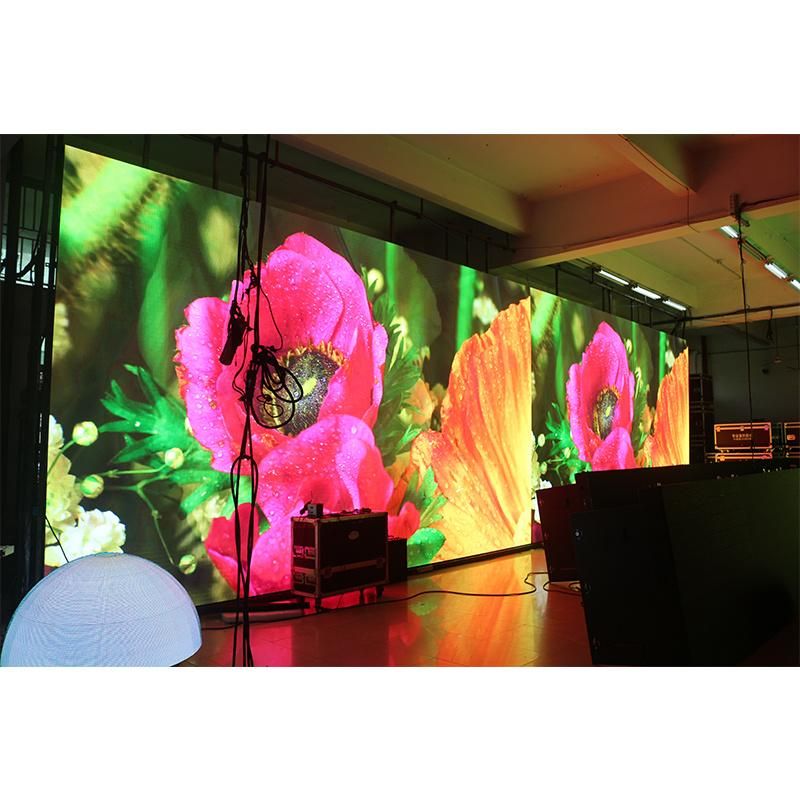

LED Display Project With CKGLED Brand:











Wooden case package:



Certificates:
