Outdoor Fixed Full Color LED Display/Advertising Screen with 1280X960mm Panel

Shenzhen Chuangkaiguang Co., Ltd.
  • Tube Chip Color：Full Color
  • IP Rating：IP65
  • Pixel Pitch：20mm
  • Pixel Configuration：1R, 1G, 1B
  • Display Function：Video Display
  • Average Power Consumption：200W,Sqm

Base Info

  • Model NO.：20mm
  • Pixel Density：2500dots,Sqm
  • Scanning Mode：Static Scan
  • Display Type：LED Video Display
  • Application：Advertising
  • Certification：CE, RoHS, CCC, ETL
  • Module Size：320X160mm
  • Module Resolution：16X8mm
  • Cabinet Size：1280X960mm
  • Cabinet Resolution：64X48dots
  • Screen Brightness：6000nits
  • Protection Grade：IP65
  • Compliance：Ce
  • Service：Rear Service
  • Controller：Nova, Linsn
  • Transport Package：Wooden Case
  • Specification：1280x960mm
  • Trademark：CKGLED
  • Origin：China
  • HS Code：8528591090
  • Production Capacity：6000sqm,Month

Description

Pixel pitch20mmModule size320mm*160mmModule pixel16dots*8dotsDriving methodstatic constant drivingPixel configurationDIP 1R1G1BPixel density2500 dots/sqmModule resolution128dots


Cabinet specifications:Cabinet size1280mm*960mm*150mmCabinet resolution64dots*48dotsCabinet weight61kgModule Qty24pcsCabinet pixel3072dotspower consumption(w/sqm)AVE.200 / MAX.600

Screen parameters:No.ParameterSpecification1Pixel Pitch20mm2Pixel Density2500pix/sqm3LED TypeDIP3464Viewing Angle(H)120°,(V)60°5Brightness ≥6000cd/sqm6Drive Methodstatic constant current scanning7Driving ICMBI51248Color Depth40969Refresh Rate≥3500 Hz10Frame Rate≥60Hz11Brightness AdjustmentManual control by software/Auto control12Cabinet Type and MaterialSteel Iron13Cabinet Weight≤55kg/sqm14VoltageAC 220/110V±10%,50Hz15Avg. Power Consumption 200W/sqm16Max. Power Consumption600W/sqm17Assembly precision between PCB≤1 mm18Service AccessRear maintenance19Protection GradeFront IP65,Rear IP5420Operating Temp/Humidity-30ºC~60ºC, 10~95%RH21Control modesynchronization with PC22Operating SystemWINDOWS(98/2000/XP/Vista)24Data TransmissionUnshielded twisted- pair net line transmission distance 100m, max transmission distance 130m; Multi-mode Optic fiber transmission distance 500m;Single-mode optic fiber transmission distance 10km25Storage Temp/Humidity-40ºC~60ºC, 10~95%RH26Input Signal FormatVGA, DVI, RGB HV , PbPr (HDTV),Composite ,S-Video ,TV27MTBF≥10000hours28Lifetime(Normal Temp)≥100,000Hours





PRODUCT PHOTOS:

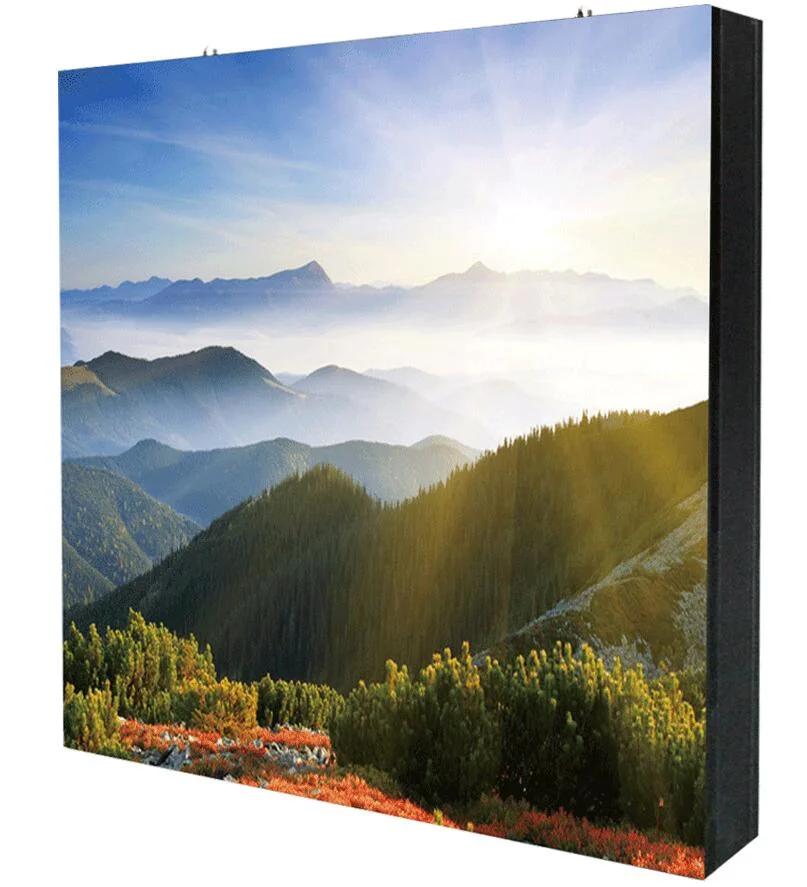

Outdoor Fixed Full Color LED Display/Advertising Screen with 1280X960mm Panel

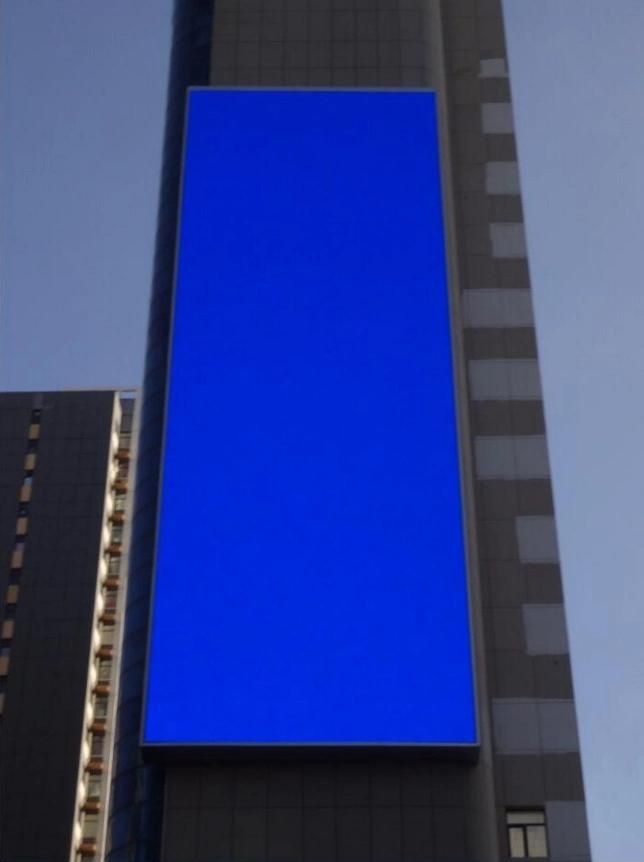

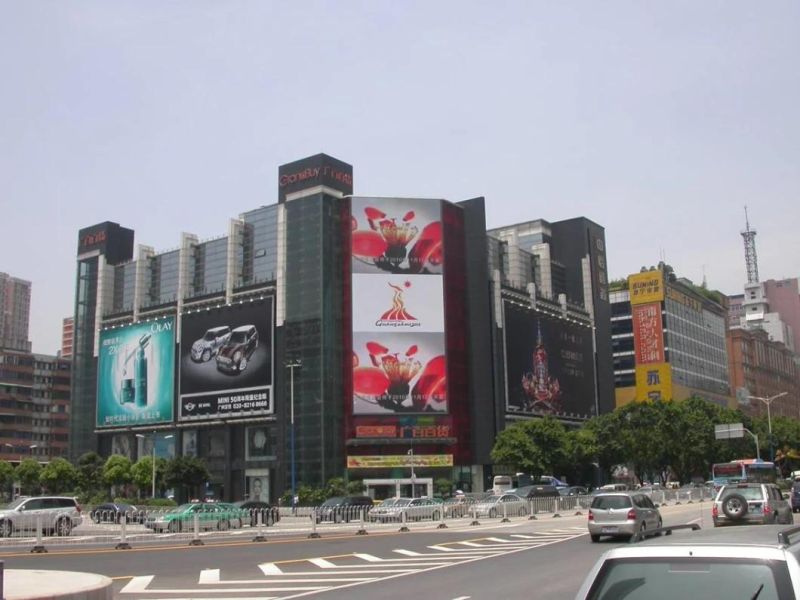

Outdoor Fixed Full Color LED Display/Advertising Screen with 1280X960mm PanelOutdoor Fixed Full Color LED Display/Advertising Screen with 1280X960mm Panel

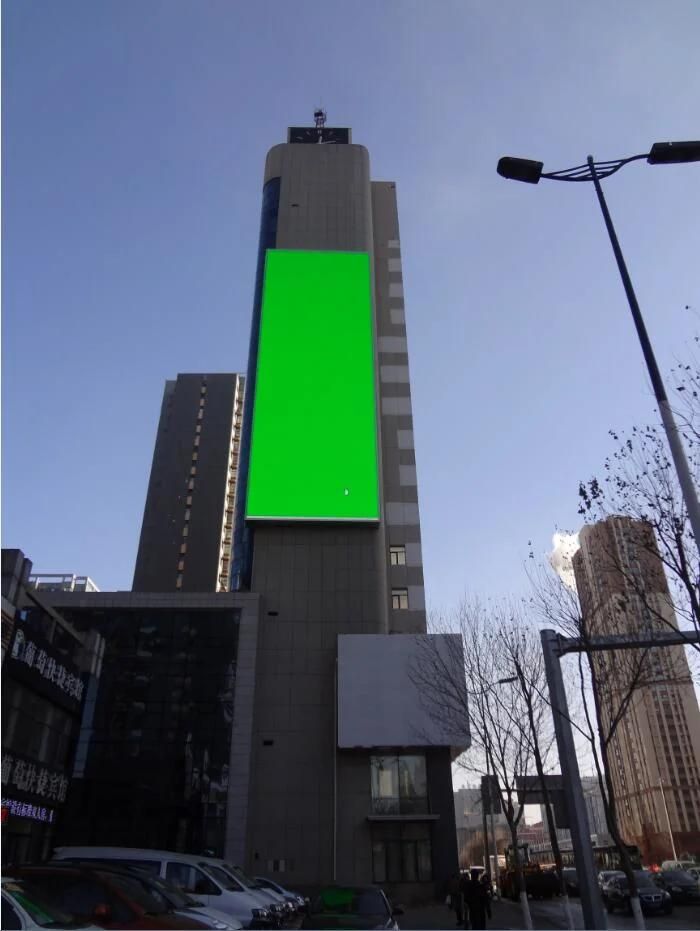

Outdoor Fixed Full Color LED Display/Advertising Screen with 1280X960mm PanelOutdoor Fixed Full Color LED Display/Advertising Screen with 1280X960mm Panel

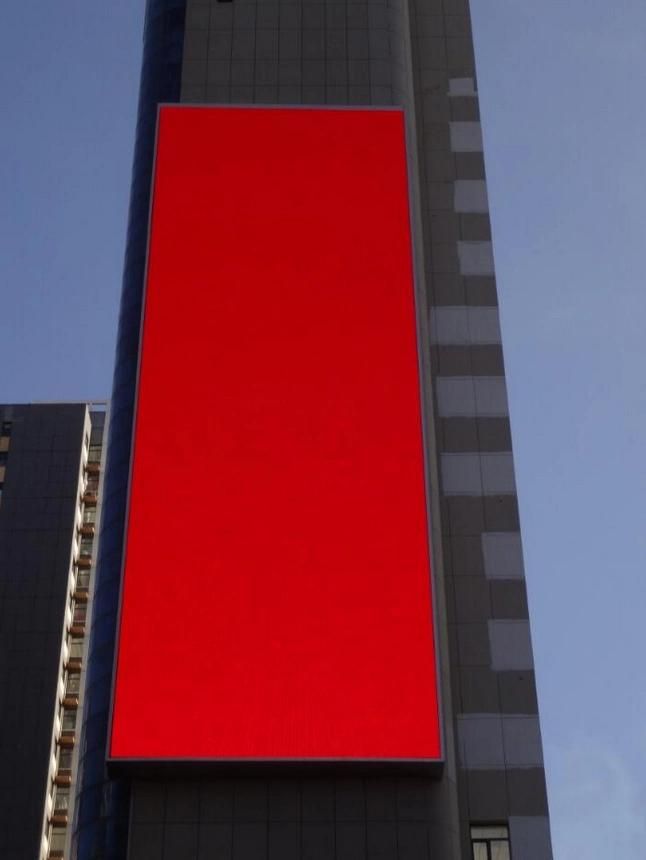

Outdoor Fixed Full Color LED Display/Advertising Screen with 1280X960mm Panel
