• Model NO.：OX-P20D
• Pixel Density：2500 Dots,M2
• Scanning Mode：Static Scan
• Display Type：LED Video Display
• Application：Advertising
• Certification：CE, RoHS, UL, CCC, ETL
• Cabinet Material：Alu,Steel
• Brightness：7000nits
• Refresh Rate：1920-3840Hz
• Voltage：AC110-240V
• Contrast Rate：3000:1
• PSU：MW
• Driver IC：Mbi
• LED Lamps：Epistar
• System：Nova
• Transport Package：Plywood Cases
• Specification：1280x1280mm
• Trademark：LEDventure
• Origin：China
• HS Code：852859109
• Production Capacity：2000sqm,Month

Outdoor front service series led display screen is very popular in outdoor building wall-mounted projects.

P20 is a hot sale product for outdoor front series, high cost effective, high refresh rate more than 1920hz, top image quality and stable running.

All of our Product materials we choose all top quality levels, including the SMD, IC components, also the PCB, screws, PSU brands etc, so that during the led screen using, it helps to cut down after sale serive costs, to make sure led display screen stable and less aftersale services.

Item

OX Series Outdoor Front Service Advertising LED Display Screen

Model Number

OX-P20D

Pixel Pitch

20mm

Pixel Density

2500 pixels/M2

Pixel Configuration

DIP346

LED Type

Epistar, DIP

Module Size

320x320 mm

Module Resolution

16*16 pixels

Min.Viewing Distance

20m

Brightness

7000nits

Viewing Angle(degree)

≤140°

Average Power Consumption

180W/M2

Scan Mode

Static Scan

Protection Level

IP65/IP54

Cabinet Size(mm)

1280x1280 (Optional)

Color Temperature

The brightness of R.G.B. is adjustable according to software 100level; Color temperature is adjustable in terms of detailed requirements

Input Voltage

AC110-240V, 50Hz/60Hz

Refresh Rate

1920-3840hz

Color

65535 Levels

Horizontal/Vertical viewing angle

<140°

Gray Scale

16 bits

Effective Communication Distance(without relay)

Lifespan

≥100,000 hours

Environment Temperature

Storage: -40°C~+85°C  , Operation: -20 °C~+45°C

Blind Spot Rate

<0.0001(led display industry standard is less than 0.0003)

Control Mode

Video frequency synchronization

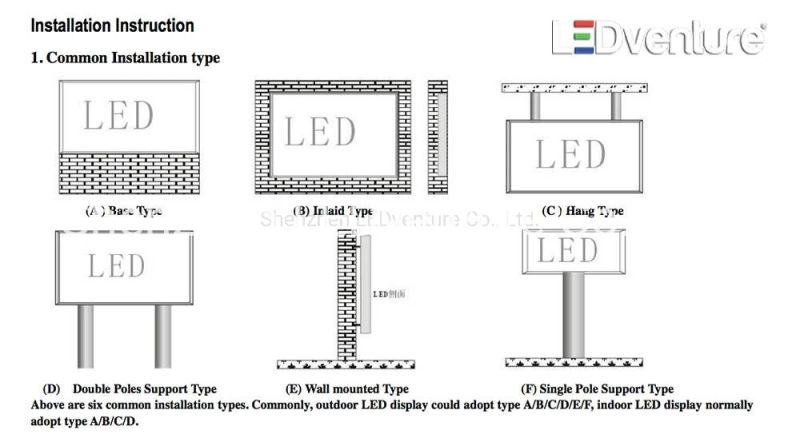

Part 5: Installation Methods

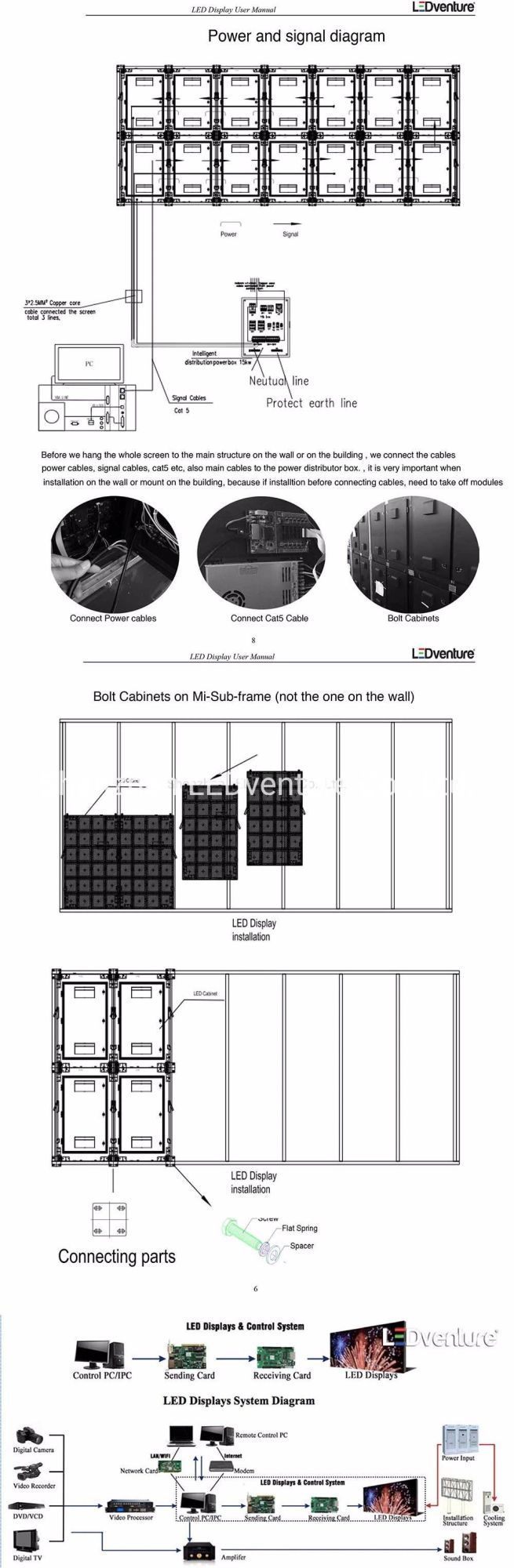

Outdoor front service back service LED Display screen fixed on the wall, on pillars, standing etc all available, and system hardware included sending cards sending box, processor, receiving cards etc.

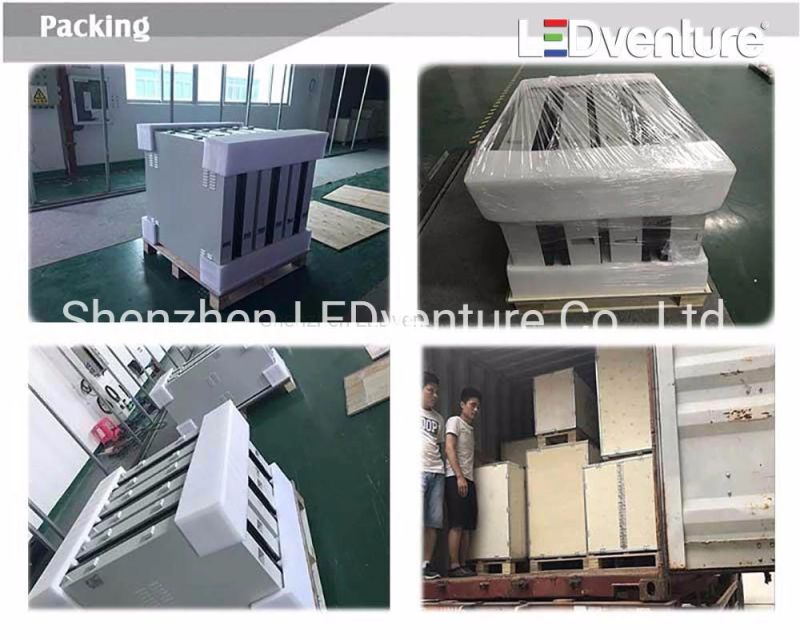

Part 6: Packing Information

Packing by plywood cases, packing well and easy to load

Part 7: Certificates.

ALL of our Product passed CE, EMC FCC, UL and other security tests, to ensure to meet most market laws and standard requires, and make sure the quality is top level and stable for many years use.

Part 8: About LEDventure.

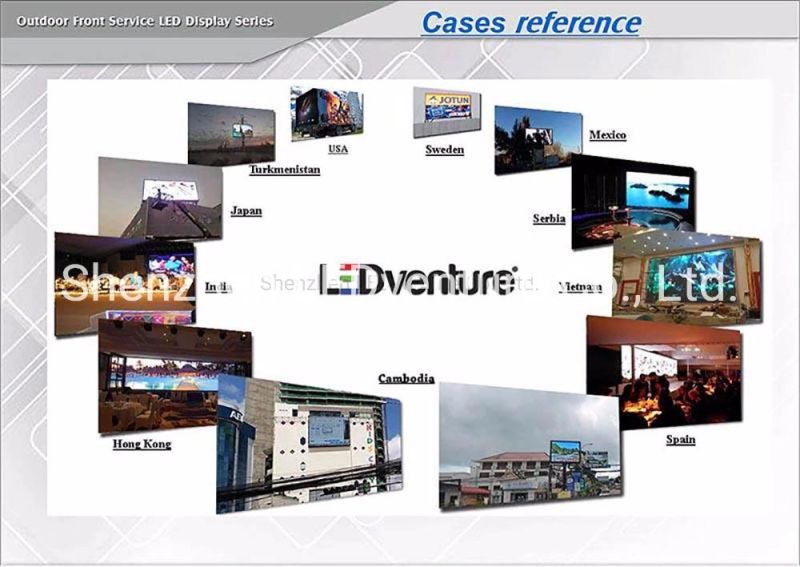

Part 9: LED Display Screen Installation Cases.

Most of our led display exported to Europe with high standards, and also exported to USA, South America and Asia
