Outdoor High Quality P3 LED Digital Advertising Display Board Panel Screen
Shenzhen LEDventure Co., Ltd.- Tube Chip Color：Full Color
- IP Rating：IP65
- Pixel Pitch：3mm
- Pixel Configuration：1R, 1G, 1B
- Display Function：Video Display, Image & Text Display, Text Display, Market Display
- Average Power Consumption：300W , m²
Base Info
- Model NO.：OF-P3
- Pixel Density：111111 Pixels,M2
- Scanning Mode：1,16 Scan
- Display Type：LED Video Display
- Application：Advertising
- Certification：CE, RoHS, UL, CCC, ETL
- Cabinet：Alu,Steel
- Weight：35kg,50kg
- Brightness：>6500nits
- Refresh Rate：>3840Hz
- Contrast Rate：3000:1
- LED Lamps：SMD 3 in 1
- Driver IC：Constent Current
- PSU：5V 60A
- System：Nova
- Voltage：AC110-240V
- Transport Package：Plywood Cases
- Specification：576x768mm
- Trademark：LEDventure
- Origin：China
- HS Code：8528591090
- Production Capacity：2000sqm,Month
Description
Detailed Photos
All of our Product materials we choose all top quality levels, including the SMD, IC components, also the PCB, screws, PSU brands etc, so that during the led screen using, it helps to cut down after sale serive costs, to make sure led display screen stable and less aftersale services.
Item
Pixel Pitch
3 mm
Pixel Density
111111 pixels/M2
Pixel Configuration
SMD 3 IN 1
Module Size
192x192 mm
Module Resolution
64*64 pixels
Min.Viewing Distance
3 meters
Brightness
>6500nits
Viewing Angle(degree)
≤140°
Average Power Consumption
300 W/M2
Scan Mode
1/16 Scan
Protection Level
IP65/IP54

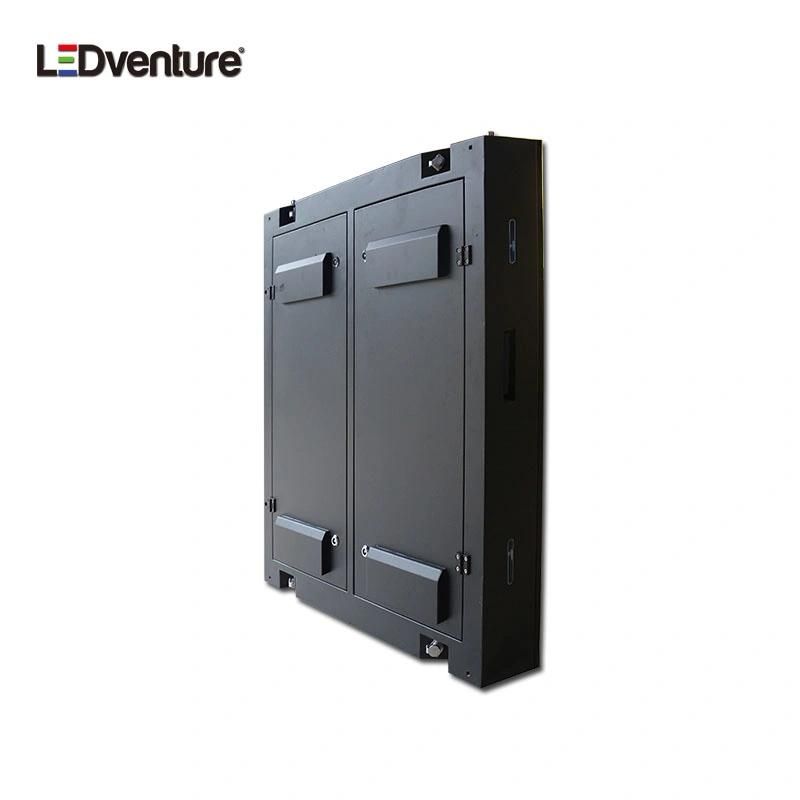

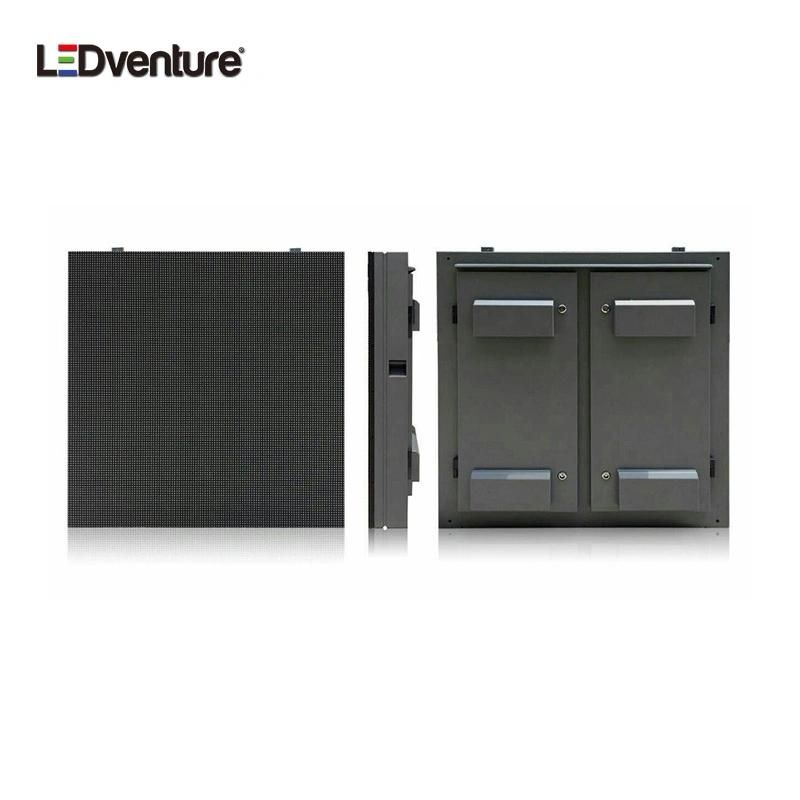

Cabinet Size
576x768mm
Color Temperature
The brightness of R.G.B. is adjustable according to software 100level; Color temperature is adjustable in terms of detailed requirements
Input Voltage
AC110-240V, 50HZ/60HZ
Refresh Rate
> 1920hz
Color
65535 Levels
Horizontal/Vertical Viewing Angle
<140°
Gray Scale
16 bits
Effective Communication Distance(without relay)
Lifespan
≥100,000 hours
Environment Temperature
Storage: -40°C~+85°C , Operation: -20 °C~+45°C
Blind Spot Rate
<0.0001(led display industry standard is less than 0.0003)
Control Mode
Video frequency synchronization
Installation Methods

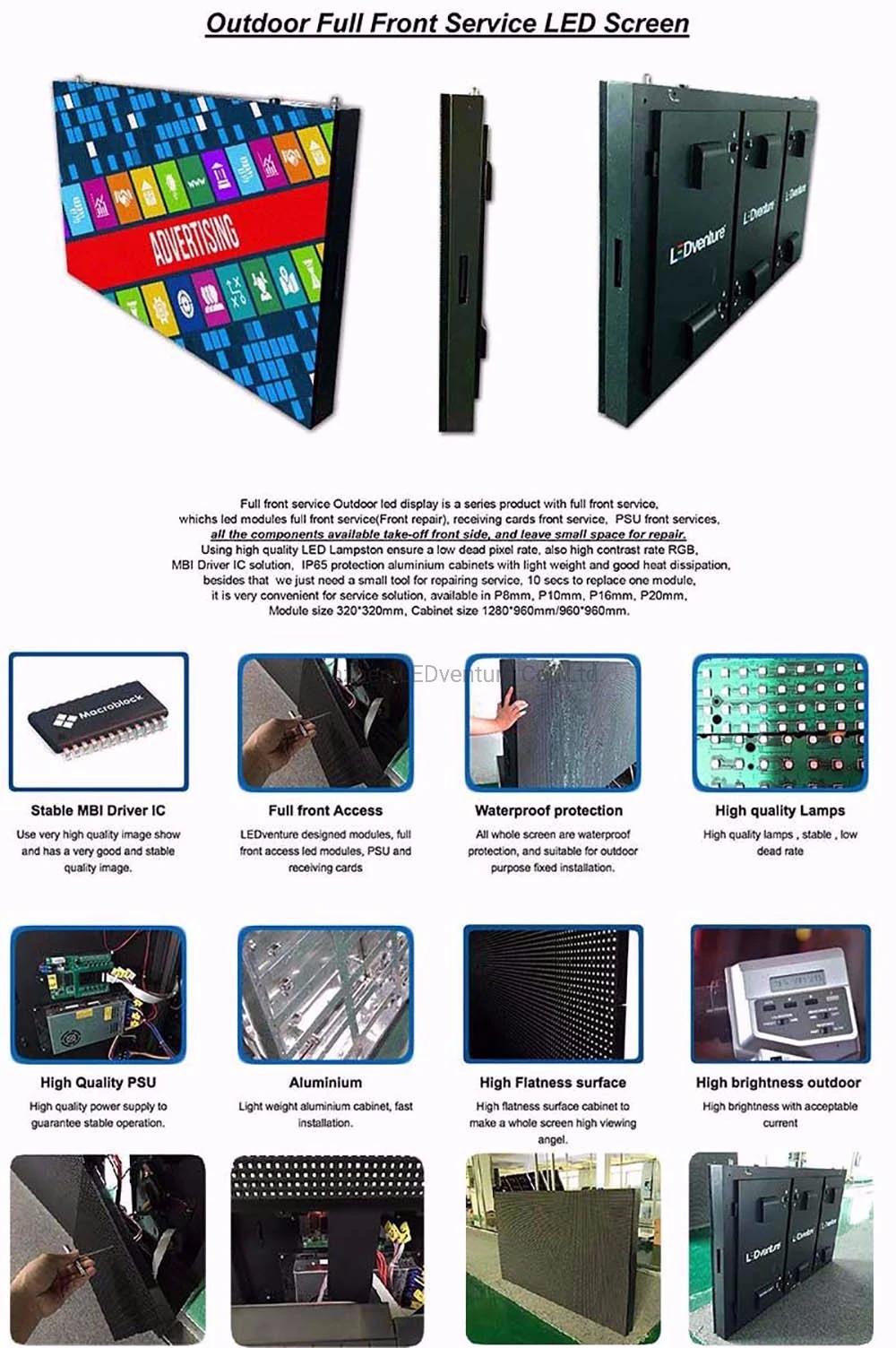

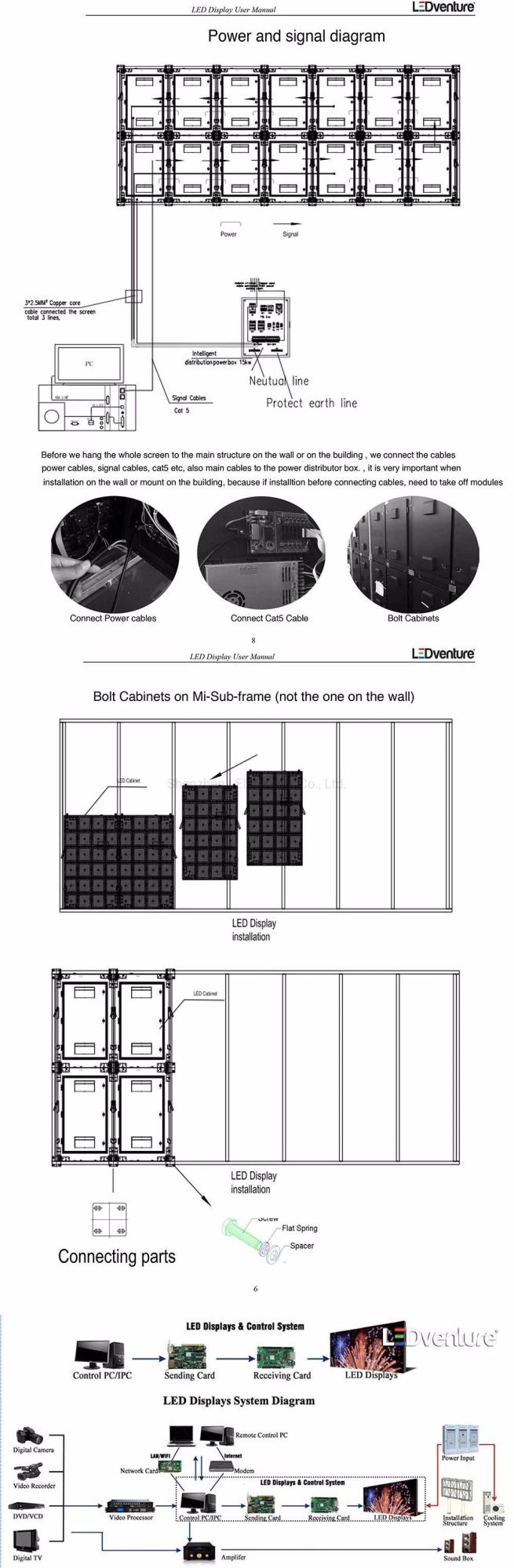

Outdoor front service back service LED Display screen fixed on the wall, on pillars, standing etc all available, and system hardware included sending cards sending box, processor, receiving cards etc.

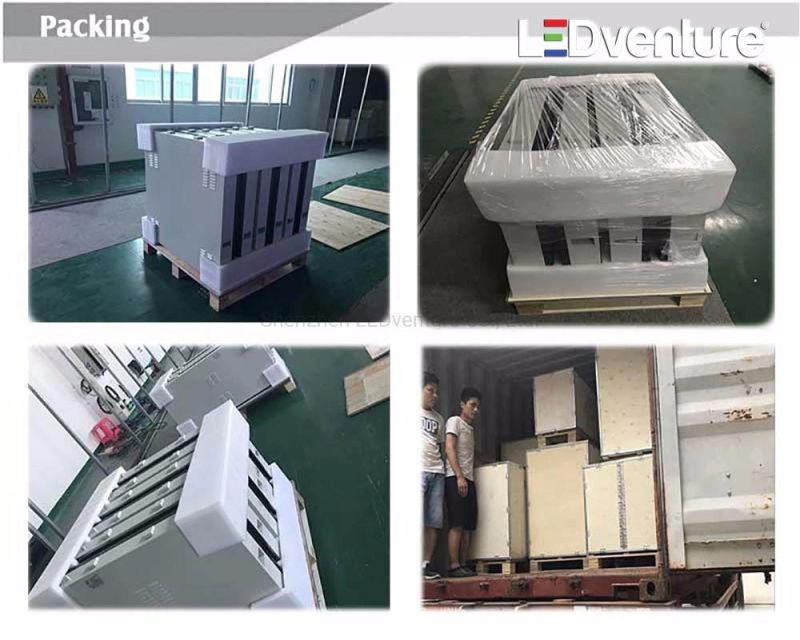

By plywood cases, packing well and easy to load.
ALL of our Product passed CE, EMC FCC, UL and other security tests, to ensure to meet most market laws and standard requires, and make sure the quality is top level and stable for many years use.
