1 Inch 16 Segment LED Display with Common Pin 6 with RoHS From Expert Manufacturer

Ningbo Lightkey Electronic Technology Co., Ltd.
  • Tube Chip Color:Single Color
  • Display Function:Numbers and Some Alphabets
  • Pixel Pitch:4mm
  • Pixel Configuration:7 Segments and Dp
  • Pixel Density:7 Segments,PC
  • Scanning Mode:Static Scan

Base Info

  • Model NO.:LD10017A,B
  • System Operating Platform:Win
  • Display Type:Segment LED Display
  • Application:Shopping Guide, Meters and Instruments
  • Certification:RoHS, Reach
  • Outline Dimensions:23.00X33.00X9.00mm
  • Digit Height:1 Inch(25.4mm)
  • Emitting Color:Single Color
  • Dp Number:1PC
  • Digit Number:1 Digit
  • Chip Matrial:4-Element
  • Transport Package:EPE Foam and Carton
  • Specification:RoHS, REACH
  • Trademark:LIGHTKEY
  • Origin:China
  • HS Code:8531200000
  • Production Capacity:1000000PCS,Year

Description

Overview Detailed PhotosProduct Name

Features

Package Dimensions

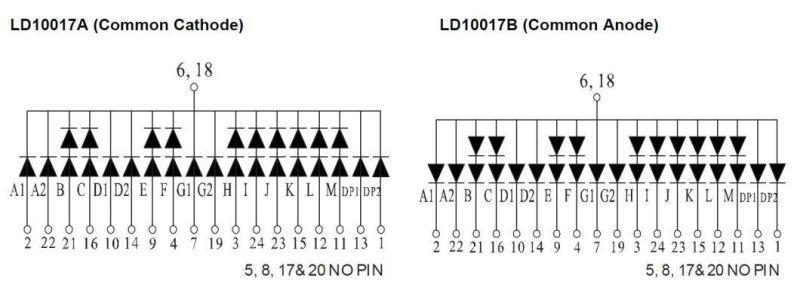

1 Inch 16 Segment LED Display with Common Pin 6 with RoHS From Expert Manufacturer1 Inch 16 Segment LED Display with Common Pin 6 with RoHS From Expert Manufacturer

Selection Guide



Single Digit 16 Segment LED Display, Digit Height:25.40mm(1.00 inch), External Dimensions: 23.00x33.00x9.00mm (L x W x H )Part No.ChipIV@IF=20mAIV@IF=20mACommon
CathodeCommon
AnodeMaterialColorWLDOne SegOne Seg A D G or DPMin.Typ.Min.Typ. LD10017AR LD10017BRGaAlAsSuper Red6401215810 LD10017AD LD10017BDGaAlAsHi-Red6402737.51825 LD10017AO LD10017BOGaAsPOrange62510.513.579 LD10017AY LD10017BYGaAsPYellow5881215810 LD10017AG LD10017BGGaPGreen56810.513.579 LD10017AUR LD10017BURAlGaInPUltra Red6404567.53045 LD10017AUO LD10017BUOAlGaInPUltra Orange62567.5904560 LD10017AUA LD10017BUAAlGaInPUltra Amber6054567.53045 LD10017AUY LD10017BUYAlGaInPUltra Yellow5954567.53045 LD10017AUG LD10017BUGAlGaInPUltra Green5734567.53045 LD10017APG LD10017BPGInGaNPure Green525180450120300 LD10017AUB LD10017BUBInGaNUltra Blue4704567.53045 LD10017AUW LD10017BUWSMDUltra White150180100120Unit:nmmcdmcdmcdmcdAvailable Options

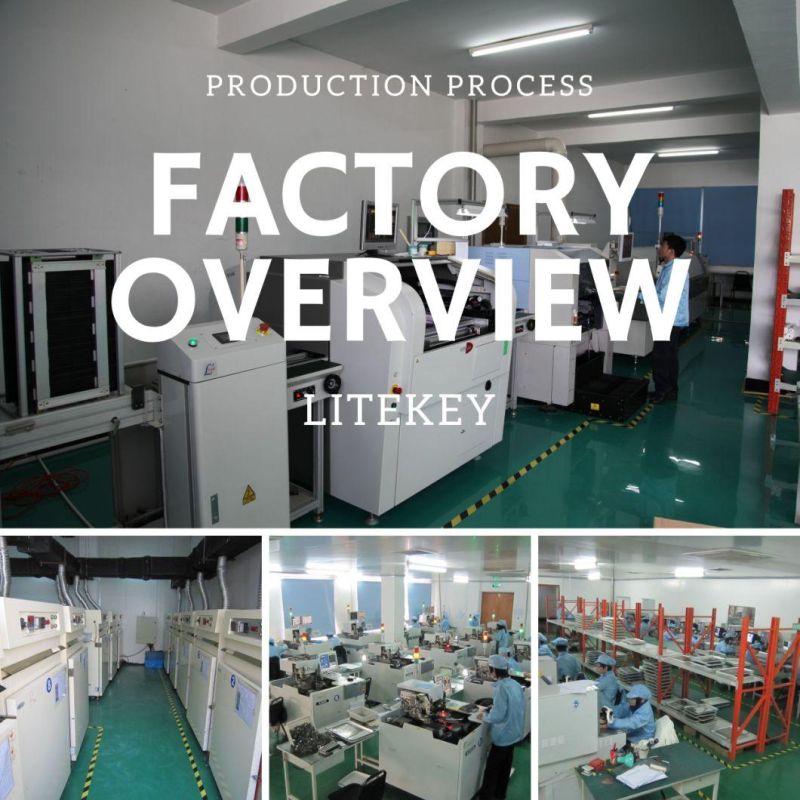

Factory Overview



1 Inch 16 Segment LED Display with Common Pin 6 with RoHS From Expert Manufacturer1 Inch 16 Segment LED Display with Common Pin 6 with RoHS From Expert Manufacturer




Our Services/Why choose Us

1. Professional service:  replied within 24 hours(at workdays).

2. Various ready moldings of lamp led are available: no need to afford extra fee for moldings.
3. We also can provide customized products, design according to your demand.

4. Reliable and stable quality: 100% testing for each piece. Automatic testing and bin code selection machine.
5. Experience: produce LED components for more than 14 years.
6. Advanced Equipment: ASM automatic production machines(biggest brand in LED automatic machines)
7. Concentration: We focus on LED research and development, production and sales.
