0.3 Inch Single Digit Diamond-Cut 7 Segment LED Display with RoHS From Expert Manufacturer
Ningbo Lightkey Electronic Technology Co., Ltd.- Tube Chip Color：Single Color
- Display Function：Numbers and Some Alphabets
- Pixel Pitch：1-10mm
- Pixel Configuration：7 Segments and Dp
- Pixel Density：7 Segments,PC
- Scanning Mode：Static Scan
Base Info
- Model NO.：LD3014A,B
- System Operating Platform：Win
- Display Type：Segment LED Display
- Application：Shopping Guide, Meters and Instruments
- IP Rating：IP0
- Certification：RoHS, Reach
- Outline Dimensions：7.60X12.70X7.00mm
- Digit Height：0.3 Inch(7.62mm)
- Emitting Color：Single Color
- Dp Number：1PC
- Digit Number：1 Digit
- Chip Matrial：4-Element
- Transport Package：EPE Foam and Carton
- Specification：RoHS, REACH
- Trademark：LIGHTKEY
- Origin：China
- HS Code：8531200000
- Production Capacity：1000000PCS,Year
Description
Overview
Product NameSingle Digit 7 Segment LED Display, Digit Height: 7.8mm(0.30inch), External Dimensions: 7.60x12.70x7.00mm (L x W x H) Part No. Chip Iv@IF=20mA Iv@IF=20mA Common
Cathode Common
Anode Material Color WLD One Seg One DP Min. Typ. Min. Typ. LD3014AR LD3014BR GaAlAs Super Red 640 8 10 8 10 LD3014AD LD3014BD GaAlAs Hi-Red 640 18 25 18 25 LD3014AO LD3014BO GaAsP Orange 625 7 9 7 9 LD3014AY LD3014BY GaAsP Yellow 588 8 10 8 10 LD3014AG LD3014BG GaP Green 568 7 9 7 9 LD3014AUR LD3014BUR AlGaInP Ultra Red 640 30 45 30 45 LD3014AUO LD3014BUO AlGaInP Ultra Orange 625 45 60 45 60 LD3014AUA LD3014BUA AlGaInP Ultra Amber 605 30 45 30 45 LD3014AUY LD3014BUY AlGaInP Ultra Yellow 595 30 45 30 45 LD3014AUG LD3014BUG AlGaInP Ultra Green 573 30 45 30 45 LD3014APG LD3014BPG InGaN Pure Green 525 120 300 120 300 LD3014AUB LD3014BUB InGaN Ultra Blue 470 30 45 30 45 LD3014AUW LD3014BUW InGaN Ultra White 100 120 100 120 Unit: nm mcd mcd mcd mcd

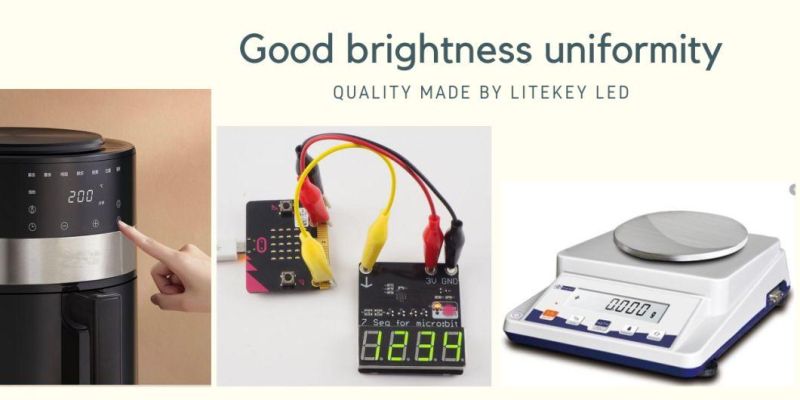

Application
Our Services/Why choose Us
1. Professional service: replied within 24 hours(at workdays).
2. Various ready moldings of lamp led are available: no need to afford extra fee for moldings.
3. We also can provide customized products, design according to your demand.

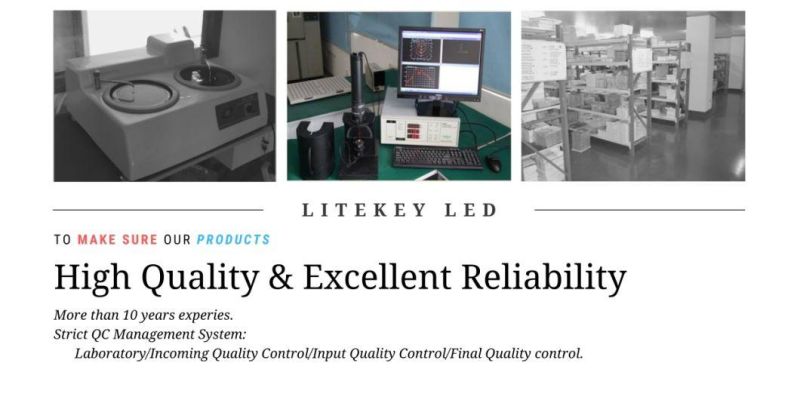

4. Reliable and stable quality: 100% testing for each piece. Automatic testing and bin code selection machine.
5. Experience: produce LED components for more than 14 years.

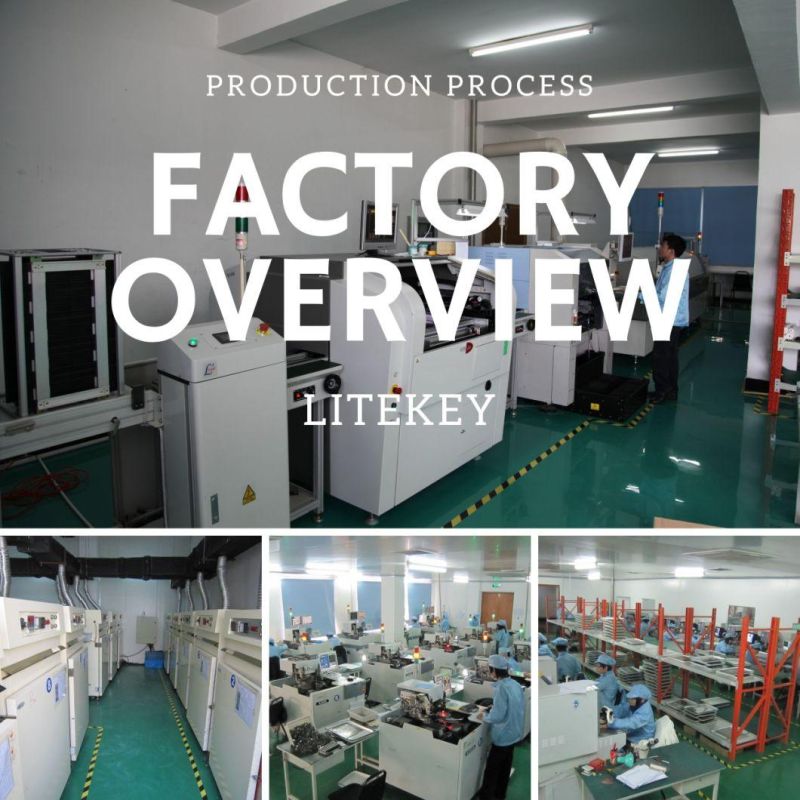

6. Advanced Equipment: ASM automatic production machines(biggest brand in LED automatic machines)
7. Concentration: We focus on LED research and development, production and sales.

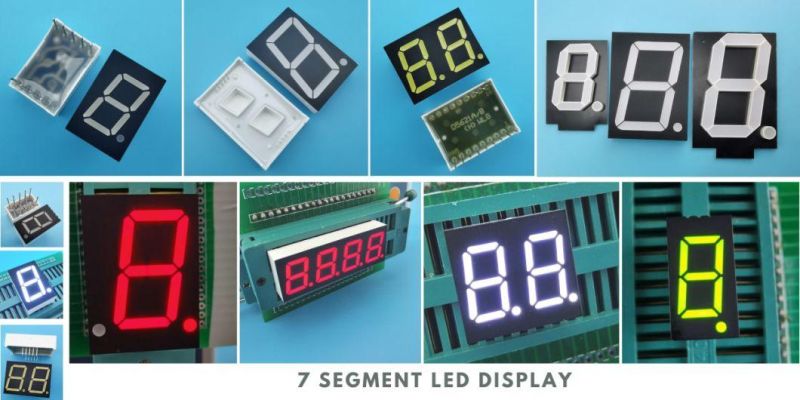

Detailed PhotosFeatures

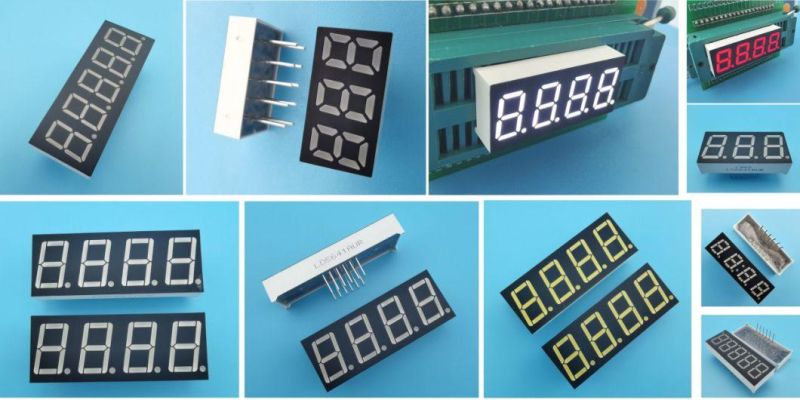

Available Options
Selection Guide
Cathode
Anode
Application
