• Model NO.：P2
• System Operating Platform：Windows
• Display Type：LED Video Display
• Application：Stage Performance, Advertising, Shopping Guide
• IP Rating：IP31
• Certification：CE, RoHS, UL, CCC, ETL
• Brightness：1000nits
• LED Lamps：Epistar
• Driver IC：Constent Current
• PSU：MW
• Cabinet：Alu
• Refresh Rate：>1920Hz
• Contrast Rate：3000:1
• System：Nova
• Voltage：AC110-240V
• IP Rate：IP31
• Viewing Distance：3meters
• Service Solution：Front Service
• Weight：35kg,PCS
• Installation：Standing
• Software OS：Windows
• Transport Package：Plywood Cases
• Specification：640x1920mm
• Trademark：LEDventure
• Origin：China
• HS Code：852859109
• Production Capacity：2000sqm,Month

Item

Factory Price Indoor full color LED display screen Poster for media advertising

Model Number

P2 P2.5mm

Pixel Pitch

2mm 2.5mm

Pixel Density(pixels/M2)

160000-250000 pixels

Pixel Configuration

1G1B1B

LED Type

Epistar, SMD

Module size(mm)

160x160mm

Module Resolution(pixels)

64*64 pixels (P2.5)

Min.Viewing Distance(m)

2.5-3meters

Brightness(nits)

100

Viewing Angle(degree)

≤140°

Average Power Consumption(W/M2)

400

Scan Mode

Constant current

Protection Level

IP31

Cabinet Size(mm)

480x1920mm, 640x1920mm



Color Temperature

The brightness of R.G.B. is adjustable according to software 100level; Color temperature is adjustable in terms of detailed requirements

Input Voltage

AC110-240V, 50HZ|60hz

Refresh Rate

> 1920hz

Color

65535 Levels

Horizontal/Vertical viewing angle

<140°

Gray Scale

16 bits

Effective Communication Distance(without relay)

<100 meters

Lifespan

≥100,000 hours

Environment Temperature

Storage: -40°C~+85°C  , Operation: -20 °C~+45°C

Blind Spot Rate

<0.0001(led display industry standard is less than 0.0003)

Control Mode

Video frequency synchronization

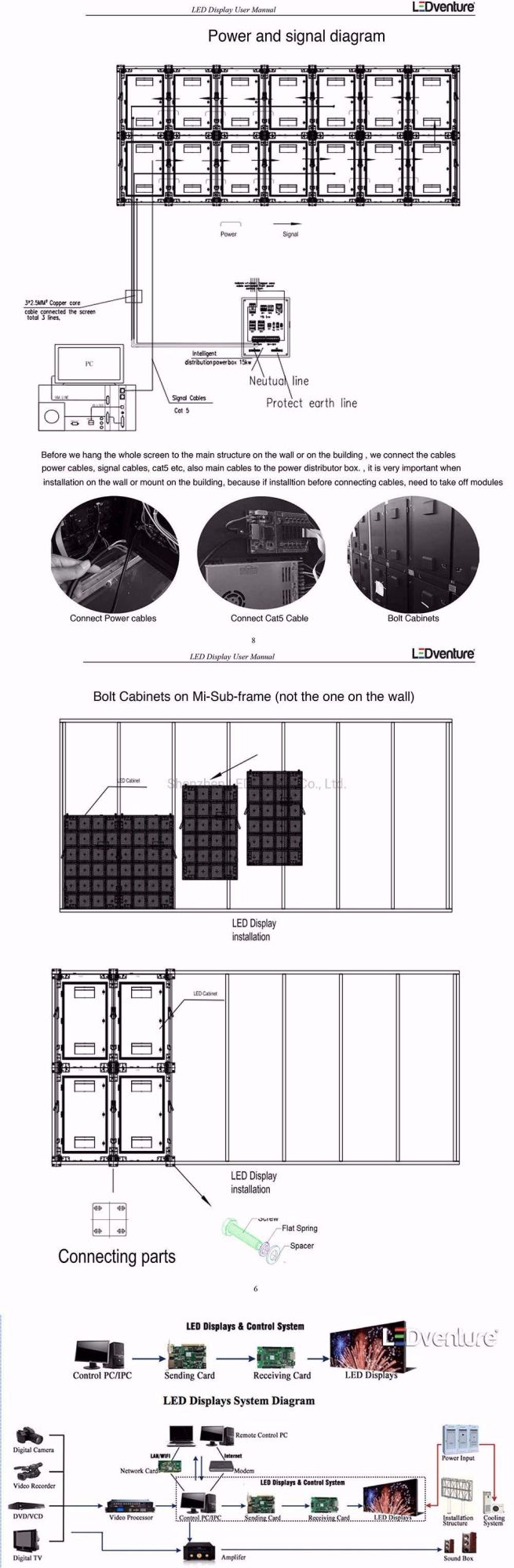

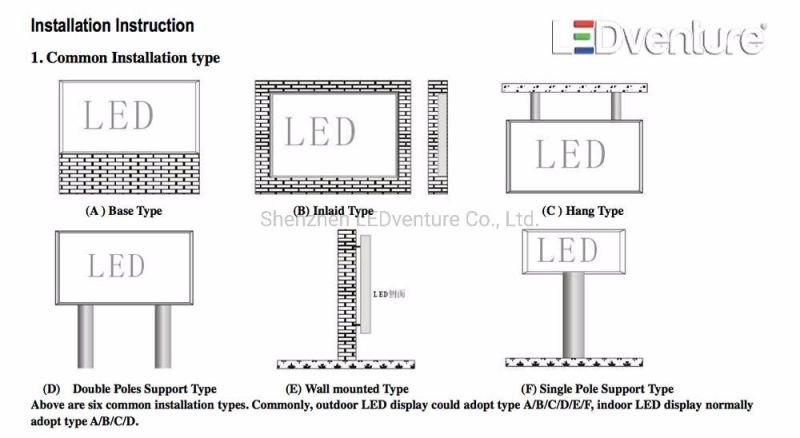

Part 5: Installation methods, indoor led video wall available fixed on the wall, on pillars, standing etc all available, and system hardware included sending cards sending box, processor, receiving cards etc.





Part6: Packing information by plywood cases, packing well and easy to load,


Part7: Certificates.

ALL of our Product passed CE, EMC FCC, UL and other security tests, to ensure to meet most market laws and standard requires, and make sure the quality is top level and stable for many years use.

Part8: About LEDventure.



Part9 : LED display screen installation cases.

Most of our led display exported to Europe with high standards, and small percent to USA and Asia,




Address: LEDventure Buliding,Lebao Industrial Park,Fengxin RD,Guangming New District,Shenzhen,China.
