• Model NO.：P5
• Pixel Density：35840 DOT ,M2
• Scanning Mode：1,2 Scan
• Display Type：LED Video Display
• Application：Advertising
• Certification：CE, RoHS, UL, CCC, ETL
• Brightness：>6000nits
• LED Lamps：Epistar
• Driver IC：Mbi
• PSU：MW
• Cabinet：Aluminium
• Refresh Rate：>1920Hz
• Contrast Rate：3000:1
• System：Nova
• Voltage：AC110-240V
• IP Rate：IP65
• Transport Package：Plywood Cases
• Specification：800x1120mm
• Trademark：LEDventure
• Origin：China
• HS Code：852859109
• Production Capacity：2000sqm,Month

Item

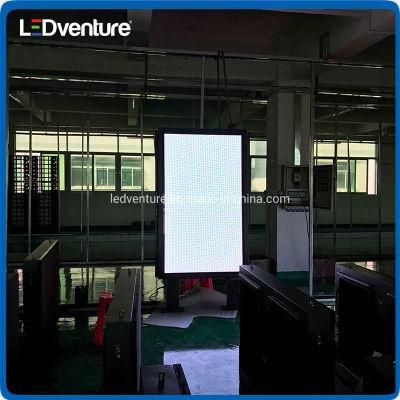

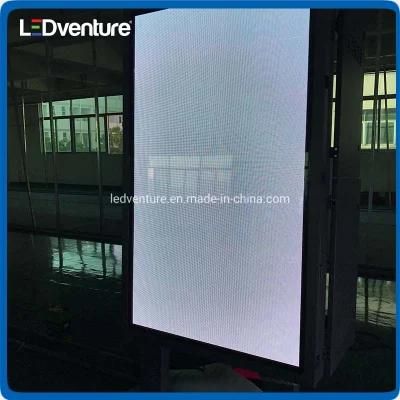

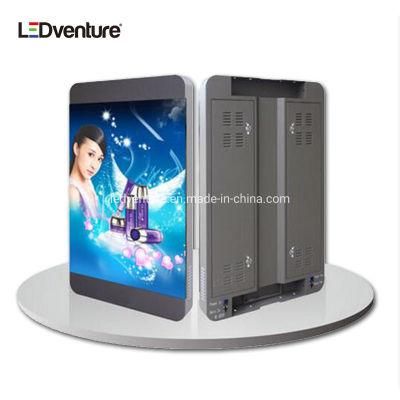

Outdoor LED Light Box Pole Display Screen

Model Number

P5 to P6

Pixel Pitch

5mm-6mm

Pixel Density(pixels/M2)

24576 - 35840pixels

Pixel Configuration

SMD 3 IN 1

LED Type

NS, SMD

Module size(mm)

160x160mm 192x192mm (options)

Module Resolution(pixels)

48*24 40*20(otions)

Min.Viewing Distance(m)

5-6

Brightness(nits)

>1000

Viewing Angle(degree)

≤140°

Average Power Consumption(W/M2)

100

Scan Mode

Constant current

Protection Level

IP65/IP54

Cabinet Size(mm)

800x1120mm 768x1152mm

Color Temperature

The brightness of R.G.B. is adjustable according to software 100level; Color temperature is adjustable in terms of detailed requirements

Input Voltage

AC110-240V, 50HZ|60hz

Refresh Rate

> 1920hz

Color

65535 Levels

Horizontal/Vertical viewing angle

<140°

Gray Scale

16 bits

Effective Communication Distance(without relay)

Lifespan

≥100,000 hours

Environment Temperature

Storage: -40°C~+85°C  , Operation: -20 °C~+45°C

Blind Spot Rate

<0.0001(led display industry standard is less than 0.0003)

Control Mode

Video frequency synchronization

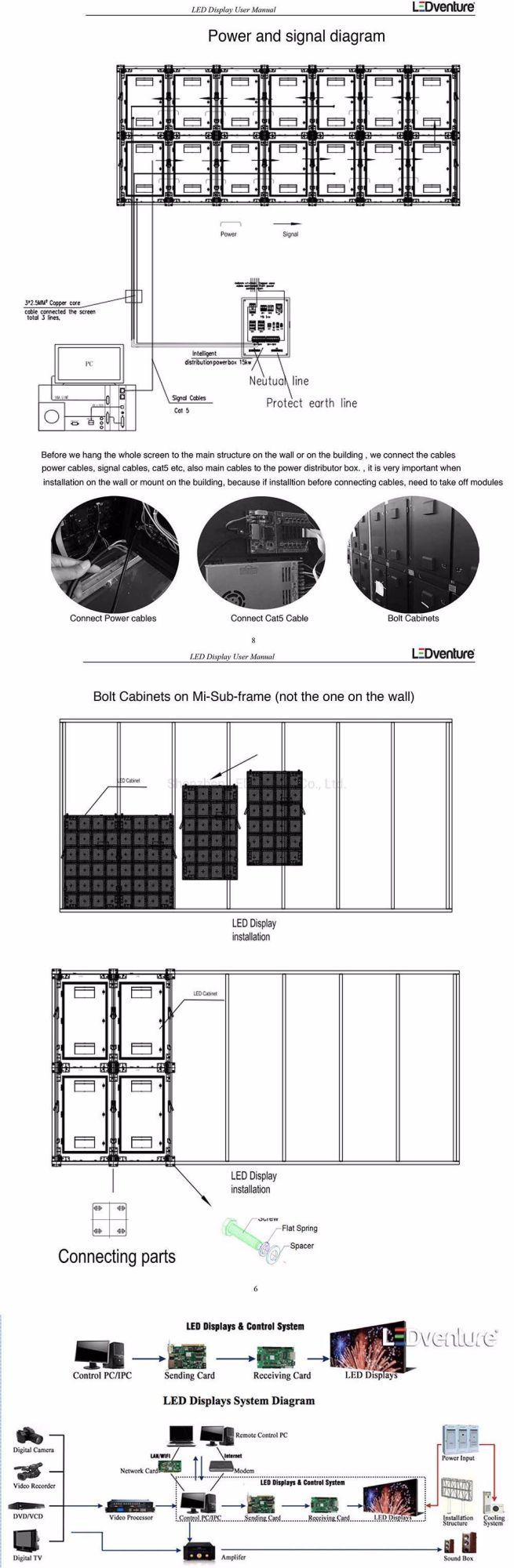

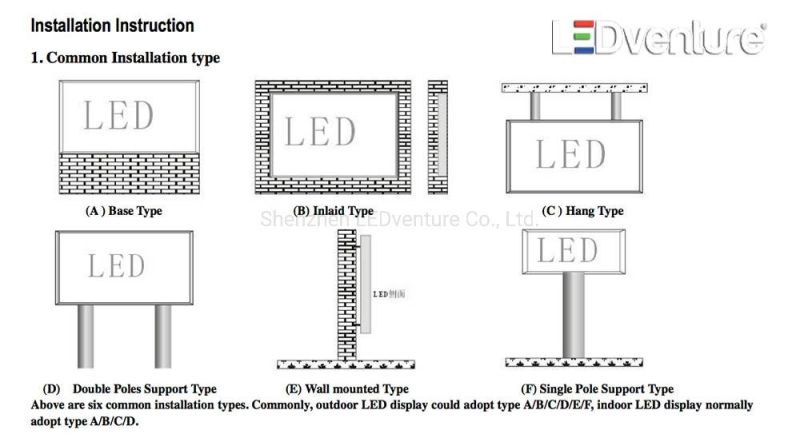

Part 5: Installation methods, outdoor front service back service LED Display screen fixed on the wall, on pillars, standing etc all available, and system hardware included sending cards sending box, processor, receiving cards etc.

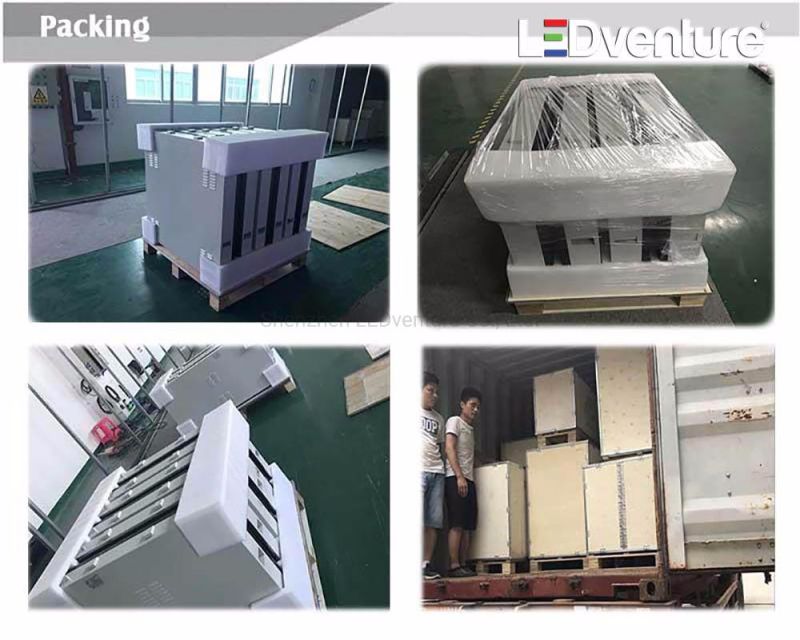

Part6: Packing information by plywood cases, packing well and easy to load,


Part7: Certificates.

ALL of our Product passed CE, EMC FCC, UL and other security tests, to ensure to meet most market laws and standard requires, and make sure the quality is top level and stable for many years use.

Part8: About LEDventure.

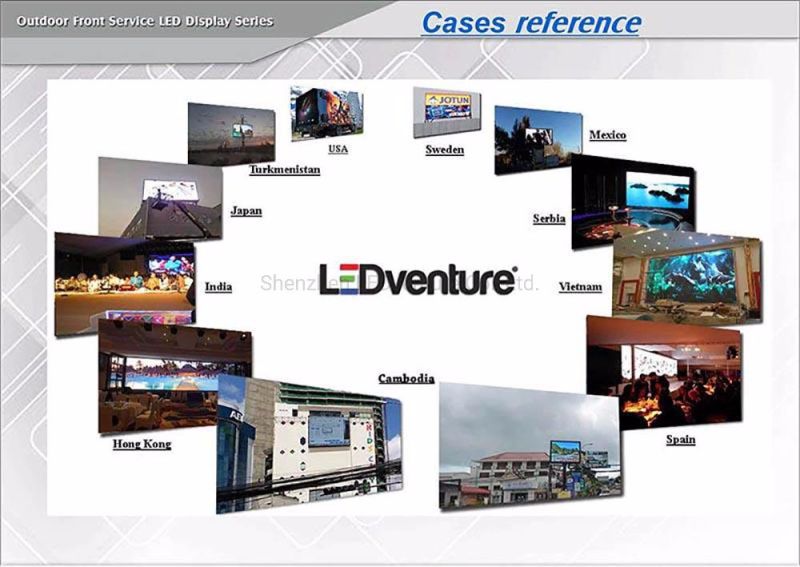

Part9 : LED display screen installation cases.

Most of our led display exported to Europe with high standards, and small percent to USA and Asia,




Address: LEDventure Buliding,Lebao Industrial Park,Fengxin RD,Guangming New District,Shenzhen,China.
Tel/Fax:+86-755-23353959
