Slim Aluminum Indoor P3.91 Full Color LED Display Screen (500X500mm)
PRT Optoelectronic Co., Ltd.- Tube Chip Color：Full Color
- Display Function：Video Display
- Pixel Pitch：3.91mm
- Pixel Configuration：1R,1G,1B
- Pixel Density：65746dots,Sq.M
- Scanning Mode：1,16 Scan
Base Info
- Model NO.：P3.91
- System Operating Platform：Win XP,Win 2000,98,Nt
- Display Type：LED Video Display

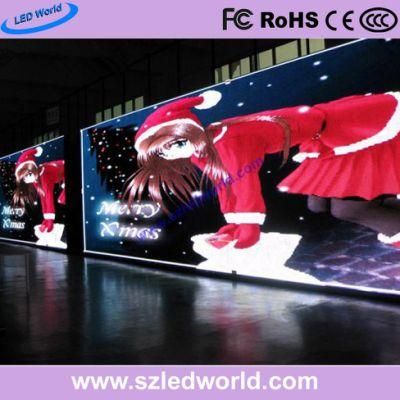

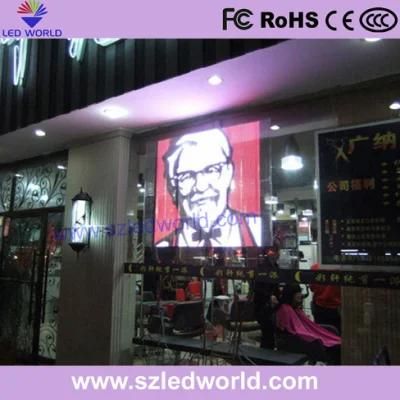

- Application：Stage Performance, Advertising, Shopping Guide
- IP Rating：IP31
- Certification：CE, RoHS, CCC, FCC
- LED Style：SMD2121 Black
- Module Size：250X250mm
- Module Resolution：64X64dots
- Cabinet Size：500X500mm
- Cabinet Material：Aluminum Profile
- Transport Package：Flight Case or Wooden Case
- Specification：CE, FCC, Rohs
- Trademark：PRT
- Origin：Shenzhen China
- HS Code：8528591090
- Production Capacity：3000sq. M,Month
Description
P3.91 SMD2121 Indoor full Color LED Screen SpecificationPixel pitch 3.91mm Pixel Configuration 1R1G1B LED component SMD2121 black Size of module 250mm x 250mm Resolution of module 64x64dots Size of cabinet 500x500mm/500mm x 1000mm x 75mm Resolution of cabinet 128x128/128x256 dots Material of Cabinet Die-casting Aluminum/Aluminum Weight of Cabinet 8kgs/14kgs Brightness >1600cd/sq.m Density 65746dots/sq.m Best viewing angle 140 /140 Pixel Configuration 1R1G1B Best viewing distance 3-50M Maximum power consumption 1200W/sq.m Average power consumption 640W/sq.m Driving method 1/16 scan Control method Synchronization Gray scale 65536 Colors 256*256*256 Color temperature 3200-9300k Uniformity 97% Working voltage AC220V/110V±10% Working temperature -20ºC~+50ºC±10% Working humidity 10% ~ 90% MTBF 10,000 hours Frame frequence 50/60Hz Refresh frequence >1920Hz IP grade IP31 Life Span 100,000 hours Data transafer method RJ45 Pratical standard CCC TUV-CE ETL etc. Effectivce Communication
Distance(without relay) Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
Single-mode optic fiber: 10KM Accepting signal with video processor PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc. Systems operating platform WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development
Distance(without relay)
Single-mode optic fiber: 10KM
