P10 Full Color Outdoor LED Open Sign (Double-Sided)

PRT Optoelectronic Co., Ltd.
  • Tube Chip Color：Full Color
  • IP Rating：IP65
  • Pixel Pitch：10mm
  • Pixel Configuration：1R, 1G, 1B
  • Display Function：Video Display
  • Average Power Consumption：300W , m²

Base Info

  • Model NO.：P10
  • Pixel Density：10000 dot , m²
  • Scanning Mode：1,4 Scan
  • Display Type：LED Video Display
  • Application：Advertising,Stage Performance,Rental
  • Certification：CE, RoHS, CCC, FCC
  • LED Encapsulation：DIP 346
  • Module Size：160X160mm
  • Module Resolution：16X16dots
  • Protection Grade：IP65
  • Transport Package：Wooden Case or as Required
  • Specification：CE, FCC. ROHS, 3C
  • Trademark：PRT
  • Origin：Shenzhen China
  • HS Code：8528591090
  • Production Capacity：3000sq. M,Month

Description

P10 Outdoor full Color LED Screen SpecificationPixel pitch10mmPixel Configuration1R1G1BLED componentDIP346(Epistar)Size of module160mm x 160mmResolution of module16x16Size of cabinet1600mmx 800mm x 250mm(customized sizes)Resolution of cabinet160x80dotsMaterial of CabinetIron with back doorsWeight of Cabinet<150KGSBrightness>7500cd/sq.mDensity10000dots/sq.mBest viewing angle110 /60Best viewing distance10-150MMaximum power consumption<800W/sq.mAverage power consumption<300W/sq.mDriving method1/4 scanControl methodSynchronizationGray scale65536Colors256*256*256Color temperature3200-9300kUniformity97%Working voltageAC220V/110V±10%Working temperature-20ºC~+50ºC±10%Working humidity10% ~ 90%MTBF10,000 hoursFrame frequence50/60HzRefresh frequence>1800HzIP gradeIP65Life Span100,000 hoursData transafer methodRJ45Pratical standardCCC  TUV-CE  ETL etc.Effectivce Communication
Distance(without relay)Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
Single-mode optic fiber: 10KMAccepting signal with video processorPAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc.Systems operating platformWINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development
also can produce with pixel pitch 3mm,4mm,5mm,6mm,8mm,6.67mm and 10mm with customized screen sizes.


Our service:

1. Guarantee
(1) We guarantee all our displays, modules, parts for two full years. During this time, we will replace or remand our goods for free if there is something problem with them.
(2) After two years we will provide maintenance for a lifetime and charge for the raw materials only.

2. Technology Training
(1) We provide the technology training for free, which contains the operation training and maintenance training in the factory.
(2) We will send our engineers to your country by negotiation if you need

3. Maintenance and Consultation
(1) We provide full maintenance for a lifetime and charge for the raw materials only.
(2) We also provide lifetime consultation by E-mail, call, skype,teamviewer or other ways for free.

4. Documents and Certification
(1) We provide the operation manual, software, test report and so on.

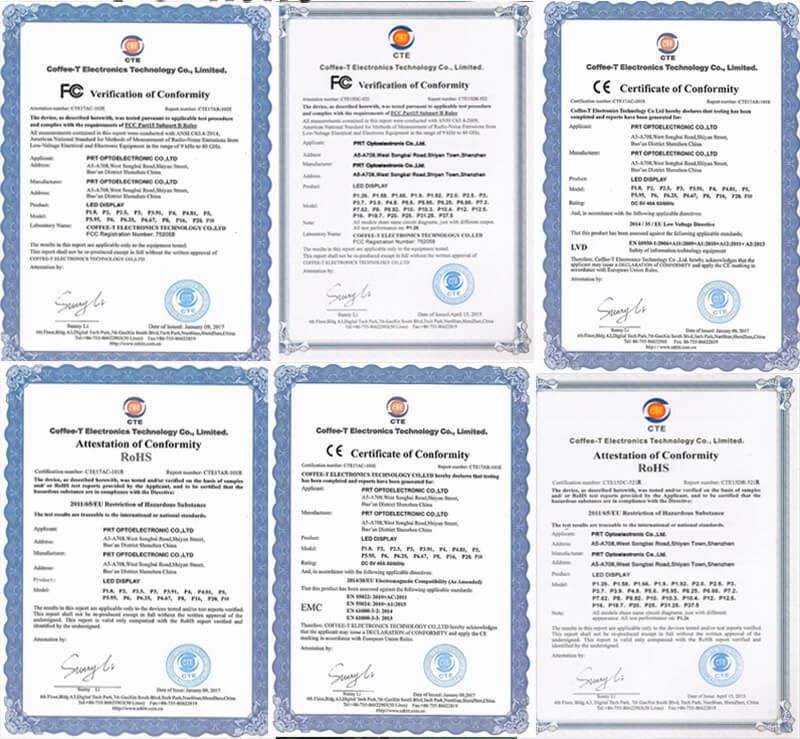

(2) We can also provide all kinds of certification such as CE,FCC,ROHS,UL and so on.

5. CAD Drawing and Fixing
(1) We provide CAD drawing on how to fix up the display for free and some other expert suggestion.
(2) We will send our engineers to your place if we are expected after our negotiation.

Our products meet the international standards to confirm the quality request

P10 Full Color Outdoor LED Open Sign (Double-Sided)

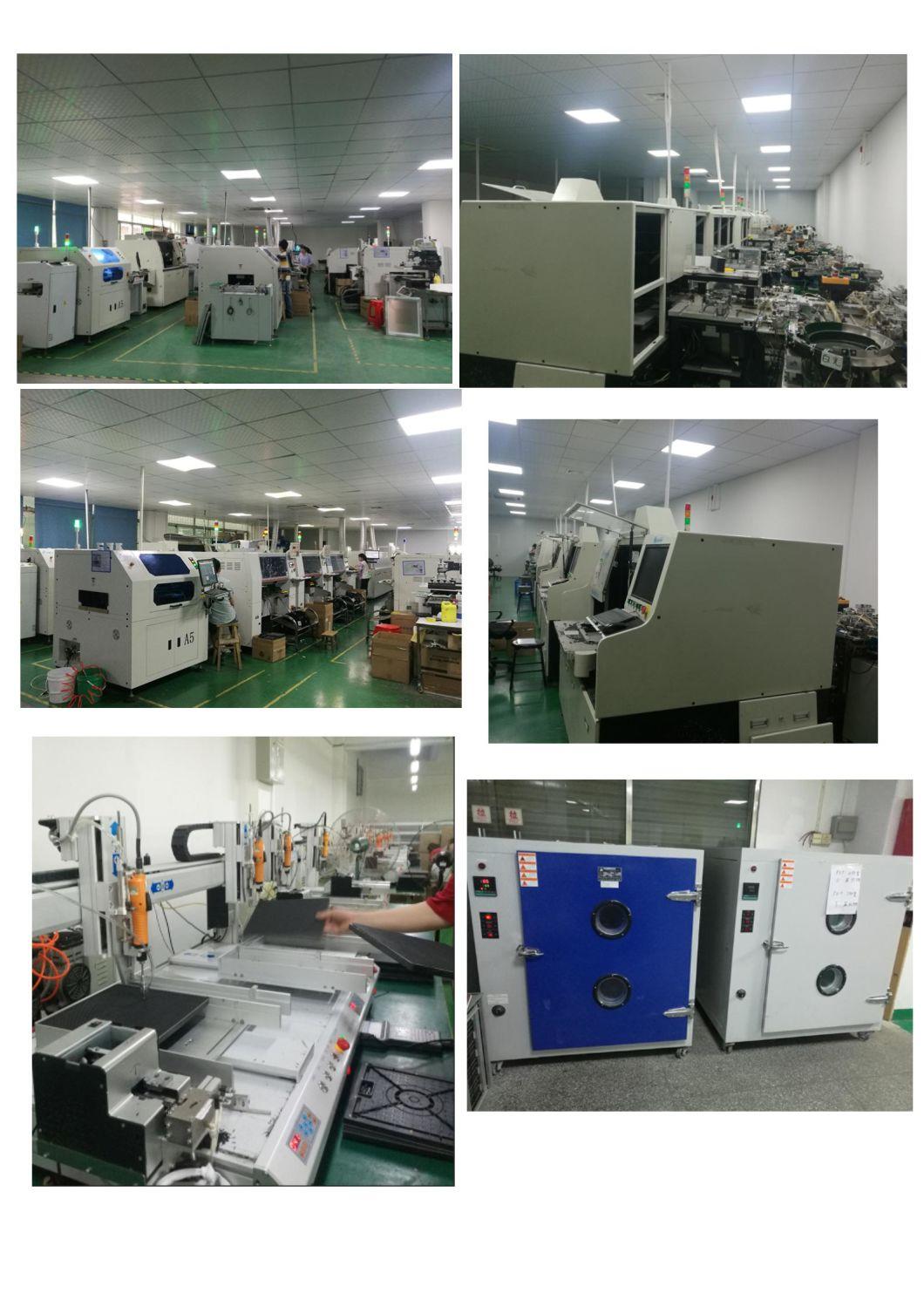

Our factroy :
P10 Full Color Outdoor LED Open Sign (Double-Sided)
P10 Full Color Outdoor LED Open Sign (Double-Sided)
P10 Full Color Outdoor LED Open Sign (Double-Sided)
