P10 Programmable RGB LED Module Outdoor LED Display Module
Quanzhou Jiacai Electronics Co., Ltd.- Tube Chip Color:Full Color
- IP Rating:IP65
- Pixel Pitch:10mm
- Pixel Configuration:1R, 1G, 1B
- Display Function:Video Display
- Average Power Consumption:350W , m²
Base Info
- Model NO.:P10 outdoor led display module
- Pixel Density:10000 dot , m²
- Scanning Mode:1,4 Scan
- Display Type:LED Video Display
- Application:Advertising
- Certification:CE, RoHS, UL, CCC
- Product Name:Programmable RGB LED Module
- Module Size:320mm*160mm
- Cabinet Size:960mm*960mm
- Brightness:6500-7000CD
- Drive IC:Mbi5124,5125
- Chip Brand:Epistar
- LED Encapsulation:Kinglight,Nationstar
- Panel Weight:0.45kgs
- LED Specification:3535
- Power Supply:220VAC,50Hz+_10%
- Refresh Rate:1920-3840Hz,S
- Control Card:Nova,Linsn,HD
- Working Temputure:-25 -- +55
- Life Spance:100000 Hours
- Brand Name:Jiacai
- Transport Package:Air Box & Carton Box & Wooden Box
- Specification:CE, FCC, RO-HS, SGS
- Trademark:JIACAI
- Origin:Quanzhou, Fujian, China
- HS Code:8528591090
- Production Capacity:6000spm,Month
Description
Technical parameter (outdoor led display panel)
P10 waterpoof led module
Dimension
(W)320mm*160mm(H)
Pixel pitch
10mm
Pixel Density
10000dots/ M2
Pixel configuration
1R1G1B
LED specification
SMD3535
Pixel resolution
(W)32 dots*16dots(H)
Average power
10W
Panel weight
0.455KG
Cabinet&Bracket
Cabinet size
960mm*960mm
Quantity of panel
19.531PCS/M2
Best viewing angle
H:>170 V:>120
Best viewing distance
10-100M
Working temperature
-25-- +55
Panel power supply
5V40A
Screen power supply
AC220V-AC250V
Max power
700W/M2
Average power
350W-500W/M2
Technical parameter
Driving device
5125
Drive type
1/4 Scanning
Refresh frequency
1920-3840HZ/S
Display color
4096*4096*4096
Brightness
6000-7000cd/ M2
Life span
100000Hours
Communication distance
100M
P10 programmable rgb led module outdoor led display module

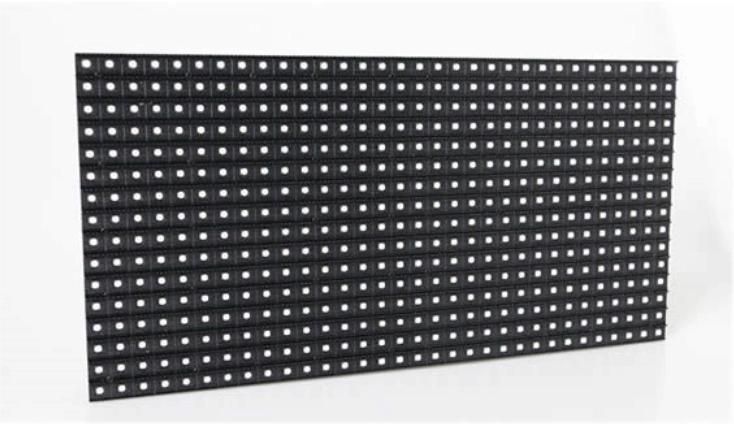

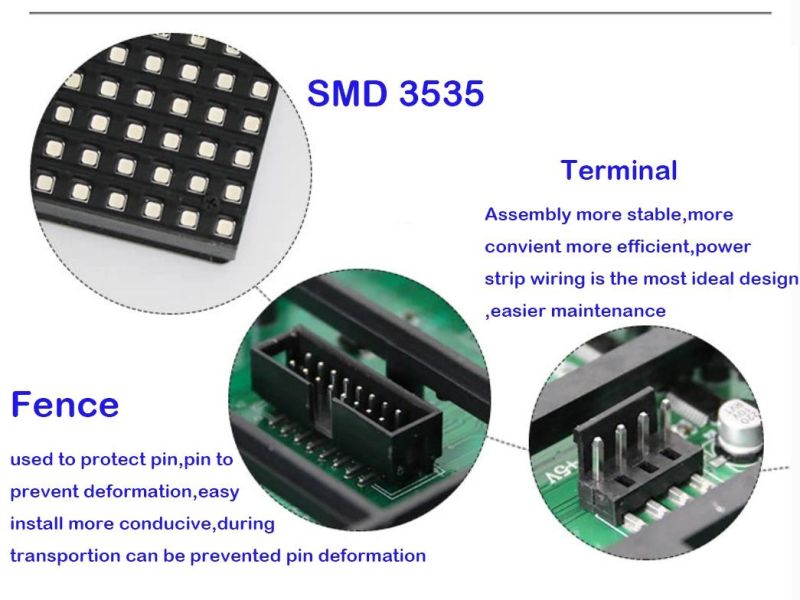

Product Detail:

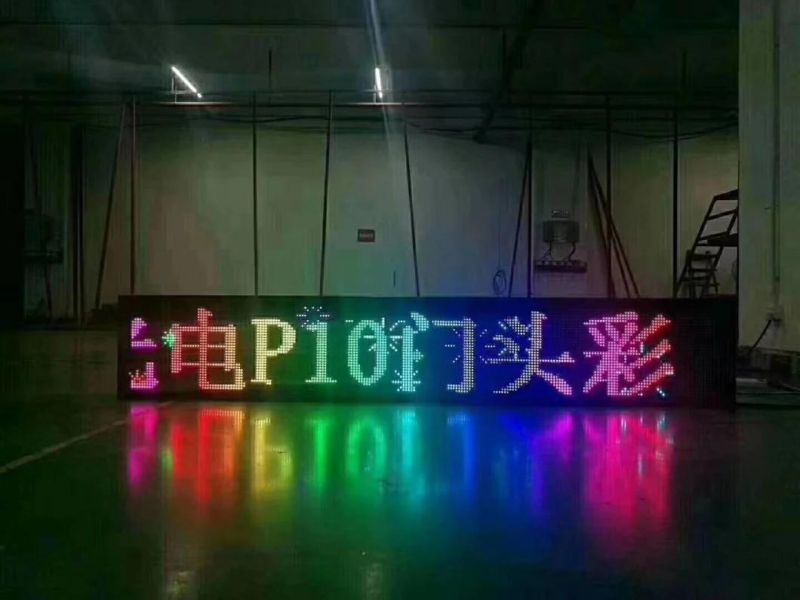

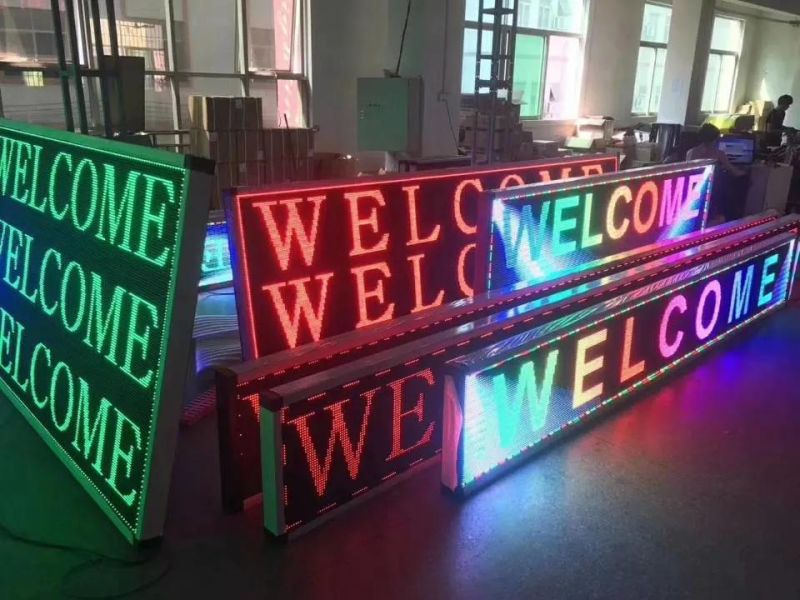

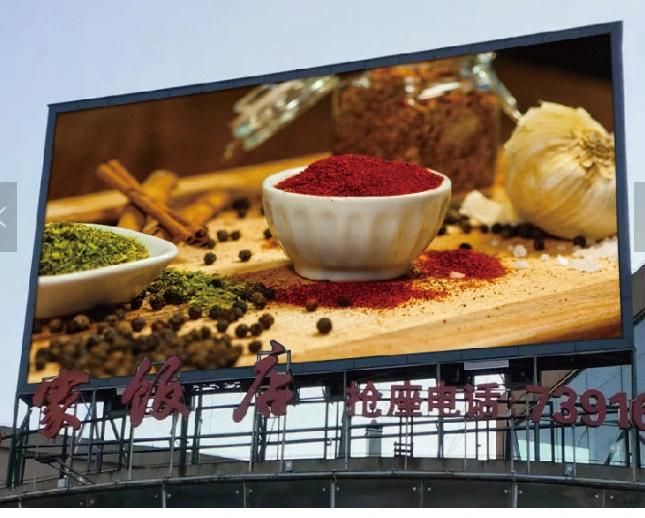

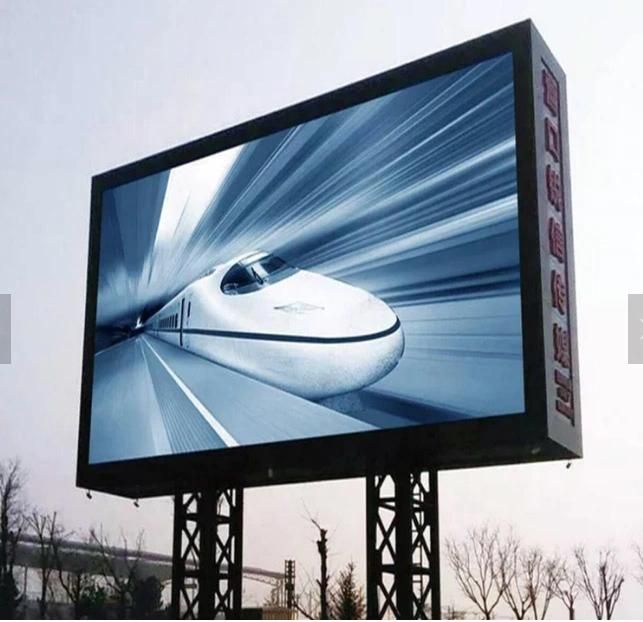

Outdoor led display module:

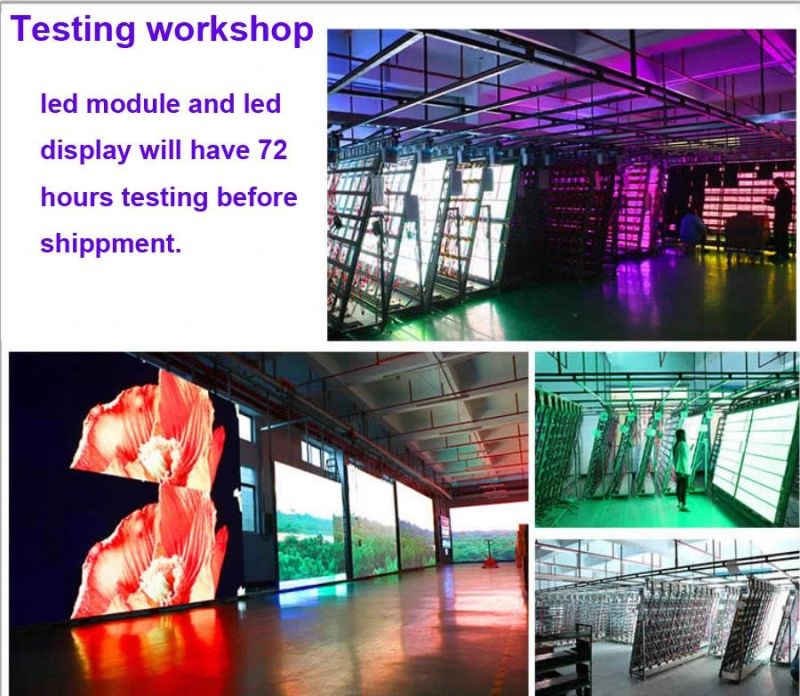

Company View:
Our Certificate:
Our service
1. Your inquiry related to our products or price will be replied in 24hrs2. OEM&ODM, any your customized lightings we can help you to design and put into product3. Distributorship are offered for your unique design and some our current models4. Protection of your sales area, ideas of design and all your private information5. Top quality+Reasonable price+Responsible After Service=Successful & Win6. Chipshow can offer you LED stage display, LED outdoor video wall, wedding LED display, stage LED electronic screen and led large screen full color display.
Trade Terms
1. Package:Carton box package2. Payment: T/T, 40% deposits before production, 60% balance to be paid before delivery3. Shipping freight are quoted under your requests4. Shipping port: Xiamen, China5. Warranty time: 2years6. Delivery time: 3-12 working days
