Outdoor P4 Full Color LED Sign Board with High Brightness
PRT Optoelectronic Co., Ltd.- Tube Chip Color：Full Color
- IP Rating：IP65
- Pixel Pitch：4mm
- Pixel Configuration：1R, 1G, 1B
- Display Function：Video Display
- Average Power Consumption：600W , m²
Base Info
- Model NO.：P4
- Pixel Density：62500dots,Sq.M
- Scanning Mode：1,8 Scan
- Display Type：LED Video Display
- Application：Advertising,Stage, Performance, Rental

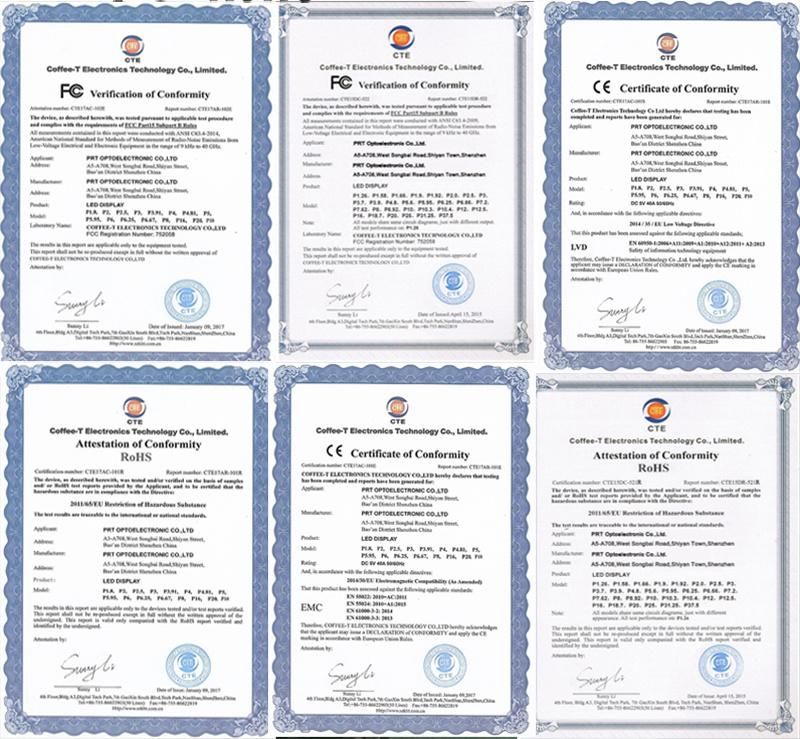

- Certification：CE, RoHS, CCC, FCC
- Cabinet Size：512X512mm,1024X1024mm
- Cabinet Material：Iron,Aluminum
- Module Size：256X128mm
- Module Resolution：64X32dots
- Transport Package：Flight Case or Wooden Case
- Specification：CE, FCC. ROHS, 3C
- Trademark：PRT
- Origin：Shenzhen
- HS Code：8528591090
- Production Capacity：3000sq. M,Month
Description
Pixel pitch4mm Pixel Configuration 1R1G1B LED component SMD1921 Size of module 256mm x 128mm Resolution of module 64x32dots Size of cabinet 512mm x 512mm / 1024mm x1024mm x 150mm Resolution of cabinet 128x128dots/128x192dots Material of Cabinet Iron or Aluminum Weight of Cabinet 15KGS Brightness >6000cd/sq.m Density 62500dots/sq.m Best viewing angle 140° /140° Pixel Configuration 1R1G1B Best viewing distance 3-50M Maximum power consumption 1000W/sq.m Average power consumption 600W/sq.m Driving method 1/8 scan Control method Synchronization Gray scale 65536 Colors 256*256*256 Color temperature 3200-9300k Uniformity 97% Working voltage AC220V/110V±10% Working temperature -20ºC~+50ºC±10% Working humidity 10% ~ 90% MTBF 10,000 hours Frame frequence 50/60Hz Refresh frequence >1920Hz IP grade IP65 Life Span 100,000 hours Data transafer method RJ45 Pratical standard CCC TUV-CE ETL etc. Effectivce Communication
Distance(without relay) Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
Single-mode optic fiber: 10KM Accepting signal with video processor PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc. Systems operating platform WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development
We provide two years warranty normally,also can three years according to customer's request,and keep after-sale service and free maintenance for lifetime,only ask for material costs,and our products produced based on international standards and got certifications,so we can ensure the high quality and long life span

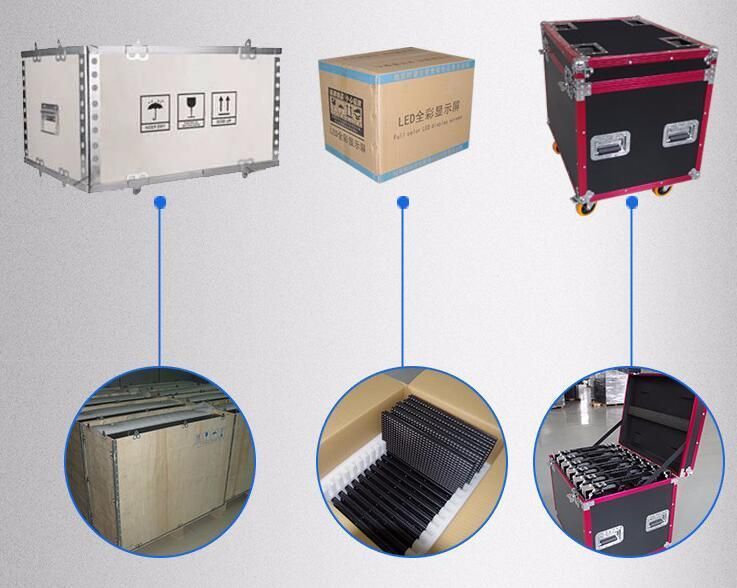

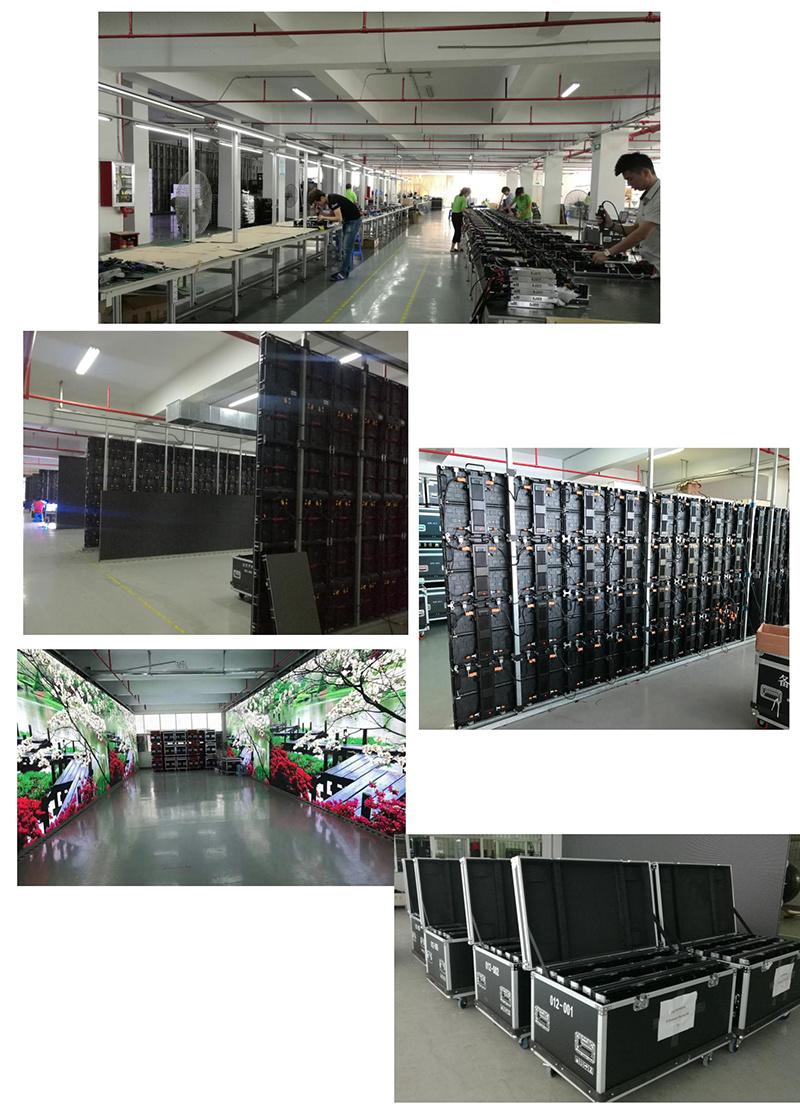

PRTLED control good quality at each process of production,and testing the finished screen for 72 hours at least to confirm everything is no problem before packing,wooden cases or flight cases ensure good protection buring transportation
Distance(without relay)
Single-mode optic fiber: 10KM
We provide two years warranty normally,also can three years according to customer's request,and keep after-sale service and free maintenance for lifetime,only ask for material costs,and our products produced based on international standards and got certifications,so we can ensure the high quality and long life span
PRTLED control good quality at each process of production,and testing the finished screen for 72 hours at least to confirm everything is no problem before packing,wooden cases or flight cases ensure good protection buring transportation
