• Model NO.：LW-FO 10
• Pixel Density：10000 dot , m²
• Scanning Mode：1,2 Scan
• Display Type：LED Video Display
• Application：Advertising
• Certification：CE, RoHS, UL, CCC, ETL
• Pixel Configuration：1r1g1b DIP346
• Module Size：320X160
• Cabinet Size：960X960X180
• Cabinet Weight：36kg
• Brightness：More Than 7500CD,M2
• Viewing Distance：>16m
• Viewing Angle：H: 110 V: 60
• Cabinet Material：Cold Rolled Steel or Aluminum
• Display Capability：Text, Graph and Video
• IP Rate：Front IP65
• Transport Package：Wooden,Case Carton Box or as Required
• Specification：CE UL Rohs etc
• Trademark：LED World, OEM, ODM
• Origin：Made in China
• HS Code：8528591090
• Production Capacity：10000sqm Per Moth

1ItemsParameter 2NO.:LW-FO103Pixel Pitch(mm)10mm4Pixel configuration1R1G1B/SMD35355Pixel density10000dots/sqm6Brightness ≥7500cd/sqm7Module size(W*H)320mm×160mm8Module Resolution (W*H)32 dots x 16dots9Module weight700g10Cabinet size (W*H)960mm×960mm11Drive ICMBI512412Drive mode1/2scan13Viewing Angle(V/H)140ºC14Grey Scale65536 degree15Life time>100,000 Hours (80%)17MTBF>50,000 Hours18Operating VoltageAC110V/220V±10%19Screen Power ConsumptionMax: 10000w/sqm; Average:330w/sqm20Input Power Frequency50/60Hz21Operating temperature -30--60ºC22Humidity10%-95%23Refresh Rate≥1600HZ24Control MethodSynchronized with computer monitor25Color Temperature6500K-9500K26LED control systemLINSN,Nova-star,Colorlight is selectable27Control Distance100 m (no repeating); Optical fiber transmission: 500m- 15km28Accepting signal with video processorPAL/NTSC/SECAM,S-Video;VGA;RGB;Composite Video;SDI29Systems Operating PlatformWindows Xp / Windows 7 / windows 8 /8.1 / windows 10Applications:Business Organizationssuper market, shopping mall, office building, industrial park, exclusive agency, chain shop, hotel, restaurant, travel agency, pharmacy, etc.Financial Organizationsbanks, security company, insurance company, post office, hospital, school, etc.Public Placessubway, airport, train/bus station, gas station, toll station, bookstore, park, exhibition hall, stadium, museum, convention center, ticket center, HR market, lottery center, plaza, commercial building, parking lot, etc.Entertainmentsmovie theater, fitness hall, country club, night club, massage room, bar, cafe, Internet bar, beauty shop, golf course, casino, etc.Packaging & Shipping
Standard Package: Veneer Case(Usually 4 cabinets in 1 veneer case)
Delivery time: 10-25 days after receiving the deposit
After sales maintenance
1.Receive the cargo
Make sure the cargo in sealing condition and the cargo storage temperature
between - 30oC  and 60oC when you receive the goods from the customs
2. Install and use the product
Please adopt preheating model to light it up and keep 30% brightness for 0.5-2 hours when you use it . Keep it work 8 hours or above continually per day will be
 better. It will be better to use it at least once a week.
3. Cleaning
Ensure to use soft brush to clean the display surface and PROHIBIT any liquid
when doing cleaning.

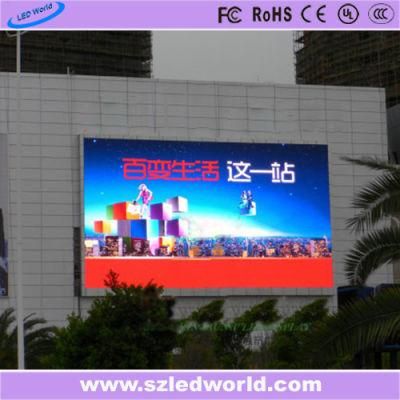

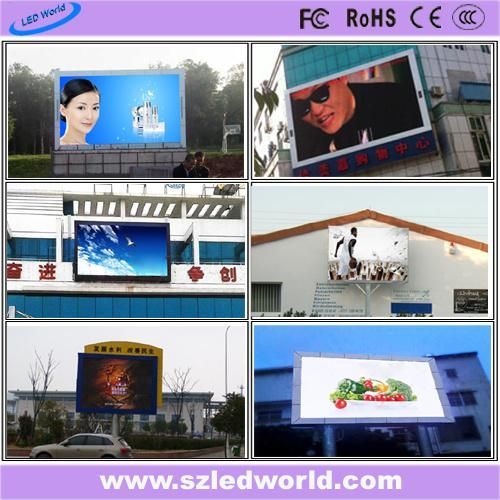

Project case:

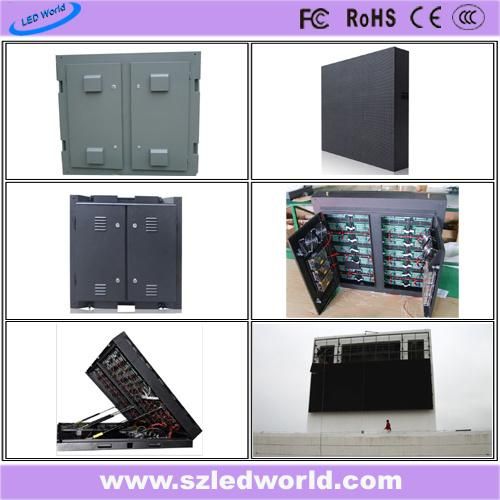

product detail:

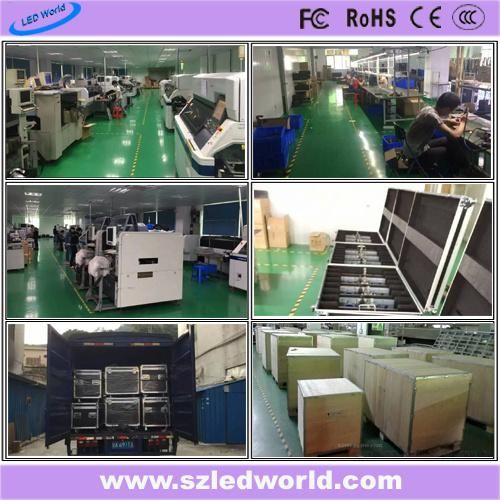

Workshop:

Our Services:
Pre-sales support:
1. We offered technical advice to you before buying our products.
2. Help you to choose suitable products within budget with most economy benefit.
3. Design the framework structure to install our led products with technical drawing.
4. We offered software customization for our your specific usage.
After- sales service:
1. We promise you more than just two years warranty service!
2.We provide free maintenance services including remote configuration, technical consultation, and trouble shooting for you.
3. We promise a life time follow-up service for all the equipment supply by our company. These include continuously improve of system functions and upgrade of system software.
4. We offered training to our customer who includes operating and maintenance of our products.
