• Model NO.：LW-FO 6
• Pixel Density：27777 DOT,M2
• Scanning Mode：1,4 Scan
• Display Type：LED Video Display
• Application：Advertising
• Certification：CE, RoHS, UL, CCC, ETL
• Pixel Configuration：1r1g1b SMD3535
• IP Grade：IP65
• Module Size (mm)：192X192,192X96
• Cabinet Size (mm)(Wxhxd)：960X960 X190
• Cabinet Weight：42 Kg
• Brightness：>6000CD,M2
• Viewing Distance：>6m
• Viewing Angle：H: 110°;   V: 60°
• Transport Package：Wooden,Case Carton Box or as Required
• Specification：CE UL RoHS FCC CCC etc
• Trademark：LED World
• Origin：Made in China
• HS Code：8528591090
• Production Capacity：10000sqm Per Moth

ItemsLW-FO6-SLW-P8-FOLW-P8-FOLW-P10-FOLW-P16-FOPixel
Configuration1R1G1B
SMD35351R1G1B
SMD35351R1G1B
DIP2461R1G1B
DIP3451R1G1B
DIP345Pixel Pitch6mm8mm8mm10mm16mmPixel Density27,77715,62515,62510,0003,906Module Size
(mm)192x96
or 192x192256x128256x128160x160256x128/256x256Pixels/Module32x16 or 32x3232x1632x1616x1616x8/16Cabinet Size
(mm)(WxHxD)960x960x1901024x1024
x1901024x1024
x190960x960x1901024x1024
x190Pixels/Cabinet160x160128x128128x12896x9664x64Cabinet Weight42KG48KG58KG51KG58KGBrightness>6000cd/>5000cd/>7000cd/>7000cd/>7000cd/Viewing Distance>6m>8m>8m>10m>16mPower
Consumption
(W/)Max: 1300
Ave: 260Max: 1000
Ave: 260Max: 1000
Ave: 300Max: 1000
Ave: 300Max: 1000

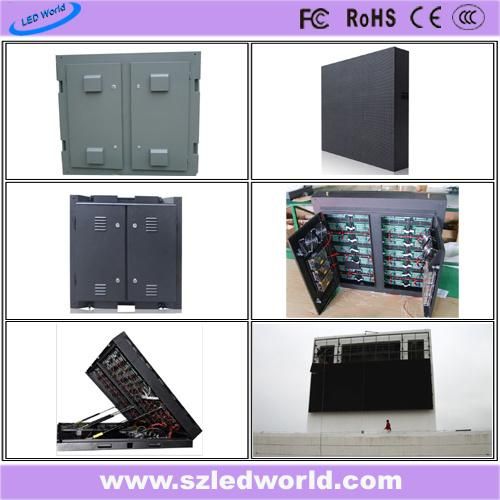

Ave: 200Driver Mode1/4 scan1/4 scan1/4 scan1/4 scanStatic LatchingViewing AngleH: 120°;   V: 120°H: 110°;   V: 60°Cabinet MaterialCold Rolled Steel or aluminumRefresh Rate300-3000HZ adjustableLED Life100,000 hoursSupply VoltageAC220V/50HZ; AC110V/60HZOperating Temperature-20ºC ~ +50ºCOperating Humidity10% - 90%Gray ScaleRed, Green and Blue each 16KDisplay Color4096 BillionIP RatingFront IP65Display CapabilityText, Graph and Videoproduct detail:

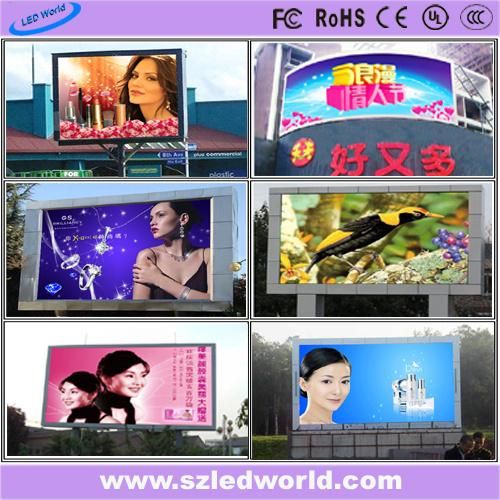

project case:

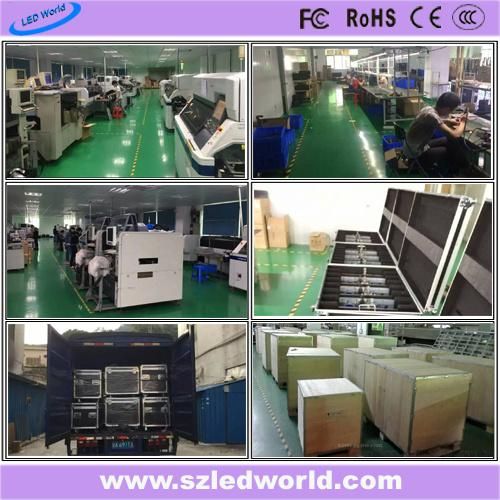

workshop and package:

After-sales Service
1: Warranty: 2 years.
2: Service time: 24 hours*7 days.
3: All of our LED display have proceeded aging test before shipment,
And we guarantee to use our products safety.
4: All the LED display are inspected before shipment, If any problems happen, do not hesitate to contact with us, our team will do our best to solve for customer within 48hours.

Installation:
User's manual, instruction video, professional CAD installation drawing, and other needed engineering drawings will be provided.

We only offer the drawings, and you can show the drawing to your local steel structure factory, and they will weld it for you at site. On one hand, it's not cost-effective for you to ship the steel structure from China. On the other hand, we are impossible to offer you exact steel structure without welding at site.

After-sale service:
1.Our products have two years warranty service ,lifetime free maintenance and upgrade.
2.Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3.We offered training to our customer who includes operating and maintenance of our products.
4.In the Maintenance period of the LED screen body, free of all maintenance charges; After Maintenance period, only charge the material costs fees free of manual work fees.
5.Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
6.If the users find any problem that cannot be solved, please contact with our company, we can response in 24 hours. In order to shorten the maintenance time, Our Company will deploy some spare parts such as power and chips etc.
